ASTM A570/A570M-98

Standard Specification for Steel, Sheet and Strip, Carbon, Hot-Rolled (Withdrawn 2000)

SCOPE
1.1 This specification covers hot-rolled carbon steel sheet and strip of structural quality in cut lengths or coils. This material is intended for structural purposes where mechanical test values are required, and is available in a maximum thickness of 0.229 in. [6.0 mm] except as limited by Specification A568/A568M and A749/A749M. The maximum thickness may be further limited by the capacity of the composition to meet the specified mechanical property requirements.
1.1.1 The following grades are covered in this specification: Mechanical Properties Yield Point, min, Tensile Strength, Grade ksi [MPa] min, ksi [MPa] 30 30 [205] 49 [340] 33 33 [230] 52 [360] 36 36 [250] 53 [365] 40 40 [275] 55 [380] 45 45 [310] 60 [415] 50 50 [345] 65 [450] 55 55 [380] 70 [480]
1.2 The values stated in either U.S. inch-pound units or SI (metric) units are to be regarded separately as standard. Within the text the SI units are shown in brackets. The values stated in each system are not exact equivalents, therefore each system must be used independently of the other. Combining values of the two systems may result in nonconformance with the specification.

General Information

• Status: Withdrawn
• Publication Date: 09-Jun-1998
• ICS: 77.140.50 - Flat steel products and semi-products
• Technical Committee: A01 - Steel, Stainless Steel and Related Alloys
• Drafting Committee: A01.19 - Steel Sheet and Strip

Standards Content (Sample)

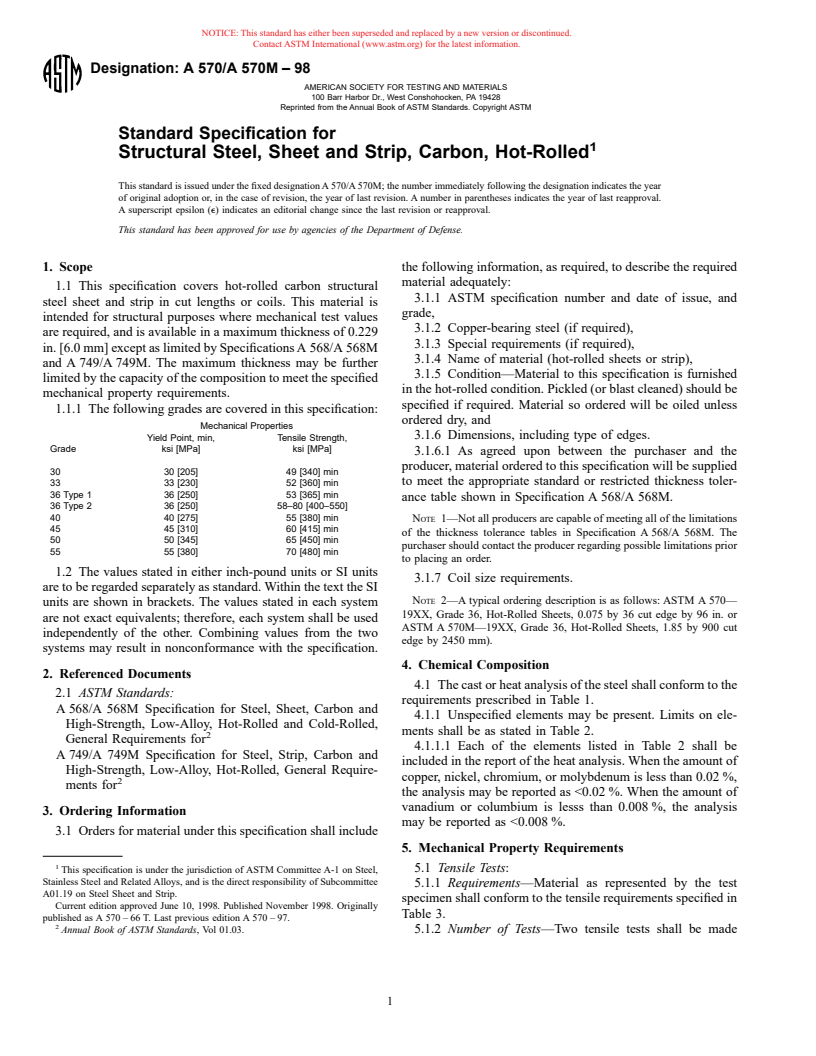

Designation: A 570/A 570M – 98
AMERICAN SOCIETY FOR TESTING AND MATERIALS
100 Barr Harbor Dr., West Conshohocken, PA 19428
Reprinted from the Annual Book of ASTM Standards. Copyright ASTM
Standard Specification for
1
Structural Steel, Sheet and Strip, Carbon, Hot-Rolled
This standard is issued under the fixed designation A 570/A 570M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (e) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the Department of Defense.
1. Scope the following information, as required, to describe the required
material adequately:
1.1 This specification covers hot-rolled carbon structural
3.1.1 ASTM specification number and date of issue, and
steel sheet and strip in cut lengths or coils. This material is
grade,
intended for structural purposes where mechanical test values
3.1.2 Copper-bearing steel (if required),
are required, and is available in a maximum thickness of 0.229
3.1.3 Special requirements (if required),
in. [6.0 mm] except as limited by Specifications A 568/A 568M
3.1.4 Name of material (hot-rolled sheets or strip),
and A 749/A 749M. The maximum thickness may be further
3.1.5 Condition—Material to this specification is furnished
limited by the capacity of the composition to meet the specified
in the hot-rolled condition. Pickled (or blast cleaned) should be
mechanical property requirements.
specified if required. Material so ordered will be oiled unless
1.1.1 The following grades are covered in this specification:
ordered dry, and
Mechanical Properties
3.1.6 Dimensions, including type of edges.
Yield Point, min, Tensile Strength,
Grade ksi [MPa] ksi [MPa]
3.1.6.1 As agreed upon between the purchaser and the
producer, material ordered to this specification will be supplied
30 30 [205] 49 [340] min
to meet the appropriate standard or restricted thickness toler-
33 33 [230] 52 [360] min
36 Type 1 36 [250] 53 [365] min
ance table shown in Specification A 568/A 568M.
36 Type 2 36 [250] 58–80 [400–550]
40 40 [275] 55 [380] min
NOTE 1—Not all producers are capable of meeting all of the limitations
45 45 [310] 60 [415] min
of the thickness tolerance tables in Specification A 568/A 568M. The
50 50 [345] 65 [450] min
purchaser should contact the producer regarding possible limitations prior
55 55 [380] 70 [480] min
to placing an order.
1.2 The values stated in either inch-pound units or SI units
3.1.7 Coil size requirements.
are to be regarded separately as standard. Within the text the SI
NOTE 2—A typical ordering description is as follows: ASTM A 570—
units are shown in brackets. The values stated in each system
19XX, Grade 36, Hot-Rolled Sheets, 0.075 by 36 cut edge by 96 in. or
are not exact equivalents; therefore, each system shall be used
ASTM A 570M—19XX, Grade 36, Hot-Rolled Sheets, 1.85 by 900 cut
independently of the other. Combining values from the two
edge by 2450 mm).
systems may result in nonconformance with the specification.
4. Chemical Composition
2. Referenced Documents
4.1 The cast or heat analysis of the steel shall conform to the
2.1 ASTM Standards:
requirements prescribed in Table 1.
A 568/A 568M Specification for Steel, Sheet, Carbon and
4.1.1 Unspecified elements may be present. Limits on ele-
High-Strength, Low-Alloy, Hot-Rolled and Cold-Rolled,
ments shall be as stated in Table 2.
2
General Requirements for
4.1.1.1 Each of the elements listed in Table 2 shall be
A 749/A 749M Specification for Steel, Strip, Carbon and
included in the report of the heat analysis. When the amount of
High-Strength, Low-Alloy, Hot-Rolled, General Require-
copper, nickel, chromium, or molybdenum is less than 0.02 %,
2
ments for
the analysis may be reported as <0.02 %. When the amount of
vanadium or columbium is lesss than 0.008 %, the analysis
3. Ordering Information
may be reported as <0.008 %.
3.1 Orders for material under this specification shall include
5. Mechanical Property Requirements
1
5.1 Tensile Tests:
This specification is under the jurisdiction of ASTM Committee A-1 on Steel,
Stainless Steel and Related Alloys, and is the direct responsibility of Subcommittee
5.1.1 Requirements—Material as represented by the test
A01.19 on Steel Sheet and Strip.
specimen shall conform to the tensile requirements specified in
Current edition approved June 10, 1998. Published November 1998. Originally
Table 3.
published as A 570 – 66 T. Last previous edition A 570 – 97.
2
Annual Book of ASTM Standards, Vol 01.03. 5.1.2 Number of Tests—Two tensile tests shall be made
1

---------------------- Page: 1 ----------------------
A 570/A 570M
TABLE 1 Chemical Requirements TABLE 2 Limits on Additional Elements (see 5.1.1)
A
Composition, Weight, % Copper, max % Heat analysis 0.20
Product analysis 0.23
Grades 30, 33, Grades 36
A
Element
Nickel, max % Heat a
...
