ASTM C212-14
(Specification)Standard Specification for Structural Clay Facing Tile
Standard Specification for Structural Clay Facing Tile
ABSTRACT
This specification covers structural clay load-bearing facing tile. Structural facing tile are tile designed for use in interior and exterior unplastered walls and partitions of buildings. Two classes of structural clay facing tile are covered: standard - tile suitable for general use in exterior or interior masonry walls and partitions, and special duty - tile suitable for general use in exterior or interior masonry walls and partitions, and designed to have superior resistance to impact and moisture transmission and to support greater lateral and compressive loads than standard tile construction. Two types of structural clay facing tile are covered: type FTX - smooth-face tile suitable for general use in exposed exterior and interior masonry walls and partitions, and type FTS - smooth- or rough texture face tile suitable for general use in exposed exterior and interior masonry walls and partitions. The tile shall conform to one of the requirements for water absorption of the type specified as prescribed. The tile shall conform to the requirements for compressive strength of the class specified as prescribed. The tile shall be of the sizes and shapes specified. Requirements as to coring shall apply to multicored tile only. The compressive strength and absorption by 1-h boiling shall be tested to meet the requirements prescribed.
SCOPE
1.1 This specification covers structural clay load-bearing facing tile. Structural facing tile are tile designed for use in interior and exterior unplastered walls and partitions of buildings.
1.2 The property requirements of this specification apply at the time of purchase. The use of results from testing of tile extracted from masonry structures for determining conformance or nonconformance to the property requirements (Section 6) of this standard is beyond the scope of this specification.
1.3 Tile covered by this specification are manufactured from clay, shale, or similar naturally occurring substances and subjected to a heat treatment at elevated temperatures (firing). The heat treatment must develop sufficient fired bond between the particulate constituents to provide the strength and durability requirements of this specification. (See firing and fired bond in Terminology C1232.)
1.4 The text of this specification references notes and footnotes which provide explanatory material. These notes and footnotes (excluding those in tables and figures) shall not be considered as requirements of the specification.
1.5 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
General Information
Relations
Buy Standard
Standards Content (Sample)
NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

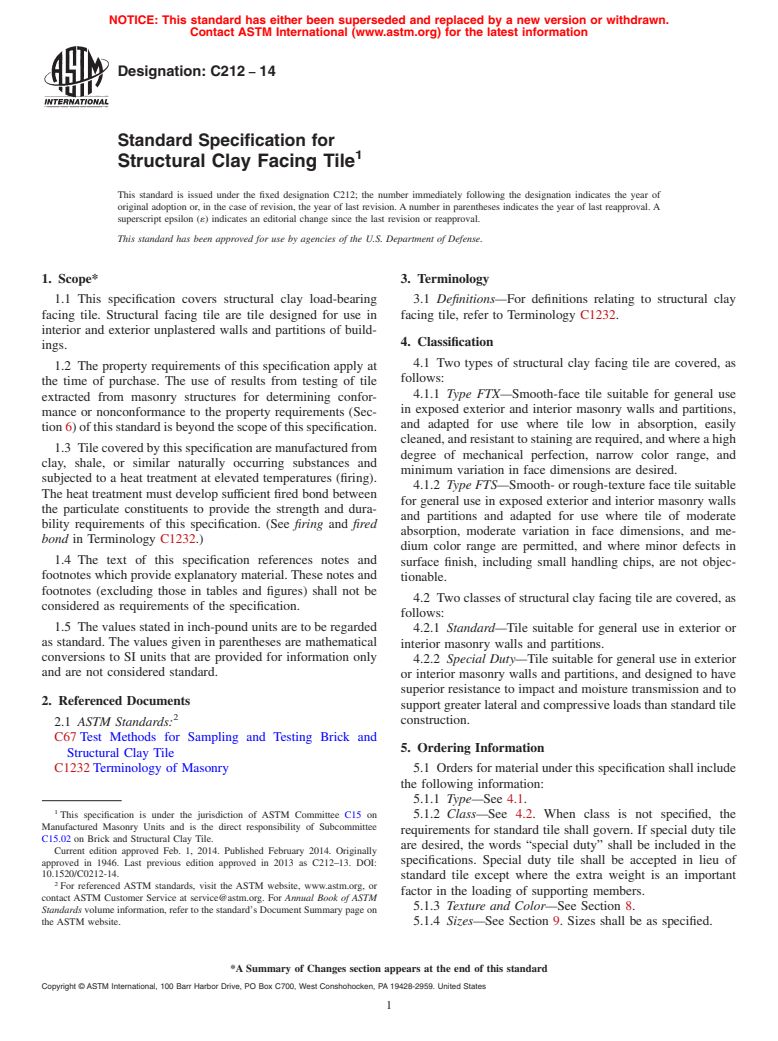

Designation:C212 −14
Standard Specification for
1
Structural Clay Facing Tile
This standard is issued under the fixed designation C212; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope* 3. Terminology
1.1 This specification covers structural clay load-bearing 3.1 Definitions—For definitions relating to structural clay
facing tile. Structural facing tile are tile designed for use in facing tile, refer to Terminology C1232.
interior and exterior unplastered walls and partitions of build-
4. Classification
ings.
4.1 Two types of structural clay facing tile are covered, as
1.2 The property requirements of this specification apply at
follows:
the time of purchase. The use of results from testing of tile
4.1.1 Type FTX—Smooth-face tile suitable for general use
extracted from masonry structures for determining confor-
in exposed exterior and interior masonry walls and partitions,
mance or nonconformance to the property requirements (Sec-
and adapted for use where tile low in absorption, easily
tion6)ofthisstandardisbeyondthescopeofthisspecification.
cleaned,andresistanttostainingarerequired,andwhereahigh
1.3 Tilecoveredbythisspecificationaremanufacturedfrom
degree of mechanical perfection, narrow color range, and
clay, shale, or similar naturally occurring substances and
minimum variation in face dimensions are desired.
subjected to a heat treatment at elevated temperatures (firing).
4.1.2 Type FTS—Smooth- or rough-texture face tile suitable
The heat treatment must develop sufficient fired bond between
for general use in exposed exterior and interior masonry walls
the particulate constituents to provide the strength and dura-
and partitions and adapted for use where tile of moderate
bility requirements of this specification. (See firing and fired
absorption, moderate variation in face dimensions, and me-
bond in Terminology C1232.)
dium color range are permitted, and where minor defects in
1.4 The text of this specification references notes and
surface finish, including small handling chips, are not objec-
footnotes which provide explanatory material. These notes and
tionable.
footnotes (excluding those in tables and figures) shall not be
4.2 Two classes of structural clay facing tile are covered, as
considered as requirements of the specification.
follows:
1.5 The values stated in inch-pound units are to be regarded
4.2.1 Standard—Tile suitable for general use in exterior or
as standard. The values given in parentheses are mathematical
interior masonry walls and partitions.
conversions to SI units that are provided for information only
4.2.2 Special Duty—Tile suitable for general use in exterior
and are not considered standard.
or interior masonry walls and partitions, and designed to have
superior resistance to impact and moisture transmission and to
2. Referenced Documents
support greater lateral and compressive loads than standard tile
2
construction.
2.1 ASTM Standards:
C67 Test Methods for Sampling and Testing Brick and
5. Ordering Information
Structural Clay Tile
C1232 Terminology of Masonry 5.1 Orders for material under this specification shall include
the following information:
5.1.1 Type—See 4.1.
1
This specification is under the jurisdiction of ASTM Committee C15 on
5.1.2 Class—See 4.2. When class is not specified, the
Manufactured Masonry Units and is the direct responsibility of Subcommittee
requirements for standard tile shall govern. If special duty tile
C15.02 on Brick and Structural Clay Tile.
are desired, the words “special duty” shall be included in the
Current edition approved Feb. 1, 2014. Published February 2014. Originally
specifications. Special duty tile shall be accepted in lieu of
approved in 1946. Last previous edition approved in 2013 as C212–13. DOI:
10.1520/C0212-14.
standard tile except where the extra weight is an important
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
factor in the loading of supporting members.
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
5.1.3 Texture and Color—See Section 8.
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. 5.1.4 Sizes—See Section 9. Sizes shall be as specified.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
C212−14

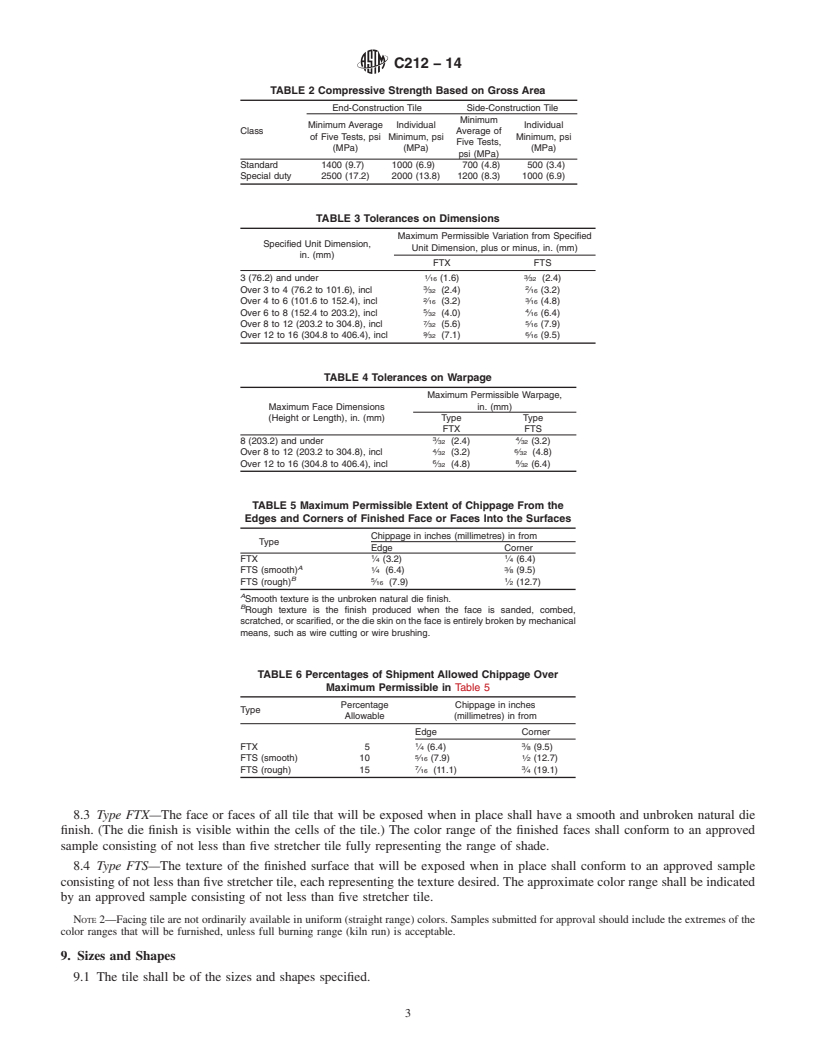

TABLE 2 Compressive Strength Based on Gross Area
5.1.5
...

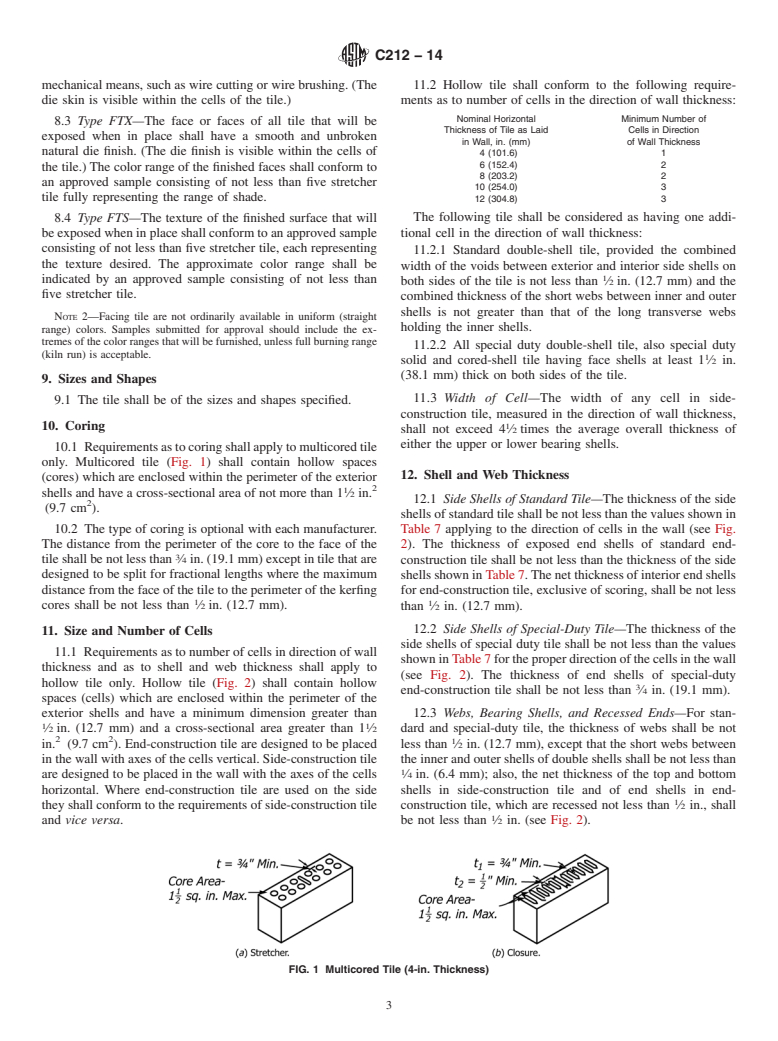

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

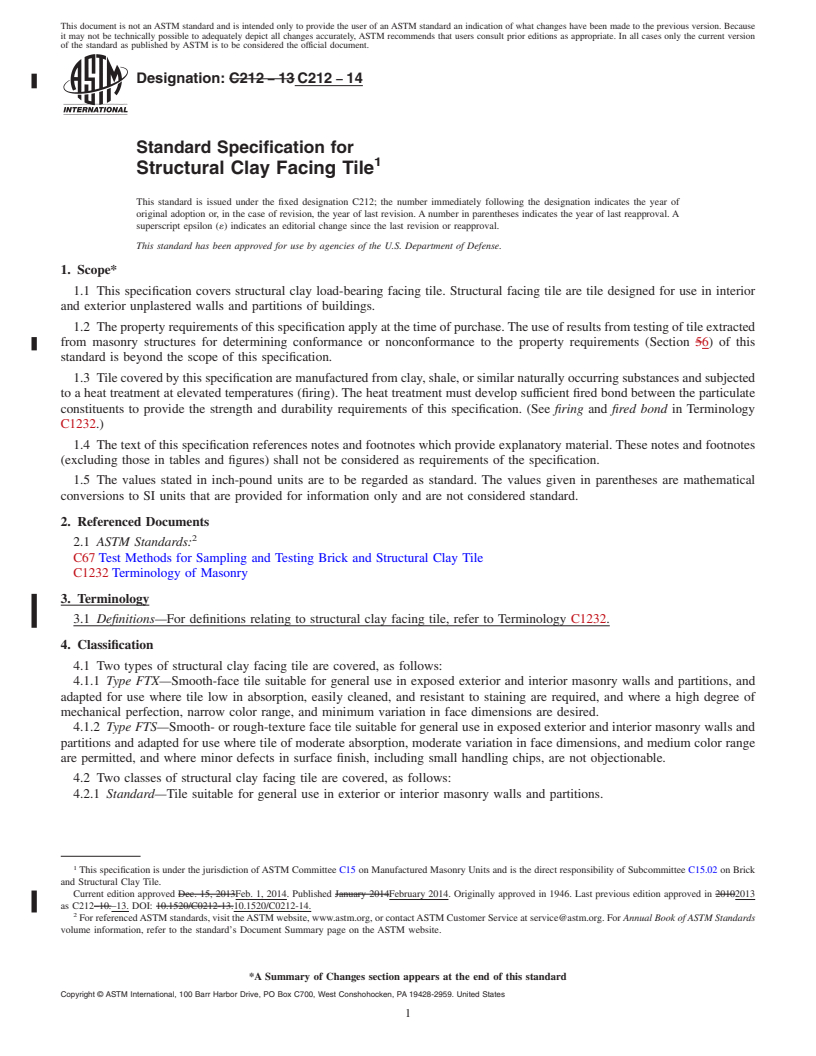

Designation: C212 − 13 C212 − 14
Standard Specification for
1
Structural Clay Facing Tile
This standard is issued under the fixed designation C212; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
1.1 This specification covers structural clay load-bearing facing tile. Structural facing tile are tile designed for use in interior
and exterior unplastered walls and partitions of buildings.
1.2 The property requirements of this specification apply at the time of purchase. The use of results from testing of tile extracted
from masonry structures for determining conformance or nonconformance to the property requirements (Section 56) of this
standard is beyond the scope of this specification.
1.3 Tile covered by this specification are manufactured from clay, shale, or similar naturally occurring substances and subjected
to a heat treatment at elevated temperatures (firing). The heat treatment must develop sufficient fired bond between the particulate
constituents to provide the strength and durability requirements of this specification. (See firing and fired bond in Terminology
C1232.)
1.4 The text of this specification references notes and footnotes which provide explanatory material. These notes and footnotes
(excluding those in tables and figures) shall not be considered as requirements of the specification.
1.5 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
2. Referenced Documents
2
2.1 ASTM Standards:
C67 Test Methods for Sampling and Testing Brick and Structural Clay Tile
C1232 Terminology of Masonry
3. Terminology
3.1 Definitions—For definitions relating to structural clay facing tile, refer to Terminology C1232.
4. Classification
4.1 Two types of structural clay facing tile are covered, as follows:
4.1.1 Type FTX—Smooth-face tile suitable for general use in exposed exterior and interior masonry walls and partitions, and
adapted for use where tile low in absorption, easily cleaned, and resistant to staining are required, and where a high degree of
mechanical perfection, narrow color range, and minimum variation in face dimensions are desired.
4.1.2 Type FTS—Smooth- or rough-texture face tile suitable for general use in exposed exterior and interior masonry walls and
partitions and adapted for use where tile of moderate absorption, moderate variation in face dimensions, and medium color range
are permitted, and where minor defects in surface finish, including small handling chips, are not objectionable.
4.2 Two classes of structural clay facing tile are covered, as follows:
4.2.1 Standard—Tile suitable for general use in exterior or interior masonry walls and partitions.
1
This specification is under the jurisdiction of ASTM Committee C15 on Manufactured Masonry Units and is the direct responsibility of Subcommittee C15.02 on Brick
and Structural Clay Tile.
Current edition approved Dec. 15, 2013Feb. 1, 2014. Published January 2014February 2014. Originally approved in 1946. Last previous edition approved in 20102013
as C212–10.–13. DOI: 10.1520/C0212-13.10.1520/C0212-14.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
C212 − 14
4.2.2 Special Duty—Tile suitable for general use in exterior or interior masonry walls and partitions, and designed to have
superior resistance to impact and moisture transmission and to support greater lateral and compressive loads than standard tile
construction.
5. Ordering Information
5.1 Orders for material under this specification shall include the following information:
5.1.1 Type—See 3.14.1.
5.1.2 Class—See 3.24.2. When class is not specified, the requirements for standard tile shall govern. If special duty tile are
desired,
...
