ASTM D4399-05(2023)

Standard Test Method for Measuring Electrical Conductivity of Electrocoat Baths

SIGNIFICANCE AND USE
4.1 The conductivity of electrocoat baths results from the presence of ionic species in the bath, which come from the vehicle and from the presence of impurities present as ionizable acids, bases, salts, or combinations of these. The presence of excessive amounts of ionic impurities is detrimental to the application and performance properties of electrocoating paints. The test is suitable for use in research, production, quality control and electrocoat bath process control.
4.2 Other related methods for determining the electrical conductivity of water are described in Test Methods D1125.
SCOPE
1.1 This test method covers the determination of the electrical conductivity of electrocoat baths or ultrafiltrate samples using commercially available equipment.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-May-2023
• ICS: 25.220.40 - Metallic coatings
• Technical Committee: D01 - Paint and Related Coatings, Materials, and Applications
• Drafting Committee: D01.21 - Chemical Analysis of Paints and Paint Materials

Relations

• Refers: ASTM D1193-06 - Standard Specification for Reagent Water
• Effective Date: 01-Mar-2006
• Refers: ASTM D1125-95(2005) - Standard Test Methods for Electrical Conductivity and Resistivity of Water
• Effective Date: 01-Apr-2005
• Refers: ASTM D1125-95(1999) - Standard Test Methods for Electrical Conductivity and Resistivity of Water
• Effective Date: 10-Jun-1999
• Refers: ASTM D1193-99e1 - Standard Specification for Reagent Water
• Effective Date: 10-Feb-1999
• Refers: ASTM D1193-99 - Standard Specification for Reagent Water
• Effective Date: 10-Feb-1999

Overview

ASTM D4399-05(2023), titled Standard Test Method for Measuring Electrical Conductivity of Electrocoat Baths, specifies a standardized procedure for determining the electrical conductivity of electrocoat baths and ultrafiltrate samples. Developed and maintained by ASTM International, this standard is widely adopted in industries utilizing electrocoating processes, such as automotive, appliance manufacturing, and metal finishing. The method is essential for monitoring bath quality, ensuring optimal paint performance, and maintaining process control.

Key Topics

• Electrical Conductivity of Electrocoat Baths:
  The standard focuses on measuring the electrical conductivity, which primarily results from ionic species present in the bath-originating from the vehicle or from dissolved impurities such as ionizable acids, bases, or salts.

• Significance of Conductivity Measurement:

  • High levels of ionic impurities can negatively affect paint application and film performance.
  • Regular monitoring of conductivity helps maintain bath integrity and reduce defects.

• Scope of Application:

  • Applicable to electrocoat baths and ultrafiltrate samples.
  • Utilizes standard SI units for consistency and clarity across international operations.

• Equipment and Sample Handling:

  • Uses commercially available instruments such as conductivity bridges and cells.
  • Emphasizes accurate sample preparation, proper calibration, and contamination prevention for reliable results.

• Precision and Reporting:

  • Measurements are reported in microsiemens (μS/cm).
  • The standard outlines procedures for repeatability and reproducibility to ensure reliable, consistent results.

Applications

ASTM D4399-05(2023) finds broad application across multiple areas:

• Research & Development:
  Enables formulation scientists and process engineers to evaluate new electrocoat bath formulations and modifications.

• Production and Process Control:
  Routine conductivity measurements ensure the bath maintains optimum properties, reducing the risk of defects and improving coating adhesion and appearance.

• Quality Control:
  Standardizes testing protocols for evaluating incoming materials and in-process monitoring, helping facilities meet customer and regulatory requirements.

• Bath Maintenance:
  Early detection of excess ionic contaminants allows timely corrective actions, minimizing operational disruptions and material waste.

The test method’s reliability and focus on bath uniformity and sample integrity make it an essential tool for facilities seeking consistent, high-quality electrocoating results.

Related Standards

When implementing ASTM D4399-05(2023), users may also reference the following ASTM standards:

• ASTM D1125 - Test Methods for Electrical Conductivity and Resistivity of Water:
  Provides foundational procedures for water conductivity measurements, relevant for interpreting bath ultrafiltrate data.

• ASTM D1193 - Specification for Reagent Water:
  Specifies purity requirements for water used in analytical procedures, including sample rinsing and cell cleaning.

Keywords:
electrocoat bath, electrical conductivity, ASTM D4399, quality control, electrocoating process, ionic impurities, bath process control, ultrafiltrate conductivity

---

By following ASTM D4399-05(2023), manufacturing and quality teams can ensure precise, consistent monitoring of electrocoat bath conductivity, ultimately supporting reliable electrocoating performance and superior end-product quality.

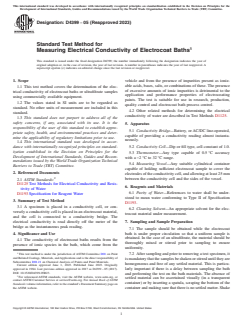

Standards Content (Sample)
