ASTM D5747/D5747M-21

(Practice)

Standard Practice for Tests to Evaluate the Chemical Resistance of Geomembranes to Liquids

Standard Practice for Tests to Evaluate the Chemical Resistance of Geomembranes to Liquids

SIGNIFICANCE AND USE
5.1 This practice is intended to provide a list of standard procedures for test programs investigating the chemical resistance of a geomembrane with a liquid waste, leachate, or chemical. This practice should be used in the absence of other specifications required for the particular situation being addressed.
5.2 Chemical resistance, as used in this practice, is not a quantifiable term. This practice is intended to provide a basis of standardization for those wishing to compare or investigate the chemical resistance of a geomembrane. It should be recognized that chemical resistance is a user judgment evaluation and that this practice does not offer procedures for interpreting the results obtained from test procedures contained in this practice. As a practice, this does not produce a test result.
Note 1: This practice is for the chemical resistance assessment of geomembranes and is written in parallel to similar standard practices for geotextiles, geonets, geogrids, geopipes, and geosynthetic clay liners. Each standard is to be considered individually for the geosynthetic under investigation and collectively for all geosynthetics exposed to the potentially harsh chemical environment under consideration.
SCOPE
1.1 This practice covers procedures for the testing of geomembranes for chemical resistance with liquid wastes, prepared chemical solutions, and leachates derived from solid wastes.
1.2 This practice covers procedures for testing semi-crystalline, amorphous, elastomeric, and fabric-reinforced geomembranes.
1.3 This practice is intended to be used in conjunction with Practice D5322 or D5496, or both. The scope of this practice is limited to testing and reporting procedures for unexposed and exposed geomembrane samples.
1.4 Evaluation and interpretation of test data are beyond the scope of this practice.
1.5 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific precautionary statements are given in Section 7.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
28-Feb-2021
ICS
59.080.70 - Geotextiles
Technical Committee
D35 - Geosynthetics
Drafting Committee
D35.02 - Endurance Properties
Current Stage
Ref Project

Relations

Refers
ASTM D4833/D4833M-07(2020) - Standard Test Method for Index Puncture Resistance of Geomembranes and Related Products
Effective Date
01-Jun-2020
Refers
ASTM D5397-20 - Standard Test Method for Evaluation of Stress Crack Resistance of Polyolefin Geomembranes Using Notched Constant Tensile Load Test
Effective Date
01-Jun-2020

Buy Standard

ASTM D5747/D5747M-21 - Standard Practice for Tests to Evaluate the Chemical Resistance of Geomembranes to LiquidsASTM D5747/D5747M-21 - Standard Practice for Tests to Evaluate the Chemical Resistance of Geomembranes to Liquids
PreviousNext
Standard
ASTM D5747/D5747M-21 - Standard Practice for Tests to Evaluate the Chemical Resistance of Geomembranes to Liquids
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview
REDLINE ASTM D5747/D5747M-21 - Standard Practice for Tests to Evaluate the Chemical Resistance of Geomembranes to LiquidsREDLINE ASTM D5747/D5747M-21 - Standard Practice for Tests to Evaluate the Chemical Resistance of Geomembranes to Liquids
PreviousNext
Standard
REDLINE ASTM D5747/D5747M-21 - Standard Practice for Tests to Evaluate the Chemical Resistance of Geomembranes to Liquids
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview

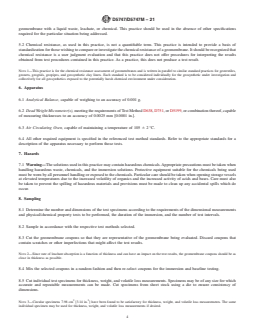

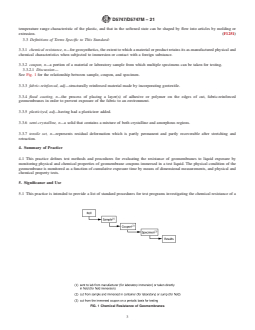

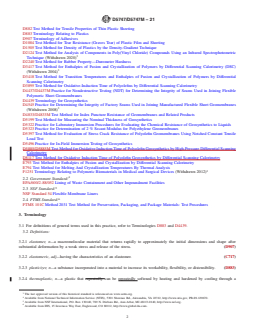

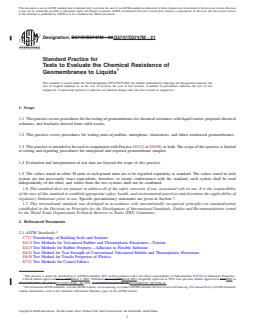

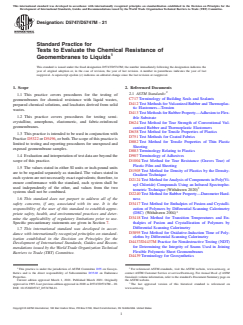

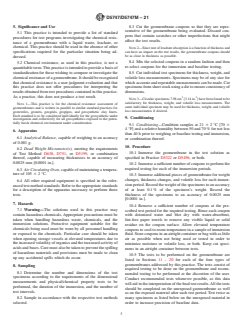

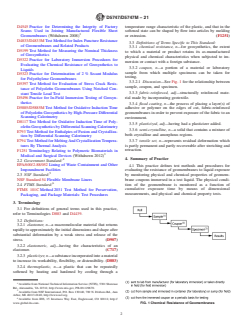

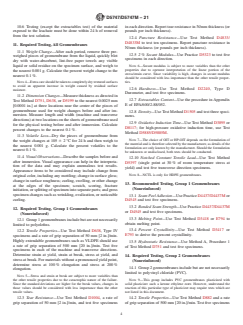

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: D5747/D5747M − 21
Standard Practice for
Tests to Evaluate the Chemical Resistance of
1
Geomembranes to Liquids
This standard is issued under the fixed designation D5747/D5747M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
2
2.1 ASTM Standards:
1.1 This practice covers procedures for the testing of
C717 Terminology of Building Seals and Sealants
geomembranes for chemical resistance with liquid wastes,
D412 Test Methods forVulcanized Rubber andThermoplas-
prepared chemical solutions, and leachates derived from solid
tic Elastomers—Tension
wastes.
D413 TestMethodsforRubberProperty—AdhesiontoFlex-
1.2 This practice covers procedures for testing semi-
ible Substrate
crystalline, amorphous, elastomeric, and fabric-reinforced
D624 Test Method for Tear Strength of Conventional Vul-
geomembranes.
canized Rubber and Thermoplastic Elastomers
D638 Test Method for Tensile Properties of Plastics
1.3 This practice is intended to be used in conjunction with
D751 Test Methods for Coated Fabrics
Practice D5322 or D5496, or both.The scope of this practice is
D882 Test Method for Tensile Properties of Thin Plastic
limited to testing and reporting procedures for unexposed and
Sheeting
exposed geomembrane samples.
D883 Terminology Relating to Plastics
1.4 Evaluation and interpretation of test data are beyond the
D907 Terminology of Adhesives
scope of this practice. D1004 Test Method for Tear Resistance (Graves Tear) of
Plastic Film and Sheeting
1.5 The values stated in either SI units or inch-pound units
D1505 Test Method for Density of Plastics by the Density-
are to be regarded separately as standard. The values stated in
Gradient Technique
each system are not necessarily exact equivalents; therefore, to
D2124 Test Method forAnalysis of Components in Poly(Vi-
ensure conformance with the standard, each system shall be
nyl Chloride) Compounds Using an Infrared Spectropho-
used independently of the other, and values from the two
3
tometric Technique (Withdrawn 2020)
systems shall not be combined.
D2240 Test Method for Rubber Property—Durometer Hard-
1.6 This standard does not purport to address all of the ness
D3417 Test Method for Enthalpies of Fusion and Crystalli-
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro- zation of Polymers by Differential Scanning Calorimetry
3
(DSC) (Withdrawn 2004)
priate safety, health, and environmental practices and deter-
mine the applicability of regulatory limitations prior to use. D3418 Test Method for Transition Temperatures and En-
thalpies of Fusion and Crystallization of Polymers by
Specific precautionary statements are given in Section 7.
Differential Scanning Calorimetry
1.7 This international standard was developed in accor-
D3895 Test Method for Oxidative-Induction Time of Poly-
dance with internationally recognized principles on standard-
olefins by Differential Scanning Calorimetry
ization established in the Decision on Principles for the
D4437/D4437M Practice for Nondestructive Testing (NDT)
Development of International Standards, Guides and Recom-
for Determining the Integrity of Seams Used in Joining
mendations issued by the World Trade Organization Technical
Flexible Polymeric Sheet Geomembranes
Barriers to Trade (TBT) Committee.
D4439 Terminology for Geosynthetics
1 2
This practice is under the jurisdiction of ASTM Committee D35 on Geosyn- For referenced ASTM standards, visit the ASTM website, www.astm.org, or
thetics and is the direct responsibility of Subcommittee D35.02 on Endurance contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Properties. Standards volume information, refer to the standard’s Document Summary page on
Current edition approved March 1, 2021. Published March 2021. Originally the ASTM website.
3
approved in 1995. Last previous edition approved in 2020 as D5747/D5747M – 20. The last approved version of this historical standard is referenced on
DOI: 10.1520/D5747_D5747M-21. www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D5747/D5747M − 21
D4545 Practice for Determining the Integrity of Factory temperature range characteristic of the plastic, and that in the
Seams Used in Joining Manufactured Flexible Sheet softened
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D5747/D5747M − 20 D5747/D5747M − 21
Standard Practice for
Tests to Evaluate the Chemical Resistance of
1
Geomembranes to Liquids
This standard is issued under the fixed designation D5747/D5747M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This practice covers procedures for the testing of geomembranes for chemical resistance with liquid wastes, prepared chemical
solutions, and leachates derived from solid wastes.
1.2 This practice covers procedures for testing semi-crystalline, amorphous, elastomeric, and fabric-reinforced geomembranes.
1.3 This practice is intended to be used in conjunction with Practice D5322 or D5496, or both. The scope of this practice is limited
to testing and reporting procedures for unexposed and exposed geomembrane samples.
1.4 Evaluation and interpretation of test data are beyond the scope of this practice.
1.5 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each
system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used
independently of the other, and values from the two systems shall not be combined.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use. Specific precautionary statements are given in Section 7.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
C717 Terminology of Building Seals and Sealants
D412 Test Methods for Vulcanized Rubber and Thermoplastic Elastomers—Tension
D413 Test Methods for Rubber Property—Adhesion to Flexible Substrate
D624 Test Method for Tear Strength of Conventional Vulcanized Rubber and Thermoplastic Elastomers
D638 Test Method for Tensile Properties of Plastics
D751 Test Methods for Coated Fabrics
1
This practice is under the jurisdiction of ASTM Committee D35 on Geosynthetics and is the direct responsibility of Subcommittee D35.02 on Endurance Properties.
Current edition approved Jan. 1, 2020March 1, 2021. Published January 2020March 2021. Originally approved in 1995. Last previous edition approved in 20132020 as
D5747/D5747M – 08 (2013).D5747/D5747M – 20. DOI: 10.1520/D5747_D5747M-20.10.1520/D5747_D5747M-21.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D5747/D5747M − 21
D882 Test Method for Tensile Properties of Thin Plastic Sheeting
D883 Terminology Relating to Plastics
D907 Terminology of Adhesives
D1004 Test Method for Tear Resistance (Graves Tear) of Plastic Film and Sheeting
D1505 Test Method for Density of Plastics by the Density-Gradient Technique
D2124 Test Method for Analysis of Components in Poly(Vinyl Chloride) Compounds Using an Infrared Spectrophotometric
3
Technique (Withdrawn 2020)
D2240 Test Method for Rubber Property—Durometer Hardness
D3417 Test Method for Enthalpies of Fusion and Crystallization of Polymers by Differential Scanning Calorimetry (DSC)
3
(Withdrawn 2004)
D3418 Test Method for Transition Temperatures and Enthalpies of Fusion and Crystallization of Polymers by Differential
Scanning Calorimetry
D3895 Test Method for Oxidative-Induction Time of Polyolefins by Differential Scanning Calorimetry
D4437/D4437M Practice for Nondestructive Testing (NDT) for Determining the Integrity of Seams Used in Joining Flexible
Polymeric Sheet Geomembranes
D4439 Terminology for Geosynthetics
D4545 Practice for Determining the Integrity of Factory Seams Used in J
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM D7106/D7106M-05(2023)(Guide)
Standard Guide for Selection of Test Methods for Ethylene Propylene Diene Terpolymer (EPDM) Geomembranes

SIGNIFICANCE AND USE
4.1 This standard provides guidance to obtain data that is the most representative of the material’s characteristics and performance. To properly evaluate EPDM, tests should be performed in accordance with specific test methods and procedures.
SCOPE
1.1 This guide covers and provides recommendations for the selection of appropriate test methods for Ethylene Propylene Diene Terpolymer (EPDM) geomembranes used in geotechnical and geoenvironmental applications.
1.2 This guide includes test methods for three different types of EPDM geomembranes including: scrim-reinforced membranes, composite membranes, and smooth, nonreinforced membranes.
1.3 The test methods are divided into three categories including manufacturing quality control, optional performance tests, and seam testing.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    3 pages
    English language
    sale 15% off
ASTM
ASTM D7361-07(2023)(Test Method)
Standard Test Method for Accelerated Compressive Creep of Geosynthetic Materials Based on Time-Temperature Superposition Using the Stepped Isothermal Method

SIGNIFICANCE AND USE
5.1 Use of the SIM decreases the time required for creep to occur and the obtaining of the associated data.
5.2 The statements set forth in 1.5 are very important in the context of significance and use, as well as scope of the standard.
5.3 Creep test data are used to calculate the creep modulus of materials as a function of time. These data are then used to predict the long-term creep deformation expected of geosynthetics used in drainage applications.
Note 1: Currently, SIM testing has focused mainly on geonets made from high-density polyethylene. Additional testing on other materials is ongoing.
5.4 R+H testing is done to establish the range of creep strains experienced in the brief period of very rapid response following the peak of the load ramp.
SCOPE
1.1 This test method covers accelerated testing for compressive creep properties using the stepped isothermal method (SIM).
1.2 The test method is focused on geosynthetic drainage materials such as HDPE geonet specimens.
1.3 The SIM tests are laterally unconfined tests based on time-temperature superposition procedures.
1.4 Ramp and hold (R+H) tests may be completed in conjunction with SIM tests. They are designed to provide additional estimates of the initial rapid compressive creep strain levels appropriate for the SIM results.
1.5 This method can be used to establish the sustained load compressive creep characteristics of a geosynthetic that demonstrates a relationship between time-dependent behavior and temperature. Results of this method are to be used to augment results of compressive creep tests performed at 20 ± 1 °C and may not be used as the sole basis for determination of long-term compressive creep behavior of geosynthetic material.
1.6 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    8 pages
    English language
    sale 15% off
ASTM
ASTM D6992-16(2023)(Test Method)
Standard Test Method for Accelerated Tensile Creep and Creep-Rupture of Geosynthetic Materials Based on Time-Temperature Superposition Using the Stepped Isothermal Method

SIGNIFICANCE AND USE
5.1 Use of the Stepped Isothermal Method decreases the time required for creep to occur and the obtaining of the associated data.
5.2 The statements set forth in 1.6 are very important in the context of significance and use, as well as scope of the standard.
5.3 Creep test data are used to calculate the creep modulus of materials as a function of time. These data are then used to predict the long-term creep deformation expected of geosynthetics used in reinforcement applications.
Note 1: Currently, SIM testing has focused mainly on woven and knitted geogrids and woven geotextiles made from polyester, aramid, polyaramid, poly-vinyl alcohol (PVA), and polypropylene yarns and narrow strips. Additional correlation studies on other materials are needed.
5.4 Creep-rupture test data are used to develop a regression line relating creep stress to rupture time. These results predict the long-term rupture strength expected for geosynthetics in reinforcement applications.
5.5 Tensile testing is used to establish the ultimate tensile strength (TULT) of a material and to determine elastic stress, strain, and variations thereof for SIM tests.
5.6 Ramp and Hold (R+H) testing is done to establish the range of creep strains experienced in the brief period of very rapid response following the peak of the load ramp.
SCOPE
1.1 This test method covers accelerated testing for tensile creep, and tensile creep-rupture properties using the Stepped Isothermal Method (SIM).
1.2 The test method is focused on geosynthetic reinforcement materials such as yarns, ribs of geogrids, or narrow geotextile specimens.
1.3 The SIM tests are laterally unconfined tests based on time-temperature superposition procedures.
1.4 Tensile tests are to be completed before SIM tests and the results are used to determine the stress levels for subsequent SIM tests defined in terms of the percentage of Ultimate Tensile Strength (TULT). Additionally, the tensile test can be designed to provide estimates of the initial elastic strain distributions appropriate for the SIM results.
1.5 Ramp and Hold (R+H) tests may be completed in conjunction with SIM tests. They are designed to provide additional estimates of the initial elastic and initial rapid creep strain levels appropriate for the SIM results.
1.6 This method can be used to establish the sustained load creep and creep-rupture characteristics of a geosynthetic. Results of this method are to be used to augment results of Test Method D5262 and may not be used as the sole basis for determination of long-term creep and creep-rupture behavior of geosynthetic material.
1.7 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.8 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.9 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    9 pages
    English language
    sale 15% off
ASTM
ASTM D5141-23(Test Method)
Standard Test Method for Determining Filtering Efficiency and Flow Rate of the Filtration Component of a Sediment Retention Device

SIGNIFICANCE AND USE
5.1 This test method is used to determine the filtering efficiency and flow rate of the filtration component of a sediment retention device, such as a silt fence, a silt barrier, or a silt curtain, for specific soil tested.
5.2 This test method may be used for the design of the filtration component of a sediment retention device to meet requirements of regulatory agencies in filtering efficiency or flow rate for the specific soil tested.
5.2.1 The designer can use this test method to determine the spacing between sediment retention devices.
5.3 This test method is intended for performance evaluation, as the results will depend on the specific soil evaluated. Unless testing with the default soil is desired, it is recommended that the user or representative perform the test to pre-approve products, as sediment retention device manufacturers are not typically equipped to handle or test soil requirements.
5.4 This test method provides a means of evaluating the filtration component of sediment retention devices with different soils under various conditions that simulate the conditions that exist in a sediment retention device installation. This test method may be used to simulate several storm events on the same sediment retention device specimen. Therefore, the number of times this test is repeated per specimen is dependent upon the user and the site conditions.
SCOPE
1.1 This test method is used to determine the filtering efficiency and the flow rate of the filtration component of a sediment retention device, such as a silt fence, silt barrier, or inlet protector.
1.1.1 The results are shown as a percentage for filtering efficiency and cubic metres per square metre per minute (m3/m2/min) or gallons per square foot per minute (gal/ft2/min) for flow rate.
1.1.2 The filtering efficiency indicates the percent of sediment removed from sediment-laden water.
1.1.3 The flow rate is the average rate of passage of the sediment-laden water through the filtration component of a sediment retention device.
1.2 This test method requires several specialized pieces of equipment, such as an integrated water sampler and an analytical balance, or a vacuum filtration system. At the client’s discretion, the test soil is either a site-specific soil or a soil that is representative of a target default gradation.
1.3 The values stated in SI units are the standard, while the inch-pound units are provided for information. The values expressed in each system may not be exact equivalents; therefore, each system must be used independently of the other, without combining values in any way.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM D4439-23b(Terminology)
Standard Terminology for Geosynthetics
  • Standard
    7 pages
    English language
    sale 15% off
  • Standard
    7 pages
    English language
    sale 15% off
ASTM
ASTM D4533/D4533M-15(2023)(Test Method)
Standard Test Method for Trapezoid Tearing Strength of Geotextiles

SIGNIFICANCE AND USE
5.1 The trapezoid tear method is a test that produces tension along a reasonably defined course such that the tear propagates across the width of the specimen. The trapezoid tearing strength for woven fabrics is determined primarily by the properties of the yarns that are gripped in the clamps. In nonwoven fabrics, because the individual fibers are more or less randomly oriented and capable of some reorientation in the direction of the applied load, the maximum trapezoid tearing strength is reached when the resistance to further reorientation is greater than the force required to rupture one or more fibers simultaneously.
5.2 The trapezoid tearing strength method is useful for estimating the relative tear resistance of different fabrics or different directions in the same fabric.
5.3 This test method may be used for acceptance testing of commercial shipments; however, caution is advised since information about between-laboratory precision is incomplete. Comparative tests as directed in 5.3.1 may be advisable.
5.3.1 In case of a dispute arising from differences in reported test results when using this test method for acceptance testing of commercial shipments, the purchaser and the supplier should conduct comparative tests to determine if there is a statistical bias between their laboratories. Competent statistical assistance is recommended for the investigation of bias. As a minimum, the two parties should take a group of test specimens that are as homogeneous as possible and that are from a lot of material of the type in question. Test specimens should then be randomly assigned in equal numbers to each laboratory for testing. The average results from the two laboratories should be compared using the appropriate Student's t-test and an acceptable probability level chosen by the two parties before testing is begun. If a bias is found, either its cause must be found and corrected or the purchaser and the supplier must agree to interpret future test results in...
SCOPE
1.1 This test method is an index test used to measure the force required to continue or propagate a tear in woven or nonwoven geotextiles by the trapezoid method. While useful for quality control and acceptance testing, the trapezoid tear test does not provide all the information needed for all design applications and other test methods should be used.
1.2 This test method is applicable to most geotextiles that include woven fabrics, nonwoven fabrics, layered fabrics, knit fabrics, and felts that are used for geotextile applications.
1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM D8490-23a(Test Method)
Standard Test Method for Determining the Pore Size Characteristics of Geotextiles Using an Optical Method

SIGNIFICANCE AND USE
5.1 The significant opening size of geotextiles is usually determined using Test Method D4751, which involves sieving calibrated beads through specimens of the geotextile being evaluated. However, Test Method D4751 includes many risks of errors due to static electricity, precision of the glass beads, among other issues.5 This risk of error is even higher with knitted geotextiles which exhibit a very low tensile modulus. This test method is proposed as an alternate to Test Method D4751 using a nondestructive technique, where the stress conditions are controlled without manipulation of the specimen.
5.2 This test method has been found to provide representative results for products exhibiting a planar structure, such as two-dimensional knits.
5.3 In case of a dispute arising from differences in reported test results when using ASTM D4751 Method A and this method, ASTM D4751 Method A shall be considered the referee method. However, data obtained using ASTM D4751 Method A should be reviewed considering the high risk of human error associated with the control of the stress condition of the geotextile.
5.4 Equivalency with the other pore opening size determined using other standards (for example, ISO 12956 and CGSB 148.1 No. 10) can also be considered using adequate correlations with test results obtained with these standards.
SCOPE
1.1 This test method covers the determination of the pore size characteristics of geotextiles using an optical method and image analysis.
1.2 This method has been developed for determination of the Image Opening Size (IOS) of knitted geotextiles by image analysis. Other properties may be obtained based on the pore size distribution.
1.3 The applicability of this test method must be assessed on a product-by-product basis, as it requires light to pass through its thickness to provide a useful observation. As a general rule, the tested product must be thin. Example of products which cannot be tested using this test method is thick needle-punched nonwoven and woven with a complex three-dimensional structure.
1.4 This test method shows values in both SI units and inch-pound units. SI units is the technically correct name for the system of metric units known as the International System of Units. Inch-pound units is the technically correct name for the customary units used in the United States. The values in inch-pound units are provided for information only.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    9 pages
    English language
    sale 15% off
  • Standard
    9 pages
    English language
    sale 15% off
ASTM
ASTM D7852-23(Practice)
Standard Practice for Use of an Electrically Conductive Geotextile for Leak Location Surveys

SIGNIFICANCE AND USE
5.1 With the increased use of geomembranes as a barrier material to restrict liquid migration from one location to another, a need has been created for standardized tests by which the continuity of the installed geomembrane, including the seams, can be evaluated. This practice is intended to meet such a need whenever the subgrade soil is nonconductive, or a geomembrane is installed on a nonconductive material.
5.2 The use of a suitably conductive geotextile installed between a nonconductive soil or material and the geomembrane will permit electrical leak location survey to be conducted.
5.3 The compatibility of a conductive geotextile and leak location equipment shall be assessed for each leak location technique considered (covered or exposed, when applicable). A realistic small-scale test shall have been conducted by the supplier of geotextile and/or leak detection equipment to demonstrate their mutual compatibility for a given leak detection technique.
SCOPE
1.1 This standard practice describes standard procedures for using a conductive geotextile with electrical methods to locate leaks in exposed geomembranes and geomembranes covered with water or earth materials containing moisture.
1.2 This standard practice provides guidance for the use of appropriate conductive geotextile used in leak location surveys on geomembranes. This guide includes all types of conductive geotextiles with sufficient conductivity for the particular electrical leak location method. A conductive geotextile is applicable to all types of geoelectric surveys when there is otherwise not a conductive layer under the geomembrane.
1.3 This standard practice is intended to ensure that leak location surveys can always be performed with a reasonable level of certainty. This standard practice provides guidance for the use of appropriate conductive geotextiles used in leak location surveys on geomembranes.
1.4 Leak location surveys can be used on nonconductive geomembranes installed in basins, ponds, tanks, ore and waste pads, landfill cells, landfill caps, other containment facilities, and building applications such as in parking garages, decks, and green roofs. The procedures are applicable for geomembranes made of nonconductive materials such as polyethylene, polypropylene, polyvinyl chloride, chlorosulfonated polyethylene, bituminous material, and other electrically insulating materials. Leak location surveys involving conductive or partially conductive geomembranes are not within the scope of this document.
1.5 Warning—The electrical methods used for geomembrane leak location could use high voltages, resulting in the potential for electrical shock or electrocution. This hazard might be increased because operations might be conducted in or near water. In particular, a high voltage could exist between the water or earth material and earth ground, or any grounded conductor. These procedures are potentially VERY DANGEROUS, and can result in personal injury or death. Because of the high voltage that could be involved, and the shock or electrocution hazard, do not come in electrical contact with any leak unless the excitation power supply is turned off. The electrical methods used for geomembrane leak location should be attempted only by qualified and experienced personnel. Appropriate safety measures must be taken to protect the leak location operators as well as other people at the site.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and...

  • Standard
    3 pages
    English language
    sale 15% off
  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM D7737/D7737M-15(2023)(Test Method)
Standard Test Method for Individual Geogrid Junction Strength

SIGNIFICANCE AND USE
5.1 This index test method is to be used to determine the strength of an individual junction in a geogrid product. The test is performed in isolation, while in service the junction is typically confined. Thus the results from this test method are not anticipated to be related to design performance.
5.2 The value of junction strength can be used for manufacturing quality control, development of new products, or a general understanding of the in-isolation behavior of a particular geogrid’s junction (for example, in relation to handling during shipment and placement of the geogrid).
5.3 This test method is applicable to geogrid products with essentially symmetrical orthogonal or non-orthogonal ribs, yarns, or straps, that is, geogrids which are composed of ribs, yarns, or straps that are entangled through weaving or knitting, welded, bonded, or formed through drawing.
SCOPE
1.1 This test method is an index test which provides a procedure for determining the strength of an individual geogrid junction, also called a node. The test is configured such that a single rib is pulled from its junction with a rib(s) transverse to the test direction to obtain the maximum force, or strength of the junction. The procedure allows for the use of two different clamps with the appropriate clamp selected to minimize the influence of the clamping mechanism on the specific type of geogrid to be tested.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    8 pages
    English language
    sale 15% off
ASTM
ASTM D7864/D7864M-15(2023)(Test Method)
Standard Test Method for Determining the Aperture Stability Modulus of Geogrids

SIGNIFICANCE AND USE
5.1 The aperture stability modulus is a measure of the in-plane shear modulus, which is a function of other geogrid characteristics, most notably junction stability, flexural rib stiffness, and rib tensile modulus.
5.2 The test data can be used in conjunction with interpretive methods to evaluate the geogrid aperture stability at various traffic loads and base/subgrade conditions.
Note 1: Aperture stability modulus is referenced in the FHWA Geosynthetics Design and Construction Guidelines (2008) as an input parameter for the design of geogrid-reinforced unpaved roads using punched and drawn biaxial geogrids. Geogrids of different manufacturing process and material composition may use this property in calibration and validation of their material within the associated design.
5.3 This test method is not intended for routine acceptance testing of geogrid. This test method should be used to characterize geogrid intended for use in applications in which aperture stability is considered relevant.
SCOPE
1.1 This test method covers the procedure for measuring the Aperture Stability Modulus of a geogrid. (The terms “Secant Aperture Stability Modulus,” “Torsional Rigidity Modulus,” “In-plane Shear Modulus,” and “Torsional Stiffness Modulus” have been used in the literature to describe this same property.)
1.2 This test method is intended to determine the in-plane stability of a geogrid by clamping a center node and measuring the stiffness over an area of the geogrid. This test method is applicable for various types of geogrid.
1.3 This test method is intended to provide characteristic properties for design. The test method was developed for pavement and subgrade improvement calibrated design methods requiring input of aperture stability modulus.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    7 pages
    English language
    sale 15% off
