ASTM C568/C568M-22
(Specification)Standard Specification for Limestone Dimension Stone
Standard Specification for Limestone Dimension Stone
SCOPE
1.1 This specification covers the material characteristics, physical requirements, and sampling appropriate to the selection of limestone for general building and structural purposes. Refer to Guides C1242 and C1528 for the appropriate selection and use of limestone dimension stone.
1.2 Dimension limestone shall include stone that is sawed, cut, split, or otherwise finished or shaped and shall specifically exclude molded, cast, or otherwise artificially aggregated units of composed fragments, and also crushed and broken stone.
1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Jul-2022
- Technical Committee
- C18 - Dimension Stone
- Drafting Committee
- C18.03 - Material Specifications
Relations
- Effective Date
- 01-Apr-2024
- Effective Date
- 01-Mar-2024
- Effective Date
- 15-Nov-2023
- Effective Date
- 01-Nov-2023
- Effective Date
- 01-Oct-2023
- Effective Date
- 01-Sep-2023
- Effective Date
- 01-Nov-2019
- Effective Date
- 01-May-2019
- Effective Date
- 01-Apr-2019
- Effective Date
- 01-Oct-2018
- Refers
ASTM C97/C97M-18 - Standard Test Methods for Absorption and Bulk Specific Gravity of Dimension Stone - Effective Date
- 01-May-2018
- Effective Date
- 01-Mar-2018
- Effective Date
- 01-Feb-2018
- Effective Date
- 01-Apr-2017
- Effective Date
- 01-Sep-2016
Overview
ASTM C568/C568M-22: Standard Specification for Limestone Dimension Stone provides comprehensive requirements for selecting and classifying limestone intended for building and structural applications. Developed by ASTM International, this standard outlines the material characteristics, physical properties, and sampling procedures necessary to ensure limestone’s suitability, durability, and performance in construction. By following recognized international standardization principles, ASTM C568/C568M-22 supports consistent quality and global trade compliance for dimension limestone used in a range of architectural and engineering projects.
Key Topics
- Material Characteristics: Specifies soundness and durability requirements, ensuring limestone is free from spalls, cracks, open seams, or any defect that may affect its structural performance.
- Physical Requirements: Establishes minimum requirements for absorption, bulk specific gravity, density, compressive strength, modulus of rupture, and abrasion resistance.
- Low-density, medium-density, and high-density classifications based on measured density
- Testing methods referenced, including ASTM C97/C97M, C99/C99M, C170/C170M, C241/C241M, and C1353, ensure objective evaluation of essential properties
- Product Definition: Limits standardized limestone dimension stone to those that are sawn, cut, split, or otherwise finished and excludes artificially aggregated or crushed stones.
- Sampling and Selection: Describes procedures for sample preparation and selection of control samples to verify color, texture, and quality across production.
- Units of Measurement: Permits use of both SI and inch-pound units independently, ensuring clear and non-ambiguous reporting in accordance with international practices.
Applications
Limestone dimension stone certified under ASTM C568/C568M-22 is widely used in:
- Building Facades: Chosen for aesthetic appeal, durability, and weather resistance in exterior cladding
- Structural Components: Used in columns, lintels, and load-bearing elements due to strict strength and density requirements
- Interior Features: Selected for flooring, wall panels, stair treads, and decorative stonework in both commercial and residential spaces
- Landscape and Site Design: Employed in architectural hardscapes, garden walls, and paving, leveraging the standard’s focus on abrasion resistance and durability
- Historic Preservation and Restoration: Assures a reliable quality benchmark when sourcing replacement materials for restoration of heritage buildings
By adhering to ASTM C568/C568M-22, specifiers, architects, contractors, and stone suppliers can be confident in the limestone’s suitability for both visual consistency and structural performance, reducing project risk and streamlining procurement processes.
Related Standards
Several ASTM standards are referenced or complement ASTM C568/C568M-22 for dimension stone, including:
- ASTM C97/C97M: Test Methods for Absorption and Bulk Specific Gravity of Dimension Stone
- ASTM C99/C99M: Modulus of Rupture of Dimension Stone
- ASTM C170/C170M: Compressive Strength of Dimension Stone
- ASTM C241/C241M: Abrasion Resistance of Stone Subjected to Foot Traffic
- ASTM C1353: Abrasion Resistance Using a Rotary Platform Abraser
- ASTM C1242: Guide for Selection, Design, and Installation of Dimension Stone Attachment Systems
- ASTM C1528: Guide for Selection of Dimension Stone
- ASTM C119: Terminology Relating to Dimension Stone
For those involved in the specification, selection, use, and testing of limestone dimension stone, ASTM C568/C568M-22 serves as an essential resource for ensuring material quality, performance, and compliance in the built environment.
Buy Documents
ASTM C568/C568M-22 - Standard Specification for Limestone Dimension Stone
REDLINE ASTM C568/C568M-22 - Standard Specification for Limestone Dimension Stone
Get Certified
Connect with accredited certification bodies for this standard
ICC Evaluation Service
Building products evaluation and certification.
QAI Laboratories
Building and construction product testing and certification.
Aboma Certification B.V.
Specialized in construction, metal, and transport sectors.
Sponsored listings
Frequently Asked Questions
ASTM C568/C568M-22 is a technical specification published by ASTM International. Its full title is "Standard Specification for Limestone Dimension Stone". This standard covers: SCOPE 1.1 This specification covers the material characteristics, physical requirements, and sampling appropriate to the selection of limestone for general building and structural purposes. Refer to Guides C1242 and C1528 for the appropriate selection and use of limestone dimension stone. 1.2 Dimension limestone shall include stone that is sawed, cut, split, or otherwise finished or shaped and shall specifically exclude molded, cast, or otherwise artificially aggregated units of composed fragments, and also crushed and broken stone. 1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SCOPE 1.1 This specification covers the material characteristics, physical requirements, and sampling appropriate to the selection of limestone for general building and structural purposes. Refer to Guides C1242 and C1528 for the appropriate selection and use of limestone dimension stone. 1.2 Dimension limestone shall include stone that is sawed, cut, split, or otherwise finished or shaped and shall specifically exclude molded, cast, or otherwise artificially aggregated units of composed fragments, and also crushed and broken stone. 1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM C568/C568M-22 is classified under the following ICS (International Classification for Standards) categories: 91.100.15 - Mineral materials and products. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM C568/C568M-22 has the following relationships with other standards: It is inter standard links to ASTM C170/C170M-24a, ASTM C170/C170M-24, ASTM C1242-23c, ASTM C1242-23b, ASTM C1242-23a, ASTM C170/C170M-23, ASTM C1242-19a, ASTM C119-19, ASTM C1242-19, ASTM C99/C99M-18, ASTM C97/C97M-18, ASTM C1242-18a, ASTM C1242-18, ASTM C170/C170M-17, ASTM C1242-16. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM C568/C568M-22 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

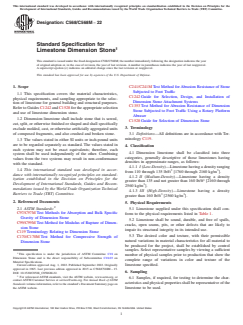

Designation:C568/C568M −22
Standard Specification for
Limestone Dimension Stone
This standard is issued under the fixed designation C568/C568M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope C241/C241M Test Method forAbrasion Resistance of Stone
Subjected to Foot Traffic
1.1 This specification covers the material characteristics,
C1242 Guide for Selection, Design, and Installation of
physical requirements, and sampling appropriate to the selec-
Dimension Stone Attachment Systems
tion of limestone for general building and structural purposes.
C1353 Test Method for Abrasion Resistance of Dimension
Refer to Guides C1242 and C1528 for the appropriate selection
Stone Subjected to Foot Traffic Using a Rotary Platform
and use of limestone dimension stone.
Abraser
1.2 Dimension limestone shall include stone that is sawed,
C1528 Guide for Selection of Dimension Stone
cut, split, or otherwise finished or shaped and shall specifically
3. Terminology
exclude molded, cast, or otherwise artificially aggregated units
of composed fragments, and also crushed and broken stone.
3.1 Definitions—All definitions are in accordance with Ter-
minology C119.
1.3 The values stated in either SI units or inch-pound units
are to be regarded separately as standard. The values stated in
4. Classification
each system may not be exact equivalents; therefore, each
4.1 Dimension limestone shall be classified into three
system shall be used independently of the other. Combining
categories, generally descriptive of those limestones having
values from the two systems may result in non-conformance
densities in approximate ranges, as follows:
with the standard.
4.1.1 I (Low-Density)—Limestone having a density ranging
1.4 This international standard was developed in accor- 3 3
from 110 through 135 lb/ft [1760 through 2160 kg/m ].
dance with internationally recognized principles on standard-
4.1.2 II (Medium-Density)—Limestone having a density
ization established in the Decision on Principles for the 3
greater than 135 and not greater than 160 lb/ft [2160 through
Development of International Standards, Guides and Recom- 3
2560 kg/m ].
mendations issued by the World Trade Organization Technical
4.1.3 III (High-Density)—Limestone having a density
Barriers to Trade (TBT) Committee. 3 3
greater than 160 lb/ft [2560 kg/m ].
2. Referenced Documents
5. Physical Requirements
2.1 ASTM Standards:
5.1 Limestone supplied under this specification shall con-
C97/C97M Test Methods for Absorption and Bulk Specific
form to the physical requirements listed in Table 1.
Gravity of Dimension Stone
5.2 Limestone shall be sound, durable, and free of spalls,
C99/C99M Test Method for Modulus of Rupture of Dimen-
cracks, open seams, pits, or other defects that are likely to
sion Stone
impair its structural integrity in its intended use.
C119 Terminology Relating to Dimension Stone
5.3 The desired color and texture, with their permissible
C170/C170M Test Method for Compressive Strength of
natural variations in material characteristics for all material to
Dimension Stone
be produced for the proje
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

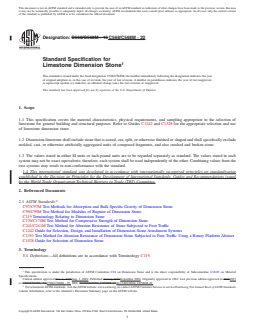

Designation: C568/C568M − 15 C568/C568M − 22
Standard Specification for
Limestone Dimension Stone
This standard is issued under the fixed designation C568/C568M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope
1.1 This specification covers the material characteristics, physical requirements, and sampling appropriate to the selection of
limestone for general building and structural purposes. Refer to Guides C1242 and C1528 for the appropriate selection and use
of limestone dimension stone.
1.2 Dimension limestone shall include stone that is sawed, cut, split, or otherwise finished or shaped and shall specifically exclude
molded, cast, or otherwise artificially aggregated units of composed fragments, and also crushed and broken stone.
1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each
system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the
two systems may result in non-conformance with the standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
C97/C97M Test Methods for Absorption and Bulk Specific Gravity of Dimension Stone
C99/C99M Test Method for Modulus of Rupture of Dimension Stone
C119 Terminology Relating to Dimension Stone
C170/C170M Test Method for Compressive Strength of Dimension Stone
C241/C241M Test Method for Abrasion Resistance of Stone Subjected to Foot Traffic
C1242 Guide for Selection, Design, and Installation of Dimension Stone Attachment Systems
C1353 Test Method for Abrasion Resistance of Dimension Stone Subjected to Foot Traffic Using a Rotary Platform Abraser
C1528 Guide for Selection of Dimension Stone
3. Terminology
3.1 Definitions—All definitions are in accordance with Terminology C119.
This specification is under the jurisdiction of ASTM Committee C18 on Dimension Stone and is the direct responsibility of Subcommittee C18.03 on Material
Specifications.
Current edition approved Dec. 1, 2015Aug. 1, 2022. Published January 2016September 2022. Originally approved in 1965. Last previous edition approved in 20102015
as C568/C568M – 10.C568/C568M – 15. DOI: 10.1520/C0568_C0586M-15.10.1520/C0568_C0586M-22.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
C568/C568M − 22
4. Classification
4.1 Dimension limestone shall be classified into three categories, generally descriptive of those limestones having densities in
approximate ranges, as follows:
3 3
4.1.1 I (Low-Density)—Limestone having a density ranging from 110 through 135 lb/ft [1760 through 2160 kg/m ].
4.1.2 II (Medium-Density
...
