prEN 2133

Aerospace series - Cadmium plating of steels with specified tensile strength ≤ 1 450 MPa, copper, copper alloys and nickel alloys

This document specifies the electrolytic cadmium plating of parts and fasteners in steel of tensile strength UTS ≤ 1 450 MPa, copper, copper alloys and nickel alloys, whose temperature in service does not exceed 235 °C.

Luft- und Raumfahrt - Cadmieren von Stählen mit einer Zugfestigkeit ≤ 1 450 MPa, Kupfer, Kupferlegierungen und Nickellegierungen

Dieses Dokument legt das elektrolytische Cadmieren von Teilen aus Stahl mit einer Zugfestigkeit UTS ≤ 1 450 MPa, aus Kupfer, Kupferlegierungen und Nickellegierungen fest, deren Betriebstemperatur 235 °C nicht überschreitet.

Série aérospatiale - Cadmiage électrolytique des aciers de résistance ≤ 1 450 MPa, du cuivre, des alliages de cuivre et des alliages de nickel

Le présent document spécifie le cadmiage électrolytique des pièces et éléments de fixation en acier de résistance à la traction UTS  1 450 MPa, en cuivre, alliages de cuivre et alliages de nickel, dont la température en service ne dépasse pas 235 °C.

Aeronavtika - Kadmiranje jekla z določeno natezno trdnostjo ≤ 1 450 MPa z bakrom, bakrovimi in nikljevimi zlitinami

General Information

• Status: Not Published
• Publication Date: 20-Dec-2026
• ICS: 49.040 - Coatings and related processes used in aerospace industry
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 4/S 6 - Surface treatments for Metallic
• Current Stage: 4020 - Submission to enquiry - Enquiry
• Start Date: 26-Jun-2025
• Completion Date: 26-Jun-2025
• Ref Project: oSIST prEN 2133:2025 - Aerospace series - Cadmium plating of steels with specified tensile strength ≤ 1 450 MPa, copper, copper alloys and nickel alloys

Relations

• Revises: EN 2133:2020 - Aerospace series - Cadmium plating of steels with specified tensile strength ≤ 1 450 MPa, copper, copper alloys and nickel alloys
• Effective Date: 18-Dec-2024

Standards Content (Sample)

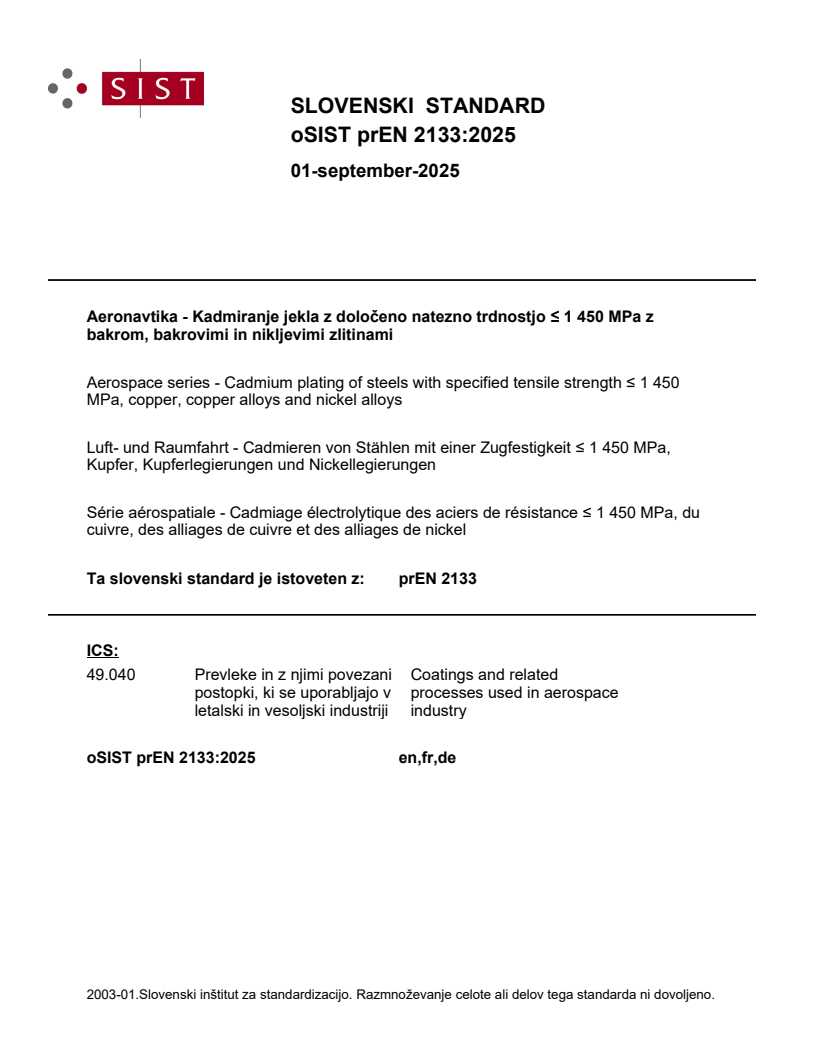

SLOVENSKI STANDARD
01-september-2025
Aeronavtika - Kadmiranje jekla z določeno natezno trdnostjo ≤ 1 450 MPa z
bakrom, bakrovimi in nikljevimi zlitinami
Aerospace series - Cadmium plating of steels with specified tensile strength ≤ 1 450
MPa, copper, copper alloys and nickel alloys
Luft- und Raumfahrt - Cadmieren von Stählen mit einer Zugfestigkeit ≤ 1 450 MPa,
Kupfer, Kupferlegierungen und Nickellegierungen
Série aérospatiale - Cadmiage électrolytique des aciers de résistance ≤ 1 450 MPa, du
cuivre, des alliages de cuivre et des alliages de nickel
Ta slovenski standard je istoveten z: prEN 2133
ICS:
49.040 Prevleke in z njimi povezani Coatings and related
postopki, ki se uporabljajo v processes used in aerospace
letalski in vesoljski industriji industry
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

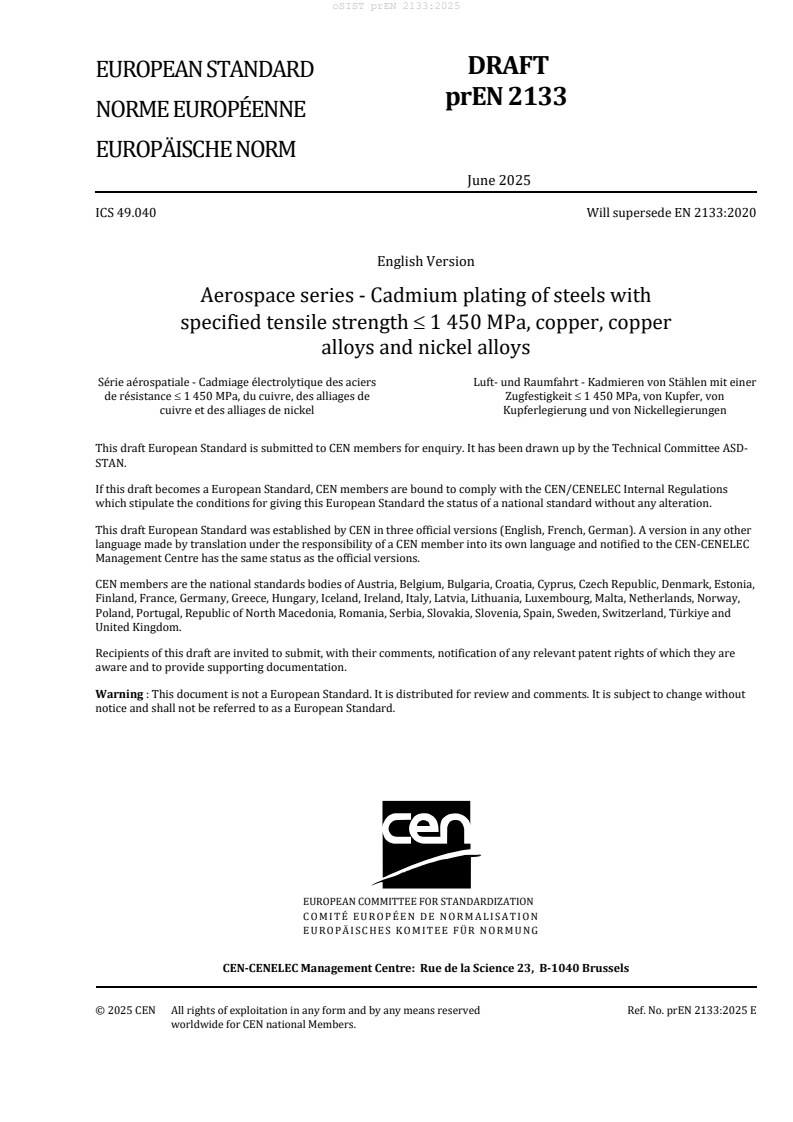

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2025
ICS 49.040 Will supersede EN 2133:2020
English Version
Aerospace series - Cadmium plating of steels with
specified tensile strength  1 450 MPa, copper, copper
alloys and nickel alloys
Série aérospatiale - Cadmiage électrolytique des aciers Luft- und Raumfahrt - Kadmieren von Stählen mit einer
de résistance  1 450 MPa, du cuivre, des alliages de Zugfestigkeit  1 450 MPa, von Kupfer, von
cuivre et des alliages de nickel Kupferlegierung und von Nickellegierungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee ASD-
STAN.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 2133:2025 E
worldwide for CEN national Members.

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Symbols and abbreviated terms . 6
5 Purpose of process . 6
6 Limitations of process use . 6
7 Coating thickness . 7
8 Information for the manufacturer . 7
9 Condition of parts prior to the treatment . 7
10 Process schedule . 8
10.1 General. 8
10.2 Masking . 8
10.3 Surface pre-treatment . 8
10.4 Nickel strike . 8
10.5 Cadmium plating . 8
11 Post treatment . 8
11.1 Hydrogen-embrittlement-relief heat treatment . 8
11.2 Post-treatment . 9
12 Removal of the plating . 9
13 Required characteristics . 9
13.1 Appearance . 9
13.2 Adhesion . 9
13.3 Coating thickness . 10
13.4 Hydrogen embrittlement of steels . 10
13.5 Corrosion resistance . 11
14 Test methods . 11
14.1 For process approval . 11
14.1.1 Appearance . 11
14.1.2 Adhesion . 11
14.1.3 Coating thickness . 11
14.1.4 Hydrogen embrittlement . 11
14.1.5 Corrosion resistance . 12
14.2 For acceptance of parts . 12
14.2.1 Appearance . 12
14.2.2 Adhesion . 12
14.2.3 Coating thickness . 12
15 Periodic tests . 13
16 Quality assurance . 13
16.1 Approval of the manufacturer . 13
16.2 Process approval. 13
16.3 Acceptance . 13
16.4 Reprocessing . 14
16.5 Periodic chemical analysis . 14
17 Designation . 14
Annex A (informative) Process flow . 15
Annex B (informative) Standard evolution form . 16
Bibliography . 19

European foreword
This document (prEN 2133:2025) has been prepared by ASD-STAN.
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 2133:2020.
— making the nickel strike optional instead of mandatory;
— clarifying the definitions of brighteners and wetting agents;
— providing clarification on the heat treatment;
— adding the option to perform de-embrittlement heat treatment after removal and re-plating if both
processes take less than 4 h;
— including information on post-treatment in type 3;
— adding an introductory sentence before the different types of cadmium plating;
— modifying Annex A.
See also Annex B for a list of technical changes.
1 Scope
This document specifies the electrolytic cadmium plating of parts and fasteners in steel of tensile strength
UTS ≤ 1 450 MPa, copper, copper alloys and nickel alloys, whose temperature in service does not exceed
235 °C.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2828, Aerospace series - Adhesion test for metallic coatings by burnishing
EN 2831, Aerospace series - Hydrogen embrittlement of steels - Test by slow bending
EN 2832, Aerospace series - Hydrogen embrittlement of steels - Notched specimen test
EN ISO 1463, Metallic and oxide coatings - Measurement of coating thickness - Microscopical method (ISO
1463)
EN ISO 2082, Metallic and other inorganic coatings - Electroplated coatings of cadmium with
supplementary treatments on iron or steel (ISO 2082)
EN ISO 2177, Metallic coatings - Measurement of coating thickness - Coulometric method by anodic
dissolution (ISO 2177)
EN ISO 2178, Non-magnetic coatings on magnetic substrates - Measurement of coating thickness - Magnetic
method (ISO 2178)
EN ISO 2409, Paints and varnishes - Cross-cut test (ISO 2409)
EN ISO 2819, Metallic coatings on metallic substrates - Electrodeposited and chemically deposited coatings
- Review of methods available for testing adhesion (ISO 2819)
EN ISO 3497, Metallic coatings - Measurement of coating thickness - X-ray spectrometric methods (ISO
3497)
EN ISO 9227, Corrosion tests in artificial atmospheres - Salt spray tests (ISO 9227)
ISO 2859-1, Sampling procedures for inspection by attributes — Part 1: Sampling schemes indexed by
acceptance quality limit (AQL) for lot-by-lot inspection
ASTM B117-19, Standard Practice for Operating Salt Spray (Fog) Apparatus
ASTM F519-18, Standard test method for mechanical hydrogen embrittlement — Evaluation of
plating/coating process and service environment
NASM 1312-5, Fastener Test Methods — Method 5 — Stress Durability
NASM 1312-14, Fasten
...
