EN 609-2:1999+A1:2009

Agricultural and forestry machinery - Safety of log splitters - Part 2: Screw splitters

This European Standard specifies safety requirements, and their verification, for the design and construction of screw splitters with horizontal screws, designed to be used by one operator for splitting wood, irrespective of the nature of the power source used.
On a dual purpose circular saw for firewood/log splitting machine only the log splitter part of the machine is covered by this standard, for circular saws. For firewood saws see prEN 1870-6:1997.
This standard describes methods for the elimination or reduction of risks arising from their use. In addition, it specifies the type of information on safe working practices to be provided by the manufacturer.
The list of significant hazards dealt with is given in annex A. Annex A also indicates the hazards which have not been dealt with.
This European Standard applies primarily to machines which are manufactured after the date of issue of the standard.

Land- und Forstmaschinen - Sicherheit von Holzspaltmaschinen - Teil 2: Schraubenspaltmaschinen

Diese Europäische Norm legt sicherheitstechnische Anforderungen und deren Prüfung für Gestaltung und
Konstruktion von Schraubenmaschinen mit horizontal angeordneter Schraube für Einmann-Bedienung zum
Spalten von Holz, unabhängig von der Art der Antriebsenergie, fest.
An kombinierten Brennholzkreissägemaschinen/Holzspaltmaschinen wird nur der Spaltmaschinenteil der
Maschine durch diese Norm erfasst. Für Brennholzkreissägemaschinen siehe prEN 1870-6:1997.
Die Norm beschreibt Maßnahmen zur Vermeidung oder Verminderung der sich aus dem Gebrauch dieser
Maschinen ergebenden Risiken. Außerdem gibt sie Informationen über sicheres Arbeiten, die vom Hersteller
zur Verfügung zu stellen sind.
Die Liste der signifikanten Gefährdungen ist in Anhang A aufgeführt. Anhang A weist auch auf Gefährdungen
hin, die nicht behandelt sind.
Diese Europäische Norm gilt in erster Linie für Maschinen, die nach dem Ausgabedatum der Norm hergestellt
werden.

Matériel agricole et forestier - Sécurité des fendeuses de bûches - Partie 2 : Fendeuses à vis

La présente norme européenne détermine les prescriptions de sécurité et les vérifications pour la conception et la construction des fendeuses à vis horizontale conçues pour être utilisées par un opérateur pour fendre du bois, indépendamment du type de source d'énergie utilisée.
En ce qui concerne les scies circulaires combinées à bois de chauffage et à fendre les bûches, seule la partie fendeuse de bûches est couverte par la présente norme. Voir le prEN 1870-6:1997 pour les scies circulaires à bois de chauffage.
Cette norme décrit les méthodes pour éliminer ou réduire les risques inhérents à leur utilisation. En outre, elle spécifie le type d'informations que le fabricant doit donner sur les pratiques d'utilisation sûre.
La liste des phénomènes dangereux significatifs traités dans cette norme est donnée en Annexe A. L'Annexe A indique également les phénomènes dangereux qui n'ont pas été traités.
La présente norme européenne s'applique avant tout aux machines fabriquées après la date de publication de la norme.

Kmetijski in gozdarski stroji - Varnost cepilnikov lesa - 2. del: Cepilniki z vijakom

Ta evropski standard opredeljuje varnostne zahteve in njihovo preverjanje za načrtovanje in izdelavo cepilnikov z vijakom za cepitev lesa z vodoravnimi vijaki, ki so zasnovani tako, da jih uporablja en upravljavec, ne glede na vrsto uporabljenega pogonskega vira. Na krožni žagi z dvojno funkcijo za drva/cepitev klad ta standard zajema le del stroja za cepitev klad pri krožnih žagah. Za žage za drva glej prEN 1870-6:1997. Ta standard opisuje metode za odpravo ali zmanjševanje tveganj, ki izvirajo iz njihove uporabe. Poleg tega opredeljuje vrsto informacij glede varnih delovnih praks, ki jih mora zagotoviti proizvajalec. Seznam obravnavanih velikih nevarnosti je podan v Dodatku A. Dodatek A  navaja tudi nevarnosti, ki niso bile obravnavane. Ta evropski standard velja predvsem za stroje, ki so bili izdelani po datumu izdaje tega standarda.

General Information

• Status: Published
• Publication Date: 08-Sep-2009
• Withdrawal Date: 30-Mar-2010
• ICS: 65.060.80 - Forestry equipment
• Technical Committee: CEN/TC 144 - Tractors and machinery for agriculture and forestry
• Drafting Committee: CEN/TC 144/WG 8 - Forestry machinery
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Completion Date: 05-Mar-2020
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Directive: 98/37/EC - Machinery
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Mandate: M/BC/CEN/88/13 - Standardization request to CEN/CENELEC relating to machinery
• Ref Project: SIST EN 609-2:2000+A1:2010 - Agricultural and forestry machinery - Safety of log splitters - Part 2: Screw splitters

Relations

• Merged From: EN 609-2:1999 - Agricultural and forestry machinery - Safety of log splitters - Part 2: Screw splitter
• Effective Date: 04-Jul-2009

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 609-2:2000+A1:2010
01-februar-2010
Kmetijski in gozdarski stroji - Varnost cepilnikov lesa - 2. del: Cepilniki z vijakom
Agricultural and forestry machinery - Safety of log splitters - Part 2: Screw splitters
Land- und Forstmaschinen - Sicherheit von Holzspaltmaschinen - Teil 2:
Schraubenspaltmaschinen
Matériel agricole et forestier - Sécurité des fendeuses de bûches - Partie 2 : Fendeuses
à vis
Ta slovenski standard je istoveten z: EN 609-2:1999+A1:2009
ICS:
65.060.80 Gozdarska oprema Forestry equipment
SIST EN 609-2:2000+A1:2010 en,fr
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 609-2:2000+A1:2010

---------------------- Page: 2 ----------------------

SIST EN 609-2:2000+A1:2010


EUROPEAN STANDARD
EN 609-2:1999+A1

NORME EUROPÉENNE

EUROPÄISCHE NORM
September 2009
ICS 65.060.80 Supersedes EN 609-2:1999
English Version
Agricultural and forestry machinery - Safety of log splitters - Part
2: Screw splitters
Matériel agricole et forestier - Sécurité des fendeuses de Land- und Forstmaschinen - Sicherheit von
bûches - Partie 2 : Fendeuses à vis Holzspaltmaschinen - Teil 2: Schraubenspaltmaschinen
This European Standard was approved by CEN on 27 August 1999 and includes Amendment 1 approved by CEN on 27 July 2009.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.






EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 609-2:1999+A1:2009: E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN 609-2:2000+A1:2010
EN 609-2:1999+A1:2009 (E)

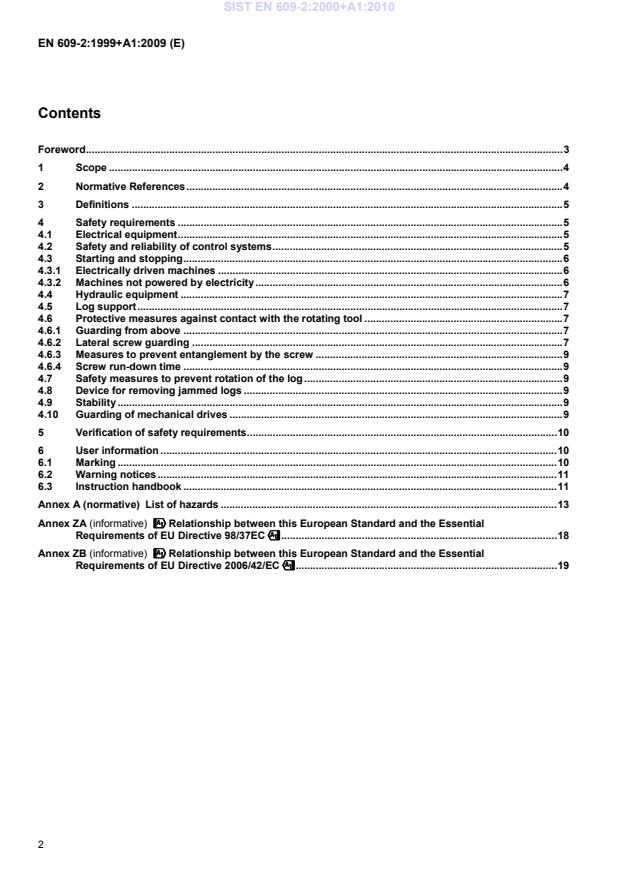

Contents
Foreword . 3
1 Scope . 4
2 Normative References . 4
3 Definitions . 5
4 Safety requirements . 5
4.1 Electrical equipment . 5
4.2 Safety and reliability of control systems . 5
4.3 Starting and stopping . 6
4.3.1 Electrically driven machines . 6
4.3.2 Machines not powered by electricity . 6
4.4 Hydraulic equipment . 7
4.5 Log support . 7
4.6 Protective measures against contact with the rotating tool . 7
4.6.1 Guarding from above
...
