Aerospace series - Electrical contacts used in elements of connection - Part 075: Contacts, electrical, quadrax, size 8, female, type E, crimp, class R - Product standard

This document specifies the required characteristics, tests and tooling applicable to female electrical
quadrax contacts, shielded, size 8, type E characteristic impedance 100 Ω, crimp, class R, used in
elements of connection according to EN 3155-002.
It is used together with EN 3155-001.
The associated male contacts are defined in EN 3155-074

Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 075: Elektrische quadraxiale Buchsenkontakte, Größe 8, Typ E, crimpbar, Klasse R - Produktnorm

Dieses Dokument legt die Anforderungen, Prüfungen und Werkzeuge für elektrische quadraxiale Buchsenkontakte, geschirmt, Gröβe 8, Typ E, charakteristische Impedanz 100 Ω, crimpbar, Klasse R, zur Verwendung in elektrischen Verbindungselementen nach EN 3155 002 fest.
Es wird in Verbindung mit EN 3155 001 angewendet.
Die zugehörigen Stiftkontakte sind in EN 3155 074 festgelegt.

Série aérospatiale - Contacts électriques dans les organes de connexion - Partie 075 : Contacts électriques, quadrax, taille 8, femelles, type E, à sertir, classe R - Norme de produit

Aeronavtika - Električni kontakti za uporabo v veznih elementih - 075. del: Kontakti, električni, quadrax, velikost 8, ženski, tip E, nagubani, razred R - Standard za proizvod

Ta dokument določa zahtevane značilnosti, preskuse in orodja za ženske električne kontakte quadrax, oklopljene, velikosti 8, tipa E, s karakteristično impedanco 100 Ω, nagubane, razreda R, ki se uporabljajo v veznih elementih v skladu s standardom EN 3155-002. Uporablja se skupaj s standardom EN 3155-001. Povezani moški kontakti so določeni v standardu EN 3155-074.

General Information

Status
Published
Publication Date
30-Aug-2022
Withdrawal Date
29-Nov-2022
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
04-May-2022
Completion Date
04-May-2022

Relations

Buy Standard

Standard
EN 3155-075:2022
English language
15 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 3155-075:2022
01-julij-2022
Nadomešča:
SIST EN 3155-075:2009
Aeronavtika - Električni kontakti za uporabo v veznih elementih - 075. del:
Kontakti, električni, quadrax, velikost 8, ženski, tip E, nagubani, razred R -
Standard za proizvod

Aerospace series - Electrical contacts used in elements of connection - Part 075:

Contacts, electrical, quadrax, size 8, female, type E, crimp, class R - Product standard

Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen -

Teil 075: Elektrische Quadrax Buchsenkontakte Größe 8, Typ E, crimpbar, Klasse R -

Produktnorm

Série aérospatiale - Contacts électriques dans les organes de connexion - Partie 075 :

Contacts électriques, quadrax, taille 8, femelles, type E, à sertir, classe R - Norme de

produit
Ta slovenski standard je istoveten z: EN 3155-075:2022
ICS:
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
SIST EN 3155-075:2022 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 3155-075:2022
---------------------- Page: 2 ----------------------
SIST EN 3155-075:2022
EN 3155-075
EUROPEAN STANDARD
NORME EUROPÉENNE
May 2022
EUROPÄISCHE NORM
ICS 49.060 Supersedes EN 3155-075:2009
English Version
Aerospace series - Electrical contacts used in elements of
connection - Part 075: Contacts, electrical, quadrax, size 8,
female, type E, crimp, class R - Product standard

Série aérospatiale - Contacts électriques dans les Luft- und Raumfahrt - Elektrische Kontakte zur

organes de connexion - Partie 075 : Contacts Verwendung in Verbindungselementen - Teil 075:

électriques, quadrax, taille 8, femelles, type E, à sertir, Elektrische Quadrax Buchsenkontakte Größe 8, Typ E,

classe R - Norme de produit crimpbar, Klasse R - Produktnorm
This European Standard was approved by CEN on 10 January 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3155-075:2022 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 3155-075:2022
EN 3155-075:2022 (E)

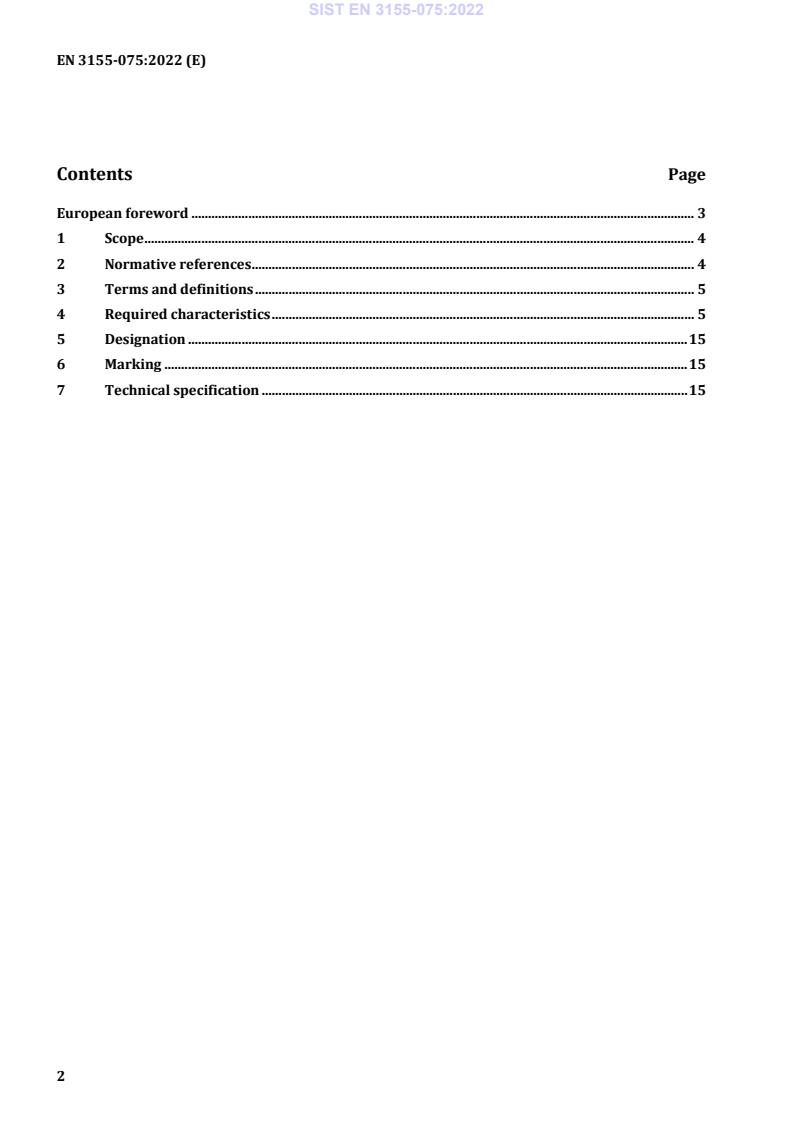

Contents Page

European foreword ...................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms and definitions ................................................................................................................................... 5

4 Required characteristics .............................................................................................................................. 5

5 Designation ..................................................................................................................................................... 15

6 Marking ............................................................................................................................................................ 15

7 Technical specification ............................................................................................................................... 15

---------------------- Page: 4 ----------------------
SIST EN 3155-075:2022
EN 3155-075:2022 (E)
European foreword

This document (EN 3155-075:2022) has been prepared by the Aerospace and Defence Industries

Association of Europe — Standardization (ASD-STAN).

After enquiries and votes carried out in accordance with the rules of this Association, this

document has received the approval of the National Associations and the Official Services of the

member countries of ASD, prior to its presentation to CEN.

This document shall be given the status of a national standard, either by publication of an identical

text or by endorsement, at the latest by November 2022, and conflicting national standards shall be

withdrawn at the latest by November 2022.

Attention is drawn to the possibility that some of the elements of this document may be the subject

of patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document will supersede EN 3175-075:2009.

According to the CEN-CENELEC Internal Regulations, the national standards organizations of the

following countries are bound to implement this document: Austria, Belgium, Bulgaria, Croatia,

Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,

Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 3155-075:2022
EN 3155-075:2022 (E)
1 Scope

This document specifies the required characteristics, tests and tooling applicable to female electrical

quadrax contacts, shielded, size 8, type E characteristic impedance 100 Ω, crimp, class R, used in

elements of connection according to EN 3155-002.
It is used together with EN 3155-001.
The associated male contacts are defined in EN 3155-074.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 2591 (all parts), Aerospace series — Elements of electrical and optical connection — Test methods

EN 3155-001, Aerospace series — Electrical contacts used in elements of connection — Part 001:

Technical specification

EN 3155-002, Aerospace series — Electrical contacts used in elements of connection — Part 002: List and

utilization of contacts

EN 3155-074, Aerospace series — Electrical contacts used in elements of connection — Part 074:

Contacts, electrical, quadrax, size 8, male, type E, crimp, class R — Product standard

EN 3375-008, Aerospace series — Cable, electrical, for digital data transmission — Part 008: Single braid —

Star Quad 100 ohms — Type KD — Product standard

EN 3375-011, Aerospace series — Cable, electrical, for digital data transmission — Part 011: Single braid —

Star Quad 100 ohms — Light weight — Type KL — Product standard

EN 3375-012, Aerospace series — Cable, electrical, for digital data transmission — Part 012: Single braid —

Star Quad 100 ohms —260 °C — Type KH — Product standard

EN 3645-001, Aerospace series — Connectors, electrical, circular, scoop-proof, triple start threaded

coupling, operating temperature 175 °C or 200 °C continuous — Part 001: Technical specification

EN 3909, Aerospace series — Test fluids and test methods for electrical and optical components and sub-

assemblies

EN 4008-003, Aerospace series — Elements of electrical and optical connection — Crimping tools and

associated accessories — Part 003: Positioner for crimping tool M22520/2-01 — Product standard

SAE-AS22520, Crimping Tools, Wire Termination, General Specification for

SAE-AS81969/14, Installing and Removal Tools, Connector Electrical Contact, Type III, Class 2, Composition B

Published as ASD-STAN Standard at the date of publication of this document by AeroSpace and Defence

industries Association of Europe — Standardization (ASD-STAN), https://www.asd-stan.org/

Published by: SAE International (US) Society of Automotive Engineers https://www.sae.org/

---------------------- Page: 6 ----------------------
SIST EN 3155-075:2022
EN 3155-075:2022 (E)
3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 3155-001 apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• ISO Online browsing platform: available at https://www.iso.org/obp
• IEC Electropedia: available at https://www.electropedia.org/
4 Required characteristics
4.1 Specific characteristics

Contact with screening feature. These type E contacts are contacts with screening feature and specified high

frequency characteristics, class R corresponds to an operating temperature range from –65 °C to 150 °C.

4.2 Dimensions and mass
See Figure 1, Figure 2 and Table 1 for dimensio
...
