Identification card systems - European Citizen Card - Part 2: Logical data structures and security services

This Technical Specification specifies the logical characteristics and security features at the card/system interface for the European Citizen Card.
The European Citizen Card is a smart card with Identification, Authentication and electronic Signature (IAS) services. Therefore:
-   the supported services are specified;
-   the supported data structures as well as the access to these structures are specified;
-   the command set is defined.
This Technical Specification aims to ensure the interoperability at card/system interface in the usage phase.
In order to reach the interoperability objective, IAS services are compliant with EN 14890 Part 1 and Part 2. As the EN documents offer options, this specification fully defines a complete profile.
This Technical Specification also considers ICAO Doc 9303.
This Technical Specification does not mandate the use of a particular technology, and is intended to allow both native and Java card technologies.
This specification encompasses mandatory and optional features. Optional features make up a toolbox of modular options from which issuers can pick up the necessary protocols to fulfil the requirements for use. Mandatory features shall be implemented for a smart card to be compliant with this Technical Specification. Mandatory features required for compliancy to ECC specification are given in Annex C, the optional features are given in Annex D. Two IAS-enabled smart cards issued by two different issuers, and compliant with this Technical Specification but implementing different application profiles out of this Technical Specification, can interoperate with a terminal provided that such a terminal supports both application profiles. Therefore, interoperability requires a specific agreement between issuers/governments in order to determine which cross-border services are to be shared, and consequently, which protocols are to be supported by the terminals in each country.
All the APDU commands described in this Technical Specification are in accordance with ISO/IEC 7816 Part 4 or Part 8. They are fully described here in order to provide the settings adopted by this specification and to prevent any ambiguity in case of several possible interpretations of the standards.
For physical, electrical and transport protocol characteristics, refer to CEN/TS 15480-1.

Identifikationskartensysteme - Europäische Bürgerkarte - Teil 2: Logische Datenstrukturen und Sicherheitsfunktionen

Systèmes de cartes d’identification - Carte Européenne du Citoyen - Partie 2: structures de données logiques et services de sécurité

Sistemi z identifikacijskimi karticami - Kartica evropskih državljanov - 2. del: Logične strukture podatkov in storitve v zvezi z varnostjo

Ta tehnična specifikacija določa logične značilnosti in varnostne funkcije kartice/sistemskega vmesnika za kartico evropskih državljanov. Kartica evropskih državljanov je pametna kartica, ki omogoča storitve identifikacije, preverjanja pristnosti in elektronskega podpisa (IAS). Zato: – navaja podprte storitve; – navaja podprte strukture podatkov ter dostop do teh struktur; – določa nabor ukazov. Cilj te tehnične specifikacije je zagotoviti interoperabilnost kartice/sistemskega vmesnika v fazi uporabe. Zaradi doseganja interoperabilnosti so storitve identifikacije, preverjanja pristnosti in elektronskega podpisa skladne s 1. in 2. delom standarda EN 14890. Dokumenta EN ponujata možnosti, ta specifikacija pa v celoti določa popoln profil. Ta tehnična specifikacija upošteva tudi dokument ICAO št. 9303. Ta tehnična specifikacija ne določa uporabe določene tehnologije ter dovoljuje obstoječe tehnologije in tehnologijo Java Card. Ta specifikacija zajema obvezne in izbirne funkcije. Izbirne funkcije sestavljajo zbirko orodij za možnosti modula, izmed katerih lahko izdajatelji izberejo potrebne protokole za izpolnitev zahtev za uporabo. Obvezne funkcije je treba uporabiti, da je pametna kartica v skladu s to tehnično specifikacijo. Obvezne funkcije, ki se zahtevajo za skladnost s specifikacijo za kartico evropskega državljana, so navedene v dodatku C, izbirne funkcije pa v dodatku D. Pametni kartici, ki omogočata storitve identifikacije, preverjanja pristnosti in elektronskega podpisa, ki sta ju izdala različna izdajatelja ter sta skladni s to tehnično specifikacijo, vendar uporabljata različna profila aplikacij iz te tehnične specifikacije, sta lahko interoperabilni na terminalu, če ta terminal podpira oba profila aplikacij. Zato je za interoperabilnost potreben poseben sporazum med izdajatelji/vladami, da se določi, katere čezmejne storitve naj se delijo in katere protokole naj terminali v vsaki državi posledično podpirajo. Vsi ukazi podatkovne enote aplikacijskega protokola (APDU) iz te tehnične specifikacije so v skladu s 4. ali 8. delom standarda ISO/IEC 7816. V tem standardu so v celoti opisani, da se zagotovijo nastavitve, ki jih sprejema ta specifikacija, in prepreči morebitna dvoumnost v primeru več možnih razlag standardov. Za značilnosti fizičnih in električnih protokolov ter protokolov prenosa glejte standard CEN/TS 15480-1.

General Information

Status
Published
Publication Date
12-Jun-2012
Current Stage
9093 - Decision to confirm - Review Enquiry
Completion Date
26-Nov-2020

RELATIONS

Buy Standard

Technical specification
-TS CEN/TS 15480-2:2012 - BARVE
English language
176 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST-TS CEN/TS 15480-2:2012
01-september-2012
1DGRPHãþD
SIST-TS CEN/TS 15480-2:2009
6LVWHPL]LGHQWLILNDFLMVNLPLNDUWLFDPL.DUWLFDHYURSVNLKGUåDYOMDQRYGHO
/RJLþQHVWUXNWXUHSRGDWNRYLQVWRULWYHY]YH]L]YDUQRVWMR

Identification card systems - European Citizen Card - Part 2: Logical data structures and

security services
Identifikationskartensysteme - Europäische Bürgerkarte - Teil 2: Logische
Datenstrukturen und Sicherheitsfunktionen

Systèmes de cartes d’identification - Carte Européenne du Citoyen - Partie 2: structures

de données logiques et services de sécurité
Ta slovenski standard je istoveten z: CEN/TS 15480-2:2012
ICS:
35.240.15 Identifikacijske kartice in Identification cards and
sorodne naprave related devices
SIST-TS CEN/TS 15480-2:2012 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST-TS CEN/TS 15480-2:2012
---------------------- Page: 2 ----------------------
SIST-TS CEN/TS 15480-2:2012
TECHNICAL SPECIFICATION
CEN/TS 15480-2
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
June 2012
ICS 35.240.15
English Version
Identification card systems - European Citizen Card - Part 2:
Logical data structures and security services

Systèmes de cartes d'identification - Carte Européenne du Identifikationskartensysteme - Europäische Bürgerkarte -

Citoyen - Partie 2: structures de données logiques et Teil 2: Logische Datenstrukturen und Sicherheitsfunktionen

services de sécurité

This Technical Specification (CEN/TS) was approved by CEN on 9 January 2012 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their

comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available

promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in parallel to the CEN/TS)

until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,

Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 15480-2:2012: E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST-TS CEN/TS 15480-2:2012
CEN/TS 15480-2:2012 (E)

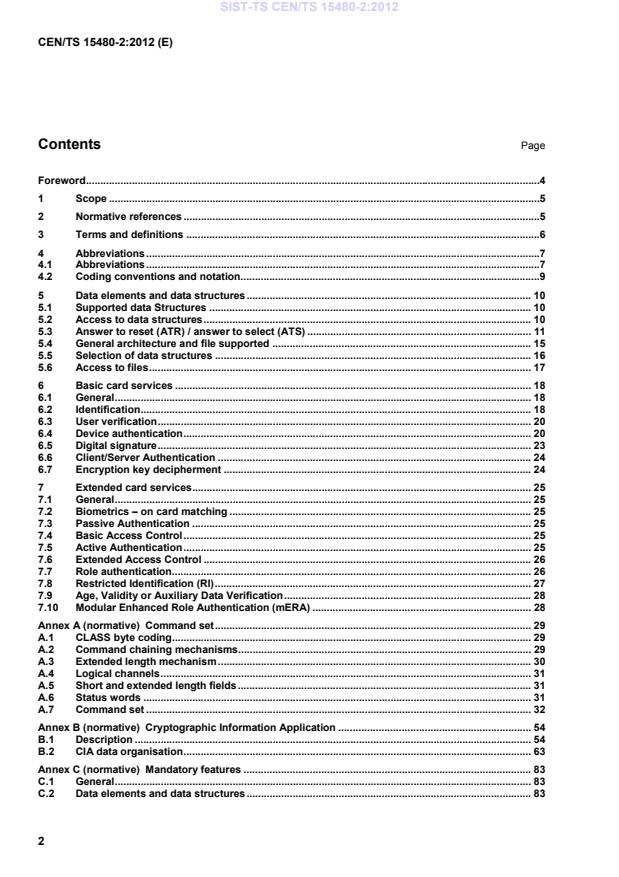

Contents Page

Foreword ..............................................................................................................................................................4

1 Scope ......................................................................................................................................................5

2 Normative references ............................................................................................................................5

3 Terms and definitions ...........................................................................................................................6

4 Abbreviations .........................................................................................................................................7

4.1 Abbreviations .........................................................................................................................................7

4.2 Coding conventions and notation........................................................................................................9

5 Data elements and data structures ................................................................................................... 10

5.1 Supported data Structures ................................................................................................................ 10

5.2 Access to data structures .................................................................................................................. 10

5.3 Answer to reset (ATR) / answer to select (ATS) .............................................................................. 11

5.4 General architecture and file supported .......................................................................................... 15

5.5 Selection of data structures .............................................................................................................. 16

5.6 Access to files ..................................................................................................................................... 17

6 Basic card services ............................................................................................................................ 18

6.1 General ................................................................................................................................................. 18

6.2 Identification ........................................................................................................................................ 18

6.3 User verification .................................................................................................................................. 20

6.4 Device authentication ......................................................................................................................... 20

6.5 Digital signature .................................................................................................................................. 23

6.6 Client/Server Authentication ............................................................................................................. 24

6.7 Encryption key decipherment ........................................................................................................... 24

7 Extended card services ...................................................................................................................... 25

7.1 General ................................................................................................................................................. 25

7.2 Biometrics – on card matching ......................................................................................................... 25

7.3 Passive Authentication ...................................................................................................................... 25

7.4 Basic Access Control ......................................................................................................................... 25

7.5 Active Authentication ......................................................................................................................... 25

7.6 Extended Access Control .................................................................................................................. 26

7.7 Role authentication............................................................................................................................. 26

7.8 Restricted Identification (RI) .............................................................................................................. 27

7.9 Age, Validity or Auxiliary Data Verification ...................................................................................... 28

7.10 Modular Enhanced Role Authentication (mERA) ............................................................................ 28

Annex A (normative) Command set .............................................................................................................. 29

A.1 CLASS byte coding............................................................................................................................. 29

A.2 Command chaining mechanisms ...................................................................................................... 29

A.3 Extended length mechanism ............................................................................................................. 30

A.4 Logical channels ................................................................................................................................. 31

A.5 Short and extended length fields ...................................................................................................... 31

A.6 Status words ....................................................................................................................................... 31

A.7 Command set ...................................................................................................................................... 32

Annex B (normative) Cryptographic Information Application ................................................................... 54

B.1 Description .......................................................................................................................................... 54

B.2 CIA data organisation ......................................................................................................................... 63

Annex C (normative) Mandatory features .................................................................................................... 83

C.1 General ................................................................................................................................................. 83

C.2 Data elements and data structures ................................................................................................... 83

---------------------- Page: 4 ----------------------
SIST-TS CEN/TS 15480-2:2012
CEN/TS 15480-2:2012 (E)

C.3 Card services ....................................................................................................................................... 84

C.4 Command set ....................................................................................................................................... 84

C.5 Device Authentication and Key Derivation ....................................................................................... 85

C.6 Digital signature .................................................................................................................................. 85

C.7 Client/Server Authentication .............................................................................................................. 86

C.8 Encryption Key Decipherment ........................................................................................................... 86

Annex D (informative) Optional features ...................................................................................................... 87

D.1 General ................................................................................................................................................. 87

D.2 Data elements and data structures .................................................................................................... 87

D.3 Card services ....................................................................................................................................... 88

D.4 Command set ....................................................................................................................................... 88

D.5 Device Authentication and Key Derivation ....................................................................................... 89

D.6 Digital signature .................................................................................................................................. 89

Annex E (informative) Application Profiles .................................................................................................. 90

E.1 General ................................................................................................................................................. 90

E.2 Application Profile 1: ICAO Application with EAC features ............................................................ 90

E.3 Application Profile 2: Travel Document Application ....................................................................... 96

E.4 Application Profile 3: eID Application ............................................................................................. 101

E.5 Application Profile 4: Digital Signature Application ...................................................................... 111

E.6 E.6 Application Profile 5: eServices Application using a trusted third party .............................. 121

E.7 Application Profile 6: Health Insurance Application ...................................................................... 136

E.8 Application Profile 7: Combined eID and signature application .................................................. 152

E.9 Application Profile 8: Multi-Service application ............................................................................. 156

Annex F (informative) Access rules in expanded format .......................................................................... 161

F.1 Object protection by access rules in expanded format ................................................................ 161

F.2 Access rules in expanded format .................................................................................................... 161

F.3 Security attribute referencing expanded format ............................................................................ 162

F.4 Security attribute template for physical interfaces ........................................................................ 163

Annex G (informative) Example of data structure: the Security Data Objects concept ........................ 164

G.1 SDO concept ...................................................................................................................................... 164

Bibliography .................................................................................................................................................... 176

---------------------- Page: 5 ----------------------
SIST-TS CEN/TS 15480-2:2012
CEN/TS 15480-2:2012 (E)
Foreword

This document (CEN/TS 15480-2:2012) has been prepared by Technical Committee CEN/TC 224 “Personal

identification, electronic signature and cards and their related systems and operations”, the secretariat of

which is held by AFNOR.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.

This document supersedes CEN/TS 15480-2:2007.

CEN/TS 15480 Identification card systems — European Citizen Card consists of the following four parts:

Part 1, Physical, electrical and transport protocol characteristics
Part 2, Logical data structures and card services
Part 3, European Citizen Card Interoperability using an application interface
Part 4, Recommendations for European Citizen Card issuance, operation and use

According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following

countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria, Croatia, Cyprus,

Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,

Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,

Spain, Sweden, Switzerland, Turkey and the United Kingdom.
---------------------- Page: 6 ----------------------
SIST-TS CEN/TS 15480-2:2012
CEN/TS 15480-2:2012 (E)
1 Scope

This Technical Specification specifies the logical characteristics and security features at the card/system

interface for the European Citizen Card.

The European Citizen Card is a smart card with Identification, Authentication and electronic Signature (IAS)

services. Therefore:
 the supported services are specified;

 the supported data structures as well as the access to these structures are specified;

 the command set is defined.

This Technical Specification aims to ensure the interoperability at card/system interface in the usage phase.

In order to reach the interoperability objective, IAS services are compliant with EN 14890 Part 1 and Part 2. As

the EN documents offer options, this specification fully defines a complete profile.

This Technical Specification also considers ICAO Doc 9303.

This Technical Specification does not mandate the use of a particular technology, and is intended to allow

both native and Java card technologies.

This specification encompasses mandatory and optional features. Optional features make up a toolbox of

modular options from which issuers can pick up the necessary protocols to fulfil the requirements for use.

Mandatory features shall be implemented for a smart card to be compliant with this Technical Specification.

Mandatory features required for compliancy to ECC specification are given in Annex C, the optional features

are given in Annex D. Two IAS-enabled smart cards issued by two different issuers, and compliant with this

Technical Specification but implementing different application profiles out of this Technical Specification, can

interoperate with a terminal provided that such a terminal supports both application profiles. Therefore,

interoperability requires a specific agreement between issuers/governments in order to determine which

cross-border services are to be shared, and consequently, which protocols are to be supported by the

terminals in each country.

All the APDU commands described in this Technical Specification are in accordance with ISO/IEC 7816 Part 4

or Part 8. They are fully described here in order to provide the settings adopted by this specification and to

prevent any ambiguity in case of several possible interpretations of the standards.

For physical, electrical and transport protocol characteristics, refer to CEN/TS 15480-1.

2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated references,

the latest edition of the referenced document (including any amendments) applies.

EN 14890-1:2008:2008, Application Interface for smart cards used as Secure Signature Creation Devices —

Part 1: Basic requirements

ISO/IEC 7816-3, Information technology — Identification cards — Integrated circuit(s) cards with contacts —

Part 3: Electronic signals and transmission protocols

ISO/IEC 7816-4:2005, Identification cards — Integrated circuit(s) cards — Part 4: Organisation, security and

commands for interchange
---------------------- Page: 7 ----------------------
SIST-TS CEN/TS 15480-2:2012
CEN/TS 15480-2:2012 (E)

ISO/IEC 7816-4:2005/PDAM 2.1:2008, Identification cards — Integrated circuit(s) cards — Part 4:

Organisation, security and commands for interchange, AMENDMENT 2: Handling of Extended Length

Information (Working Draft)

ISO/IEC 7816-11, Identification cards — Integrated circuit cards — Part 11: Personal verification through

biometric methods

ISO/IEC 7816-15, Identification cards — Integrated circuit cards with contact — Part 15: Cryptographic

information application

ISO/IEC 7816-15:2004/Amd 1:2007, Identification cards — Integrated circuit cards with contact — Part 15:

Cryptographic information application, AMENDMENT 1: Examples of the use of the cryptographic information

application

ISO/IEC 7816-15:2004/Amd 2:2008, Identification cards — Integrated circuit cards with contact — Part 15:

Cryptographic information application, AMENDMENT 2: Error corrections and extensions for multi-application

environments

ISO/IEC 9796-2, Information technology — Security techniques — Digital signature schemes giving message

recovery — Part 2: Integer factorisation based mechanisms

ISO/IEC 14443-4, Identification cards — Contactless integrated circuit(s) cards — Proximity cards — Part 4:

Transmission protocol

ISO/IEC 19794-2, Information technology — Biometric data interchange formats — Part 2: Finger minutiae

data

ANSI X9.63, Public Key Cryptography For the Financial Services Industry: Key Agreement and Key Transport

Using Elliptic Curve Cryptography, January 8 1999

BSI TR-03110 Version 1.11, Advanced Security Mechansims for Machine Readable Travel Documents –

Extended Access Control (EAC)
BSI TR-03111 Version 1.11, Technical Guideline Elliptic Curve Cryptography

ICAO Doc 9303, Machine Readable Travel Documents, Part 3 – Machine Readable Official Travel Documents

– Volume 2 Specifications for Electronically Enabled MRtds with Biometric Identification Capability, Third

Edition, 2008
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
Application Dedicated File (ADF)
structure hosting an application in a card
3.2
root

Master File MF in case of a native operating system, the applet instance having the default selection privilege

in case of a Java card implementation
---------------------- Page: 8 ----------------------
SIST-TS CEN/TS 15480-2:2012
CEN/TS 15480-2:2012 (E)
4 Abbreviations
4.1 Abbreviations
ADF Application Dedicated File
AID Application Identifier
AMB Access Mode Byte
AT Authentication Template
ATR Answer to Reset
ATS Answer to Select
BER Basic Encoding Rules
BHT Biometric Header Template
BIT Biometric Information Template
CA Certification Authority
CAR Certification Authority Reference
CCT Cryptographic Checksum Template
CED Certificate Effective Date
CHA Certificate Holder Authorisation
CHR Certificate Holder Reference
CIA Cryptographic Information Application
CPI Certificate Profile Identifier
CRT Control Reference Template
CT Confidentiality Template
CV Card Verifiable
CXD Certificate Expiration Date
DES Data Encryption Standard
DF Dedicated File
DH Diffie Hellman
DOCP Data Object Control Parameters
DST Digital Signature Template
ECDH Elliptic Curve DH
---------------------- Page: 9 ----------------------
SIST-TS CEN/TS 15480-2:2012
CEN/TS 15480-2:2012 (E)
ELC Elliptic Curve Cryptosystem
ECDSA Elliptic Curve Digital Signature Algorithm
EF Elementary File
FCI File Control Information
FCP File Control Parameters
HT Hash Template
IAS Identification, Authentication and electronic Signature
ICC Integrated Circuit Card
IFD Interface Device
KAT Control reference template for key agreement
LSB Least Significant Byte
MAC Message Authentication Code
MF Master File
MSE Manage Security Environment
OID Object Identifier
PAN Primary Account Number
PIN Personal Identification Number
PK – DH Public key – Diffie Hellman (asymmetric key base algorithm)
PSO Perform Security Operation
RFU Reserved for Future Use
RSA Rivest Shamir Adleman
SDO Security Data Object
SCB Security Condition Byte
SE Security Environment
SEID Security Environment IDentifier byte
SM Secure Messaging
TLV Tag Length Value
UQB Usage Qualifier Byte
---------------------- Page: 10 ----------------------
SIST-TS CEN/TS 15480-2:2012
CEN/TS 15480-2:2012 (E)
4.2 Coding conventions and notation
4.2.1 Coding conventions
The following coding conventions apply throughout the Technical Specification:
‘0’ to ‘9’ and ‘A’ to ‘F’ the sixteen hexadecimal digits;
" ... " ASCII-string;

B1 || B2 concatenation of bytes B1 (the most significant byte) and B2 (the least significant byte).

4.2.2 Notation

For private and public keys as well as for certificates the following simplified Backus-Naur notation is used:

::= |
::= ..
::= |
::= PrK
::= PuK
::= |
::= CH
::= | |
::= ICC
::= IFD
::= S
::= | | |

::= AUT
::= KA
::= RA
::= KE
::= ..
::= |
::= C_CV
::= C_X509
---------------------- Page: 11 ----------------------
SIST-TS CEN/TS 15480-2:2012
CEN/TS 15480-2:2012 (E)
::= |
EXAMPLES:
1) PrK.ICC.AUT = Private key of the ICC for device authentication;
2) PuK.S.KA = Public key of the sender used for key agreement;

3) C_X509.CH.AUT = Certificate of the card holder for client/server authentication.

In addition, the following notation is used:
K Randomness provided by ICC and IFD used for session key derivation
ICC/IFD
RND.ICC Random number of the ICC
RND.IFD Random number of the IFD
SN.ICC Serial number of the ICC
SN.IFD Serial number of the IFD
5 Data elements and data structures
5.1 Supported data Structures

The European Citizen Card shall support the data structures described in 5.2. These data structures are used

to store externally accessed data (certificates, card serial number, ...). Exceptions from this rule, i.e. cases

where data objects are used that can be accessed by a GET DATA command are listed in the description of

the services.

In addition, the card may support further data structures including proprietary structures to handle data as long

as these structures have no effect on the services defined in this Technical Specification, i.e. on the

interoperability. For example, the storage of private and secret keys, the storage of PIN reference data and of

security environments is not defined in this Technical Report. The storage of these entities is out of the scope

of this Technical Specification and implementation specific.
5.2 Access to data structures
5.2.1 File system considerations

The European Citizen Card might embed a virtual machine or be a native operating system.

1) The card may include an MF. The differentiation between cards with or without an MF is based on

the card ATR/ATS or the content of EF.ATR/INFO. See ISO/IEC 7816-4:2005, 8.1 – card service

data byte. Consequently, the card shall include the card service data byte when returning the

ATR/ATS.

2) If an application is selected implicitly, i.e., always selected at the card reset, it has the default

selection privilege. The corresponding AID shall be indicated in the historical bytes or the EF.ATR.

3) The root is the MF or the applet instance having the default selection privilege. This depends on the

card manufacturer implementation choice (native or JavaCard implementation).

4) Three basic file types are supported (refer to ISO/IEC 7816-4 for definitions of EF, DF and ADF):

---------------------- Page: 12 ----------------------
SIST-TS CEN/TS 15480-2:2012
CEN/TS 15480-2:2012 (E)
i) transparent EF;
ii) dedicated files DF;
iii) application dedicated files ADF

5) For cards without MF, each applet instance matches with at least one application DF (ADF).

6) All cards shall contain an EF.DIR file.
i) The EF.DIR is always under the root.

ii) The file identifier of EF.DIR is: '2F00', the short EF identifier is 30 = '1E' =11110 bin.

5.3 Answer to reset (ATR) / answer to select (ATS)
5.3.1 General

The ATR of the card shall follow the rules indicated in ISO/IEC 7816-3 and ISO/IEC 7816-4. The ATS of the

card shall follow the rules specified in ISO/IEC 14443-4.

Data objects for card identification shall be provided in the historical data bytes of the ATR/ATS or in an

optional EF.ATR/INFO (see, 5.3.3). In case of ISO/IEC 14443-4 and protocol type B no ATS is available and

for this reason the presence of the EF.ATR/INFO is mandatory in this case.

Table 1 provides the list of data objects which may be supported by the card in the ATR/ATS in the Compact-

TLV format as defined in ISO/IEC 7816-4, Table 2 provides the data objects in EF.ATR/INFO for the BER-TLV

structure. The data objects defined in Table 1 and Table 2 have to be used as given in the tables, these are

not application specific.
5.3.2 Historical bytes

The ATR/ATS contains configuration data so that ICC and IFD can communicate together (protocol, speed,

etc.).

The category indicator as the first historical byte shall be set to the value '00'. Therefore, the last three bytes

shall be a status indicator, i.e. a card life cycle status indicator followed by two status bytes SW1-SW2.

Transmission in historical bytes for the data objects "card service data" and "card capabilities" is mandatory.

For other data objects the decision is left to the card manufacturer.

If a data object from Table 1 is used in the historical bytes the length of the DO shall be used as defined in the

table. Furthermore, the definitions for the coding of content of the data objects given in the table are

mandatory. The coding of further parameters in the content of the data objects is left to the choice of the

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
