EN ISO 22254:2005

Dentistry - Manual toothbrushes - Resistance of tufted portion to deflection (ISO 22254:2005)

ISO 22254:2005 specifies a test method for determining the resistance of the tufted portion of manual toothbrushes to deflection. This International Standard is applicable to toothbrushes having a conventional flat trim design and may not be applicable to toothbrushes with other designs. The results obtained with this International Standard may not correspond to consumer perceptions of the stiffness of toothbrush bristles.

Zahnheilkunde - Handzahnbürsten - Biegefestigkeit der Besteckungsfläche (ISO 22254:2005)

In dieser Internationalen Norm wird ein Prüfverfahren zur Bestimmung der Biegefestigkeit der Besteckungsfläche von Handzahnbürsten festgelegt. Diese Internationale Norm gilt für Zahnbürsten, die ein konventionelles, planes Design haben und ist für Zahnbürsten mit einem anderen Design unter Umständen nicht anwendbar. Die Ergebnisse, die mit dieser Internationalen Norm erhalten werden, können von den Wahrnehmungen des Verbrauchers bezüglich der Borstenhärte einer Zahnbürste abweichen.

Art dentaire - Brosses à dents manuelles - Résistance à la déflexion de la surface garnie (ISO 22254:2005)

L'ISO 22254:2005 spécifie une méthode d'essai permettant de déterminer la résistance à la déflexion de la surface garnie des brosses à dents manuelles. La présente Norme internationale est applicable aux brosses à dents classiques, à surface garnie plane, et peut ne pas s'appliquer aux brosses à dents d'autres modèles. Les résultats obtenus avec la présente Norme internationale peuvent ne pas correspondre à ce que les consommateurs perçoivent s'agissant de la dureté des filaments de brosse à dents.

Zobozdravstvo – Ročne zobne ščetke – Odpornost krtačnega predela na upogib/pregib (ISO 22254:2005)

General Information

• Status: Published
• Publication Date: 14-Aug-2005
• Withdrawal Date: 27-Feb-2006
• ICS: 97.170 - Body care equipment
• Technical Committee: CEN/TC 55 - Dentistry
• Drafting Committee: CEN/TC 55 - Dentistry
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 23-Feb-2010
• Completion Date: 23-Feb-2010
• Ref Project: SIST EN ISO 22254:2005 - Dentistry - Manual toothbrushes - Resistance of tufted portion to deflection (ISO 22254:2005)

Relations

• Replaces: EN 28627:1990/AC1:1990 - Dentistry - Stiffness of tufted area of tooth-brushes
• Effective Date: 22-Dec-2008
• Replaces: EN 28627:1990 - Dentistry - Stiffness of tufted area of tooth-brushes (ISO 8627:1987)
• Effective Date: 22-Dec-2008

Overview

EN ISO 22254:2005 (ISO 22254:2005) specifies a standardized test method for determining the resistance of the tufted portion of manual toothbrushes to deflection. It applies to toothbrushes with a conventional, flat-trim design and provides reproducible laboratory procedures to measure tuft resistance (and-optionally-derive tufted-area-based stiffness). The standard clarifies that measured resistance may not match consumer perceptions of bristle stiffness.

Key topics and technical requirements

• Scope: Test method for the tufted portion of manual toothbrushes with conventional flat trim; may not apply to other head designs.
• Sampling: Test five as‑manufactured brush heads (handle removed).
• Conditioning: Cut off head at the neck, weigh to 0.5 g, immerse in water (grade 3 per ISO 3696) at (37 ± 2) °C for 90 s, shake off excess water and mount.
• Test machine:
  • Brushing table with five rods (3.2 ± 0.1 mm diameter) spaced with centres at (8.2 ± 0.1) mm.
  • Gripping block holding brush head with a preload of (5 ± 0.05) N.
  • Load cell 0–20 N accurate to 0.05 N.
  • Driving unit to slide the table at 10–50 mm/s for at least the length of the brush head.
• Procedure: Start sliding within (3 ± 0.25) min after immersion; perform five cycles, record the maximum force from the load cell in each direction, take the mean of the two directions as the resistance to deflection for each brush; report mean and standard deviation for five brushes.
• Optional stiffness calculation (Annex A): After testing, remove tufts, measure tufted area A (planimeter on photograph/tracing), then compute stiffness S = F / A (N/cm²), where F is resistance to deflection.

Applications and users

EN ISO 22254 is practical for:

• Toothbrush manufacturers - product development, design comparison, and quality control.
• Independent testing laboratories - repeatable lab verification of tuft resistance.
• Regulatory and procurement bodies - specification and compliance checks for oral care equipment.
• R&D and material scientists - comparing filament arrangements, tuft density and head designs. Practical uses include product specification, batch verification, comparative testing between designs, and supporting marketing claims when combined with consumer perception studies.

Related standards

• ISO 1942 (Dentistry - Vocabulary) - terms and definitions used.
• ISO 3696 (Water for analytical laboratory use) - water quality for conditioning.
• EN 28627:1990 - earlier European standard superseded by EN ISO 22254:2005.

Keywords: ISO 22254, EN ISO 22254:2005, manual toothbrush testing, resistance to deflection, tufted area, toothbrush stiffness, brushing table, load cell, toothbrush standards.

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2005
1DGRPHãþD
SIST EN 28627:2000
SIST EN 28627:2000/AC1:2000
=RER]GUDYVWYR±5RþQH]REQHãþHWNH±2GSRUQRVWNUWDþQHJDSUHGHODQD
XSRJLESUHJLE,62
Dentistry - Manual toothbrushes - Resistance of tufted portion to deflection (ISO
22254:2005)
Zahnheilkunde - Handzahnbürsten - Biegefestigkeit der Besteckungsfläche (ISO
22254:2005)
Art dentaire - Brosses a dents manuelles - Résistance a la déflexion de la surface garnie
(ISO 22254:2005)
Ta slovenski standard je istoveten z: EN ISO 22254:2005
ICS:
97.170 Oprema za nego telesa Body care equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 22254
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2005
ICS 97.170 Supersedes EN 28627:1990
English Version
Dentistry - Manual toothbrushes - Resistance of tufted portion to
deflection (ISO 22254:2005)
Art dentaire - Brosses à dents manuelles - Résistance à la Zahnheilkunde - Handzahnbürsten - Biegefestigkeit der
déflexion de la surface garnie (ISO 22254:2005) Besteckungsfläche (ISO 22254:2005)
This European Standard was approved by CEN on 8 August 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 22254:2005: E
worldwide for CEN national Members.

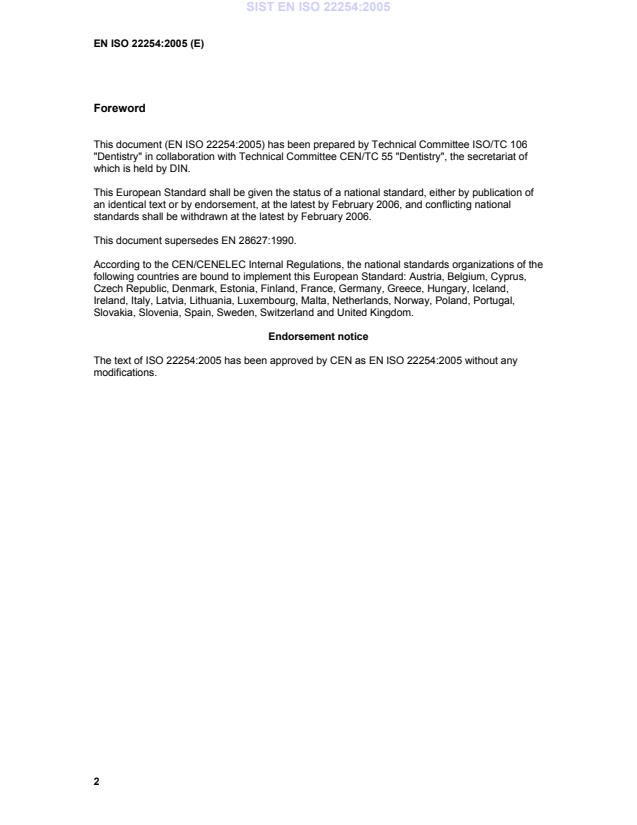

Foreword
