prEN ISO/IEEE 11073-10442

• Abstract:

  Abstract: Within the context of the ISO/IEEE 11073 family of standards for device communication, this standard establishes a normative definition of the communication between personal strength fitness devices and managers (e.g., cell phones, personal computers, personal health appliances, and set top boxes) in a manner that enables plug-and-play interoperability. It leverages appropriate portions of existing standards including ISO/IEEE 11073 terminology and information models. It specifies the use of specific term codes, formats, and behaviors in telehealth environments restricting optionality in base frameworks in favor of interoperability. This standard defines a common core of communication functionality for personal telehealth strength fitness devices. In this context, strength fitness devices are being used broadly to cover strength fitness devices that measure musculo-skeletal strength-conditioning activities.; Keywords: medical device communication, personal health devices, strength fitness equipment

• Status: Not Published
• Publication Date: 02-Mar-2028
• ICS: 35.240.80 - IT applications in health care technology
• Technical Committee: CEN/TC 251 - Medical informatics
• Drafting Committee: CEN/TC 251/WG 2 - Terminology and knowledge representation
• Current Stage: 4020 - Submission to enquiry - Enquiry
• Start Date: 16-Jul-2026
• Completion Date: 16-Jul-2026
• Ref Project: oSIST prEN ISO/IEEE 11073-10442:2026 - Health informatics - Device interoperability - Part 10442: Personal health device communication, device specialization, strength fitness equipment (ISO/IEEE FDIS 11073-10442:2026)

• Consolidated By: ISO/IEEE FDIS 11073-10442 - Health informatics — Device interoperability — Part 10442: Personal health device communication, device specialization, strength fitness equipment
• Effective Date: 30-May-2026
• Revises: EN ISO 11073-10442:2017 - Health informatics - Personal health device communication - Part 10442: Device specialization - Strength fitness equipment (ISO/IEEE 11073-10442:2015, Corrected version 2017-11-01)
• Effective Date: 27-May-2026

prEN ISO/IEEE 11073-10442 is a CEN draft in the ISO/IEEE 11073 device interoperability family. It specifies how personal strength fitness devices communicate with managers such as cell phones, PCs, personal health appliances, and set top boxes, so the two sides can exchange exercise data with plug-and-play interoperability.

What does prEN ISO/IEEE 11073-10442 specify?

prEN ISO/IEEE 11073-10442 defines the communication model for personal strength fitness devices used in telehealth and personal health applications. It focuses on the device specialization for strength fitness equipment, using the ISO/IEEE 11073 terminology, information models, term codes, formats, and behaviors needed for interoperable data exchange.

The standard is organized into clauses on scope and purpose, normative references, definitions, the ISO/IEEE 11073 background, strength fitness concepts and modalities, the domain information model, the service model, the communication model, test associations, and conformance. The annexes provide the supporting ASN.1 definitions, identifier allocations, use cases, worked examples, and revision history.

Annex	What it covers
A	Bibliography
B	Additional ASN.1 definitions
C	Allocation of identifiers
D	Use cases
E	Examples
F	Revision history

What are the key requirements of prEN ISO/IEEE 11073-10442?

Communication scope and operating modes

prEN ISO/IEEE 11073-10442 defines a common core of communication functionality for personal telehealth strength fitness devices. In practice, that means a device designer implements a shared data model and message behavior rather than inventing a proprietary exchange format.

Clause 5 identifies two operating modes: set summary and continuous monitoring. Set summary mode stores measurements during a set and sends them after the set ends; continuous monitoring sends the set-start-indicator at the beginning of the set and then reports each repetition as it happens. This matters because it determines when the manager receives data and how the workout session is reconstructed.

Device concepts that must be represented

Clause 5 defines the core workout concepts used by the specialization: set, repetition, repetition count, resistance, exercise position, exercise laterality, exercise grip, exercise movement, and set-start-indicator. These are the data elements a manager can expect from a compliant strength fitness agent.

The definitions matter because they tell implementers what the reported exercise data mean. For example, a set is tied to one agent at one resistance, while a repetition belongs to a set and can carry its own time-related details.

Domain information model choices

Clause 6 describes the strength fitness domain information model. It uses a medical device system (MDS) object plus object types for numeric data, enumeration data, and other model elements defined for this specialization.

The standard does not require real-time sample array objects, PM-store objects, or scanner objects. That keeps the implementation focused on the strength fitness use case instead of adding object types that are not needed for this device class.

Clause 6 also sets the attribute rules. Attributes are marked as mandatory, conditional, recommended, not recommended, or optional, and they are further classified as static, dynamic, or observational. In practice, this tells an implementer what must always be present, what can change during a session, and what needs to be sent early enough for the manager to interpret the observation correctly.

Service model and message exchange

Clause 7 states that the strength fitness agent uses the ISO/IEEE 11073 object access services for data exchange. The supported services include GET for reading MDS attributes, SET for attribute changes, event report services for configuration and measurement data, and action services such as Set-Time and Set-Base-Offset-Time.

The standard says there are no settable attributes defined for a strength fitness agent. That is important for product design and testing because managers can query attributes, but they do not configure this specialization by writing ordinary object attributes.

Clause 7 also requires event reports to be used in confirmed mode and requires agent-initiated measurement transmission. It supports both single-person and multiple-person report styles, and a manager shall support both. That matters where a system may collect data from one user or multiple users and still needs a consistent exchange pattern.

Association, versioning, and time

Clause 8 keeps the communication characteristics aligned with IEEE Std 11073-20601 and adds the version pairing rules. A protocol version and its matching nomenclature version must be selected together during association, so the two sides stay aligned on message meaning.

Clause 8 also says that if an agent receives an accepted-unknown-config association response, it enters the Configuring state and follows the 20601 configuration procedure. Time synchronization is permitted, and if it is used, the agent shall report it in the Mds-Time-Info attribute of the MDS object. That matters for logs and physiological event timing.

Conformance and implementation statements

Clause 10 says the standard is used together with IEEE Std 11073-20601. It defines conformance around the domain information model, nomenclature code values, protocol and service models, and the communication service model.

To show how a product uses the standard, the implementation must provide implementation conformance statements (ICS). In practice, this is the document that records which features, attributes, object classes, and extensions a specific device or manager actually implements.

What terms does prEN ISO/IEEE 11073-10442 define?

• agent - A node that collects personal health data and transmits it to an associated manager.
• manager - A node that receives data from one or more agent systems, such as a phone, health appliance, set top box, or computer system.
• MDS - Medical device system, the object that represents the overall device system in the domain information model.
• DIM - Domain information model, the hierarchical object model used to describe the agent.
• MDER - Medical device encoding rules, the encoding method used within the ISO/IEEE 11073 framework.
• ICS - Implementation conformance statement, the declaration that describes which options and features a specific implementation supports.
• RT-SA - Real-time sample array, the object type named in the model even though it is not required by this specialization.

Who uses prEN ISO/IEEE 11073-10442?

Manufacturers of strength fitness equipment use this standard when they want their devices to exchange workout data with external managers in a defined way. Software developers use it when building managers such as mobile apps, personal computers, or home health appliances that receive and interpret the exercise records.

It is also relevant to interoperability engineers, test laboratories, and quality teams that need to verify object models, message exchanges, conformance statements, and association behavior. In telehealth and personal health device projects, it helps product teams align device data with the ISO/IEEE 11073 ecosystem.

What changed in prEN ISO/IEEE 11073-10442 from the previous edition?

This document cancels and replaces ISO/IEEE 11073-10442:2015 and states that it is technically revised. The changes listed in the foreword include:

• support for Base-Offset-Time
• updated normative references to IEEE Std 11073-20601-2018
• an updated device specialization version and updated association details
• correction of the Type and Unit-Code in Table 5
• removal of Unit-Code and Unit-labelstring from Enumeration objects
• updated wording on Not Allowed and Observational
• binary examples revised for consistency with other 104xx specifications
• IEEE Std 11073-10101 made a normative reference
• updated wording on nomenclature precedence among 10101, 20601, 104xx, and this standard
• nomenclature-version tied to the corresponding protocol-version
• definition of continuous monitoring mode and set summary mode
• definition of the set-start-indicator

Which standards are used with prEN ISO/IEEE 11073-10442?

prEN ISO/IEEE 11073-10442 is written to be used with IEEE Std 11073-20601, which provides the optimized exchange protocol, the base model, and the encoding rules used by this specialization. IEEE Std 11073-10101 supplies nomenclature, and the document says the required nomenclature codes are collected across this standard, 10101, 20601, and other 104xx parts.

The document also says it is based on IEEE Std 11073-20601, which draws on ISO/IEEE 11073-10201 and ISO/IEEE 11073-20101. Annex B uses ASN.1 definitions, with the ASN.1 syntax grounded in ITU-T Rec. X.680 as cited in the text.

What does the prEN ISO/IEEE 11073-10442 document contain?

The document contains the formal object model for strength fitness equipment, including the MDS object, numeric objects, enumeration objects, and the rules for extending the model. It also contains service definitions for GET, SET, event reporting, and action services, plus the association, configuration, operating, and time synchronization procedures.

Figure 1 illustrates the two operating modes, and Figure 2 shows the strength fitness domain information model. Table 14 summarizes the object access and event report services, while Table 15 links protocol versions with the matching nomenclature versions.

Annex D gives a chest press machine use case that shows how a workout session is reported from agent to manager. Annex E provides binary examples for association, configuration, and GET MDS attributes, which is useful for implementers, testers, and protocol debugging. Annex C gives identifier allocation, and Annex F records the revision history.

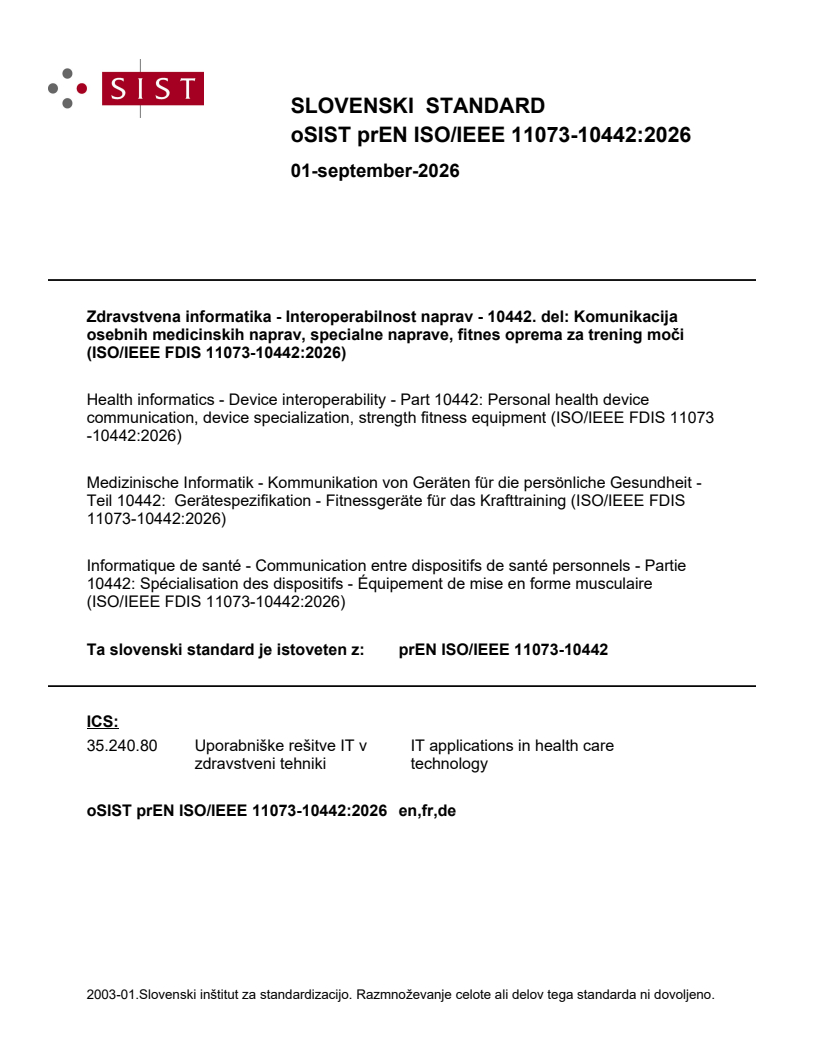

SLOVENSKI STANDARD
01-september-2026
Zdravstvena informatika - Interoperabilnost naprav - 10442. del: Komunikacija
osebnih medicinskih naprav, specialne naprave, fitnes oprema za trening moči
(ISO/IEEE FDIS 11073-10442:2026)
Health informatics - Device interoperability - Part 10442: Personal health device
communication, device specialization, strength fitness equipment (ISO/IEEE FDIS 11073
-10442:2026)
Medizinische Informatik - Kommunikation von Geräten für die persönliche Gesundheit -
Teil 10442: Gerätespezifikation - Fitnessgeräte für das Krafttraining (ISO/IEEE FDIS
11073-10442:2026)
Informatique de santé - Communication entre dispositifs de santé personnels - Partie
10442: Spécialisation des dispositifs - Équipement de mise en forme musculaire
(ISO/IEEE FDIS 11073-10442:2026)
Ta slovenski standard je istoveten z: prEN ISO/IEEE 11073-10442
ICS:
35.240.80 Uporabniške rešitve IT v IT applications in health care
zdravstveni tehniki technology
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

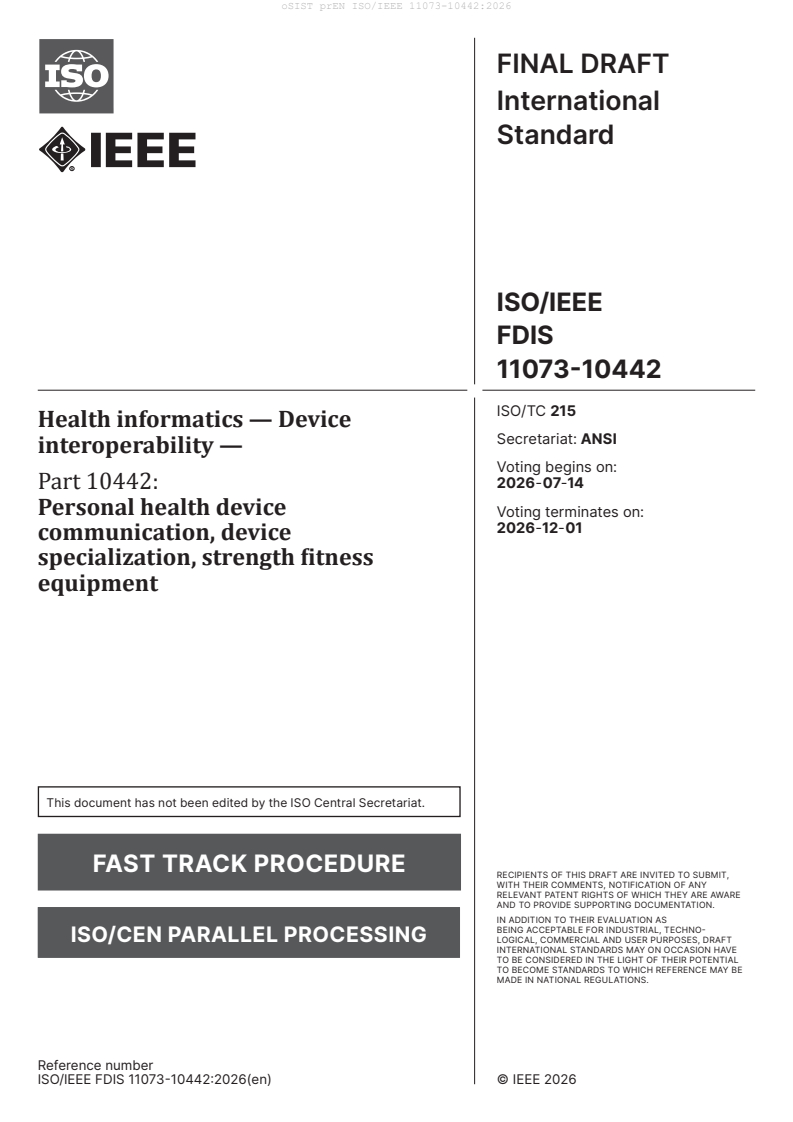

FINAL DRAFT
International
Standard
ISO/IEEE
FDIS
11073-10442
ISO/TC 215
Health informatics — Device
Secretariat: ANSI
interoperability —
Voting begins on:
2026-07-14
Part 10442:
Personal health device
Voting terminates on:
2026-12-01
communication, device
specialization, strength fitness
equipment
This document has not been edited by the ISO Central Secretariat.
FAST TRACK PROCEDURE
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
ISO/CEN PARALLEL PROCESSING LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
ISO/IEEE FDIS 11073­10442:2026(en) © IEEE 2026

FINAL DRAFT
ISO/IEEE FDIS 11073-10442:2026(en)
International
Standard
ISO/IEEE
FDIS
11073-10442
ISO/TC 215
Health informatics — Device
Secretariat: ANSI
interoperability —
Voting begins on:
Part 10442:
Personal health device
Voting terminates on:
communication, device
specialization, strength fitness
equipment
This document has not been edited by the ISO Central Secretariat.
FAST TRACK PROCEDURE
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPORTING D OCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS

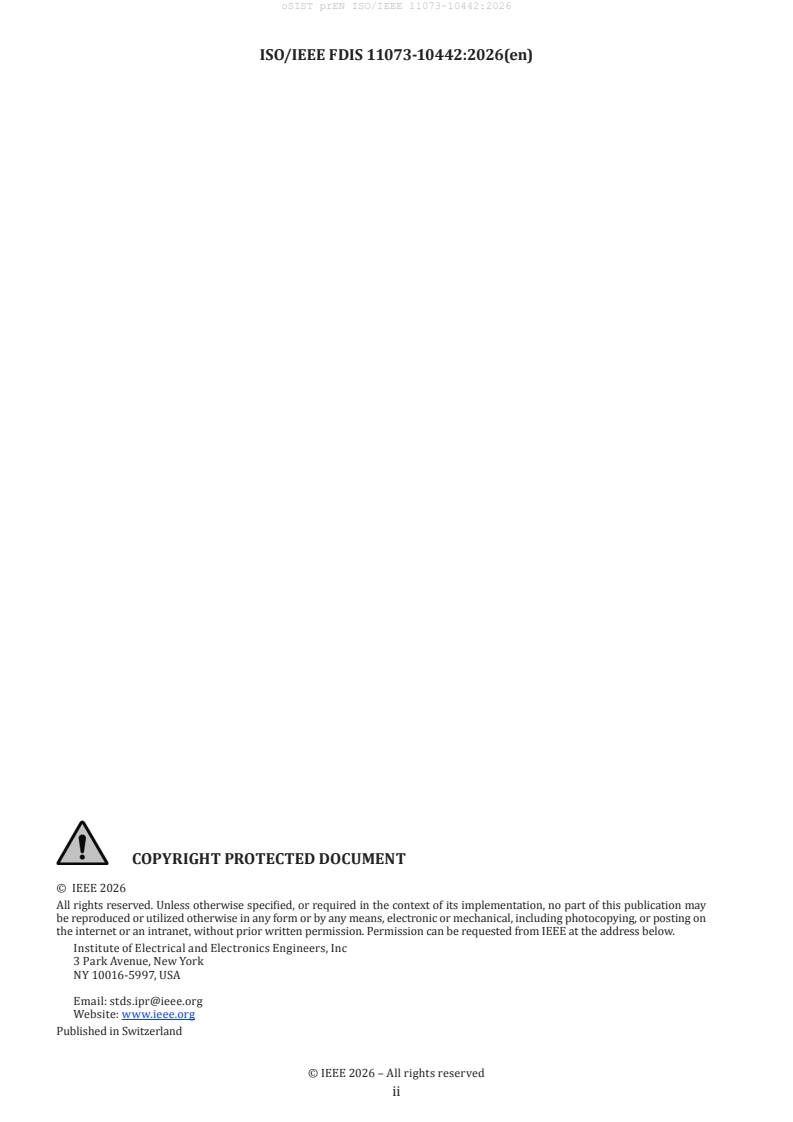

© IEEE 2026
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
ISO/CEN PARALLEL PROCESSING
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
the internet or an intranet, without prior written permission. Permission can be requested from IEEE at the address below.
TO BECOME STAND ARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Institute of Electrical and Electronics Engineers, Inc
3 Park Avenue, New York
NY 10016-5997, USA
Email: [e-mail]
Website: www.ieee.org
Published in Switzerland Reference number
ISO/IEEE FDIS 11073­10442:2026(en)
© IEEE 2023
© IEEE 2026 – All rights reserved
ii
ISO/IEEE 11073-10442:2026(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards ISO
(the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has
been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO document should be noted (see www.iso.org/directives).
IEEE Standards documents are developed within IEEE Societies and subcommittees of IEEE Standards
Association (IEEE SA) Board of Governors. IEEE develops its standards through an accredited consensus
development process, which brings together volunteers representing varied viewpoints and interests to
achieve the final product. IEEE standards are documents developed by volunteers with scientific, academic,
and industry-based expertise in technical working groups. Volunteers are not necessarily members of IEEE or
IEEE SA and participate without compensation from IEEE. While IEEE administers the process
and establishes rules to promote fairness in the consensus development process, IEEE does not independently
evaluate, test, or verify the accuracy of any of the information or the soundness of any judgments contained in
its standards.
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO had received notice of (a) patent(s) which
may be required to implement this document. However, implementers are cautioned that this may
not represent the latest information, which may be obtained from the patent database available
at www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
ISO/IEEE 11073-10442 was prepared by the IEEE 11073 Standards Committee of the IEEE Engineering in
Medicine and Biology Society (as IEEE Std 11073-10442™-2023), in collaboration with the European
Committee for Standardization (CEN), in accordance with the Agreement on technical cooperation between
ISO and CEN (Vienna Agreement), and drafted in accordance with its editorial rules. It was adopted, under the
“fast-track procedure” defined in the Partner Standards Development Organization cooperation agreement
between ISO and IEEE, by Technical Committee ISO/TC 215, Health informatics.
This second edition cancels and replaces the first edition (ISO/IEEE 11073-10442:2015), which has been
technically revised.
The main changes are as follows:
 added support to Base-Offset-Time;
 updated normative references to refer to IEEE Std 11073-20601-2018;
© IEEE 2023 – All rights reserved
iii
ISO/IEEE 11073-10442:2026(en)
 updated the version of this device specialization;
 updated the association details based on new version;
 corrected the Type and Unit-Code in Table 5;
 removed the Unit-Code and Unit-labelstring from Enumeration objects;
 updated the wording in 6.3 regarding the Not Allowed and Observational;
 modified the binary examples, to be consistent with other 104xx specs;
 made IEEE Std 11073-10101 a normative reference;
 updated the wording at 1.3 and 4.1 regarding the precedence of nomenclature between 10101, 20601,
104xx, and this standard;
 updated the usage of nomenclature-version; tied it with the corresponding protocol-version;
 defined the continuous monitoring mode and set summary mode;
 defined the set-start-indicator.
A list of all parts in the ISO/IEEE 11073 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
© IEEE 2023 – All rights reserved
iv
ISO/IEEE 11073-10442:2026(en)
IEEE Std 11073-10442™-2023
(Revision of IEEE Std 11073-10442-2008)
Health Informatics—Device Interoperability
Part 10442: Personal Health Device
Communication—Device Specialization—
Strength Fitness Equipment
Developed by the
IEEE 11073™ Standards Committee
of the
IEEE Engineering in Medicine and Biology Society
Approved 21 September 2023
IEEE SA Standards Board
ISO/IEEE 11073-10442:2026(en)
Abstract: Within the context of the ISO/IEEE 11073 family of standards for device
communication, a normative definition of the communication between personal strength
fitness devices and managers (e.g., cell phones, personal computers, personal health
appliances, and set top boxes) in a manner that enables plug-and-play interoperability is
established in this standard. Appropriate portions of existing standards including ISO/IEEE
11073 terminology and information models are leveraged. The use of specific term codes,
formats, and behaviors in telehealth environments restricting optionality in base frameworks in
favor of interoperability is specified. A common core of communication functionality for
personal telehealth strength fitness devices is defined. In this context, strength fitness devices
are being used broadly to cover strength fitness devices that measure musculo-skeletal
strength-conditioning activities.
Keywords: IEEE 11073-10442™, medical device communication, personal health devices,
strength fitness equipment
•
The Institute of Electrical and Electronics Engineers, Inc.
3 Park Avenue, New York, NY 10016-5997, USA
All rights reserved. Published 20 December 2023. Printed in the United States of America.
IEEE is a registered trademark in the U.S. Patent & Trademark Office, owned by The Institute of Electrical and Electronics
Engineers, Incorporated.
PDF: ISBN 979-8-8557-0369-6 STD26662
Print: ISBN 979-8-8557-0370-2 STDPD26662
IEEE prohibits discrimination, harassment, and bullying.
For more information, visit https://www.ieee.org/about/corporate/governance/p9-26.html.
No part of this publication may be reproduced in any form, in an electronic retrieval system or otherwise, without the prior written
permission of the publisher.
ISO/IEEE 11073-10442:2026(en)
Important Notices and Disclaimers Concerning IEEE Standards
Documents
IEEE Standards documents are made available for use subject to important notices and legal
disclaimers. These notices and disclaimers, or a reference to this page
(https://standards.ieee.org/ipr/disclaimers.html), appear in all standards and may be found under the
heading “Important Notices and Disclaimers Concerning IEEE Standards Documents.”
Notice and Disclaimer of Liability Concerning the Use of IEEE Standards
Documents
IEEE Standards documents are developed within the IEEE Societies and the Standards Coordinating
Committees of the IEEE Standards Association (IEEE SA) Standards Board. IEEE develops its
standards through an accredited consensus development process, which brings together volunteers
representing varied viewpoints and interests to achieve the final product. IEEE Standards are
documents developed by volunteers with scientific, academic, and industry-based expertise in technical
working groups. Volunteers are not necessarily members of IEEE or IEEE SA, and participate without
compensation from IEEE. While IEEE administers the process and establishes rules to promote
fairness in the consensus development process, IEEE does not independently evaluate, test, or verify
the accuracy of any of the information or the soundness of any judgments contained in its standards.
IEEE does not warrant or represent the accuracy or completeness of the material contained in its
standards, and expressly disclaims all warranties (express, implied and statutory) not included in this or
any other document relating to the standard, including, but not limited to, the warranties of:
merchantability; fitness for a particular purpose; non-infringement; and quality, accuracy,
effectiveness, currency, or completeness of material. In addition, IEEE disclaims any and all conditions
relating to results and workmanlike effort. In addition, IEEE does not warrant or represent that the use
of the material contained in its standards is free from patent infringement. IEEE Standards documents
are supplied “AS IS” and “WITH ALL FAULTS.”
Use of an IEEE standard is wholly voluntary. The existence of an IEEE Standard does not imply that
there are no other ways to produce, test, measure, purchase, market, or provide other goods and
services related to the scope of the IEEE standard. Furthermore, the viewpoint expressed at the time a
standard is approved and issued is subject to change brought about through developments in the state of
the art and comments received from users of the standard.
In publishing and making its standards available, IEEE is not suggesting or rendering professional or
other services for, or on behalf of, any person or entity, nor is IEEE undertaking to perform any duty
owed by any other person or entity to another. Any person utilizing any IEEE Standards document,
should rely upon his or her own independent judgment in the exercise of reasonable care in any given
circumstances or, as appropriate, seek the advice of a competent professional in determining the
appropriateness of a given IEEE standard.
IN NO EVENT SHALL IEEE BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO: THE NEED TO PROCURE SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
PUBLICATION, USE OF, OR RELIANCE UPON ANY STANDARD, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE AND REGARDLESS OF WHETHER SUCH DAMAGE WAS
FORESEEABLE.
Translations
The IEEE consensus development process involves the review of documents in English only. In the
event that an IEEE standard is translated, only the English version published by IEEE is the approved
IEEE standard.
ISO/IEEE 11073-10442:2026(en)
Official statements
A statement, written or oral, that is not processed in accordance with the IEEE SA Standards Board
Operations Manual shall not be considered or inferred to be the official position of IEEE or any of its
committees and shall not be considered to be, nor be relied upon as, a formal position of IEEE. At
lectures, symposia, seminars, or educational courses, an individual presenting information on IEEE
standards shall make it clear that the presenter’s views should be considered the personal views of that
individual rather than the formal position of IEEE, IEEE SA, the Standards Committee, or the Working
Group.
Comments on standards
Comments for revision of IEEE Standards documents are welcome from any interested party,
regardless of membership affiliation with IEEE or IEEE SA. However, IEEE does not provide
interpretations, consulting information, or advice pertaining to IEEE Standards documents.
Suggestions for changes in documents should be in the form of a proposed change of text, together
with appropriate supporting comments. Since IEEE standards represent a consensus of concerned
interests, it is important that any responses to comments and questions also receive the concurrence of a
balance of interests. For this reason, IEEE and the members of its Societies and Standards Coordinating
Committees are not able to provide an instant response to comments, or questions except in those cases
where the matter has previously been addressed. For the same reason, IEEE does not respond to
interpretation requests. Any person who would like to participate in evaluating comments or in
revisions to an IEEE standard is welcome to join the relevant IEEE working group. You can indicate
interest in a working group using the Interests tab in the Manage Profile & Interests area of the IEEE
SA myProject system. An IEEE Account is needed to access the application.
Comments on standards should be submitted using the Contact Us form.
Laws and regulations
Users of IEEE Standards documents should consult all applicable laws and regulations. Compliance
with the provisions of any IEEE Standards document does not constitute compliance to any applicable
regulatory requirements. Implementers of the standard are responsible for observing or referring to the
applicable regulatory requirements. IEEE does not, by the publication of its standards, intend to urge
action that is not in compliance with applicable laws, and these documents may not be construed as
doing so.
Data privacy
Users of IEEE Standards documents should evaluate the standards for considerations of data privacy
and data ownership in the context of assessing and using the standards in compliance with applicable
laws and regulations.
Copyrights
IEEE draft and approved standards are copyrighted by IEEE under US and international copyright
laws. They are made available by IEEE and are adopted for a wide variety of both public and private
uses. These include both use, by reference, in laws and regulations, and use in private self-regulation,
standardization, and the promotion of engineering practices and methods. By making these documents
available for use and adoption by public authorities and private users, IEEE does not waive any rights
in copyright to the documents.
Available at: https://development.standards.ieee.org/myproject-web/public/view.html#landing.
Available at: https://standards.ieee.org/content/ieee-standards/en/about/contact/index.html.

ISO/IEEE 11073-10442:2026(en)
Photocopies
Subject to payment of the appropriate licensing fees, IEEE will grant users a limited, non-exclusive
license to photocopy portions of any individual standard for company or organizational internal use or
individual, non-commercial use only. To arrange for payment of licensing fees, please contact
Copyright Clearance Center, Customer Service, 222 Rosewood Drive, Danvers, MA 01923 USA; +1
978 750 8400; https://www.copyright.com/. Permission to photocopy portions of any individual
standard for educational classroom use can also be obtained through the Copyright Clearance Center.
Updating of IEEE Standards documents
Users of IEEE Standards documents should be aware that these documents may be superseded at any
time by the issuance of new editions or may be amended from time to time through the issuance of
amendments, corrigenda, or errata. An official IEEE document at any point in time consists of the
current edition of the document together with any amendments, corrigenda, or errata then in effect.
Every IEEE standard is subjected to review at least every 10 years. When a document is more than 10
years old and has not undergone a revision process, it is reasonable to conclude that its contents,
although still of some value, do not wholly reflect the present state of the art. Users are cautioned to
check to determine that they have the latest edition of any IEEE standard.
In order to determine whether a given document is the current edition and whether it has been amended
through the issuance of amendments, corrigenda, or errata, visit IEEE Xplore or contact IEEE. For
more information about the IEEE SA or IEEE’s standards development process, visit the IEEE SA
Website.
Errata
Errata, if any, for all IEEE standards can be accessed on the IEEE SA Website. Search for standard
number and year of approval to access the web page of the published standard. Errata links are located
under the Additional Resources Details section. Errata are also available in IEEE Xplore. Users are
encouraged to periodically check for errata.
Patents
IEEE Standards are developed in compliance with the IEEE SA Patent Policy.
Attention is called to the possibility that implementation of this standard may require use of subject
matter covered by patent rights. By publication of this standard, no position is taken by the IEEE with
respect to the existence or validity of any patent rights in connection therewith. If a patent holder or
patent applicant has filed a statement of assurance via an Accepted Letter of Assurance, then the
statement is listed on the IEEE SA Website at
https://standards.ieee.org/about/sasb/patcom/patents.html. Letters of Assurance may indicate whether
the Submitter is willing or unwilling to grant licenses under patent rights without compensation or
under reasonable rates, with reasonable terms and conditions that are demonstrably free of any unfair
discrimination to applicants desiring to obtain such licenses.
Essential Patent Claims may exist for which a Letter of Assurance has not been received. The IEEE is
not responsible for identifying Essential Patent Claims for which a license may be required, for
conducting inquiries into the legal validity or scope of Patents Claims, or determining whether any
licensing terms or conditions provided in connection with submission of a Letter of Assurance, if any,
or in any licensing agreements are reasonable or non-discriminatory. Users of this standard are
expressly advised that determination of the validity of any patent rights, and the risk of infringement of
Available at: https://ieeexplore.ieee.org/browse/standards/collection/ieee.
Available at: https://standards.ieee.org/standard/index.html.
Available at: https://standards.ieee.org/about/sasb/patcom/materials.html.

ISO/IEEE 11073-10442:2026(en)
such rights, is entirely their own responsibility. Further information may be obtained from the IEEE
Standards Association.
IMPORTANT NOTICE
IEEE Standards do not guarantee or ensure safety, security, health, or environmental protection, or
ensure against interference with or from other devices or networks. IEEE Standards development
activities consider research and information presented to the standards development group in
developing any safety recommendations. Other information about safety practices, changes in
technology or technology implementation, or impact by peripheral systems also may be pertinent to
safety considerations during implementation of the standard. Implementers and users of IEEE
Standards documents are responsible for determining and complying with all appropriate safety,
security, environmental, health, and interference protection practices and all applicable laws and
regulations.
ISO/IEEE 11073-10442:2026(en)
Participants
At the time this IEEE standard was completed, the Personal Health Devices Working Group had the
following membership:
Daidi Zhong, Chair
Malcolm Clarke, Vice Chair
Raymond Krasinski, Secretary
Karsten Aalders Hans Crommenacker Nathaniel Heintzman
Charles R. Abbruscato Tomio Crosley Charles Henderson
Nabil Abujbara Allen Curtis Jun-Ho Her
Maher Abuzaid Jesús Daniel Trigo Timothy L. Hirou
James Agnew David Davenport Allen Hobbs
Manfred Aigner Russell Davis Alex Holland
Jorge Alberola Sushil K. Deka Arto Holopainen
David Aparisi Ciro de la Vega Kris Holtzclaw
Lawrence Arne Jim Dello Stritto Robert Hoy
Diego B. Arquillo Kent Dicks Anne Huang
Serafin Arroyo Hyoungho Do Guiling Huang
Muhammad Asim Fangjie Dong Haofei Huang
Kit August Jonathan Dougherty Zhiyong Huang
Doug Baird Xiaolian Duan David Hughes
David Baker Sourav Dutta Robert D. Hughes
Anindya Bakshi Jakob Ehrensvard Jiyoung Huh
Ananth Balasubramanian Fredrik Einberg Hugh Hunter
Sunlee Bang Javier Escayola Calvo Philip O. Isaacson
M. Jonathan Barkley Mark Estes Atsushi Ito
Gilberto Barrón Leonardo Estevez Michael Jaffe
David Bean Bosco T. Fernandes Praduman Jain
John Bell Christoph Fischer Danny Jochelson
Olivia Bellamou-Huet Morten Flintrup Akiyoshi Kabe
Rudy Belliardi Russell Foster Steve Kahle
Daniel Bernstein Eric Freudenthal Tomio Kamioka
George A. Bertos Matthias Frohner James J. Kang
Chris Biernacki Ken Fuchs Kei Kariya
Ola Björsne Jing Gao Andy Kaschl
Thomas Blackadar Marcus Garbe Junzo Kashihara
Thomas Bluethner John Garguilo Ralph Kent
Douglas P. Bogia Liang Ge Laurie M. Kermes
Xavier Boniface Rick Geimer Sanjay R. Kharche
Shannon Boucousis Igor Gejdos Ahmad Kheirandish
Lyle G. Bullock, Jr. Ferenc Gerbovics Junhyung Kim
Bernard Burg Alan Godfrey Minho Kim
Chris Burns Nicolae Goga Min-Joon Kim
Jeremy Byford-Rew Julian Goldman Taekon Kim
Satya Calloji Raul Gonzalez Gomez Tetsuya Kimura
Carole C. Carey Chris Gough Michael J. Kirwan
Craig Carlson Channa Gowda Alfred Kloos
Santiago Carot-Nemesio Charles M. Gropper Edward Koch
Seungchul Chae Amit Gupta Jeongmee Koh
Yao Chen Jeff Guttmacher Jean-Marc Koller
Jing Cheng Rasmus Haahr John Koon
Peggy Chien Christian Habermann Patty Krantz
David Chiu Michael Hagerty Raymond Krasinski
Jinyong Choi Jerry Hahn Alexander Kraus
Chia-Chin Chong Robert Hall Ramesh Krishna
Jinhan Chung Nathaniel Hamming Geoffrey Kruse
John A. Cogan Rickey L. Hampton Falko Kuester
John T. Collins Shu Han Rafael Lajara
Cory Condek Sten Hanke Pierre Landau
Todd H. Cooper Aki Harma Jaechul Lee
Sandra Costanzo Jordan Hartmann JongMuk Lee
Douglas Coup Kai Hassing Kyong Ho Lee
Nigel Cox Avi Hauser Rami Lee
ISO/IEEE 11073-10442:2026(en)
Sungkee Lee TongBi Pei Hermanni Suominen
Woojae Lee Soren Petersen Lee Surprenant
Jing Li James Petisce Ravi Swami
Qiong Li Peter Piction Ray Sweidan
Xiangchen Li Michael Pliskin Haruyuyki Tatsumi
Xiaoyu Li Varshney Prabodh Isabel Tejero
Patrick Lichter Jeff Price Chn Jonas Tirén
Jisoon Lim Harald Prinzhorn Janet Traub
Wei-Jung Lo Lifei Qian Gary Tschautscher
Charles Lowe Harry Qiu Masato Tsuchid
Ling Luo Tanzilur Rahman Ken Tubman
Don Ludolph Lin Ran Akib Uddin
Christian Luszick Phillip Raymond Sunil Unadkat
Bob MacWilliams Terrie Reed Fabio Urbani
Srikkanth Barry Reinhold Philipp Urbauer
Madhurbootheswaran Brian Reinhold Laura Vanzago
Miriam L. Makhlouf John G. Rhoads Alpo Värri
M. Sabarimalai Manikandan Jeffrey S. Robbins Andrei Vasilateanu
Romain Marmot Chris Roberts Dalimar Velez
Sandra Martinez Moskowitz Robert Martha Velezis
Miguel Martínez de Stefan Robert Rudi Voon
Espronceda Cámara Scott M. Robertson Isobel Walker
Peter Mayhew Timothy Robertson David Wang
Jim McCain Sean Rocke Jerry P. Wang
László Meleg David Rosales Shiwei Wang
Alexander Mense Bill Saltzstein Yao Wang
Behnaz Minaei Giovanna Sannino Yi Wang
Jinsei Miyazaki Jose A. Santos-Cadenas Steve Warren
Madhu Mohan Stefan Sauermann Fujio Watanabe
Erik Moll John Sawyer Toru Watsuji
Darr Moore Alois Schloegl Kathleen Wible
Chris Morel Paul S. Schluter Paul Williamson
Carsten Mueglitz Mark G. Schnell Jia-Rong Wu
Soundharya Nagasubramanian Richard A. Schrenker Will Wykeham
Alex Neefus Antonio Scorpiniti Ariton Xhafa
Trong-Nghia Nguyen- KwangSeok Seo Ricky Yang
Dobinsky Riccardo Serafin Melanie S. Yeung
Michael E. Nidd Sid Shaw Qiang Yin
Jim Niswander Frank Shen Done-Sik Yoo
Hiroaki Niwamoto Min Shih Zhi Yu
Thomas Norgall Mazen Shihabi Jianchao Zeng
Yoshiteru Nozoe Redmond Shouldice Jason Zhang
Abraham Ofek Sternly K. Simon Zerui Zhang
Brett Olive Marjorie Skubic Hongbo Zhao
Begonya Otal Robert Smith Shibai Zhao
Marco Paleari Ivan Soh Yu Zhao
Bud Panjwani Motoki Sone Liang Zheng
Carl Pantiskas Daidi Zhong
Harry P. Pappas Emily Sopensky Yuanhong Zhong
Hanna Park Rajagopalan Srinivasan Qing Zhou
Jong-Tae Park Nicholas Steblay Miha Zoubek
Myungeun Park Lars Steubesand Szymon Zyskoter
Phillip E. Pash John (Ivo) Stivoric
The following members of the individual Standards Association balloting group voted on this standard.
Balloters may have voted for approval, disapproval, or abstention.
Lyle G. Bullock, Jr. Werner Hoelzl Erik Moll
Keith Chow Noriyuki Ikeuchi
Malcolm Clarke Atsushi Ito Iulian Profir
David Fuschi Piotr Karocki Beth Pumo
Randall Groves Raymond Krasinski Stefan Schlichting
ISO/IEEE 11073-10442:2026(en)
Walter Struppler Oren Yuen Daidi Zhong
When the IEEE SA Standards Board approved this standard on 21 September 2023, it had the
following membership:
David J. Law, Chair
Ted Burse, Vice Chair
Gary Hoffman, Past Chair
Konstantinos Karachalios, Secretary
Sara R. Biyabani Joseph S. Levy Paul Nikolich
Doug Edwards Howard Li Annette D. Reilly
Ramy Ahmed Fathy Gui Lin Robby Robson
Guido R. Hiertz Johnny Daozhuang Lin Lei Wang
Yousef Kimiagar Xiaohui Liu F. Keith Waters
Joseph L. Koepfinger* Kevin W. Lu Karl Weber
Thomas Koshy Daleep C. Mohla Philip B. Winston
John D. Kulick Andrew Myles Don Wright
*Member Emeritus
ISO/IEEE 11073-10442:2026(en)
Introduction
This introduction is not part of IEEE Std 11073-10442™-2023, IEEE Standard for Health Informatics—Device
Interoperability—Part 10442: Personal Health Device Communication—Device Specialization—Strength Fitness
Equipment.
ISO/IEEE 11073 standards enable communication between medical devices and external computer
systems. This document uses the optimized framework created in IEEE Std 11073-20601™ and
describes a specific, interoperable communication approach for strength fitness equipment. These
standards align with and draw on the existing clinically focused standards to provide support for
communication of data from clinical or personal health devices.

ISO/IEEE 11073-10442:2026(en)
Contents
1. Overview .13
1.1 Scope .13
1.2 Purpose .13
1.3 Word usage .14
2. Normative references .14
3. Definitions, acronyms, and abbreviations .15
3.1 Definitions .15
3.2 Acronyms and abbreviations .15
4. Introduction to ISO/IEEE 11073 personal health devices .16
4.1 General .16
4.2 Introduction to IEEE 11073-20601 modeling constructs.16
4.3 Compliance with other standards .17
5. Strength fitness device concepts and modalities .17
5.1 General concepts .17
5.2 Set .19
5.3 Repetition .19
5.4 Repetition count .19
5.5 Resistance .19
5.6 Exercise position .19
5.7 Exercise laterality .19
5.8 Exercise grip .19
5.9 Exercise movement .19
5.10 Set-start-indicator .19
6. Strength fitness domain information model.19
6.1 Overview .19
6.2 Class extensions .19
6.3 Object instance diagram .20
6.4 Types of configuration .21
6.5 Medical device system object .22
6.6 Numeric objects .25
6.7 Real-time sample array objects .28
6.8 Enumeration objects .29
6.9 PM-store objects .34
6.10 Scanner objects .34
6.11 Strength fitness information model extensibility rules .34
7. Strength fitness service model .35
7.1 General .35
7.2 Object access services.35
7.3 Object access event report services .36
8. Strength fitness communication model .37
8.1 Overview .37
8.2 Communications characteristics .37
8.3 Association procedure .38
8.4 Configuring procedure .39
8.5 Operating procedure .39
8.6 Time synchronization .40
9. Test associations .40
10. Conformance .40
10.1 Applicability .40
ISO/IEEE 11073-10442:2026(en)
10.2 Conformance specification .40
10.3 Levels of conformance .40
10.4 Implementation conformance statements .41
Annex A (informative) Bibliography .45
Annex B (normative) Any additional ASN.1 definitions .46
Annex C (normative) Allocation of identifiers .47
Annex D (informative) Use cases .55
D.1 Use case—chest press machine exercise .55
Annex E (informative) Examples .57
E.1 General .57
E.2 Association .57
E.3 Configuration .58
E.4 GET MDS attributes service .63
Annex F (informative) Revision history .68
ISO/IEEE FDIS 11073-10442:2026(en)
Health Informatics—Device Interoperability
Part 10442: Personal Health Device
Communication—Device
Specialization—Strength Fitness
Equipment
1. Overview
1.1 Scope
Within the context of the ISO/IEEE 11073 family of standards for device communication, this standard
establishes a normative definition of the communication between personal strength fitness devices and
managers (e.g., cell phones, personal computers [PCs], personal health appliances, and set top boxes)
in a manner that enables plug-and-play interoperability. It leverages appropriate portions of existing
standards, including ISO/IEEE 11073 terminology and information models. It specifies the use of
specific term codes, formats, and behaviors in telehealth environments restricting optionality in base
frameworks in favor of interoperability. This standard defines a common core of communication
functionality for personal telehealth strength fitness devices. In this context, strength fitness devices are
being used broadly to cover strength fitness devices that measure musculo-skeletal strength-
conditioning activities.
1.2 Purpose
This standard addresses a need for an openly defined, independent standard for controlling information
exchange to and from personal health devices and managers (e.g., cell phones, PCs, personal health
appliances, and set top boxes). Interoperability is the key to growing the potential market for these
devices and to enable people to be better-informed participants in the management of their health.
See IEEE Std 11073-20601™ for an overview of the environment within which this standard is written.
This document defines the device specialization for the strength fitness device, being a specific agent
type, and it provides a description of the device concepts, its capabilities, and its implementation
according to this standard.
This standard is based on IEEE Std 11073-20601, which in turn draws information from both
ISO/IEEE11073-10201 [B6] and ISO/IEEE 11073-20101 [B7]. The medical device encoding rules
(MDER) used within this standard are fully described in IEEE Std 11073-20601.
This standard defines specialized nomenclature codes that will be collected in IEEE Std 11073-10101.
Between this standard, IEEE Std 11073-10101, IEEE Std 11073-20601, and other IEEE Std 11073-
104xx, all required nomenclature codes for implementation are documented. New codes may be
The numbers in brackets correspond to those of the bibliography in Annex A.
ISO/IEEE 11073-10442:2026(en)
IEEE Std 11073-10442-2023
IEEE Standard for Health Informatics—Device Interoperability—Part 10442: Personal Health Device
Communication—Device Specialization—Strength Fitness Equipment
defined in newer versions/revisions of each of these documents. In the case of a conflict, where one
term code has been assigned to two separate semantic concepts with different reference identifiers
(RefIDs), in general the oldest definition that is in actual use should take precedence. The same policy
applie
...
