prEN 15954-1

Railway applications - Track - Trailers and associated equipment - Part 1: Technical requirements for running and working

This European Standard deals with the technical requirements to minimize the specific railway hazards of trailers and associated equipment, which can arise during the commissioning, the operation and the maintenance of trailers when carried out in accordance with the specification given by the manufacturer or his authorized representative. This European Standards applies to trailers that are not intended to operate signalling and control systems. Other similar machines are dealt with in other European Standards,
see Annex G.
Note   Machines not intended for operating signalling and control systems are only permitted to run under special conditions and within areas specifically designated by the infrastructure manager.
Part 1 of this European Standard deals with requirements for approval of the trailer by an authorized body, part 2 deals with requirements for the trailer to be declared conformant by the manufacturer, except in the case of trailers classified in Annex 4 of the Machinery Directive which require conformity check in conjunction with a notified body.
Additional requirements can apply for running on infrastructures with narrow gauge or broad gauge lines, lines of tramways, railways utilizing other than adhesion between the rail and rail wheels, and underground infrastructures.
This European Standard is also applicable for trailers and associated equipment that in working configuration are partly supported on the ballast or the formation.
Where two or more trailers are used together to transport loads in a fixed formation, e.g. where a metal container is fixed to two small trailers, the whole system shall be treated as a trailer and comply with the requirements of this European Standard.

Bahnanwendungen - Oberbau - Anhänger und zugehörige Ausstattung - Teil 1: Technische Anforderungen an das Fahren und den Arbeitseinsatz

Diese Europäische Norm legt die technischen Anforderungen zur Minimierung eisenbahnspezifischer
Gefahren von Anhängern und zugehöriger Ausstattung fest, die bei der Inbetriebnahme, dem Betrieb und der
Instandhaltung von Anhängern, den Anweisungen des Herstellers oder seinem berechtigten Vertreter folgend,
entstehen können. Diese Europäische Norm gilt für Anhänger, die nicht für den Betrieb von Signal- und
Steuerungssysteme vorgesehen sind. Ähnliche Maschinen werden in anderen Europäischen Normen
behandelt, siehe Anhang G.
ANMERKUNG Maschinen, die nicht für den Betrieb von Signal- und Steuerungssystemen vorgesehen sind, dürfen
nur unter speziellen Bedingungen fahren und nur in Streckenabschnitten, die gesondert vom Infrastrukturunternehmer
bestimmt sind.
Teil 1 dieser Europäischen Norm behandelt die Anforderungen für die Prüfung der Anhänger durch eine
autorisierte Stelle, Teil 2 behandelt die Anforderungen an die Anhänger für die Konformität, die der Hersteller
bestätigt, mit Ausnahme von Anhängern, die nach der Maschinenrichtlinie, Anhang 4 klassifiziert sind und
eine Konformitätsprüfung in Verbindung mit einer notifizierten Stelle benötigen.
Für das Fahren auf Infrastrukturen mit schmalen Spurweiten oder auf Breitspurstrecken, Straßenbahnlinien,
von Eisenbahnen, die eine andere Haftreibung zwischen Schiene und Rad nutzen, und Infrastrukturen im
Untergrund können zusätzliche Anforderungen bestehen.
Diese Europäische Norm gilt auch für Anhänger und zugehörige Ausrüstungen, die sich in Arbeitstellung
teilweise auf dem Schotter oder dem Untergrund (Planum) abstützen.
Wenn zwei oder mehrere Anhänger für das Fahren von Lasten in einer bestimmten Anordnung eingesetzt
werden, z. B. wenn ein Eisencontainer an zwei schmalen Anhängern befestigt ist, muss das ganze System als
ein Anhänger betrachtet werden und den Anforderungen dieser Europäischen Norm entsprechen.

Applications ferroviaires - Voie - Remorques et éléments associés - Partie 1: Prescriptions techniques pour la circulation et le travail

La présente Norme européenne traite des prescriptions techniques, pour minimiser les risques de danger
spécifiques au domaine ferroviaire des remorques et des équipements associés. Ces risques peuvent se
produire lors des opérations de mise en service, d'exploitation et de maintenance des remorques; ces
opérations sont réalisées conformément aux spécifications données par le fabricant ou son mandataire. La
présente norme européenne s’applique aux remorques qui ne sont pas prévues pour actionner les systèmes
ferroviaires de signalisation et de contrôle. D’autres machines similaires sont traitées dans d’autres normes
européennes, voir Annexe G.
NOTE Les machines qui ne sont pas prévues pour actionner les systèmes ferroviaires de signalisation et de contrôle
sont autorisées uniquement à circuler sous des conditions particulières et dans des zones spécifiées par le gestionnaire
d’infrastructure.
La partie 1 de la présente Norme européenne traite des prescriptions pour l’agrément d’une remorque par un
organisme autorisé. La partie 2 de la présente Norme européenne traite des prescriptions relatives à la
«déclaration de conformité» d’une remorque par le fabricant, à l’exception des remorques classées selon
l'Annexe 4 de la Directive Machines qui exige une vérification de la conformité par un organisme notifié.
Des prescriptions supplémentaires peuvent s’appliquer pour la circulation :
sur les infrastructures ferroviaires à voies large ou étroite ;
sur des lignes de tramway ;
sur des chemins de fer autres que ceux à adhérence rail/roue ;
sur des infrastructures ferroviaires en souterrain.
La présente Norme européenne s'applique aussi aux remorques et aux équipements associés qui, en
configuration de travail, prennent partiellement appui sur le ballast ou sur la plate-forme.

Železniške naprave - Zgornji ustroj - Vlečena vozila za posebne namene in spremljajoča oprema - 1. del: Tehnične zahteve, ki se nanašajo na vožnjo in na delovanje

General Information

• Status: Not Published
• Publication Date: 08-May-2011
• Withdrawal Date: 08-Nov-2011
• ICS: 45.060.20 - Trailing stock
• ICS: 45.120 - Equipment for railway/cableway construction and maintenance
• Technical Committee: CEN/TC 256 - Railway applications
• Drafting Committee: CEN/TC 256/SC 1/WG 5 - Track construction and maintenance machines
• Current Stage: 4098 - Decision to abandon - Enquiry
• Start Date: 12-Oct-2010
• Completion Date: 12-Oct-2010
• Directive: 2008/57/EC - Directive 2008/57/EC of the European Parliament and of the Council of 17 June 2008 on the interoperability of the rail system within the Community (Recast)
• Directive: 93/38/EEC - Procurement procedures of entities operating in the water, energy, transport and telecommunications sectors
• Mandate: M/024 - Mandate to CEN/CENELEC/ETSI for programming and standardization in the field of railway equipment
• Mandate: M/334 - Mandate for programming and standardisation addressed to CEN, CENELEC and ETSI in the field of the Interoperability of the trans-european conventional rail system
• Ref Project: oSIST prEN 15954-1:2009 - Railway applications - Track - Trailers and associated equipment - Part 1: Technical requirements for running and working

Overview

prEN 15954-1 - "Railway applications - Track - Trailers and associated equipment - Part 1: Technical requirements for running and working" is a CEN draft European Standard that defines the technical requirements to minimize railway-specific hazards from trailers and their associated equipment during commissioning, operation and maintenance.
This standard applies to trailers that do not operate signalling or control systems and complements Part 2 (general safety / manufacturer declaration). It supports procurement and safety compliance across European track maintenance operations and helps infrastructure managers set authorised running conditions.

Key topics and technical requirements

The standard covers a wide range of railway-specific safety and technical issues, including:

• Trailer categorisation and applicability (including treatment of multiple trailers fixed together as a single system)
• Gauge and running/working limits, including lateral and vertical clearance rules and special limits for narrow/broad gauges, tramways, non‑adhesion systems and underground lines
• Interaction with infrastructure: wheel/rail interaction, auxiliary wheels and guides, loads on ballast and formation, and forces on structures
• Running safety and derailment prevention: equipment, speed-related requirements (e.g. different criteria above and below 60 km/h), and mandatory track tests
• Stability, frame strength and structural requirements, including lifting/jacking points for recovery operations
• Couplings and buffing/draw gear: technical details provided in informative annexes
• Running gear and suspension: wheelset distribution, wheel profiles and axle load configurations
• Braking, driving/working cabs, controls and visibility (lighting, marker lights, tail lamps, lamp brackets and colour)
• Electrical safety and EMC: equipotential bonding, antennae, pantograph considerations and electromagnetic compatibility
• Operational procedures: setting up, packing away, on/off tracking, use of turntables, MEWPs and excavators used as MEWPs
• Marking, numbering, user information and conformity verification, including checklists, certificates and trailer identification plate formats (normative annexes)

Practical applications and users

prEN 15954-1 is practical for:

• Trailer manufacturers (design, type approval and technical documentation)
• Infrastructure managers (authorising running areas and special conditions)
• Maintenance contractors and track-work teams (safe operation, selection and on-track procedures)
• Notified/authorized bodies and test laboratories (type approval, conformity checks and verification)
• Procurement officers specifying compliance in tender documents for track maintenance equipment

Use this standard to create procurement specs, prepare conformity dossiers, design trailer running gear for safe interaction with track infrastructure, and to define operational limits and safety measures.

Related standards

• prEN 15954 consists of Part 1 (this document) and Part 2 (general safety / manufacturer declaration).
• Annex G lists other European Standards covering similar track construction and maintenance machines.
• The standard was developed by CEN/TC 256 and supports relevant EU procurement and safety directives (see Directive 2004/17/EC).

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2009
äHOH]QLãNHQDSUDYH=JRUQMLXVWURM9OHþHQDYR]LOD]DSRVHEQHQDPHQHLQ
VSUHPOMDMRþDRSUHPDGHO7HKQLþQH]DKWHYHNLVHQDQDãDMRQDYRåQMRLQQD
GHORYDQMH
Railway applications - Track - Trailers and associated equipment - Part 1: Technical
requirements for running and working
Bahnanwendungen - Oberbau - Anhänger und zugehörige Ausstattung - Teil 1:
Technische Anforderungen an das Fahren und den Arbeitseinsatz
Applications ferroviaires - Voie - Remorques et éléments associés - Partie 1:
Prescriptions techniques pour la circulation et le travail
Ta slovenski standard je istoveten z: prEN 15954-1
ICS:
45.060.20 Železniški vagoni Trailing stock
45.120 2SUHPD]DJUDGQMRLQ Equipment for
Y]GUåHYDQMHåHOH]QLFR] railway/cableway
åLþQLF construction and
maintenance
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2009
ICS
English Version
Railway applications - Track - Trailers and associated equipment
- Part 1: Technical requirements for running and working
Applications ferroviaires - Voie - Remorques et éléments Bahnanwendungen - Oberbau - Anhänger und zugehörige
associés - Partie 1: Prescriptions techniques pour la Ausstattung - Teil 1: Technische Anforderungen an das
circulation et le travail Fahren und den Arbeitseinsatz
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 256.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the
same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15954-1:2009: E
worldwide for CEN national Members.

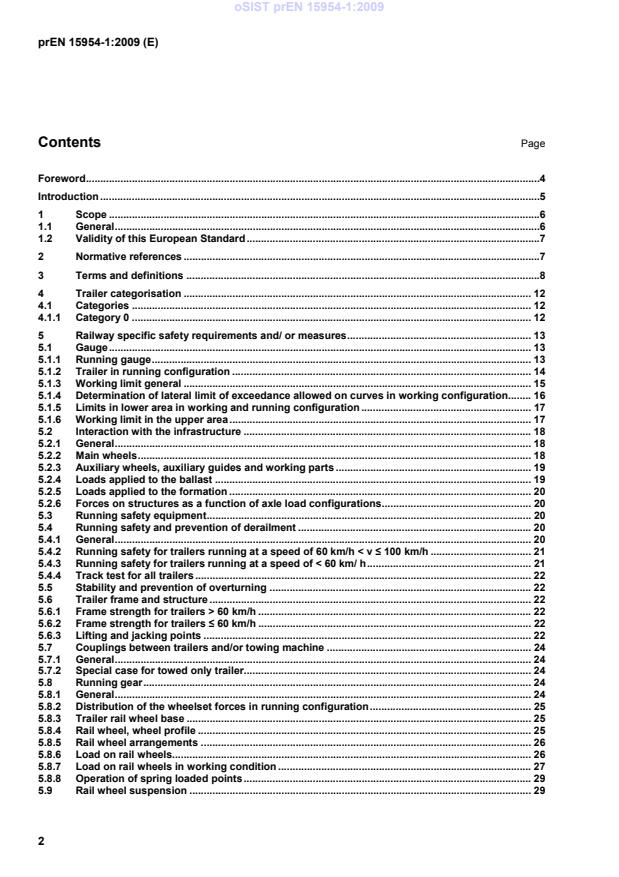

Contents Page
Foreword .4
Introduction .5
1 Scope .6
1.1 General .6
1.2 Validity of this European Standard .7
2 Normative references .7
3 Terms and definitions .8
4 Trailer categorisation . 12
4.1 Categories . 12
4.1.1 Category 0 . 12
5 Railway specific safety requirements and/ or measures . 13
5.1 Gauge . 13
5.1.1 Running gauge . 13
5.1.2 Trailer in running configuration . 14
5.1.3 Working limit general . 15
5.1.4 Determination of lateral limit of exceedance allowed on curves in working configuration . 16
5.1.5 Limits in lower area in working and running configuration . 17
5.1.6 Working limit in the upper area . 17
5.2 Interaction with the infrastructure . 18
5.2.1 General . 18
5.2.2 Main wheels . 18
5.2.3 Auxiliary wheels, auxiliary guides and working parts . 19
5.2.4 Loads applied to the ballast . 19
5.2.5 Loads applied to the formation . 20
5.2.6 Forces on structures as a function of axle load configurations . 20
5.3 Running safety equipment . 20
5.4 Running safety and prevention of derailment . 20
5.4.1 General . 20
5.4.2 Running safety for trailers running at a speed of 60 km/h < v ≤ 100 km/h . 21
5.4.3 Running safety for trailers running at a speed of < 60 km/ h . 21
5.4.4 Track test for all trailers . 22
5.5 Stability and prevention of overturning . 22
5.6 Trailer frame and structure . 22
5.6.1 Frame strength for trailers > 60 km/h . 22
5.6.2 Frame strength for trailers ≤ 60 km/h . 22
5.6.3 Lifting and jacking points . 22
5.7 Couplings between trailers and/or towing machine . 24
5.7.1 General . 24
5.7.2 Special case for towed only trailer. 24
5.8 Running gear . 24
5.8.1 General . 24
5.8.2 Distribution of the wheelset forces in running configuration . 25
5.8.3 Trailer rail wheel base . 25
5.8.4 Rail wheel, wheel profile . 25
5.8.5 Rail wheel arrangements . 26
5.8.6 Load on rail wheels. 26
5.8.7 Load on rail wheels in working condition . 27
5.8.8 Operation of spring loaded points . 29
5.9 Rail wheel suspension . 29
5.10 Braking . 29
5.11 Driving and working cabs and places . 29
5.12 Controls . 29
5.13 Visibility of the trailer . 29
5.13.1 Lighting – marker lights . 29
5.13.2 Tail lamps . 30
5.13.3 Lamp brackets . 30
5.13.4 Light switching arrangements . 32
5.13.5 Colour of the trailer . 32
5.14 Electrical equipment and earth bonding . 32
5.14.1 Equi-potential bonding . 32
5.14.2 Antennae . 32
5.14.3 Pantograph . 32
5.15 Electro-magnetic compatibility . 33
5.15.1 Emissions from trailers. 33
5.15.2 Immunity of trailers from railway environment . 33
5.16 On and off tracking . 33
5.16.1 General . 33
5.16.2 Use of turntables . 34
5.17 Setting up and packing away . 34
5.17.1 General . 34
5.17.2 Emergency recovery of equipment . 34
5.18 Mobile elevating work platform (MEWP) and excavators/ loaders used as MEWPs . 34
5.19 Exhaust . 34
6 Marking and numbering of the trailers . 35
6.1 Warning signs and pictograms . 35
6.2 Trailer identification number . 35
6.3 Identification plate and details of the railway infrastructure where the trailer is allowed to
work . 35
7 User information . 35
8 Verification of the conformity to the requirements and/ or particular safety measures . 37
Annex A (informative) Technical details for buffing and draw gear . 38
A.1 General . 38
A.2 Draw gear constituent parts . 38
A.2.1 Coupling part . 38
A.3 Application . 39
A.4 Technical Requirements . 40
A.4.1 Coupling parts . 40
A.5 Information for use . 40
Annex B (informative) Special national conditions . 41
Annex C (normative) Check list for conformity . 45
Annex D (normative) Certificates . 49
D.1 Certificate of type approval to prEN xxxyy-1:2009 . 49
D.2 Conformance control document for the technical requirements of prEN xxxyy-1:2009 . 50
D.2.1 Trailer identification . 50
D.2.2 General characteristics . 50
Annex E (normative) Trailer numbering structure . 52
E.1 General . 52
E.2 Examples . 54
Annex F (informative) Trailer identification plate . 55
Annex G (informative) Structure of European standards for track construction and maintenance
machines . 56
Bibliography . 57

Foreword
This document (prEN 15954-1:2009) has been prepared by Technical Committee CEN/TC 256 “Railway
Applications”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of
 Directive 2004/17/EC of the European Parliament and of the Council of 31 March 2004 coordinating the
1)
procurement procedures of entities operating in the water, energy, transport and postal services sectors .
"Railway applications — Track — Trailers and associated equipment" consists of the following parts:
 Part 1: Technical requirements for running and working;
 Part 2: General safety requirements.

1)
Official Journal of the European Communities No L 134 of 30.04.04
Introduction
The machinery concerned and the extent to which hazards, hazardous situation and events are covered are
indicated in the scope of this document.
This European Standard was prepared to meet the basic requirements of EU Directives to facilitate an open
market for goods and services.
Trailers as specified in 3.1 form the object of this standard.
This standard deals with railway specific risks of the trailers, defined in clause 4, when running and working on
railway infrastructures.
The safety requirements in relation to the Machinery Directive are dealt with in prEN xxxyy-2 of this series of
standards.
Deviations or special national conditions are dealt with in Annex B.
The risks which exist in all mechanical, electrical, hydraulic, pneumatic and other components of trailers and
which are dealt with in the relevant European Standards are not within the scope of this European Standard. If
necessary, references are made to appropriate standards of this type.
1 Scope
1.1 General
This European Standard deals with the technical requirements to minimize the specific railway hazards of
trailers and associated equipment, which can arise during the commissioning, the operation and the
maintenance of trailers when carried out in accordance with the specification given by the manufacturer or his
authorized representative. This European Standards applies to trailers that are not intended to operate
signalling and control systems. Other similar machines are dealt with in other European Standards,
see Annex G.
Note Machines not intended for operating signalling and control systems are only permitted to run under special
conditions and within areas specifically designated by the infrastructure manager.
Part 1 of this European Standard deals with requirements for approval of the trailer by an authorized body,
part 2 deals with requirements for the trailer to be declared conformant by the manufacturer, except in the
case of trailers classified in Annex 4 of the Machinery Directive which require conformity check in conjunction
with a notified body.
Additional requirements can apply for running on infrastructures with narrow gauge or broad gauge lines, lines
of tramways, railways utilizing other than adhesion between the rail and rail wheels, and underground
infrastructures.
This European Standard is also applicable for trailers and associated equipment that in working configuration
are partly supported on the ballast or the formation.
Where two or more trailers are used together to transport loads in a fixed formation, e.g. where a metal
container is fixed to two small trailers, the whole system shall be treated as a trailer and comply with the
requirements of this European Standard.
This European Standard does not apply to the following:
 requirements for quality of the work or performance of the trailer;
 specific requirements established by the railway infrastructure operator for the use of trailers,
which will be the subject of negotiation between the manufacturer and the operator;
 separate machines temporarily mounted on the trailer.
This European Standard does not establish the additional requirements for the following:
 operation subject to special rules, e. g. potentially explosive atmospheres;
 hazards due to natural causes, e. g. earthquake, lightning, flooding etc.;
 working methods;
 operation in severe working conditions requiring special measures, e.g. work in tunnels or in
cuttings, extreme environmental conditions such as freezing temperatures, high temperatures,
corrosive environment, tropical environment, contaminating environments, strong magnetic
fields;
 hazards due to errors in software;
 hazards occurring when used to handle suspended loads which may swing freely.
NOTE The intended use of these trailers may have operational parameters specified by each infrastructure manager,
for example the maximum speed allowed for these trailers is likely to be limited by the infrastructure manager
– compliance with the clauses of this standard does not confer permission for trailers to travel at this speed.
These trailers will not be allowed on a track open to normal railway traffic.
Other track construction and maintenance machines used on railway tracks are dealt with in other European
Standards, see Annex G.
1.2 Validity of this European Standard
This European Standard applies to all trailers, which are ordered one year after the publication date by CEN of
this standard.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 791, Drill rigs — safety
EN 12663:2000, Railway applications — Structural requirements of railway vehicle bodies
EN 13309, Construction machinery — Electromagnetic compatibility of machines with internal electrical power
supply
EN 13715, Railway applications — Wheelsets and bogies — Wheels — Wheels tread
prEN 14033-1:2008, Railway applications — Track — Railbound construction and maintenance machines —
Part 1: Technical requirements for running
EN 14033-2:2008, Railway applications — Track — Railbound construction and maintenance machines —
Part 2: Technical requirements for working
EN 14363:2005, Railway applications — Testing for the acceptance of running characteristics of railway
vehicles — Testing of running behaviour and stationary tests
EN 14601; Railway applications — Straight and angled end cocks for brake pipe and main reservoir pipe
prEN 15273-2:2005, Railway Applications — Gauges — Part 2: Rolling stock gauge
prEN 15746-1:2008, Railway applications — Track — Trailers and associated equipment — Part 1: Technical
requirements for running and working
EN 50121-3-1:2006, Railway applications — Electromagnetic compatibility — Part 3-1: Rolling stock — Train
and complete vehicle
EN 50121-3-2:2006, Railway applications — Electromagnetic compatibility — Part 3-2: Rolling stock —
Apparatus
EN 50122-1, Railway applications — Fixed installations — Part 1: Protective provisions relating to electrical
safety and earthing
EN 60947 series, Low-voltage switchgear and controlgear
prEN xxxyy-2:2009, Railway applications — Track — Trailers and associated equipment — Part 1: Technical
requirements for running and working
prEN xxxzz-1:2009, Railway applications — Track — Demountable machines and associated equipment —
Part 1: Technical requirements for running and working
prEN xxxzz-2:2009, Railway applications — Track — Demountable machines and associated equipment —
Part 2: General safety requirements
EN ISO 12100 series, Safety of machinery — Basic concepts, general principles for design
ISO 6016, Earth-moving machinery — Methods of measuring the masses of whole machines, their equipment
and components
ISO 6746-1, Earth-moving machinery — Definitions of dimensions and codes — Part 1: Base machine
ISO 6746-2, Earth-moving machinery — Definitions of dimensions and codes — Part 2: Equipment and
attachments
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 12100 series and the following
apply.
3.1
trailer
non-self propelled machine that can be hauled on rail wheels
NOTE Trailers are not intended to operate signalling and control systems and are not designed to be transported
between work areas on their rail wheels.
3.2
road-rail trailer
trailer with additional road wheels to enable the trailer to be hauled on both rails and ground
3.3
road-rail machine
self propelled machine that can run on rails and ground
NOTE 1 It is normally a road vehicle adapted for running on rail also, but can be a specially designed rail vehicle for
running on the ground also.
NOTE 2 It does not imply that the machine is suitable for use on the public road.
3.4
demountable machine
machine that can run and work on rail and which is not intended to operate signalling and control systems
NOTE 1 Such a machine is designed to get on and off track by its own means or with other lifting equipment. In the
case of demounting by its own means these are not intended for running on the ground.
NOTE 2 Such a machine is permitted to work on the railway only under special operating conditions granted by the
infrastructure manager and run under special conditions granted by the authorising body and/or the
infrastructure manager.
3.5
railbound machine
machine that can run and work only on rail and is transported on its rail wheels. The machine is specifically
designed to operate signalling and control systems and is intended for infrastructure work. The machine can
be self propelled or hauled
3.6
trolley
equipment for transport along track of materials, tools and/or various equipment, moving on wheels or runners
and operated only by human force. It is designed so that it can be manually placed on or off the track
3.7
portable machine
machine designed or adapted to be worked on the track, transportable by hand with or without trolleys or
separate supports for movement on rail(s), and be operated by internal combustion, electrical, mechanical,
hydraulic, pneumatic energy sources or from an external supply, but is not powered for movement along track.
It is designed so that the machine and/or its separate component parts may be manually placed on or off the
track
3.8
mobile elevating work platform
(MEWP)
mobile machine that is intended to move persons to working positions where they are carrying out work from
the work platform with the intention that persons are getting on and off the work platform at one defined
access position and which consists as a minimum of a work platform with controls, an extending structure and
a chassis
3.9
host vehicle
basic road vehicle or machine which is converted to run additionally on rails
3.10
general attachment
components or assembly of components which can be mounted onto the trailer or equipment for a specific
use
NOTE See ISO 6746-1, ISO 6746-2 and ISO 6016.
3. 11
railway specific attachment
equipment that is capable of being temporarily fixed to and/or powered from a road rail machine or
demountable machine but specifically excludes lifting accessories
3.12
lifting accessory
lifting accessory means loose lifting tackle, i. e. components or equipment not attached to the trailer and
placed between the machinery and the load or on the load in order to attach it
3.13
manufacturer
body that designs and constructs a trailer, or converts the original machine to a trailer
3.14
running configuration
state of trailer when it is on the rail and all movable parts are stowed and secured within the applicable
kinematic gauge in accordance with prEN 15273-2 and its acceptable exceedance, see 5.4.1 and 5.4.2
3.15
working configuration
trailer is said to be in working configuration as soon as any part of the trailer or its equipment is away from the
running configuration
3.16
on and off tracking configuration
configuration of the trailer when it is in a state that enables it to be on or off tracked
3.17
running
moving the trailer in running configuration along the track
3.18
stationary
standing on the track with the rail wheels not rotating
3.19
operating track
track corresponding to the criteria of the infrastructure manager on which vehicles may run under normal
signalling arrangements (with or without a speed limit)

3.20
working track
track that is being maintained for which the geometrical parameters may reach the limiting values as specified in
EN 14033-2:2008, Annex F and for which special operational restrictions may apply
3.21
railway infrastructure
all installations required for the running of railway vehicles
EXAMPLE Tracks, crossings, catenaries, signals.
3.22
operator
person who handles the controls of a machine in order to perform the functions of the machine including
towing or controlling a trailer(s)
3.23
train
self propelled vehicle/machine or assembly of vehicles/machines attached by couplings conforming to the
relevant regulations of the authorised body and/or infrastructure manager
3.24
special train
assembly of vehicles/machines/trailers attached by couplings conforming to the relevant regulations of the
infrastructure manager, for example an assembly of trailers and/or wagons and/or category 3, 5, 7 machines
described in prEN 14033-1 attached to a trailer under conditions prescribed by the infrastructure manager
3.25
working limit contour
limit in which a trailer can work without interfering with the kinematic envelope of trains on adjacent tracks
NOTE See EN 14033-2:2008, Annex D.
3.26
rated load
maximum load that the lifting equipment has been designed for normal operation and the manufacturer states
can be lifted in any specified position
3.27
authorised body
body in a state that, in accordance with the laws and prescriptions in force in that state, is competent to
approve rail vehicles for the use in public rail traffic
3.28
type testing
examination of the first trailer, of a new type, for build conformity to the requirements of this standard
3.29
type conformity
consists of an examination of the conformity, of each trailer, to the all the safety requirements of this standard
before delivery of the trailer
3.30
type approval certificate
document issued after the checking of documents and/or testing of trailers in which the agreement of the use
of the trailer in the railway infrastructure is confirmed
3.31
type conformance certificate
document, which states that the trailer conforms to the design of the first trailer of the type that has been
approved
3.32
railway undertaking
any private or public undertaking whose main business is to provide rail transport services for goods and/ or
passengers
3.33
infrastructure manager
any public body or undertaking responsible for establishing and maintaining railway infrastructure, as well as
for operating the railway control and safety systems
3.34
access permit
document issued by the infrastructure manager for an approved trailer to run on the railway infrastructure, if
necessary with special access conditions
3.35
supplement to the access permit
supplement to an existing access permit which allows the use of the trailer in another CEN-member country, if
necessary taking into account special access requirements
3.37
working agreement
working agreement is a procedure that enables a trailer to work on one railway infrastructure. This procedure
consists of two parts:
a) the proof of conformity with the safety requirements, as specified in prEN xxxyy-2 (EC declaration of
conformity), given by the manufacturer;
b) the proof of conformity with the railway specific requirements, as specified in this standard prEN xxxyy-1
given by an authorised body of the infrastructure manager
3.38
working authorisation
authorisation given by an infrastructure manager which permits a trailer to work on that railway infrastructure
3.39
methods of examination
are indicated in Table C.1, which consists of visual exams, measurements, functional tests, load test(s),
specific verification/measurements and other controls
3.40
visual exam
to establish, whether all elements on the machine, system or component, e. g. protective devices, visual
warning device, marking, are present and that documents and drawings correspond to the requirements
3.41
measurement test
to establish whether the stated measurable parameters have met the requirements of this standard, e. g.
geometric dimensions, safety distances, insulation resistance of electric circuits, noise, vibration
3.42
functional test
to establish whether, in unloaded working condition the trailer, including all safety devices, works as intended
and all functions comply with the requirements and with the technical documentation
3.43
load test(s)
to establish whether the strength and stability of the equipment under load together with all safety devices and
adjustments meets the requirements of this standard
3.44
specific verification/ measurements
to establish whether the stated requirements of this standard have been met, eg calculations, technical
documentation and specific documents of this standard
4 Trailer categorisation
4.1 Categories
4.1.1 Category 0
Figure 1 — Example of category 0 trailer a box trailer with service and parking/break-away brake

Figure 2 — Example of category 0 trailer a flat bed trailer with parking/break-away brake only

Figure 3 — Example of category 0 trailer a high speed flat bed trailer with service and parking/break-
away brake
Figure 4 — Example of category 0 road rail trailer with parking/break-away brake only

Figure 5 — Example of category 0 railway specific attachment with parking/break-away brake only
5 Railway specific safety requirements and/ or measures
Trailers shall comply with the safety requirements and/ or protective measures in accordance with Clause 5
and 6, and supplied with information in accordance with clause 7. Trailers shall be designed to work on
working track within the geometric limits, see EN 14033-2:2008, Annex F and shall be designed to work on
operating track.
Trailers that can only work on operating tracks shall display on the identification plate an indication of that
restriction, see prEN 14033-1:2008, Annex C.
5.1 Gauge
5.1.1 Running gauge
5.1.1.1 General
Except as shown in 5.1.1.2 trailers in running configuration shall meet the dimensional requirements of
prEN 15273-2. The critical points near the limits of the permissible kinematic gauge, see prEN 14033-1:2008,
Annex C shall be recorded in the technical documentation shown in clause 7.

5.1.1.2 Special cases
Trailers intended to travel on infrastructures with more restrictive gauges shall conform to the specific rules of
those infrastructures and the corresponding restrictions shall be indicated on their operating permits.
For road-rail trailers in the lower area, deviations are permitted to accommodate road wheels, as shown in
Figure 6. The requirement is that the machine does not damage the infrastructure.
NOTE Special national conditions may apply to this exceedance amount, see Annex A.
Key
A = Rail level
B = Exceedance of gauge permitted for road-rail machines
C = Additional exceedance of gauge permitted for category 9 C machines
D = Gauge according to prEN 15273-2:2005

Figure 6 — Limits in lower area

5.1.2 Trailer in running configuration
5.1.2.1 Stowing of moveable trailer parts in running configuration
When the trailer is in the running configuration any movable equipment which has the capacity to go outside
the gauge shall be capable of being stowed in a manner which prevents inadvertent or unintended movement
out of the gauge. All such moveable parts and assemblies forming part of the trailer that are unpacked in order
to allow the trailer to work in rail and non-rail configuration shall, in their stowed state, be secured by devices
capable of resisting the foreseeable forces encountered during running, which shall not rely upon a power
source to retain the locking function. Moveable parts shall be held by either:
 held by efficient locks The visible positive locking elements locking components in running configuration
shall be painted in red. If the locking mechanism is powered the control of locking should preferably be
possible from inside the machine gauge
or
 held by check valves on hydraulic systems which shall prevent movement and fail safe.
It shall be obvious to anyone checking the trailer that these parts of the trailer are locked in their stowed
position.
5.1.2.2 Operating controls in running configuration
When in running configuration all operating controls not related to running, including locking devices, shall be
deactivated.
5.1.3 Working limit general
5.1.3.1 Interference of gauge
Trailers and their moveable component parts shall be designed and built to work without unintentional
interference with the kinematic envelope necessary for the running of trailers admitted by the infrastructure
owner without running restrictions on the operating track. For the different zones of work and the zone limit
between the working track and the adjacent operating track in service, see EN 14033-2:2008, 5.3.
Where the clearance, under worst operating conditions, between the underside of a revolving superstructure
and rail level, is less than 1300 mm this shall be recorded in the instruction handbook, see 7 a) 3) ii).
NOTE The clearance of 1 300 mm is required to enable the superstructure to slew over adjacent track side structures,
platforms etc. Other distances may be required by some infrastructure managers.
Where a trailer has powered moveable components capable of exceeding the kinematic envelope, e. g. a
MEWP basket, there shall be a means of direct communication between the operating position on the trailer
and the driving position of any towing machine.
5.1.3.2 Movement limiting devices
5.1.3.2.1 General
Where operation of any component or general attachment fitted to the trailer exceeds the working limit
according to 5.1.3 the accidental intrusion into the kinematic envelope of the line open to traffic shall be made
impossible by means of lateral and height limiting devices. The limiting devices are to provide protection
against exceedance of the gauge shown in 5.1.1.
Operation of movement limiting devices shall be by key switch or equivalent lock.
The movement limiting devices shall be described with indication of their type and their configuration of
operation in the instruction handbook, see clause 7.

5.1.3.2.2 Design of movement limiting devices
5.1.3.2.2.1 General
Movement limiting devices shall permit the height and rotation limit to be variable to suit each location. The
movement limiting device shall stop the movement when height and lateral limits are reached, or prevent
movement commencing in an unsafe direction if the machine is stopped at its limit. All movement limiting
devices shall comply with 5.1.3.2.2.2 or 5.1.3.2.2.3 or 5.1.3.2.2.4, as appropriate.
5.1.3.2.2.2 Mechanical limiting devices
These devices shall be capable of resisting the foreseeable forces encountered.
NOTE This includes resisting static forces (start-up force of the motion) where they are in the form of a lock, and
dynamic forces where they are in the form of a stop.
5.1.3.2.2.3 Electric limiting devices
The design shall be such that there shall be no credible single point failure that would cause the system to fail
unsafe, i.e. allow the corresponding movement to continue. Any fault, including unacceptable differences in
signals, shall cause the system to fail to a safe condition.
Safety switches acting as information-giving components shall fulfil the requirements as specified in EN 60947
series, or as an alternative to these safety switches, sensors or switches may be used under the following
conditions, shown in order of preference:
c) Using sensors or other types of switch duplicated. They shall either be self-verifying at start-up or shall
have continuous monitoring of the signals from the sensors or switches for out-of-range
or
d) using an arrangement of a single sensor or switch, provided there is a permanent monitoring of the
plausibility of its signals by means of other sensors or switches not of the same safety device.
5.1.3.2.2.4 Hydraulic limiting devices
Hydraulic limiting devices shall be designed and installed to provide safety levels equivalent to those for
electrical safety devices.
Any credible hydraulic fault shall cause the system to fail to a safe condition, i. e. stop the corresponding
movement.
Pilot-operat
...
