EN 2704:2015

Aerospace series - Aluminium alloy AL-P2024 - AlCu4Mg1 - T3511 - Drawn bars - De ≤ 75 mm

This standard specifies the requirements relating to:
Aluminium alloy AL-P2024
AlCu4Mg1
T3511
Drawn bar
De ≤ 75 mm
for aerospace applications.

Luft- und Raumfahrt - Aluminiumlegierung AL-P2024 - AlCu4Mg1 - T3511 - Gezogene Stangen - De ≤ 75 mm

Diese Norm legt die Anforderungen an
Aluminiumlegierung AL-P2024
AlCu4Mg1
T3511
Gezogene Stangen
De ≤ 75 mm
zur Anwendung in der Luft- und Raumfahrt fest.

Série aérospatiale - Alliage d'aluminium AL-P2024 - AlCu4Mg1 - T3511 - Barres étirées - De ≤ 75 mm

Aeronavtika - Aluminijeva zlitina AL-P2024 - AlCu4Mg1 - T3511 - Vlečene palice - De ≤ 75 mm

Ta standard določa zahteve glede:
aluminijeve zlitine AL-P2024,
AlCu4Mg1,
T3511,
vlečene palice,
De ≤ 75 mm,
za uporabo v aeronavtiki.

General Information

• Status: Published
• Publication Date: 17-Nov-2015
• Withdrawal Date: 30-May-2016
• ICS: 49.025.20 - Aluminium
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 4 - Metallic
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 18-Nov-2015
• Completion Date: 18-Nov-2015
• Ref Project: SIST EN 2704:2016 - Aerospace series - Aluminium alloy AL-P2024 - AlCu4Mg1 - T3511 - Drawn bars - De ≤ 75 mm

Overview

EN 2704:2015 (CEN) is an aerospace-series material standard that specifies requirements for aluminium alloy AL‑P2024 (AlCu4Mg1) in the T3511 condition, produced as drawn bars with a maximum external diameter De ≤ 75 mm. The standard defines chemical, metallurgical and mechanical requirements, delivery condition and inspection/testing methods for use in aerospace applications.

Key topics and requirements

• Material designation: AL‑P2024 - AlCu4Mg1, T3511 (solution treated and controlled stretched).
• Form and dimension: Drawn bars, diameter De ≤ 75 mm.
• Delivery condition (T3511): solution treated, controlled stretched by ~3% (minor straightening permitted), ambient temperature.
• Mechanical properties: proof stress Rp0.2 ≥ 315 MPa; tensile strength Rm ≥ 440 MPa; elongation A ≥ 13% (note: A50 mm ≥ 12% for De ≤ 10 mm as a specific note). Hardness (HBW) is given as informational.
• Electrical conductivity: specified range of approximately 17–20 MS/m (see EN 2004-1 for test method).
• Inspection for defects: external and internal defect acceptance and ultrasonic inspection requirements referenced to EN 4400-3 and EN 4050-4 (internal defects acceptance: Class 3).
• Testing and inspection: dimensional, marking, and test-piece rules follow EN 4400-3; test methods for conductivity and ultrasonic inspection are normatively referenced.
• Product qualification: qualification programme to be agreed between manufacturer and purchaser (per EN 4400-3).

Practical applications and users

• Intended for aerospace applications where high-strength wrought aluminium drawn bars in the 2024 family are required.
• Typical users include:
  • Aerospace material suppliers and mill producers offering AL‑P2024 drawn bars.
  • Procurement and quality assurance teams specifying material acceptance criteria.
  • Design and stress engineers selecting aluminium bar stock for structural components (using the stated mechanical property limits).
  • Test laboratories performing conductivity and ultrasonic inspections to the referenced EN methods.

Related standards (normative references)

• EN 4400-3 - Technical specification for aluminium bars and sections (delivery, inspection).
• EN 2004-1 - Test method: electrical conductivity of wrought aluminium alloys.
• EN 4050-4 - Ultrasonic inspection - acceptance criteria for bars/forgings.
• EN 4258 and EN 4500-2 - Series organization and drafting rules for aerospace metallic material standards.

EN 2704:2015 provides a concise, harmonized specification for AL‑P2024 T3511 drawn bars (De ≤ 75 mm) ensuring consistent production, testing and acceptance across the European aerospace supply chain. Keywords: EN 2704:2015, AL‑P2024, AlCu4Mg1, T3511, drawn bars, aerospace aluminium, De ≤ 75 mm.

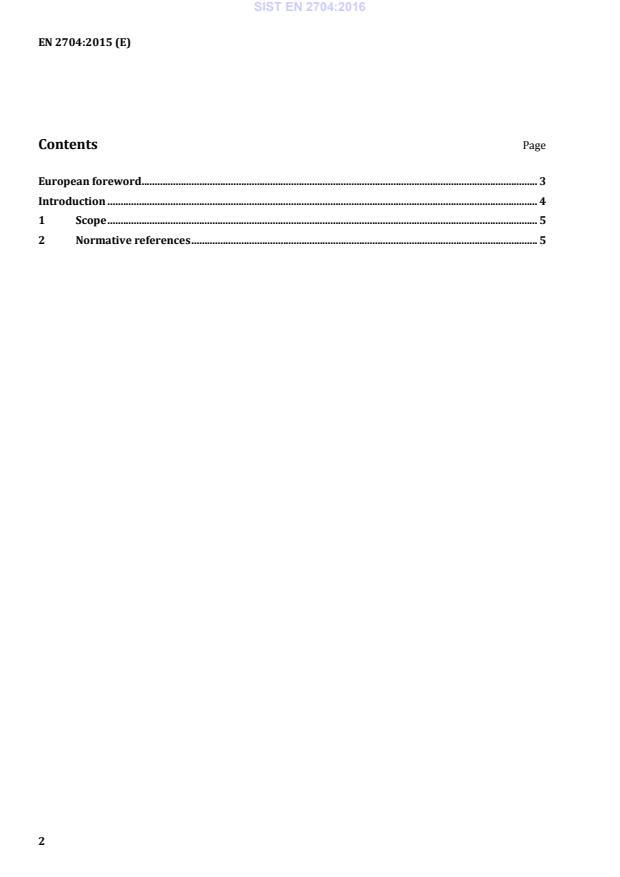

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.49.025.20AluminijAluminiumICS:Ta slovenski standard je istoveten z:EN 2704:2015SIST EN 2704:2016en,fr,de01-februar-2016SIST EN 2704:2016SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2704
November
t r s w ICS
v {ä r t wä t r English Version
Aerospace series æ Aluminium alloy ALæP t r t v æ AlCu vMg s æ T u w s s æ Drawn bars æ De 
y w mm Série aérospatiale æ Alliage d 5aluminium ALæP t r t v æ AlCu vMg s æ T u w s s æ Barres étirées æ De 
y w mm
Luftæ und Raumfahrt æ Aluminiumlegierung ALæP t r t v æAlCu vMg s æ T u w s s æ Gezogene Stangen æ De 
y w mm This European Standard was approved by CEN on
s v March
t r s uä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s w CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
t y r vã t r s w ESIST EN 2704:2016
...
