EN 1143-2:2024
(Main)Secure storage units - Requirements, classification and methods of tests for resistance to burglary - Part 2: Deposit systems
Secure storage units - Requirements, classification and methods of tests for resistance to burglary - Part 2: Deposit systems
This document specifies requirements and tests methods for deposit systems, and classifies the systems according to their burglary resistance and their resistance to the theft of deposits.
This document comprises two types of deposit system:
— Night safes which provide depositing services for the customers of financial institutions without giving access to the content of the night safe.
— Deposit safes which enable the personnel of a company to place money or valuables in safe custody without giving access to the content of the deposit safe. The installation condition for deposit safe according to this document is that the depositing functions are installed inside the premises of the company and are only disposable for the personnel of the company.
NOTE Parts of a deposit system are a receiving unit, an input unit and in some cases, a chute.
This document includes design requirements for deposit systems controlled by programmable controllers and for the software for these. Controller hardware testing is restricted to mechanical or electromechanical attacks of electric motors, sensors, coils and similar devices; but software testing as attempts to influence controller software or controller hardware is not part of this document.
Deposit systems can have devices for functions such as user identification and/or counting and registration of money. Tests of and requirements for classification of such functions are not included.
This document does not cover protection of persons using the deposit system or the prevention of fraud committed by operators of the deposit system.
Wertbehältnisse - Anforderungen, Klassifizierung und Methoden zur Prüfung des Widerstandes gegen Einbruchdiebstahl - Teil 2: Deposit-Systeme
Dieses Dokument legt Anforderungen und Prüfverfahren für Deposit-Systeme fest und klassifiziert die Systeme nach ihrem Widerstand gegen Einbruchdiebstahl und Diebstahl der Deposits.
Dieses Dokument umfasst zwei Arten von Deposit-Systemen:
- Nachttresore, die Kunden von Kreditinstituten ohne Zugriff auf den Inhalt des Nachttresors zur Verfügung stehen.
- Deposit-Safes, die Angestellten eines Unternehmens ohne Zugriff auf den Inhalt des Deposit-Safes zum Deponieren von Geld oder Werten zur Verfügung stehen. Voraussetzung für die Installation des Deposit-Safes nach diesem Dokument ist, dass die Depositfunktionen sich in den Räumen des Unternehmens befinden und nur den Angestellten des Unternehmens zugänglich sind.
ANMERKUNG Ein Deposit-System besteht aus einer Aufnahmeeinheit, einer Einwurfeinheit sowie ggf. einem Fallschacht.
Dieses Dokument umfasst Konstruktionsanforderungen für Deposit-Systeme mit programmierbaren Steuerungen einschließlich der dazugehörigen Software. Die Prüfung der Steuerungshardware ist auf mechanische oder elektromechanische Angriffe auf elektrische Motoren, Sensoren, Spulen und ähnliche Bauteile beschränkt; Softwareprüfungen wie Versuche, die Steuerungssoftware oder Steuerungshardware zu beeinflussen, sind jedoch nicht Teil dieses Dokuments.
Deposit-Systeme können über Bauteile verfügen, die Funktionen, wie z. B. Nutzeridentifikation bzw. Zählen und Registrieren von Geld steuern. Prüfungen und Anforderungen für die Klassifizierung dieser Funktionen sind nicht enthalten.
Dieses Dokument behandelt nicht den Schutz von Personen, die das Deposit-System nutzen, oder den Schutz vor Betrug durch das Bedienpersonal.
Unités de stockage en lieux sûrs - Prescriptions, classification et méthodes d’essai pour la résistance à l'effraction - Partie 2 : Systèmes de dépôt
Le présent document spécifie les exigences et les méthodes d'essai relatives aux systèmes de dépôt et classe ces systèmes en fonction de leur résistance à l'effraction et de leur résistance au vol des dépôts.
Le présent document traite de deux types de systèmes de dépôt :
- les coffres « dépôt de nuit », qui offrent des services de dépôt aux clients d'institutions financières sans donner accès au contenu du coffre « dépôt de nuit » ;
- les coffres « dépôt de fonds », qui permettent au personnel d'une entreprise de placer de l'argent ou des objets de valeur en lieu sûr sans donner accès au contenu du coffre « dépôt de fonds ». La condition d'installation pour le coffre « dépôt de fonds » conformément au présent document est que les fonctions de dépôt soient installées à l'intérieur des locaux de l'entreprise et qu'elles ne soient à disposition que du personnel de l'entreprise.
NOTE Un système de dépôt se compose d'une unité de réception, d'une unité d'introduction et, dans certains cas, d'une chute.
Le présent document comprend des exigences de conception pour les systèmes de dépôt commandés par des contrôleurs programmables et pour les logiciels correspondants. L'essai relatif au matériel du contrôleur est restreint aux attaques mécaniques ou électromécaniques de moteurs électriques, de capteurs, de bobines et dispositifs similaires. Toutefois, les essais portant sur le logiciel, consistant, par exemple, à tenter d'influencer le logiciel du contrôleur ou le matériel du contrôleur ne font pas partie du présent document.
Les systèmes de dépôt peuvent être équipés de dispositifs assurant des fonctions telles que l'identification de l'utilisateur et/ou le décompte et l'enregistrement de l'argent. Les essais et exigences relatifs à la classification de ce type de fonctions ne sont pas inclus.
Le présent document ne traite pas de la sécurité des personnes utilisant les systèmes de dépôt, ni de la prévention de fraude commise par les opérateurs du système de dépôt.
Varnostne shranjevalne enote - Zahteve, klasifikacija in metode preskušanja protivlomne odpornosti - 2. del: Depozitni sistemi
Ta dokument določa zahteve in preskusne metode za depozitne sisteme ter razvršča sisteme glede na njihovo protivlomno odpornost in odpornost proti kraji depozitov.
Ta dokument vključuje dve vrsti depozitnih sistemov:
– nočne trezorje, ki zagotavljajo depozitne storitve strankam finančnih institucij in ne omogočajo dostopa do vsebine nočnega trezorja;
– depozitne trezorje, ki zaposlenim v podjetju omogočajo varno hranjenje denarja ali dragocenosti in ne omogočajo dostopa do vsebine depozitnega trezorja. Pogoj namestitve depozitnega trezorja v skladu s tem dokumentom je, da morajo biti depozitne funkcije nameščene v prostorih podjetja in morajo biti na voljo le zaposlenim v podjetju.
OPOMBA: Deli depozitnega sistema so prevzemna enota, enota za vnos in v nekaterih primerih jašek.
Ta dokument vključuje zahteve za načrtovanje depozitnih sistemov, ki jih nadzorujejo programirljivi krmilniki, in programsko opremo programirljivih krmilnikov. Preskušanje strojne opreme krmilnikov je omejeno na mehanske in elektromehanske napade električnih naprav, senzorjev, tuljav in podobnih naprav; preskušanje programske opreme z namenom vplivanja na programsko ali strojno opremo krmilnika pa ni vključeno v dokument.
Depozitni sistemi imajo lahko naprave za funkcije, kot so identifikacija uporabnika in/ali štetje ter registracija denarja. Preskusi takih funkcij in zahteve za razvrstitev takih funkcij niso vključeni.
Ta dokument ne zajema zaščite oseb, ki uporabljajo depozitni sistem, ali preprečevanje goljufij, ki jih storijo upravljavci depozitnega sistema.
General Information
Relations
Standards Content (Sample)

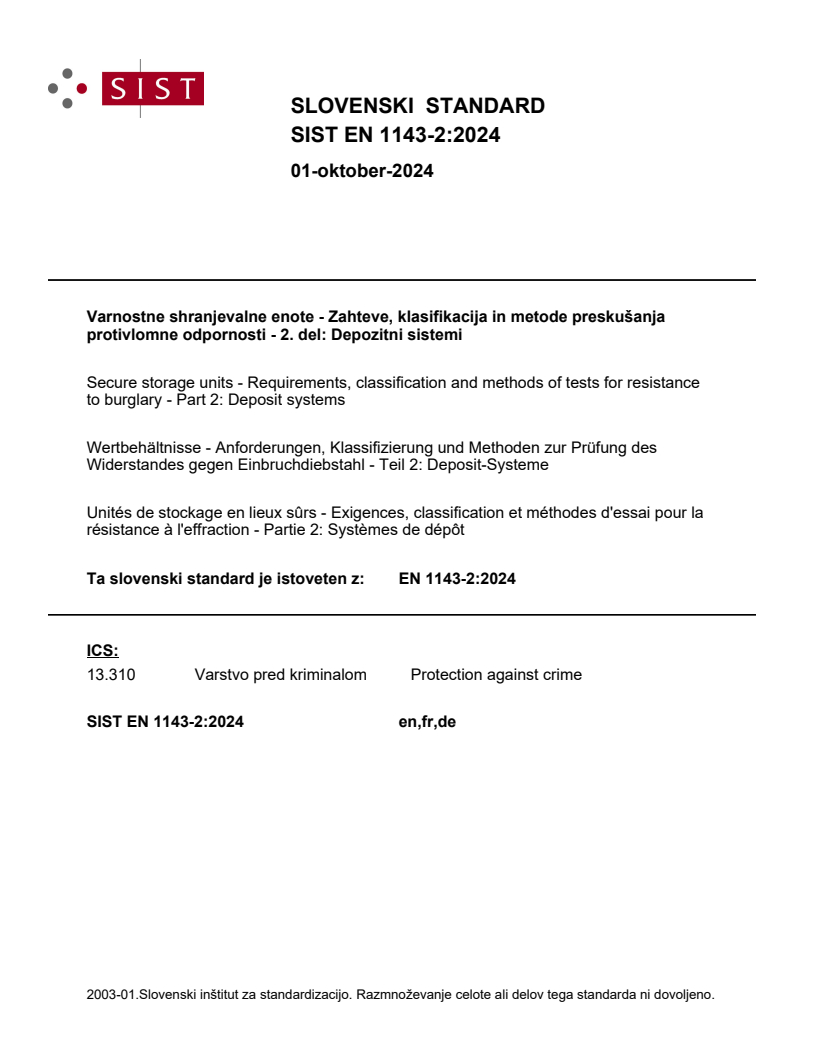

SLOVENSKI STANDARD
01-oktober-2024
Varnostne shranjevalne enote - Zahteve, klasifikacija in metode preskušanja
protivlomne odpornosti - 2. del: Depozitni sistemi
Secure storage units - Requirements, classification and methods of tests for resistance
to burglary - Part 2: Deposit systems
Wertbehältnisse - Anforderungen, Klassifizierung und Methoden zur Prüfung des
Widerstandes gegen Einbruchdiebstahl - Teil 2: Deposit-Systeme
Unités de stockage en lieux sûrs - Exigences, classification et méthodes d'essai pour la
résistance à l'effraction - Partie 2: Systèmes de dépôt
Ta slovenski standard je istoveten z: EN 1143-2:2024
ICS:
13.310 Varstvo pred kriminalom Protection against crime
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

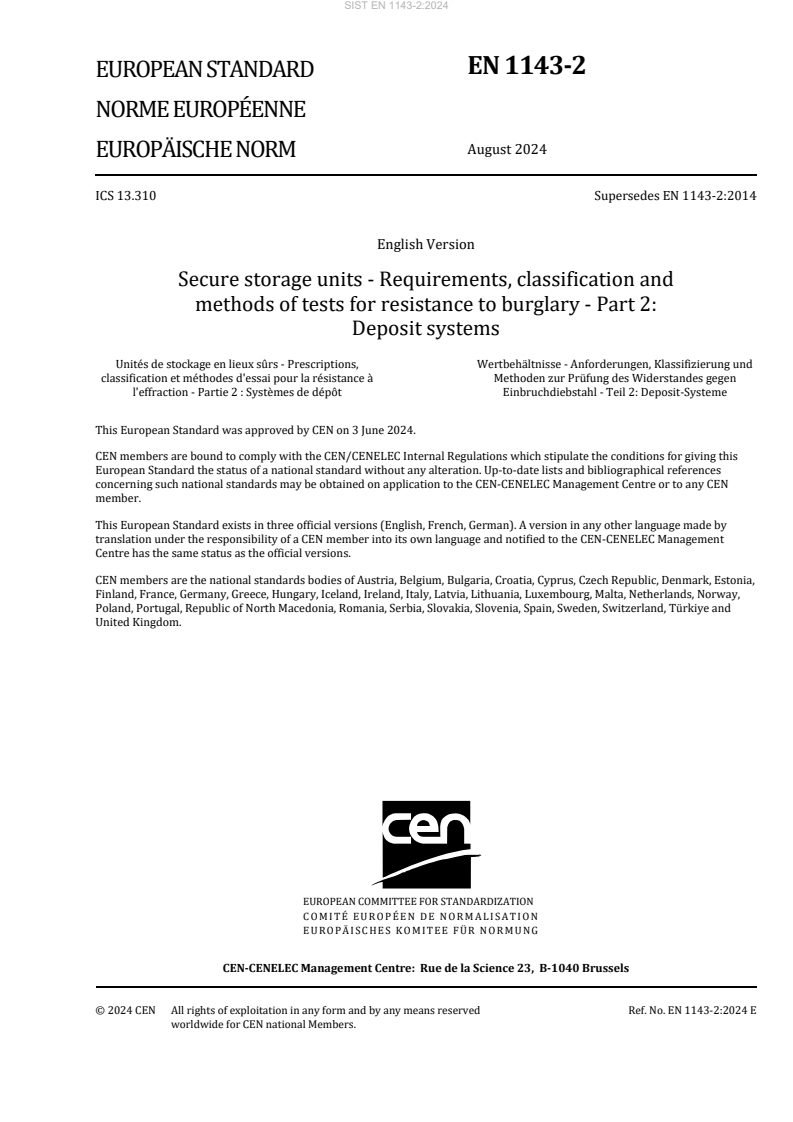

EN 1143-2
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2024
EUROPÄISCHE NORM
ICS 13.310 Supersedes EN 1143-2:2014
English Version
Secure storage units - Requirements, classification and
methods of tests for resistance to burglary - Part 2:
Deposit systems
Unités de stockage en lieux sûrs - Prescriptions, Wertbehältnisse - Anforderungen, Klassifizierung und
classification et méthodes d'essai pour la résistance à Methoden zur Prüfung des Widerstandes gegen
l'effraction - Partie 2 : Systèmes de dépôt Einbruchdiebstahl - Teil 2: Deposit-Systeme
This European Standard was approved by CEN on 3 June 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1143-2:2024 E
worldwide for CEN national Members.

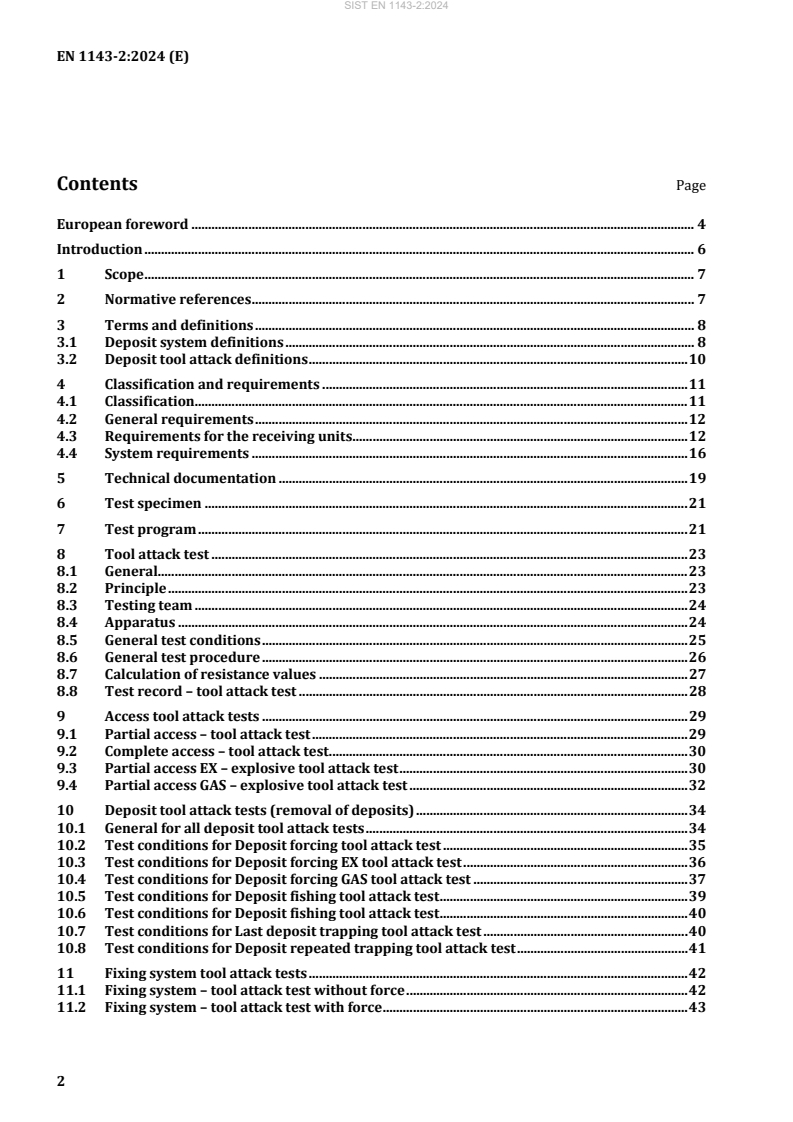

Contents Page
European foreword . 4
Introduction . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
3.1 Deposit system definitions . 8
3.2 Deposit tool attack definitions . 10
4 Classification and requirements . 11
4.1 Classification. 11
4.2 General requirements . 12
4.3 Requirements for the receiving units . 12
4.4 System requirements . 16
5 Technical documentation . 19
6 Test specimen . 21
7 Test program . 21
8 Tool attack test . 23
8.1 General. 23
8.2 Principle . 23
8.3 Testing team . 24
8.4 Apparatus . 24
8.5 General test conditions . 25
8.6 General test procedure . 26
8.7 Calculation of resistance values . 27
8.8 Test record – tool attack test . 28
9 Access tool attack tests . 29
9.1 Partial access – tool attack test . 29
9.2 Complete access – tool attack test . 30
9.3 Partial access EX – explosive tool attack test . 30
9.4 Partial access GAS – explosive tool attack test . 32
10 Deposit tool attack tests (removal of deposits) . 34
10.1 General for all deposit tool attack tests . 34
10.2 Test conditions for Deposit forcing tool attack test . 35
10.3 Test conditions for Deposit forcing EX tool attack test . 36
10.4 Test conditions for Deposit forcing GAS tool attack test . 37
10.5 Test conditions for Deposit fishing tool attack test . 39
10.6 Test conditions for Deposit fishing tool attack test . 40
10.7 Test conditions for Last deposit trapping tool attack test . 40
10.8 Test conditions for Deposit repeated trapping tool attack test . 41
11 Fixing system tool attack tests . 42
11.1 Fixing system – tool attack test without force . 42
11.2 Fixing system – tool attack test with force . 43
12 Test report and test records . 46
12.1 Test report . 46
12.2 Test records . 47
13 Marking . 47
Annex A (informative) Examples of different designs of deposit systems . 48
Annex B (informative) Examples of integrated and distributed deposit systems . 49
B.1 Integrated deposit system . 49
B.2 Semi-integrated deposit safe . 50
B.3 Different distributed deposit systems . 51
Annex C (normative) Additional tools for deposit tool attack tests . 54
Annex D (informative) Structure of test clauses . 55
European foreword
This document (EN 1143-2:2024) has been prepared by Technical Committee CEN/TC 263 “Secure
storage of cash, valuables and data media”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2025, and conflicting national standards shall
be withdrawn at the latest by February 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 1143-2:2014.
a) requirements for the additional T2 test have been added (4.1, 5.3, 8.4.1 and Clause 13), Table 1,
Table 2, Table 3, Table 4 and Table 5). Products tested with these new tools which are listed in
Annex B of EN 1143-1 have a 'T2' designation behind the resistance grade;
b) Requirements for built-in deposit systems have been added (see 9.1.1 and 9.2.1);
c) A new type of deposit system “semi-integrated deposit safe” has been added (see 3.1.11, 3.1.17, 4.4.1,
4.4.3, 5.10 e) and B.2);
d) The anchoring test with force now depends on the type of deposit system and (11.2 and Table 10);
e) An additional test condition for cutting steel sheets has been added (Clause 2 and 8.5.3);
f) The cryptography requirements were raised to those of EN 17646 (Clause 2, 4.4.4.1 and 5.13);
g) Updates have been integrated for the optional solid explosive test, above all: The explosive mass for
the EX-option in 9.3.4 and 10.3.3 was changed to “active explosive mass”, instead of specific energy
the explosive heat of the PETN is defined (9.3.3); the detonation velocity of the PETN was raised from
(7 000 ± 500) m/s to (7 500 ± 500) m/s (9.3.3); the tolerance of the active explosive charge mass has
been changed from ± 1 g to ± 2 % (Table 9) and the shape of the explosive charge shall now be
spherical (9.3.8);
h) For the GAS option the 100 litres limitation has been deleted (9.4.4), the gas explosive has been
defined more precise (9.4.3), the test conditions for the deposit forcing GAS tool attack test have been
updated (10.4.7.3 and 10.4.7.4) and documentation requirements have been added (5.9 b));
i) Annex C has changed from informative to normative and the tools are now explicitly classified as
category A tools (8.4.1);
j) Update of references to the newer EN 1143-1:2019;
k) Integration of high security locks of EN 17646 (Table 2, Table 3, 10.2.1, 10.3.1, 10.4.1, 10.5.1, 10.6.1,
10.7.1 and 10.8.1);
l) Minor updates for the test report requirements (12.1);
m) Editorial adaptions throughout the standard (see 3.1.10, 3.1.12, 4.3.3, 4.4.2.3, 8.4.1, 8.4.2, 8.6.3,
10.3.1, 10.4.1, 10.7.2, 10.8.2, 11.2.3, 13, Annex A, B.3, Table 1, Table 2, Table 3, Table 4, Table 5).
This document is one of a series of product standards for secure storage units of different types.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania,
...
