EN 13392:2001

Textiles - Monofilaments - Determination of linear density

This draft European Standard specifies a method for the determination of linear density of monofilaments and gives the method of calculation of the nominal linear density of round monofilaments.

Textilien - Monofilamente - Bestimmung der Feinheit

Anwendungsbereich
Diese Europäische Norm legt das Verfahren zur Bestimmung der Feinheit von Monofilamenten und zur
Berechnung der Nennfeinheit runder Monofilamente (siehe Anhang A) fest.

Textiles - Monofilaments - Détermination de la masse linéique

Domaine d'application
Le présent projet de norme européenne prescrit une méthode pour la détermination de la masse linéique des monofilaments et donne la méthode de calcul de la masse linéique des monofilaments ronds (voir Annexe A).

Tekstilije - Monofilamenti - Ugotavljanje dolžinske mase

General Information

• Status: Published
• Publication Date: 20-Mar-2001
• Withdrawal Date: 29-Sep-2001
• ICS: 59.060.20 - Man-made fibres
• Technical Committee: CEN/TC 248 - Textiles and textile products
• Drafting Committee: CEN/TC 248/WG 11 - Monofilaments
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 17-Oct-2022
• Completion Date: 14-Apr-2025
• Ref Project: SIST EN 13392:2001 - Textiles - Monofilaments - Determination of linear density

Relations

• Child: EN 13895:2003 - Textiles - Monofilaments - Determination of tensile properties
• Effective Date: 22-Dec-2008
• Child: EN 13844:2002 - Textiles - Monofilaments - Determination of thermal shrinkage
• Effective Date: 22-Dec-2008

Overview

EN 13392:2001 (CEN) specifies a standardized laboratory method for the determination of linear density of monofilaments (single-filament yarns). The standard defines the test principle, required apparatus, sampling and specimen preparation, conditioning, weighing procedure, calculation and reporting rules. Results are expressed in dtex (decitex) with specified rounding conventions, and Annex A provides a method to calculate nominal linear density for round monofilaments from nominal diameter and polymer density.

Key topics and requirements

• Scope: Measurement of mass per unit length (linear density) of monofilaments; calculation method for nominal linear density of round monofilaments (Annex A).
• Units and expression: Linear density reported in dtex (1 tex = 1 g/1000 m). Rounding rules: one decimal for ≤50 dtex, nearest whole number for >50 dtex.
• Apparatus:
  • Metering device (wrap reel or rule) capable of measuring length with 0.1% accuracy under the specified tension (0.05 cN/dtex ±10%); reel circumference ≥ 1 m.
  • Balance with capacity and sensitivity such that specimen mass can be measured to within 0.1%.
• Sampling and specimens:
  • Reject at least the first layer on each package.
  • Take five specimens per package (lengths depend on nominal diameter - see Table 1 in the standard).
  • For diameters <0.5 mm a wrap reel is normally used; for ≥0.5 mm use a rule.
• Conditioning: Specimens conditioned in the standard atmosphere per EN 20139 (ISO 139:1973) - (20 ± 2) °C and (65 ± 2) % RH for at least 24 hours.
• Procedure and calculation:
  • Weigh conditioned specimens; calculate linear density T (dtex) from mass m (g) and length L (m) using the formula in the standard: T = (m / L) × 10 000.
  • Annex A gives the method to compute nominal linear density from nominal diameter and polymer density; a table of nominal polymer densities (PE-HD, PP, various PAs, PET, PBT, PPS, PEEK) is included.
• Reporting: Test report must reference EN 13392 and include product identification, sampling, measured linear density (and statistical data if required), nominal linear density (if applicable), and any deviations.

Applications and users

EN 13392 is directly useful for:

• Quality control laboratories in textile and synthetic-fibre manufacturing
• Monofilament producers (fishing lines, industrial filaments, medical filaments, filter fibres)
• Incoming inspection for filament raw materials and suppliers
• R&D and material specification work where accurate mass-per-length is required

The standard ensures consistent, comparable linear density results for product specification, quality assurance and regulatory documentation.

Related standards

• EN 20139 (ISO 139:1973) - Textiles: standard atmospheres for conditioning and testing (referenced for conditioning requirements).

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Tekstilije - Monofilamenti - Ugotavljanje dolžinske maseTextilien - Monofilamente - Bestimmung der FeinheitTextiles - Monofilaments - Détermination de la masse linéiqueTextiles - Monofilaments - Determination of linear density59.060.20Umetna vlaknaMan-made fibresICS:Ta slovenski standard je istoveten z:EN 13392:2001SIST EN 13392:2001en01-september-2001SIST EN 13392:2001SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13392March 2001ICS 59.060.20English versionTextiles - Monofilaments - Determination of linear densityTextiles - Monofilaments - Détermination de la masselinéiqueTextilien - Monofilamente - Bestimmung der FeinheitThis European Standard was approved by CEN on 18 January 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2001 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13392:2001 ESIST EN 13392:2001

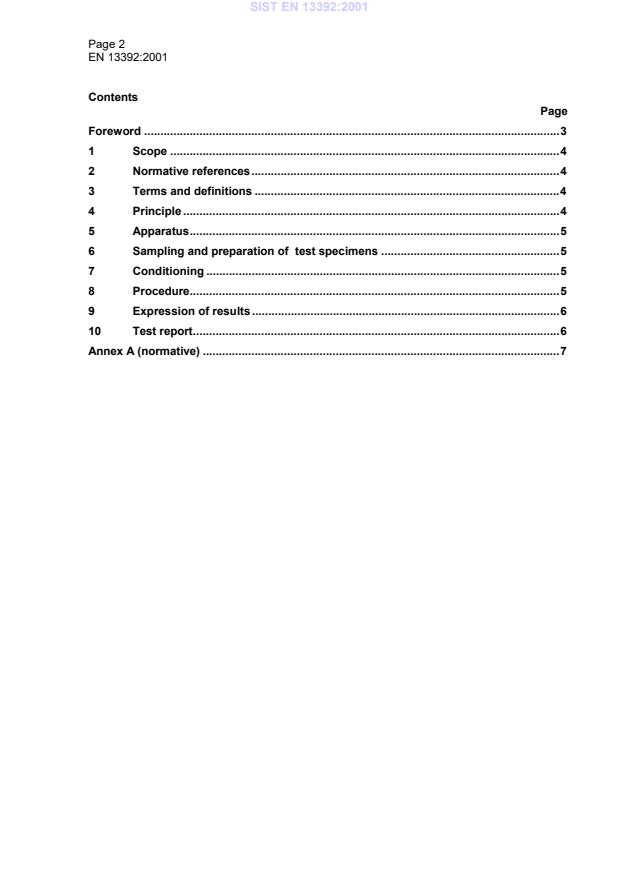

Page 2EN 13392:2001ContentsPageForeword.31Scope.42Normative references.43Terms and definitions.44Principle.45Apparatus.56Sampling and preparation of
test specimens.57Conditioning.58Procedure.59Expression of results.610Test report.6Annex A (normative).7SIST EN 13392:2001

Page 3EN 13392:2001ForewordThis European Standard has been prepared by Technical Committee CEN/TC 248 "Textiles andtextile products", the secretariat of which is held by BSI.This European Standard shall be given the status of a national standard, either by publication ofan identical text or by endorsement, at the latest by September 2001, and conflicting nationalstandards shall be withdrawn at the latest by September 2001.According to the CEN/CENELEC Internal Regulations, the national standards organizations of thefollowing countries are bound to implement this European Standard: Austria, Belgium, CzechRepublic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg,Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and the United Kingdom.SIST EN 13392:2001

Page 4EN 13392:20011ScopeThis European Standard specifies a method for the determination of linear density ofmonofilaments and gives the method of calculation of the nominal linear density of roundmonofilaments (see
annex A).2Normative referencesThis European Standard incorporates by dated or undated reference, provisions from otherpublications. These normative references are cited at the appropriate places in the text and thepublications are listed hereaf
...
