EN 2213:2024

Aerospace series - Steel 15CrMoV6 (1.7334) - Air melted - Hardened and tempered - Bars - De ≤ 16 mm - 980 MPa ≤ Rm ≤ 1 180 MPa

This document specifies the requirements relating to:
Steel 15CrMoV6 (1.7334)
Air melted
Hardened and tempered
Bars
De ≤ 16 mm
980 MPa ≤ Rm ≤ 1 180 MPa
for aerospace applications.
W.nr: 1.7334.
ASD-STAN designation: FE-PL1505.

Luft- und Raumfahrt - Stahl 15CrMoV6 (1.7334) - Lufterschmolzen - Gehärtet und angelassen - Stangen - De ≤ 16 mm - 980 MPa ≤ Rm ≤ 1 180 MPa

Dieses Dokument legt die Anforderungen an:
Stahl 15CrMoV6 (1.7334)
Lufterschmolzen
Gehärtet und angelassen
Stangen
De ≤ 16 mm
980 MPa ≤ Rm ≤ 1 180 MPa
für Anwendungen in der Luft  und Raumfahrt fest.
W.nr:1.7334.
ASD STAN Bezeichnung: FE PL1505.

Série aérospatiale - Acier 15CrMoV6 (1.7334) - Élaboré à l'air - Trempé et revenu - Barres - De ≤ 16 mm - 980 MPa ≤ Rm ≤ 1 180 MPa

Le présent document spécifie les exigences relatives à :
Acier 15CrMoV6 (1.7334)
Élaboré à l'air
Trempé et revenu
Barres
De ≤ 16 mm
980 MPa ≤ Rm ≤ 1 180 MPa
pour les applications aérospatiales.
W.nr : 1.7334.
Désignation ASD-STAN : FE-PL1505.

Aeronavtika - Jeklo 15CrMoV6 (1.7334) - Taljeno - Utrjeno in mehko žarjeno - Palice - De ≤ 16 mm - 980 MPa ≤ Rm ≤ 1180 MPa

Ta dokument določa zahteve, ki se navezujejo na:
jeklo 15CrMoV6 (1.7334),
taljeno na zraku,
utrjeno in mehko žarjeno,
palice,
De ≤ 16 mm,
980 MPa ≤ Rm ≤ 1180 MPa
za uporabo v aeronavtiki.
Št. W.: 1.7334.
Oznaka ASD-STAN: FE-PL1505.

General Information

• Status: Published
• Publication Date: 17-Dec-2024
• ICS: 49.025.10 - Steels
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 4/S 3 - Steels & Heat Resisting Alloys
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 18-Dec-2024
• Completion Date: 18-Dec-2024
• Ref Project: SIST EN 2213:2025 - Aerospace series - Steel 15CrMoV6 (1.7334) - Air melted - Hardened and tempered - Bars - De ≤ 16 mm - 980 MPa ≤ Rm ≤ 1 180 MPa

Relations

• Replaces: EN 2213:2012 - Aerospace series - Steel FE-PL1505 (15CrMoV6) - Air melted - Hardened and tempered - Bars - De ≤ 16 mm - 980 MPa ≤ Rm ≤ 1 180 MPa
• Effective Date: 19-Jan-2023

Overview

EN 2213:2024 is a CEN/AeroSpace series standard that defines material and inspection requirements for Steel 15CrMoV6 (W.nr. 1.7334) in the form of small-diameter bars for aerospace use. Designated by ASD‑STAN as FE-PL1505, this document covers air-melted, hardened and tempered bars with external diameter De ≤ 16 mm and tensile strength 980 MPa ≤ Rm ≤ 1 180 MPa. The standard sets chemical composition limits, heat‑treatment schedules, mechanical property targets and testing/inspection provisions specific to aerospace applications.

Key Topics and Requirements

• Material ID: Steel 15CrMoV6 (1.7334); ASD‑STAN: FE-PL1505; air melted.
• Dimensions: Bars with external diameter De ≤ 16 mm.
• Heat treatment / Delivery conditions:
  • Annealed or hardened and tempered.
  • Austenitizing: 955 °C ≤ θ ≤ 995 °C (AC, OQ or WQ).
  • Tempering: 615 °C ≤ θ ≤ 655 °C.
  • Note: tempering range must be adjusted if bar is produced from cold‑worked wire rod.
• Mechanical properties:
  • Proof stress Rp0.2 ≥ 780 MPa.
  • Tensile strength Rm: 980–1 180 MPa.
  • Elongation A ≥ 12% (may be ≥ 10% after cold working transformation).
  • Hardness: annealed HB ≤ 197; hardened condition HB 291–355 HBW.
  • Impact: KV ≥ 30 J (notch direction T) where specified.
• Microstructure & quality:
  • Hardenability (Jominy) requirements (HRC minima across distances).
  • Grain size G ≥ 5.
  • Inclusion content Category 1 (EN 2951).
  • External imperfections (visual VT) and internal imperfections (UT Class 3).
• Testing and inspection: Test sampling and procedures reference EN 4700-002 and EN 2951; marking and dimensional inspections per EN 4700-002.

Applications and Users

• Targeted at aerospace manufacturers, suppliers and procurers specifying high‑strength small‑diameter steel bars for aerospace components.
• Typical stakeholders:
  • Material producers and mills supplying 15CrMoV6 bars.
  • Heat‑treatment shops and metallurgists controlling tempering/austenitizing.
  • Quality, inspection and procurement teams enforcing EN 2213:2024 requirements.
• Practical uses: selection and acceptance of high‑strength, heat‑treated bars where consistent mechanical performance, microstructure and non‑metallic inclusion control are essential for aerospace parts.

Related Standards

• EN 4700-002 - aerospace technical specification for bars and sections (testing, sampling).
• EN 2951 - micrographic determination of non‑metallic inclusions.
• EN 4258, EN 4500-005 - organization and drafting rules for aerospace metallic material standards.

Keywords: EN 2213:2024, 15CrMoV6, 1.7334, aerospace steel, hardened and tempered bars, air melted, Rm 980 MPa, bars ≤16 mm, FE-PL1505, CEN.

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2025
Aeronavtika - Jeklo 15CrMoV6 (1.7334) - Taljeno - Utrjeno in mehko žarjeno - Palice
- De ≤ 16 mm - 980 MPa ≤ Rm ≤ 1180 MPa
Aerospace series - Steel 15CrMoV6 (1.7334) - Air melted - Hardened and tempered -
Bars - De ≤ 16 mm - 980 MPa ≤ Rm ≤ 1 180 MPa
Luft- und Raumfahrt - Stahl 15CrMoV6 (1.7334) - Lufterschmolzen - Gehärtet und
angelassen - Stangen - De ≤ 16 mm - 980 MPa ≤ Rm ≤ 1 180 MPa
Série aérospatiale - Acier 15CrMoV6 (1.7334) - Élaboré à l'air - Trempé et revenu -
Barres - De ≤ 16 mm - 980 MPa ≤ Rm ≤ 1 180 MPa
Ta slovenski standard je istoveten z: EN 2213:2024
ICS:
49.025.10 Jekla Steels
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 2213
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2024
EUROPÄISCHE NORM
ICS 49.025.10 Supersedes EN 2213:2012
English Version
Aerospace series - Steel 15CrMoV6 (1.7334) - Air melted -
Hardened and tempered - Bars - D ≤ 16 mm - 980 MPa ≤
e
R ≤ 1 180 MPa
m
Série aérospatiale - Acier 15CrMoV6 (1.7334) - Élaboré Luft- und Raumfahrt - Stahl 15CrMoV6 (1.7334) -
à l'air - Trempé et revenu - Barres - D ≤ 16 mm - 980 Lufterschmolzen - Gehärtet und angelassen - Stangen -
e
MPa ≤ R ≤ 1 180 MPa De ≤ 16 mm - 980 MPa ≤ Rm ≤ 1 180 MPa
m
This European Standard was approved by CEN on 18 November 2024.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATIO N

EUROPÄISCHES KOMITEE FÜR NORMUN G

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2213:2024 E
worldwide for CEN national Members.

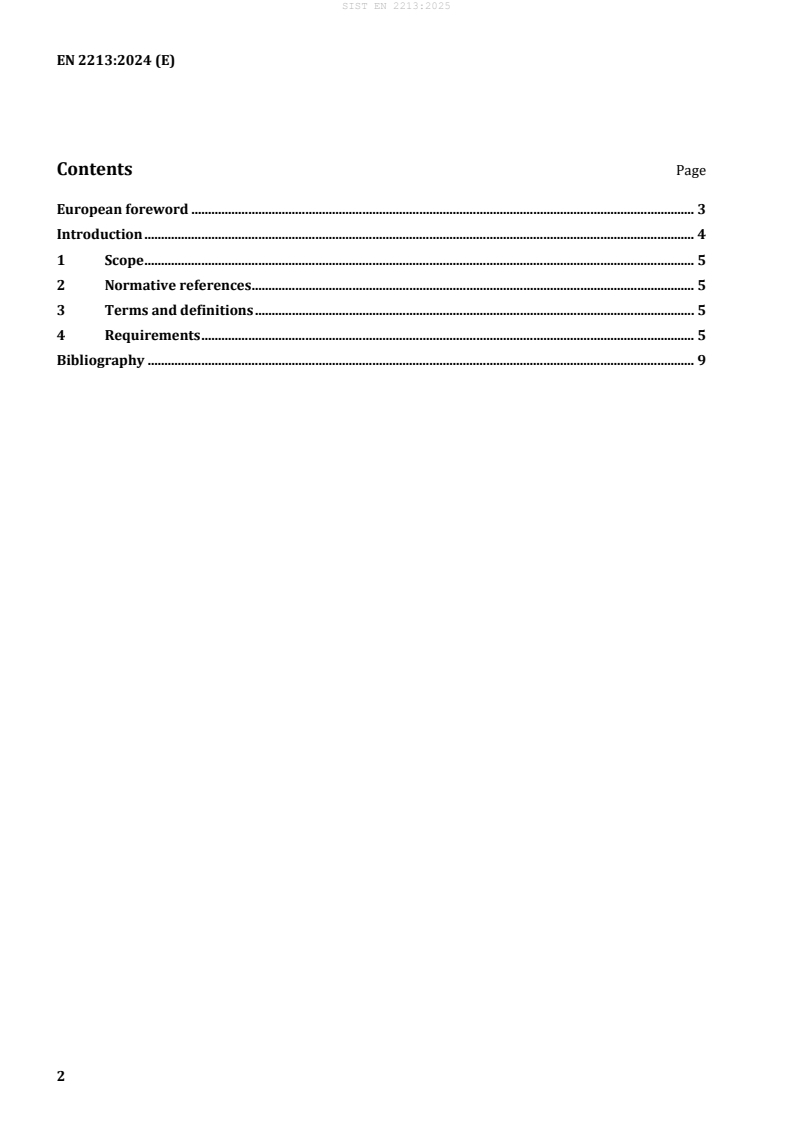

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliography . 9

European foreword
This document (EN 2213:2024) has been prepared by ASD-STAN.
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical text
or by endorsement, at the latest by June 2025, and conflicting national standards shall be withdrawn at
the latest by June 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 2213 :2012.
The main changes with respect to the previous edition are as follows:
— EN 2213 (P1), 03/2012:
o correction of the format of Table 1 to comply with the requirements of the EN 4500 series;
o addition of “KV” in Table 1, line 20;
o use of “imperfections” rather than “defects” in Table 1
...
