CEN/TR 16891
TECHNICAL REPORT
RAPPORT TECHNIQUE
May 2016
TECHNISCHER BERICHT
ICS 17.140.30; 93.100
English Version
Railway applications - Acoustics - Measurement method
for combined roughness, track decay rates and transfer
functions
Bahnanwendungen - Akustik - Messmethode für
kombinierte Rauheit, Gleisabklingraten und
Übertragungsfunktionen
This Technical Report was approved by CEN on 13 May 2016. It has been drawn up by the Technical Committee CEN/TC 256.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 16891:2016 E
worldwide for CEN national Members.

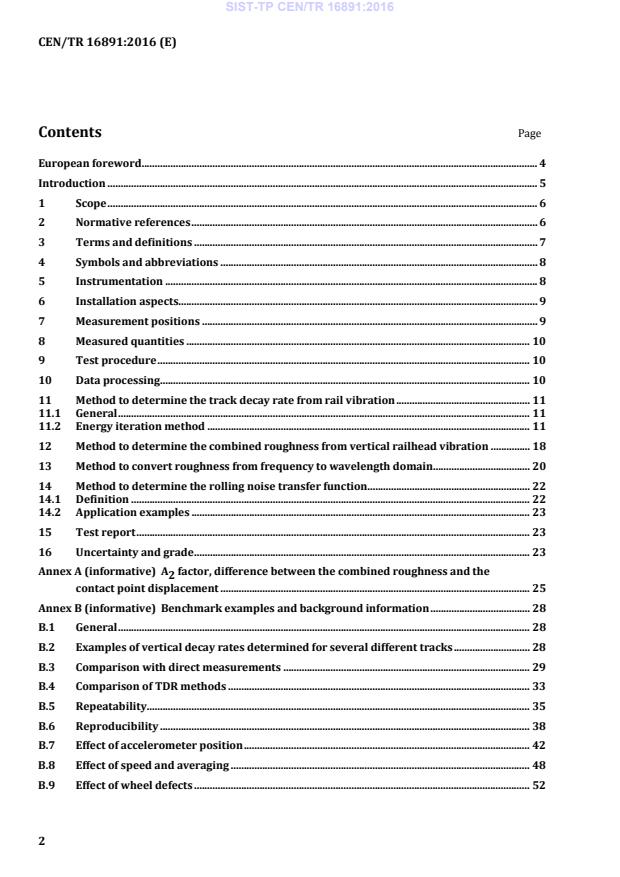

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Symbols and abbreviations . 8
5 Instrumentation . 8
6 Installation aspects. 9
7 Measurement positions . 9
8 Measured quantities . 10
9 Test procedure . 10
10 Data processing . 10
11 Method to determine the track decay rate from rail vibration . 11
11.1 General . 11
11.2 Energy iteration method . 11
12 Method to determine the combined roughness from vertical railhead vibration . 18
13 Method to convert roughness from frequency to wavelength domain. 20
14 Method to determine the rolling noise transfer function. 22
14.1 Definition . 22
14.2 Application examples . 23
15 Test report . 23
16 Uncertainty and grade . 23
Annex A (informative) A factor, difference between the combined roughness and the
contact point displacement . 25
Annex B (informative) Benchmark examples and background information . 28
B.1 General . 28
B.2 Examples of vertical decay rates determined for several different tracks . 28
B.3 Comparison with direct measurements . 29
B.4 Comparison of TDR methods . 33
B.5 Repeatability . 35
B.6 Reproducibility . 38
B.7 Effect of accelerometer position . 42
B.8 Effect of speed and averaging . 48
B.9 Effect of wheel defects . 52
B.10 Effect of temperature . 52
B.11 Effect of load . 52
Annex C (informative) Slope methods . 53
C.1 Single accelerometer slope method . 53
C.2 Two accelerometer method . 54
Bibliography . 55

European foreword
This document (CEN/TR 16891:2016) has been prepared by Technical Committee CEN/TC 256
“Railway applications”, the secretariat of which is held by DIN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Introduction
This Technical Report provides a basis for a standard on measurement of combined wheel-rail
roughness, track decay rates and transfer functions from train pass-bys.
The main items required for a standard are covered but also additional background information and
benchmark results are included.
1 Scope
This method is used to determine combined wheel-rail roughness and track decay rates from rail
vibration during the pass-by of a train. By combining sound pressure measurement from the same pass-
by, a vibro-acoustic transfer function for rolling noise is determined.
The track decay rate is a vibration quantity that characterizes the attenuation of rail vibration along the
track for a given wheel/rail contact excitation, and thereby affects the amount of sound radiation from
the track.
Combined roughness is a quantity that determines the level of excitation of wheel-rail rolling noise. It
can be determined from vertical rail vibration during a train pass-by and the vertical track decay rate.
The transfer function can be used to characterize the vibro-acoustic behaviour of the vehicle-track
system for a given roughness excitation and in relation to rolling noise. Combined roughness, track
decay rates and transfer functions are determined as one-third octave spectra.
The method can be used for the following purposes:
— to measure track decay rates under operational conditions;
— to characterize the effectiveness of noise control measures in terms of combined roughness,
transfer function and track decay rate;
— to compare the combined roughness before and after noise control measures are implemented
(thereby quantifying the effect of any change in wheel or rail roughness);
— to monitor wheel roughness during a pass-by, either of whole trains or parts of trains;
— to separate rolling noise from other sources;
— to assess a threshold for the rail roughness by measuring multiple pass-bys.
The method is not for approval of sections of reference track in terms of acoustic rail roughness and
track decay rates, which are covered by EN 15610 and EN 15461, respectively.
The method is applicable to trains on conventional tracks, i.e. normal ballasted tracks with wooden or
concrete sleepers and on ballastless track systems.
The method has not yet been validated for:
— non-standard wheel types such as small wheels up to 600 mm diameter, resilient tram wheels;
— non-standard track types such as embedded rail or grooved rail;
The method is not applicable to track with rail joints.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 15461, Railway applications — Noise emission — Characterisation of the dynamic properties of track
sections for pass by noise measurements
EN 15610, Railway applications — Noise emission — Rail roughness measurement related to rolling noise
generation
EN ISO 266, Acoustics — Preferred frequencies (ISO 266)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
pass-by time
t [s]
p
duration of vehicle pass-by from buffer to buffer
3.2
number of axles
N [-]
ax
number of axles in the selected train or part of train
3.3
one-third octave band frequency
f [Hz]
c
centre frequency of a one-third octave frequency band
3.4
one-third octave wavelength
λ [m]
centre wavelength of a one-third octave wavelength band
3.5
sound pressure signal
p(t) [Pa]
time signal of the sound pressure measured at a fixed point
3.6
equivalent sound pressure level spectrum
−5
L (f ) dB re 2.10 [Pa]
p
eq,Tp c
one-third octave spectrum of the sound pressure energy averaged over pass-by time t
p
3.7
acceleration signal
a(t) [m/s ]
time signal of the rail acceleration
3.8
equivalent vertical rail vibration level spectrum
−6 2
L (f ,V) dB re 10 [m/s ]
aeq,Tp c
one-third octave spectrum of the sound pressure energy averaged over pass-by time t at running
p
speed v
3.9
decay exponent
-1
β [m ]
decay exponent characteristic for the vibration decay in the rail
3.10
vertical track decay rate
D (f ) [dB/m]
z c
decay rate of vertical rail vibrations along the rail head
3.11
lateral track decay rate
D (f ) [dB/m]
y c
decay rate of lateral rail vibrations along the rail head
3.12
combined effective roughness wavelength spectrum
−6
L (λ), dB re 10 [m]
Rtot
wavelength spectrum in one-third octaves of the combined effective wheel-rail roughness including the
contact filter
3.13
combined effective roughness frequency spectrum at speed v
−6
L (f ,v) dB re 10 [m]
Rtot c
frequency spectrum in one-third octaves of the combined effective wheel-rail roughness including the
contact filter
3.14
rolling noise transfer function
L (f ) [dB re 20 Pa/√m]
HpR,tot,nl c
transfer function in one-third octave bands between the sound pressure at a fixed point, 7,5 m, and the
combined effective roughness frequency spectrum, normalized to the axle density N /l
ax
4 Symbols and abbreviations
Symbol Definition Unit
ℓ length of train, vehicle or train part [m]
v train speed [m/s]
5 Instrumentation
Instrumentation for sound pressure measurement should comply with requirements in EN ISO 3095.
The whole measurement chain shall be capable of measuring in the frequency range 25 Hz to 10 kHz.
The signal
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
