Testing sprayed concrete - Part 3: Flexural strengths (first peak, ultimate and residual) of fibre reinforced beam specimens

This document specifies methods (Methods A and B) for the determination of the first peak, ultimate and residual strength of specimens of hardened sprayed concrete.

Prüfung von Spritzbeton - Teil 3: Biegefestigkeiten (Erstriss-, Biegezug- und Restfestigkeit) von faserverstärkten balkenförmigen Betonprüfkörpern

Dieses Dokument legt Verfahren (Verfahren A und Verfahren B) zur Bestimmung der Erstrissfestigkeit, Biegezugfestigkeit und residuellen Biegezugfestigkeit von Probekörpern aus erhärtetem Spritzbeton fest.

Essais pour béton projeté - Partie 3 : Résistances à la flexion (au premier pic, ultime et résiduelle) d’éprouvettes parallélépipédiques en béton renforcé par des fibres

Le présent document spécifie des méthodes (Méthodes A et B) de détermination des résistances au premier pic, ultime et résiduelle d’éprouvettes en béton projeté durci.

Preskušanje brizganega betona - 3. del: Upogibna trdnost (prvi vrh, končna in preostala) z vlakni armiranih prizmatičnih preskušancev

Ta del evropskega standarda določa metodo za ugotavljanje upogibne trdnosti (prvi vrh, končna in preostala) preskušancev iz strjenega brizganega betona.

General Information

Status
Published
Publication Date
31-Oct-2023
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
01-Nov-2023
Due Date
07-Nov-2022
Completion Date
01-Nov-2023

Relations

Buy Standard

Standard
EN 14488-3:2024
English language
22 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Standard
EN 14488-3:2024
English language
22 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

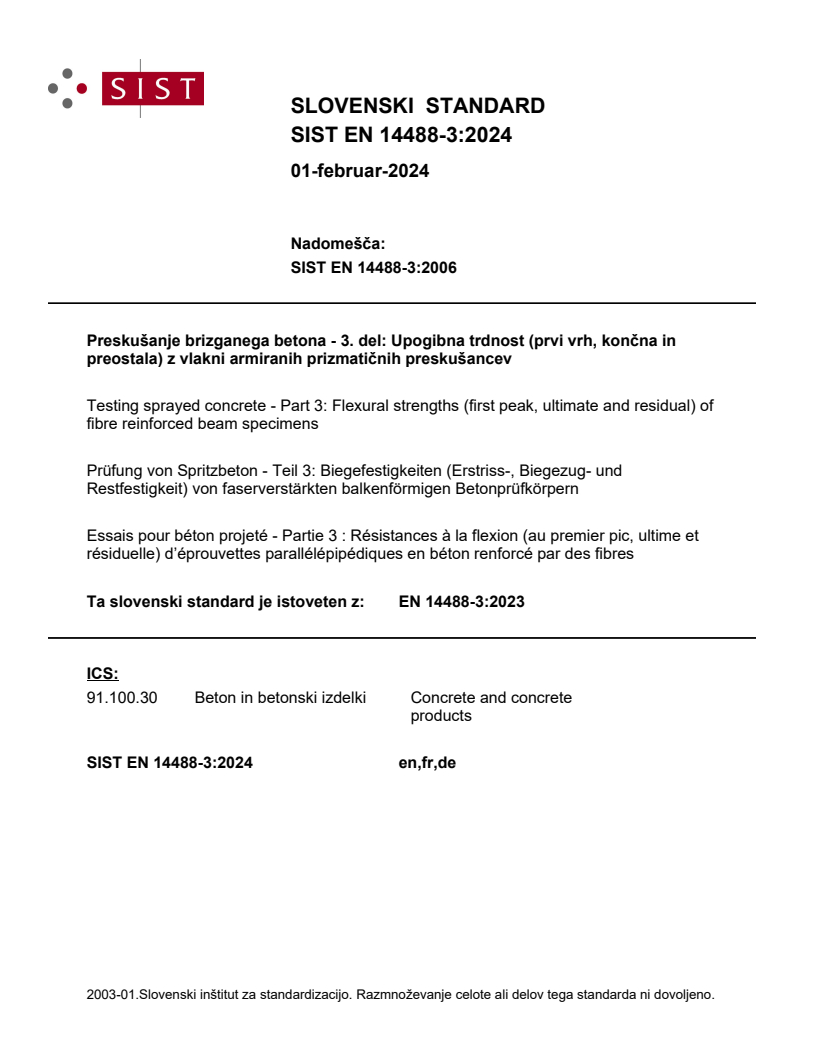

SLOVENSKI STANDARD
01-februar-2024
Nadomešča:
SIST EN 14488-3:2006
Preskušanje brizganega betona - 3. del: Upogibna trdnost (prvi vrh, končna in
preostala) armiranih vlaken za vzorce nosilcev
Testing sprayed concrete - Part 3: Flexural strengths (first peak, ultimate and residual) of
fibre reinforced beam specimens
Prüfung von Spritzbeton - Teil 3: Biegefestigkeiten (Erstriss-, Biegezug- und
Restfestigkeit) von faserverstärkten balkenförmigen Betonprüfkörpern
Essais pour béton projeté - Partie 3 : Résistances à la flexion (au premier pic, ultime et
résiduelle) d’éprouvettes parallélépipédiques en béton renforcé par des fibres
Ta slovenski standard je istoveten z: EN 14488-3:2023
ICS:
91.100.30 Beton in betonski izdelki Concrete and concrete
products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

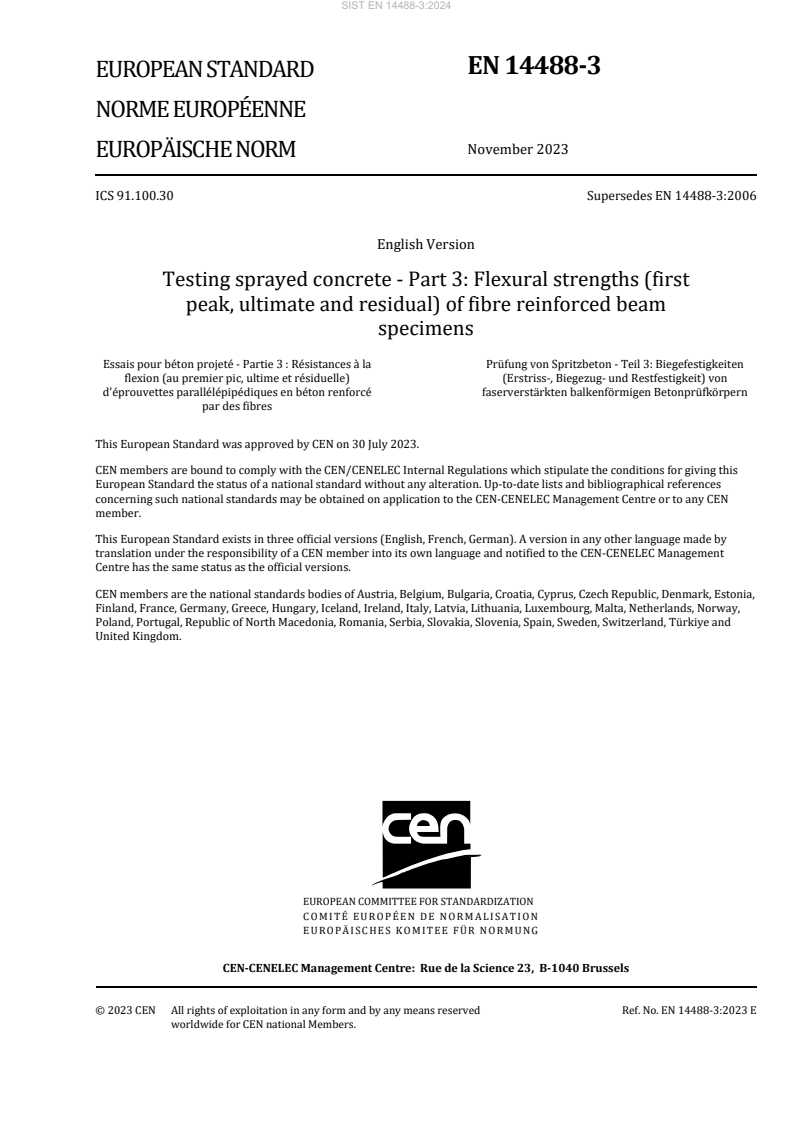

EN 14488-3
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2023
EUROPÄISCHE NORM
ICS 91.100.30 Supersedes EN 14488-3:2006
English Version
Testing sprayed concrete - Part 3: Flexural strengths (first
peak, ultimate and residual) of fibre reinforced beam
specimens
Essais pour béton projeté - Partie 3 : Résistances à la Prüfung von Spritzbeton - Teil 3: Biegefestigkeiten
flexion (au premier pic, ultime et résiduelle) (Erstriss-, Biegezug- und Restfestigkeit) von
d'éprouvettes parallélépipédiques en béton renforcé faserverstärkten balkenförmigen Betonprüfkörpern
par des fibres
This European Standard was approved by CEN on 30 July 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14488-3:2023 E
worldwide for CEN national Members.

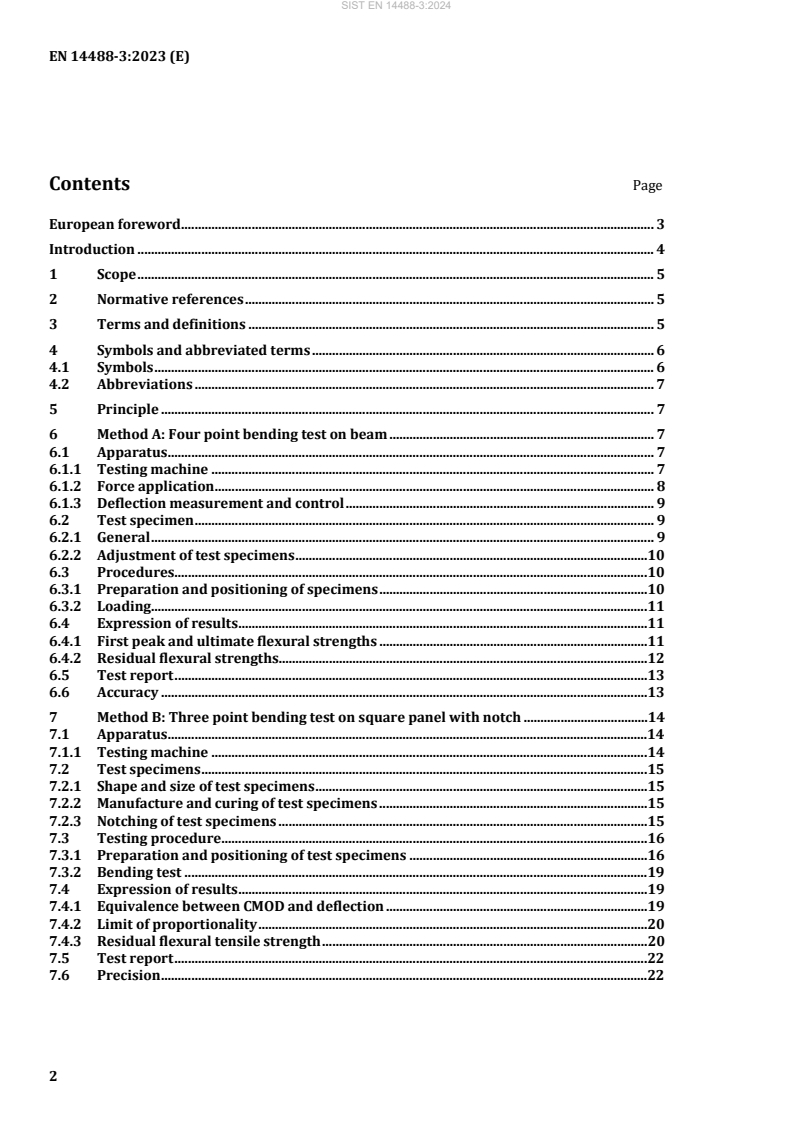

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Symbols and abbreviated terms . 6
4.1 Symbols . 6
4.2 Abbreviations . 7
5 Principle . 7
6 Method A: Four point bending test on beam . 7
6.1 Apparatus . 7
6.1.1 Testing machine . 7
6.1.2 Force application . 8
6.1.3 Deflection measurement and control . 9
6.2 Test specimen . 9
6.2.1 General . 9
6.2.2 Adjustment of test specimens .10
6.3 Procedures.10
6.3.1 Preparation and positioning of specimens .10
6.3.2 Loading.11
6.4 Expression of results .11
6.4.1 First peak and ultimate flexural strengths .11
6.4.2 Residual flexural strengths.12
6.5 Test report .13
6.6 Accuracy .13
7 Method B: Three point bending test on square panel with notch .14
7.1 Apparatus .14
7.1.1 Testing machine .14
7.2 Test specimens .15
7.2.1 Shape and size of test specimens .15
7.2.2 Manufacture and curing of test specimens .15
7.2.3 Notching of test specimens .15
7.3 Testing procedure .16
7.3.1 Preparation and positioning of test specimens .16
7.3.2 Bending test .19
7.4 Expression of results .19
7.4.1 Equivalence between CMOD and deflection .19
7.4.2 Limit of proportionality .20
7.4.3 Residual flexural tensile strength .20
7.5 Test report .22
7.6 Precision .22

European foreword
This document (EN 14488-3:2023) has been prepared by Technical Committee CEN/TC 104 “Concrete
and related products”, the secretariat of which is held by SN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2024 and conflicting national standards shall be
withdrawn at the latest by May 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 14488-3:2006.
— Introduction of testing Method B, the three point bending test on spray square panel with notch to
determine the flexural residual strength. The residual strength method can be prescribed when the
concrete characteristics are used in a structural design model. This is especially useful for permanent
sprayed concrete linings.
This document is part of a series concerned with testing sprayed concrete.
The EN 14488 series, Testing sprayed concrete, includes the following parts:
— Part 1: Sampling fresh and hardened concrete
— Part 2: Compressive strength of young sprayed concrete
— Part 3: Flexural strengths (first peak, ultimate and residual) of fibre reinforced beam specimens
— Part 4: Bond strength of cores by direct tension
— Part 5: Determination of energy absorption capacity of fibre reinforced slab specimens
— Part 6: Thickness of concrete on a substrate
— Part 7: Fibre content of fibre reinforced concrete
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
Classification of residual flexural strength of fibre reinforced sprayed concrete is made by specification
of a strength level at a certain deformation range.
This could be done using the four point bending test described in Method A or using the three point
bending test on square notched panel described in Method B of this document.
Methods A and B can be used for metallic fibres, synthetic or other fibres, or a combination of fibre types.

1 Scope
This document specifies methods (Methods A and B) for the determination of the first peak, ultimate and
residual strength of specimens of hardened sprayed concrete.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 12390-1, Testing hardened concrete — Part 1: Shape, dimensions and other requirements for specimens
and moulds
EN 12390-2, Testing hardened concrete — Part 2: Making and curing specimens for strength tests
EN 12390-4, Testing hardened concrete — Part 4: Compressive strength — Specification for testing
machines
EN 14487-1, Sprayed concrete — Part 1: Definitions, specifications and conformity
EN 14488-1, Testing sprayed concrete — Sampling fresh and hardened concrete
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp/
3.1
crack mouth opening displacement
linear displacement measured by a transducer installed on a specimen subjected to a central line load F
3.2
deflection
linear displacement measured by a transducer installed on a specimen subjected to a central line load F
3.3
limit of proportionality
stress at the tip of the notch which is assumed to be exerted, in the case of a linear stress distribution, in
an uncracked section at mid-span of a prism subjected to a centred load F (Method A) or F (Method B)
L LS
3.4
residual flexural tensile strength according to Method A
residual strength on the beam calculated from the minimum load on the flexural stress/deflection curve
between 0,5 mm and 1 mm, 2 mm and 4 mm
3.5
residual flexural tensile strength according to Method B
fictitious stress at the tip of the notch which is assumed to act in an uncracked mid-span section, with
linear stress distribution, of a plate subjected to the central line load F corresponding to CMOD where
j
j
CMOD > or to δ where δ > (j = 1,2,3,4)
CMOD
...
