CEN ISO/TS 17764-2:2006

Animal feeding stuffs - Determination of the content of fatty acids - Part 2: Gas chromatographic method (ISO/TS 17764-2:2002)

ISO/TS 17764-2:2002 specifies the application of gas chromatography with capillary columns and flame ionization detection for the determination of the quantitative content of fatty acids in a fat by making use of the methyl esters of the fatty acids obtained in accordance with the method specified in ISO/TS 17764-1:2002.
ISO/TS 17764-2:2002 is applicable to the investigation of animal and vegetable fats, oils and fatty acid mixtures for incorporation in animal feeding stuffs and fat extracts of animal feeding stuffs and raw materials for compound animal feeds, including fats and fatty acid mixtures containing butyric acid.
This method is not applicable to polymerized fatty acids.

Futtermittel - Bestimmung des Gehaltes an Fettsäuren - Teil 2: Gaschromatographisches Verfahren (ISO/TS 17764-2:2002)

Aliments des animaux - Détermination de la teneur en acides gras - Partie 2: Méthode par chromatographie en phase gazeuse (ISO/TS 17764-2:2002)

Krma - Določevanje maščobnih kislin - 2. del: Metoda plinske kromatografije (ISO/TS 17764-2:2002)

General Information

• Status: Published
• Publication Date: 17-Oct-2006
• ICS: 65.120 - Animal feeding stuffs
• Technical Committee: CEN/TC 327 - Animal feeding stuffs - Methods of sampling and analysis
• Drafting Committee: CEN/TC 327 - Animal feeding stuffs - Methods of sampling and analysis
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 02-Apr-2009
• Completion Date: 02-Apr-2009
• Ref Project: SIST-TS CEN ISO/TS 17764-2:2007 - Animal feeding stuffs - Determination of the content of fatty acids - Part 2: Gas chromatographic method (ISO/TS 17764-2:2002)

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2007
.UPD'RORþHYDQMHPDãþREQLKNLVOLQGHO0HWRGDSOLQVNHNURPDWRJUDILMH
,6276
Animal feeding stuffs - Determination of the content of fatty acids - Part 2: Gas
chromatographic method (ISO/TS 17764-2:2002)
Futtermittel - Bestimmung des Gehaltes an Fettsäuren - Teil 2: Gaschromatographisches
Verfahren (ISO/TS 17764-2:2002)
Aliments des animaux - Détermination de la teneur en acides gras - Partie 2: Méthode
par chromatographie en phase gazeuse (ISO/TS 17764-2:2002)
Ta slovenski standard je istoveten z: CEN ISO/TS 17764-2:2006
ICS:
65.120 Krmila Animal feeding stuffs
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

TECHNICAL SPECIFICATION
CEN ISO/TS 17764-2
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
October 2006
ICS 65.120
English Version
Animal feeding stuffs - Determination of the content of fatty
acids - Part 2: Gas chromatographic method (ISO/TS 17764-
2:2002)
Aliments des animaux - Détermination de la teneur en Futtermittel - Bestimmung des Gehaltes an Fettsäuren -
acides gras - Partie 2: Méthode par chromatographie en Teil 2: Gaschromatographisches Verfahren (ISO/TS 17764-
phase gazeuse (ISO/TS 17764-2:2002) 2:2002)
This Technical Specification (CEN/TS) was approved by CEN on 13 February 2006 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their
comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available
promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in parallel to the CEN/TS)
until the final decision about the possible conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN ISO/TS 17764-2:2006: E
worldwide for CEN national Members.

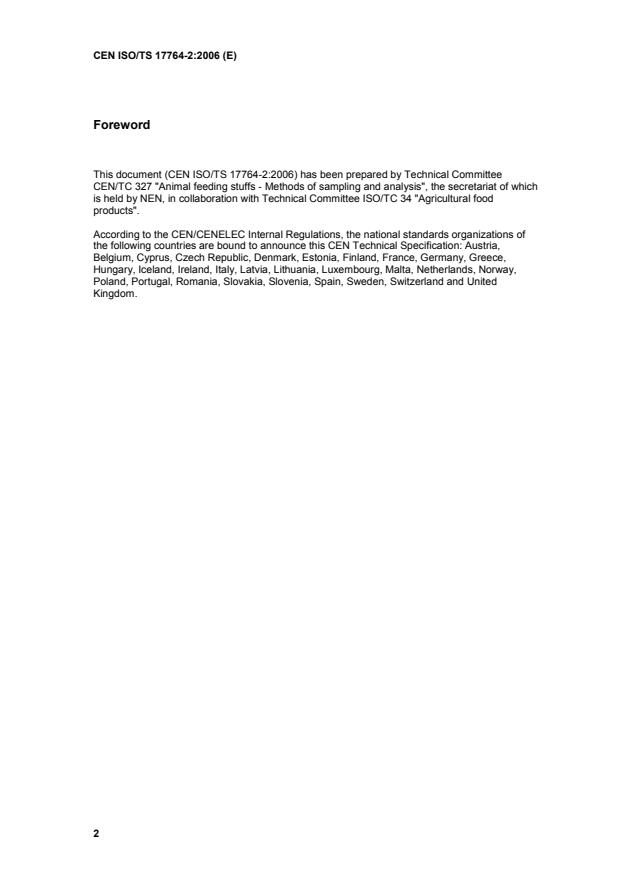

Foreword
This document (CEN ISO/TS 17764-2:2006) has been prepared by Technical Committee
CEN/TC 327 "Animal feeding stuffs - Methods of sampling and analysis", the secretariat of which
is held by NEN, in collaboration with Technical Committee ISO/TC 34 "Agricultural food
products".
According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to announce this CEN Technical Specification: Austria,
Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United
Kingdom.
TECHNICAL ISO/TS
SPECIFICATION 17764-2
First edition
2002-11-01
Animal feeding stuffs — Determination of
the content of fatty acids —
Part 2:
Gas chromatographic method
Aliments des animaux — Détermination de la teneur en acides gras —
Partie 2: Méthode par chromatographie en phase gazeuse

Reference number
ISO/TS 17764-2:2002(E)
©
ISO 2002
ISO/TS 17764-2:2002(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2002
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2002 — All rights reserved

ISO/TS 17764-2:2002(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In other circumstances, particularly when there is an urgent market requirement for such documents, a
technical committee may decide to publish other types of normative document:
 an ISO Publicly Available Specification (ISO/PAS) represents an agreement between technical experts in
an ISO working group and is accepted for publication if it is approved by more than 50 % of the members
of the parent committee casting a vote;
 an ISO Technical Specification (ISO/TS) represents an agreement between the members of a technical
committee and is accepted for publication if it is approved by 2/3 of the members of the committee casting
a vote.
An ISO/PAS or ISO/TS is reviewed after three years in order to decide whether it will be confirmed for a
further three years, revised to become an International Standard, or withdrawn. If the ISO/PAS or ISO/TS is
confirmed, it is reviewed again after a further three years, at which time it must either be transformed into an
International Standard or be withdrawn.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TS 17764-2 was prepared by Technical Committee ISO/TC 34, Food products, Subcommittee SC 10,
Animal feeding stuffs.
ISO/TS 17764 consists of the following parts, under the general title Animal feeding stuffs — Determination of
the content of fatty acids:
 Part 1: Preparation of methyl esters
 Part 2: Gas chromatographic method

TECHNICAL SPECIFICATION ISO/TS 17764-2:2002(E)

Animal feeding stuffs — Determination of the content of fatty
acids —
Part 2:
Gas chromatographic method
1 Scope
ISO/TS 17764 specifies methods for the quantitative determination of individual fatty acids and of the sum of
the fatty acids (elutable fatty acids).
This part of ISO/TS 17764 specifies the application of gas chromatography with capillary columns and flame
ionization detection for the determination of the quantitative content of fatty acids in a fat by making use of the
methyl esters of the fatty acids obtained in accordance with the method specified in ISO/TS 17764-1.
This part of ISO/TS 17764 is applicable to the investigation of animal and vegetable fats, oils and fatty acid
mixtures for incorporation in animal feeding stuffs and fat extracts of animal feeding stuffs and raw materials
for compound animal feeds, including fats and fatty acid mixtures containing butyric acid.
This method is not applicable to polymerized fatty acids.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 3696:1987, Water for analytical laboratory use  Specification and test methods
ISO/TS 17764-1, Animal feeding stuffs — Determination of the content of fatty acids — Part 1: Preparation of
methyl esters
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
fatty acid content
mass fraction of the fatty acids in the test portion of oil, fat, fat extract, free fatty acids or soaps
NOTE The fatty acid content is expressed in grams per kilogram.
3.2
content of elutable material
mass fraction of the sum of all the fatty acids elutable using a gas chromatographic column as described in
this part of ISO/TS 17764
ISO/TS 17764-2:2002(E)
4 Principle
The methyl esters prepared from fatty acids in accordance with ISO/TS 17764-1 are separated with gas-liquid
chromatography, making use of a capillary column. The peaks in the chromatogram are defined with the help
of a reference sample of known composition and are quantified by means of an internal standard.
5 Reagents
Use only reagents and solvents of recognized analytical grade.
5.1 Water, complying with at least grade 3 in accordance with ISO 3696:1087.
5.2 n-Hexane or n-heptane.
5.3 n-Pentane.
5.4 Reference sample: an oil or fat sample with exactly known fatty acid pattern, or a mixture of reference
fatty acid methyl ester materials or reference fatty acids materials.
NOTE If the BF method for esterification is used, a mixture of reference fatty acid methyl esters cannot be used for
calibration or correction factors for fatty acids with a chain length of less than 10 carbon atoms, because of possible
solubility of the methyl esters in the water phase.
6 Apparatus
Usual laboratory equipment and, in particular, the following.
6.1 Gas chromatograph, comprising a capillary column and an injection system specially designed for use
with such columns.
It may be of the split or the split-less type or a cold on-column injector. However, a warm split-less injector is
not suitable for the analysis of milk fats due to overlap of the solvent peak with the butyric acid peak.
6.2 Column, constructed of inert material (fused silica or glass) with a stationary phase preferable
chemically bonded to the wall of the column.
Column dimensions and film thickness are important factors in determining the separation efficiency and
capacity of the column. A resolution of at least 1,25 for the fatty acids C16:0 and C16:1, and C18:0 and C18:1
should be accomplished.
NOTE In most cases a moderately polar phase will suit. In special cases, for instance for the separation of cis-trans-
isomers and/or positional isomers, or if one must be sure that no peaks coincide, a more polar phase is warranted. The
desirable effectiveness and capacity of the column should also be considered for column dimensions and film thickness.
Moderately polar phases are, for instance, various esters of poly(ethylene glycol). More polar phases are often of the
cyano-propyl-polysiloxane type.
6.3 Injection system, for manual injection, with a capacity of at most 10 µl, and graduated in 0,1 µl
divisions, suited for the injector (6.2), or an automatic injection system.
NOTE The use of an automatic system is preferable and can improve repeatability and reproducibility.
6.4 Signal evaluation apparatus: an electronic system fitted with a recorder to transform the detector
signal to a chromatogram (an integrator or a data station).
2 © ISO 2002 — All rights reserved

ISO/TS 17764-2:2002(E)
7 Procedure
7.1 Preparation of methyl esters
Prepare the methyl esters of the fatty acids of the test portion and the reference sample (5.4) in accordance
with ISO/TS 17764-1.
7.2 Selection of optimum operating conditions
Optimize the equipment in accordance with the instructions given by the manufacturer.
Optimize the flow of carrier gas in accordance with the recommendations of the column manufacturer for the
chosen column and the carrier gas.
Maintain a detector temperature of 20 °C to 50 °C above the highest temperature of the column in a
programmed heating, but at least at 150 °C.
The injector temperature depends on the type of the injector; follow the instructions given in the equipment
manual.
When using a split injector, set the split ratio between 1:30 and 1:100.
7.3 Analysis
7.3.1 Dissolve the fatty acid methyl esters of the test portion and the test portion with added internal
standard in n-hexane (5.2) to a content of 1 % (mass fraction) when using a split injector, or 0,05 % (mass
fraction) in the case of a split-less injector or a cold on-column injector.
Prepare a solution of the fatty acid methyl esters of the reference sample (7.1) in n-hexane with a comparable
concentration.
Inject separately 0,1 µl to 1 µl of the test sample, the test sample with internal standard, and when necessary
the reference sample.
When using cold on-column injection, the use of n-pentane as solvent is necessary for a good separation of
the fatty acid methyl esters with a chain length of less than 10 carbon atoms. Dissolve the methyl esters of the
fatty acids in the test portions and the
...
