TECHNICAL REPORT
CEN/TR 16364
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
June 2012
ICS 13.060.20
English Version
Influence of materials on water intended for human consumption
- Influence due to migration - Prediction of migration from
organic materials using mathematical modelling
Influence des matériaux sur l'eau destinée à la Einfluss von Materialien auf Wasser für den menschlichen
consommation humaine - Influence de la migration - Gebrauch - Einfluss infolge der Migration - Abschätzung
Utilisation de modèles mathématiques pour prévoir la der Migration aus organischen Materialien mittels
migration depuis des matériaux organiques mathematischer Modellierung
This Technical Report was approved by CEN on 9 April 2012. It has been drawn up by the Technical Committee CEN/TC 164.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 16364:2012: E
worldwide for CEN national Members.

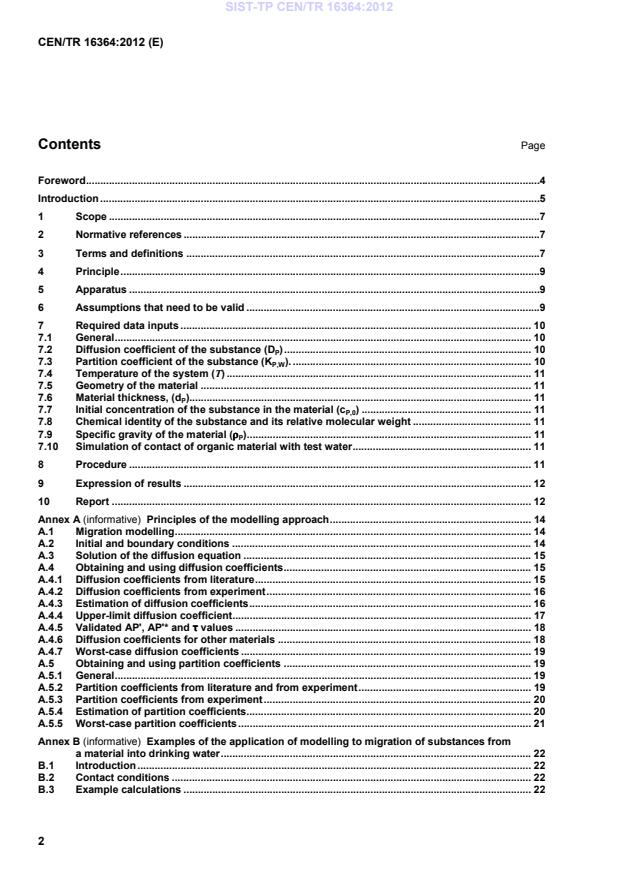

Contents Page
Foreword .4
Introduction .5
1 Scope .7
2 Normative references .7
3 Terms and definitions .7
4 Principle .9
5 Apparatus .9
6 Assumptions that need to be valid .9
7 Required data inputs . 10
7.1 General . 10
7.2 Diffusion coefficient of the substance (D ) . 10
P
7.3 Partition coefficient of the substance (K ). . 10
P,W
7.4 Temperature of the system (T) . 11
7.5 Geometry of the material . 11
7.6 Material thickness, (d ). 11
P
7.7 Initial concentration of the substance in the material (c ) . 11
P,0
7.8 Chemical identity of the substance and its relative molecular weight . 11
7.9 Specific gravity of the material (ρρρρ ) . 11
P
7.10 Simulation of contact of organic material with test water . 11
8 Procedure . 11
9 Expression of results . 12
10 Report . 12
Annex A (informative) Principles of the modelling approach . 14
A.1 Migration modelling . 14
A.2 Initial and boundary conditions . 14
A.3 Solution of the diffusion equation . 15
A.4 Obtaining and using diffusion coefficients . 15
A.4.1 Diffusion coefficients from literature . 15
A.4.2 Diffusion coefficients from experiment . 16
A.4.3 Estimation of diffusion coefficients . 16
A.4.4 Upper-limit diffusion coefficient . 17
A.4.5 Validated AP', AP'* and ττττ values . 18
A.4.6 Diffusion coefficients for other materials . 18
A.4.7 Worst-case diffusion coefficients . 19
A.5 Obtaining and using partition coefficients . 19
A.5.1 General . 19
A.5.2 Partition coefficients from literature and from experiment . 19
A.5.3 Partition coefficients from experiment . 20
A.5.4 Estimation of partition coefficients. 20
A.5.5 Worst-case partition coefficients . 21
Annex B (informative) Examples of the application of modelling to migration of substances from
a material into drinking water . 22
B.1 Introduction . 22
B.2 Contact conditions . 22
B.3 Example calculations . 22
B.3.1 General . 22
B.3.2 Example 1, cold water test with the material constant in accordance to [7] . 23
B.3.3 Example 2 Cold water test with “realistic” material constants (experimentally measured) . 24
Annex C (informative) Validation of the numerical algorithm and software tools . 26
C.1 General . 26
C.2 Example A . 27
C.3 Example B . 28
Bibliography . 32
Foreword
This document (CEN/TR 16364:2012) has been prepared by Technical Committee CEN/TC 164 “Water
supply”, the secretariat of which is held by AFNOR.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
Introduction
During the last two decades, several scientific investigations have demonstrated that migration from organic
materials into liquid simulants is a physical process that can be modelled successfully. Mass transfer from an
organic material into a liquid simulant is predictable because in many cases it follows Fick´s law of diffusion,
i.e. the diffusion process is the rate determining step. To predict migration from organic materials into
contacting media a corresponding diffusion model was established.
This Technical Report describes the application of predictive diffusion modelling to the estimation of the
migration of a substance from a product intended for contact with water intended for human consumption – for
convenience, and where appropriate, referred to as drinking water in this report. The application applies to
organic materials, such as polymers, used to make such products.
The purpose of the report is to stimulate the use of such techniques in member states such that sufficient
experience is generated to enable the value of such modelling to be assessed in relation to complementing or
substituting the conventional approach.
Normally in member states the estimation of such migration is performed by standardised procedures based
on laboratory testing and analysis, i.e. an experimental approach. Migration modelling is an alternative to this
type of experimental testing. The experimental determination of the specific migration of substances into test
water (simulated drinking water) often requires a considerable amount of time and it can be costly. This
conventional approach has worked well and, of course, it generates data on the actual concentration of a
substance in test water. However, in some cases the analysis is difficult or even impossible due to problems
caused, for example, by chemical degradation, volatilisation of the substance. In addition, the substance may
not be amenable to, or the target concentration of interest may be too low for, available analytical techniques
Therefore, the application of a mathematical model could have considerable benefits for industry and
regulators, as experience has shown in the control of migration from plastic materials in contact with
foodstuffs.
Thus, the modelling approach is attractive because, in principle, it is quicker and more flexible than the
conventional testing approach, in that different exposure conditions can be readily investigated - and it should
be cheaper.
Modelling of migration has been used for several years in the United States as an additional tool in support of
regulatory decisions. Also, the European Union has introduced such diffusion modelling by means of
th
EU Directive 2001/62/EC (the 6 amendment of Directive 90/128/EEC), consolidated in Directive 2002/72/EC
as a compliance and quality assurance tool for plastic materials intended to come in contact with foodstuff [3].
The European project SMT-CT98-7513, Evaluation of Migration Models in Support of Directive 90/128/EEC,
successfully demonstrated the practical value of such diffusion models. The main objectives of this project
were to demonstrate:
the validity of migration models for compliance purposes;
that a relationship between the specific migration limit (SML) and the concentration of a substance in the
finished product can be established.
A report of this project has been finalised and the project results were published in a scientific journal [4]. As
indica
...
