Standards Content (Sample)

SLOVENSKI STANDARD
SIST-TP CEN/TR 14067-7:2021
01-julij-2021
Železniške naprave - Aerodinamika - 7. del: Osnove preskusnih postopkov za
zaščito pred letečim drobirjem, ki ga sproža vlak

Railway applications - Aerodynamics - Part 7: Fundamentals for test procedures for train-

induced ballast projection
Bahnanwendungen - Aerodynamik - Grundlagen für Prüfverfahren für zuginduzierten
Schotterflug

Applications ferroviaires - Aérodynamique - Principes généraux pour des procédures

d'essais vis-à-vis des projection de ballast causés par la circulation des trains

Ta slovenski standard je istoveten z: CEN/TR 14067-7:2021
ICS:
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
SIST-TP CEN/TR 14067-7:2021 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST-TP CEN/TR 14067-7:2021
---------------------- Page: 2 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7
TECHNICAL REPORT
RAPPORT TECHNIQUE
April 2021
TECHNISCHER BERICHT
ICS 45.060.01
English Version
Railway applications - Aerodynamics - Part 7:
Fundamentals for test procedures for train-induced ballast
projection

Applications ferroviaires - Aérodynamique - Principes Bahnanwendungen - Aerodynamik - Grundlagen für

généraux pour des procédures d'essais vis-à-vis des Prüfverfahren für zuginduzierten Schotterflug

projections de ballast générées par la circulation des
trains

This Technical Report was approved by CEN on 19 April 2021. It has been drawn up by the Technical Committee CEN/TC 256.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 14067-7:2021 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7:2021 (E)

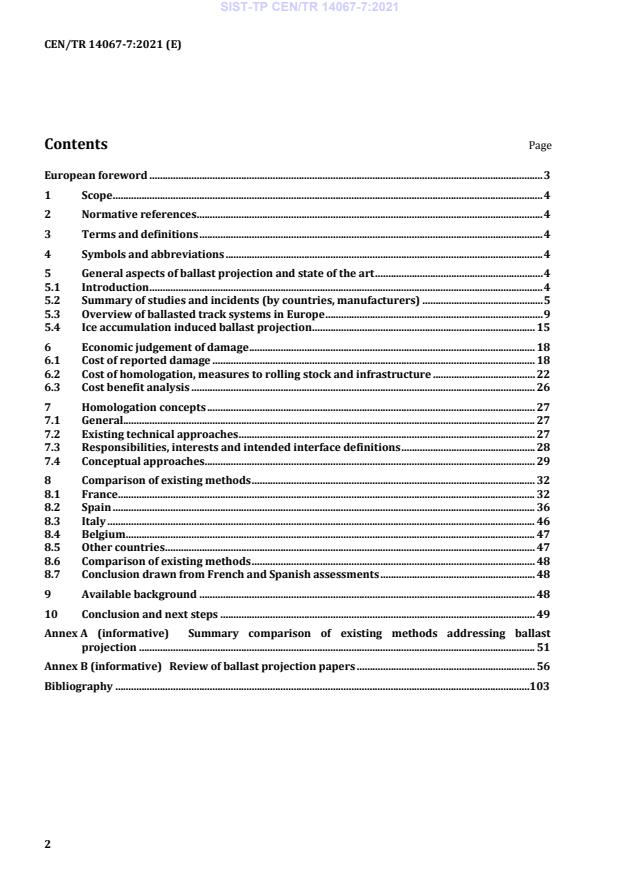

Contents Page

European foreword ...................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms and definitions ................................................................................................................................... 4

4 Symbols and abbreviations ......................................................................................................................... 4

5 General aspects of ballast projection and state of the art ................................................................ 4

5.1 Introduction ...................................................................................................................................................... 4

5.2 Summary of studies and incidents (by countries, manufacturers) .............................................. 5

5.3 Overview of ballasted track systems in Europe ................................................................................... 9

5.4 Ice accumulation induced ballast projection ..................................................................................... 15

6 Economic judgement of damage ............................................................................................................. 18

6.1 Cost of reported damage ........................................................................................................................... 18

6.2 Cost of homologation, measures to rolling stock and infrastructure ....................................... 22

6.3 Cost benefit analysis ................................................................................................................................... 26

7 Homologation concepts ............................................................................................................................. 27

7.1 General............................................................................................................................................................. 27

7.2 Existing technical approaches ................................................................................................................. 27

7.3 Responsibilities, interests and intended interface definitions ................................................... 28

7.4 Conceptual approaches.............................................................................................................................. 29

8 Comparison of existing methods ............................................................................................................ 32

8.1 France ............................................................................................................................................................... 32

8.2 Spain ................................................................................................................................................................. 36

8.3 Italy ................................................................................................................................................................... 46

8.4 Belgium ............................................................................................................................................................ 47

8.5 Other countries ............................................................................................................................................. 47

8.6 Comparison of existing methods ............................................................................................................ 48

8.7 Conclusion drawn from French and Spanish assessments ........................................................... 48

9 Available background ................................................................................................................................ 48

10 Conclusion and next steps ........................................................................................................................ 49

Annex A (informative) Summary comparison of existing methods addressing ballast

projection ....................................................................................................................................................... 51

Annex B (informative) Review of ballast projection papers .................................................................... 56

Bibliography ..............................................................................................................................................................103

---------------------- Page: 4 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7:2021 (E)
European foreword

This document (CEN/TR 14067-7:2021) has been prepared by Technical Committee CEN/TC 256

“Railway Applications”, the secretariat of which is held by DIN.
---------------------- Page: 5 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7:2021 (E)
1 Scope
This document discusses:
— economic aspects of ballast projection;
— comparison of methods in France and Spain for rolling stock;
— infrastructure assessment methods;
— review of available literature;
— next steps and recommendations regarding standardization and research.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 14067-4:2013+A1:2018, Railway applications - Aerodynamics - Part 4: Requirements and test

procedures for aerodynamics on open track
3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 14067-4 apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• ISO Online browsing platform: available at https://www.iso.org/obp
• IEC Electropedia: available at https://www.electropedia.org/
4 Symbols and abbreviations

For the purposes of this document, the symbols and abbreviations given in EN 14067-4 apply.

5 General aspects of ballast projection and state of the art
5.1 Introduction

The phenomenon of ballast projection has been caused in the past by lumps of ice or accreted snow falling

from the train structure during extreme winter conditions, which then strike the ballast bed causing

ballast to be ejected upwards, impacting the train underside or passing trains and leading to damage.

Typically, this damage includes breakage of train underbody equipment, failures of train systems or

reduced efficiencies, breakages of station or train windows, and impact damage to train or trackside

structures. This type of ballast projection occurs to regional trains as well as to high speed trains and has

been well-known for a long period in railways world-wide.

However, in the early 2000s there were a number of significant incidents of ballast projection involving

high speed trains which were not caused by ice fall, but seemed to arise from aerodynamic causes.

Substantial damage was caused to the underside of an ICE 3 train in one particular incident in Belgium in

2003. This phenomenon seems to be solely a high speed train phenomenon. The relevant contributory

factors involve:
---------------------- Page: 6 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7:2021 (E)
— the aerodynamic design of the train, particularly the train underbody;

— the air speeds generated under the train, due to the Couette-type flow created by the high speed

train passing over the static track bed;
— train-induced pressures acting on the ballast;

— track vibrations caused by the traction engines and wheel passing over the rails.

The types of damage from this sort of incident principally includes: ballast stone impacts to the

underbody structure and damage to the underbody equipment, pipes and cables of high speed trains, and

damage to wheels and rails when ballast stones are trapped between them. Although possible, there

seems to be little evidence of collateral damage to other trains or of injury to trackside workers.

It should be noted that although the aerodynamically-induced ballast projection incidents have resulted

in some spectacular damage to trains, there is evidence of minor impact damage to train underbodies at

lower train speeds that appears to be deemed tolerable by train maintainers. Furthermore, since the first

upsurge in these incidents, there has been a complete cessation with no further incidents since 2004. This

reduction in incidents coincides with measures introduced by many European Infrastructure Managers

to reduce ballast levels relative to the top of sleepers.

Nevertheless, there is a widespread concern that this is still a valid train/infrastructure issue needing

certain controls, which is supported by its inclusion in the LOC&PAS and INF TSIs as an issue, (albeit

currently as an open point). Consequently, various national rules regarding the issue have been

developed, mainly focused on rolling stock, leading to a burden on train manufacturers trying to

introduce trains into different countries, as they are required to apply different methods to confirm their

trains’ performance with regard to ballast projection.

Within the revision published in June 2019, ballast projection is addressed in TSI LOC PAS and TSI INF as

an interface issue relevant for operation with train speeds >250 km/h. The issue is connected to the

essential requirements of safety and technical compatibility.
5.2 Summary of studies and incidents (by countries, manufacturers)
5.2.1 General

Table 1, reproduced from Claus [1], summarizes some of the major incidents up to 2006 of both types of

ballast projection in this century (those due to winter weather are not exhaustive).

---------------------- Page: 7 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7:2021 (E)
Table 1— Reported past ballast projection incidents
Date Train Location Speed Track Weather Remarks
Type Type Conditions
2001 ICE 3 Fulda- 230 km/h Mono-block Winter
Göttingen, sleepers, conditions,
Germany lowered snow
ballast
2003 KTX South Korea 300 km/h Mono-block No snow See [Kw03] for
sleepers details
2003 ICE 3 Lille-Calais, 320 km/h Bi-block Winter
France sleepers conditions,
snow
2003 ICE 3 Belgium 300 km/h Mono-block No snow Speeds up to
sleepers, 275 km/h did
ballast not not cause
lowered problems in
double
traction
2004 ICE 3 France 320 km/h Bi-block No snow During
sleepers homologation
test runs
2004 ICE 3 Mannheim- 250 km/h Mono-block Winter Foreign parts
Stuttgart, sleepers, conditions, in the track
Germany lowered snow have been
ballast found
2004 ETR 500 Rome- 300 km/h Mono-block No snow New track
Naples, Italy sleepers, with ballast
ballast not above the
lowered sleepers, see
Fig 1
2006 ICE-T Hamburg- 230 km/h Mono-block Winter
Berlin, sleepers, conditions,
Germany lowered snow
ballast

The following sections give additional details of incidents and the current status of ballast projection

measures in different European countries.
---------------------- Page: 8 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7:2021 (E)
5.2.2 Italy

During initial runs of the ETR 500 on the then newly constructed Rome-Naples high speed line in 2004 a

ballast projection incident occurred. The sleepers were of the mono-block type, as shown in the

photograph in Figure 1 taken at the time of the incident. It can be seen that the ballast was not specially

lowered between the sleepers, and significant amounts lay on top of the sleepers themselves.

On the first high speed line, the 25 kV Turin-Milan route, problems arose for 300 km/h running of the

ETR 500. Three levels of ballast height reductions were investigated with ballast impacts being

monitored using microphones. The best ballast level was chosen for the maintenance target. Maintenance

procedures were modified to ensure that ballast stones are properly placed, but the intervals between

track maintenance have not been increased. Since the initial problems, there have been no further

problems with flying ballast for trains regularly running up to the maximum speed of 300 km/h.

Homologation for the ETR 400 (also known as ETR 1000) running above 300 km/h required special

measures and configurations of track to ensure test running up to 360 km/h without problems.

There are no national notified technical rules for ballast projection in Italy. If ballast projection occurs,

the operator of the train has to establish a settlement with the infrastructure manager.

Figure 1 — Part of the Rome-Naples line at the time of the ballast projection incident in 2004, [1]

---------------------- Page: 9 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7:2021 (E)
5.2.3 Spain

Railway Gazette (2005) stated that Spanish Development Minister Magdalena Álvarez, when presenting

a report in March 2005 to the Spanish Parliament on difficulties encountered with the Madrid - Lleida

section of the Madrid - Barcelona high speed line, that train operations at speeds greater than 300 km/h

caused ‘ballast particles to be sucked up and thrown around’.

The Universidad Politecnica Madrid and Adif have studied ballast projection since 2008. Preliminary

studies were undertaken in 2008-2010, followed by the AeroTRAIN Project (2010-2012), and then the

Aurigidas Project (2012-2014). In all of the projects, detailed measurements of surface loads and

induction phenomena were undertaken with ballast risk projection analysis. These were followed by

Norm definition studies in 2015-2017. A national guideline on the issue is being prepared by Adif.

5.2.4 France

In France, the major incidents of ballast projection occurred in 2003 and 2004 during homologation tests

of the ICE 3 running at 320 km/h (single unit). Damage to the train and the track was very significant and

of a magnitude never seen to TGVs or other high speed trains running in France, even at higher speeds.

Following this, different types of studies were carried out by German and French personnel to understand

the origin of these incidents and to try to avoid or at least limit them.

As a result of this work, the underbody of ICE 3 running in France was modified and tests were carried

out (air speed measurements in the track bed during train passing, microphones, video control,

underbody inspection) in 2005, to check the behaviour of the modified train regarding ballast projection.

These tests confirmed the decrease of the aerodynamic load on the track and the frequency and intensity

of ballast projection.

A review of ballast incidents was carried out after one year of operation. Several incidents were identified,

but have always been observed during cold weather (temperature close to zero and snow) in Germany.

Due to these incidents, for all new high speed trains running in France or for test running at speeds above

320 km/h, some specific monitoring has been required since 2004 on the trains (accelerometers or

microphones for stone impact counting and video control), and air speed measurements in track have to

be made for all new high speed trains.

A French regulation, SAM X 012 [4], was published by EPSF in 2015 to describe the methodology to assess

a new high speed train regarding ballast projection. This methodology is based on air speed

measurements in the track and consists of comparing the new train with an existing train or with an

absolute criterion (cf § 7.2).

In France, ballast projection also occurs in winter due to snow/ice conditions. To limit these incidents,

speed reductions are applied on French high speed lines.
5.2.5 Germany

The major incident of ballast projection of concern to Germany actually occurred not in Germany, but in

Belgium, during homologation tests on the ICE 3 on a new high speed line. The ICE 3 had run without

incident on high speed lines in Germany. The Belgian high speed line was fitted with mono-block sleepers,

but no ballast lowering had been instigated. Successful trials had taken place with single traction units of

200 m length running at up to 300 km/h. However, when the double units were running at 270 km/h,

ballast impacts on the train underside were audible. During one run severe damage occurred to the train

underside, which led to Siemens having to investigate improved underbody designs to limit the problem.

Passenger reports on 15 Jan 2016 stated that an ICE travelling from Stuttgart to Frankfurt was hit hard

by ballast stones. The incident was reportedly caused by ice lumps dropping from the train. Damage was

caused to the train under-floor surfaces and side windows were cracked. The train continued at reduced

speed. (SOURCE: https://rail-sim.de/forum/index.php/Thread/20576-Bahn-reduziert-
H%C3%B6chstgeschwindigkeit-im-Fernverkehr/?pageNo=3:).
---------------------- Page: 10 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7:2021 (E)
5.2.6 Great Britain

The High Speed 1 line (HS1) in Great Britain, runs from London to the Channel tunnel, and Eurostar trains

using the line reach a top speed of 300 km/h. A form of rail damage, known as ‘ballast pitting’, has been

reported, but no ballast projection problems have. This type of damage appears to be associated with

small particles of ballast becoming trapped between the railhead and the wheels of rail vehicles. It is

thought that the speed and the energy of trains cause an explosive crushing of the ballast particle, which

damages both the railhead and the wheel. Inspection and maintenance records of train wheels on HS1

show that wheel pitting occurs predominantly on the front and rear bogies of a train with a steady

reduction towards the centre of the vehicle. Quinn et al [2010], suggest that the vibrations and pressure

pulse associated with the approaching train play a part in making ballast particles airborne as the trains

travel in the reverse direction on the return journey.

High Speed 2 is a new line soon to begin construction in 2019, and will have a design speed of 360 km/h

and an operating speed of 330 km/h, obviously, there are not yet ballast projection problems on this line.

5.3 Overview of ballasted track systems in Europe
5.3.1 General

There are several aspects of the design of ballasted track directly under passing trains, which may be

relevant to the issue of aerodynamically induced ballast projection. These are:
— sleeper type and sleeper spacing;

— rail fastening systems, and whether these provide restraint to ballast movement;

— ballast size;
— ballast maintenance procedures.

How these aspects vary in different European countries could have an impact on risk of ballast projection

on different railway infrastructure designs.
5.3.2 Sleepers

There are a number of different types of sleepers, which are used in varying proportions by European

railways. They are used to support the rails in position on the ballast bed and are generally of similar

sizes, and differ mostly in their construction materials. These are summarized in Table 2.

Table 2 — Common sleeper types used on European ballasted track.
Sleeper material Size Notes
Timber Typically, 150 mm Different types of wood can be used.
high, 250 mm wide.
Ballast longitudinal movements restricted by the
sleeper, unless ballast above sleeper level.
Steel Similar size to wooden
sleeper.

Concrete mono-block Similar size to wooden Ballast longitudinal movements restricted by the

sleeper. sleeper, unless ballast above sleeper level.
Concrete twin- or bi- Consists of two blocks connected by a coupling rod
block or pipe to maintain separation of blocks.
Ballast free to move longitudinally between blocks.
---------------------- Page: 11 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7:2021 (E)

Of particular interest is the bi-block sleeper, where there is no constraint to the movement of the ballast

in the direction of the train from the sleeper between the two end blocks.
Examples of the different sleepers are shown in Figure 2.

The sleeper spacing, which for instance varies between 600 mm and 800 mm in Great Britain, depends

on the axle loading of trains using the line, track curvature and whether there are local track formation

difficulties. This is to ensure the vertical and lateral stability of the track. Due to sleeper functionality,

there is unlikely to be any systematic difference between European countries in sleeper spacing, although

within a country there could be differences between lines depending on the factors above. For high speed

lines, it is expected that differences in sleeper spacing between countries will be relatively small, (as axle

loads will be similar, track formation will be of high quality and track curvatures will be larger than on

conventional lines).
a) Wooden sleepers b) Steel sleepers
c) Mono-block sleepers d) Bi-block sleepers
Figure 2 — Examples of railway sleeper types
---------------------- Page: 12 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7:2021 (E)
5.3.3 Rail fastenings

Rail fastening are used to secure the rails to the sleepers and there are a number of different designs

currently in use. Baseplates may be also used under rails to hold the rails in place and may be used in

conjunction with clip devices.

The DE (Deenik, Eisses) clip, shown in Figure 2 a), is widely used and can be fitted on concrete or wooden

sleepers. A number of manufacturers have also produced other fastening devices, such as Pandrol,

Vossloh, McKay, and Nabla. These other devices are shown in Figure 3.
a) Rail baseplate b) Pandrol clip c) Vossloh fastening
d) McKay fastening e) Nabla fastening
Figure 3 — Rail fastening systems

It can be observed that the rail fastening systems, although having differing designs, are unlikely to

influence ballast movement or provide any significant impediment to aerodynamic ballast projection.

5.3.4 Ballast Size

EN 13450:2013 Aggregates for railway ballast specifies a standard for railway ballast sizes. Although

currently withdrawn, the standard is still referenced in company standards e.g. by Network Rail in Great

Britain. Essentially, ballast is graded according to the mass of ballast which passes through sieves with

holes of varying sizes. Ballast particles range between a nominal 31,5 mm up to a maximum of either 50

mm or 63 mm. Within each of these ranges there are five sub-ranges referred to as grading categories, A

to F overall. Figure 4 shows grade category A in the range up to 50 mm, and grade F in the range up to 63

mm, and represents the full range of ballast sizes and distributions. For each grade category there is also

a further sub-range at each sieve size, indicated by a solid line at the maximum value and a chained line

at the minimum. It can be seen that most ballast particles are between 20 mm and 63 mm, whichever

grade of category they are in.
---------------------- Page: 13 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7:2021 (E)
Key
X sieve size, mm
Y percentage passings by mass
cat A
cat B
Figure 4 — Distribution of ballast sizes, Categories A and F

Ballast is maintained using a number of machines, such as stone blowers. These use smaller ballast

particles, capable of passing through a 20 mm sieve, which are blown under the sleepers once the

machine has lifted them, to maintain the track level. At worst, 80 % of this type of ballast will be large

enough to pass through a 14 mm sieve. It is possible that these sized particles can find their way to the

surface of the ballast bed.

There is no evidence known to the authors of systematic ballast size and shape distributions being

different in different European countries.
5.3.5 Ballast maintenance regimes
5.3.5.1 General

An important consideration for aerodynamic ballast projection is where ballast is permitted to lie

between the running rails, which will depend on the maintenance regime for high speed lines in each

country.
5.3.5.2 Great Britain
5.3.5.2.1 Network Rail

A variety of railway sleepers are used on the standard railway lines in Great Britain. These include

wooden sleepers, concrete mono-block sleepers and steel sleepers. Figure 5 shows a still image from a

Network Rail ballast maintenance video; ballast stones can be seen on the sleepers, despite the

commentary stating “No ballast must be left on the railhead, piled against the rail webs, over the

fastenings or loose on the sleepers”. It is not clear if the instruction was eventually complied with in the

video.
---------------------- Page: 14 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7:2021 (E)
Figure 5 — Still from Network Rail video on ballast maintenance
5.3.5.2.2 High Speed 1

High Speed 1 is constructed using twin-block concrete sleepers on plain line and mono-block pre-stressed

concrete sleepers in the- vicinity of turnouts and switches. It uses a mixture of ballasted and slab track.

5.3.5.2.3 High Speed 2

High Speed 2 will be constructed with a mixture of slab track and ballasted track. No information has

been obtained regarding the sleeper types to be used.
5.3.5.3 Germany

German infrastructure managers established a procedure to counteract damage by ice dropping

instigating ballast projection. In late autumn the height of ballast is checked and lowered by a sweeping

machine to 4 cm to 6 cm below the base of the rail. This maintenance work is performed according to

internal rule 820.2010 7 (6) for every railway line above 140 km/h except for curves with small radius.

As sleepers are then elevated compared to the ballast bed level, objects dropping from fast running trains

will most likely hit the sleeper only, due to their flat-angle trajectory. The impact on sleepers is acceptable

and avoids the swirl of further ballast stones from the ballast.
---------------------- Page: 15 ----------------------
SIST-TP CEN/TR 14067-7:2021
CEN/TR 14067-7:2021 (E)
5.3.5.4 CER position paper

In 2015, the Community of European Railway and Infrastructure Companies (CER) and European Rail

Infrastructure Managers (EIM) produced a joint position paper on aerodynamic ballast projection,

CER/EIM (2015). This specifically addressed the open points relating to ballast projection in the

LOC&PAS and INF TSIs and set out some principles that were felt should be respected when regulating

for the issue. The paper acknowledges the full-scale track test procedure for the assessment of rolling

stock set out in Annex A of EN 14067-4:2013+A1:2018 Railway applications - Aerodynamics - Part 4:

Requirements and test procedures for aerodynamics on open track, but
...

SLOVENSKI STANDARD
kSIST-TP FprCEN/TR 14067-7:2021
01-februar-2021
Železniške naprave - Aerodinamika - 7. del: Osnove preskusnih postopkov za
zaščito pred letečim drobirjem, ki ga sproža vlak

Railway applications - Aerodynamics - Part 7: Fundamentals for test procedures for train-

induced ballast projection
Bahnanwendungen - Aerodynamik - Grundlagen für Prüfverfahren für zuginduzierten
Schotterflug

Applications ferroviaires - Aérodynamique - Principes généraux pour des procédures

d'essais vis-à-vis des projection de ballast causés par la circulation des trains

Ta slovenski standard je istoveten z: FprCEN/TR 14067-7
ICS:
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
kSIST-TP FprCEN/TR 14067-7:2021 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
---------------------- Page: 2 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
FINAL DRAFT
TECHNICAL REPORT
FprCEN/TR 14067-7
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
December 2020
ICS
English Version
Railway applications - Aerodynamics - Part 7:
Fundamentals for test procedures for train-induced ballast
projection

Applications ferroviaires - Aérodynamique - Principes Bahnanwendungen - Aerodynamik - Grundlagen für

généraux pour des procédures d'essais vis-à-vis des Prüfverfahren für zuginduzierten Schotterflug

projection de ballast causés par la circulation des
trains

This draft Technical Report is submitted to CEN members for Vote. It has been drawn up by the Technical Committee CEN/TC

256.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are

aware and to provide supporting documentation.

Warning : This document is not a Technical Report. It is distributed for review and comments. It is subject to change without

notice and shall not be referred to as a Technical Report.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. FprCEN/TR 14067-7:2020 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
FprCEN/TR 14067-7:2020 (E)
Contents Page

European foreword ...................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms and definitions ................................................................................................................................... 4

4 Symbols and abbreviations ......................................................................................................................... 4

5 General aspects of ballast projection and state of the art ................................................................ 4

5.1 Introduction ...................................................................................................................................................... 4

5.2 Summary of studies and incidents (by countries, manufacturers) .............................................. 5

5.3 Overview of ballasted track systems in Europe ................................................................................... 9

5.4 Ice accumulation induced ballast projection ..................................................................................... 14

6 Economic judgement of damage ............................................................................................................. 18

6.1 Cost of reported damage ........................................................................................................................... 18

6.2 Cost of homologation, measures to rolling stock and infrastructure ....................................... 21

6.3 Cost benefit analysis ................................................................................................................................... 25

7 Homologation concepts ............................................................................................................................. 26

7.1 General............................................................................................................................................................. 26

7.2 Existing technical approaches ................................................................................................................. 26

7.3 Responsibilities, interests and intended interface definitions ................................................... 27

7.4 Conceptual approaches.............................................................................................................................. 28

8 Comparison of existing methods ............................................................................................................ 31

8.1 France ............................................................................................................................................................... 31

8.2 Spain ................................................................................................................................................................. 34

8.3 Italy ................................................................................................................................................................... 45

8.4 Belgium ............................................................................................................................................................ 46

8.5 Other countries ............................................................................................................................................. 46

8.6 Comparison of existing methods ............................................................................................................ 47

8.7 Conclusion drawn from French and Spanish assessments ........................................................... 47

9 Available background ................................................................................................................................ 47

10 Conclusion and next steps ........................................................................................................................ 48

Annex A (informative) Summary comparison of existing methods addressing ballast

projection ....................................................................................................................................................... 50

Annex B (informative) Review of ballast projection papers .................................................................... 55

Bibliography ..............................................................................................................................................................100

---------------------- Page: 4 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
FprCEN/TR 14067-7:2020 (E)
European foreword

This document (FprCEN/TR 14067-7:2020) has been prepared by Technical Committee CEN/TC 256

“Railway Applications”, the secretariat of which is held by DIN.
This document is currently submitted to the Vote on TR.
---------------------- Page: 5 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
FprCEN/TR 14067-7:2020 (E)
1 Scope
This document discusses:
— economic aspects of ballast projection;
— comparison of methods in France and Spain for rolling stock;
— infrastructure assessment methods;
— review of available literature;
— next steps and recommendations regarding standardization and research.
2 Normative references
There are no normative references in this document.
3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 14067-4 apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• ISO Online browsing platform: available at https://www.iso.org/obp
• IEC Electropedia: available at http://www.electropedia.org/
4 Symbols and abbreviations

For the purposes of this document, the symbols and abbreviations given in EN 14067-4 apply.

5 General aspects of ballast projection and state of the art
5.1 Introduction

The phenomenon of ballast projection caused by trains has been caused in the past by lumps of ice or

accreted snow falling from the train structure during extreme winter conditions, which then strike the

ballast bed causing ballast to be ejected upwards, impacting the train underside or passing trains and

leading to damage. Typically, this damage includes breakage of train underbody equipment, failures of

train systems or reduced efficiencies, breakages of station or train windows, and impact damage to train

or trackside structures. This type of ballast projection occurs to regional trains as well as to high speed

trains and has been well-known for a long period in railways world-wide.

However, in the early 2000s there were a number of significant incidents of ballast projection involving

high speed trains which were not caused by ice fall, but seemed to arise from aerodynamic causes.

Substantial damage was caused to the underside of an ICE3 train in one particular incident in Belgium in

2003. This phenomenon seems to be solely a high speed train phenomenon. The relevant contributory

factors involve:
— the aerodynamic design of the train, particularly the train underbody;

— the air speeds generated under the train, due to the Couette-type flow created by the high speed

train passing over the static track bed;
— train-induced pressures acting on the ballast;
---------------------- Page: 6 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
FprCEN/TR 14067-7:2020 (E)

— track vibrations caused by the traction engines and wheel passing over the rails.

The types of damage from this sort of incident principally includes: ballast stone impacts to the

underbody structure and damage to the underbody equipment, pipes and cables of high speed trains, and

damage to wheels and rails when ballast stones are trapped between them. Although possible, there

seems to be little evidence of collateral damage to other trains or of injury to trackside workers.

It should be noted that although the aerodynamically-induced ballast projection incidents have resulted

in some spectacular damage to trains, there is evidence of minor impact damage to train underbodies at

lower train speeds that appears to be deemed tolerable by train maintainers. Furthermore, since the first

upsurge in these incidents, there has been a complete cessation with no further incidents since 2004. This

reduction in incidents coincides with measures introduced by many European Infrastructure Managers

to reduce ballast levels relative to the top of sleepers.

Nevertheless, there is a widespread concern that this is still a valid train/infrastructure issue needing

certain controls, which is supported by its inclusion in the LOC&PAS and INF TSIs as an issue, (albeit

currently as an open point). Consequently, various national rules regarding the issue have been

developed, mainly focused on rolling stock, leading to a burden on train manufacturers trying to

introduce trains into different countries, as they are required to apply different methods to confirm their

trains’ performance with regard to ballast projection.

Within the revision published in June 2019, ballast projection is addressed in TSI LOC PAS and TSI INS as

an interface issue relevant for operation with train speeds >250 km/h. The issue is connected to the

essential requirements of safety and technical compatibility.
5.2 Summary of studies and incidents (by countries, manufacturers)
5.2.1 General

Table 1, reproduced from Claus [1], summarizes some of the major incidents up to 2006 of both types of

ballast projection this century (those due to winter weather are not exhaustive).

---------------------- Page: 7 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
FprCEN/TR 14067-7:2020 (E)
Table 1— Reported past ballast projection incidents
Date Train Location Speed Track Weather Remarks
Type Type Conditions
2001 ICE 3 Fulda- 230 km/h Mono-block Winter
Göttingen, sleepers, conditions,
Germany lowered snow
ballast
2003 KTX South Korea 300 km/h Mono-block No snow See [Kw03] for
sleepers details
2003 ICE 3 Lille-Calais, 320 km/h Bi-block Winter
France sleepers conditions,
snow
2003 ICE 3 Belgium 300 km/h Mono-block No snow Speeds up to
sleepers, 275 km/h did
ballast not not cause
lowered problems in
double
traction
2004 ICE 3 France 320 km/h Bi-block No snow During
sleepers homologation
test runs
2004 ICE 3 Mannheim- 250 km/h Mono-block Winter Foreign parts
Stuttgart, sleepers, conditions, in the track
Germany lowered snow have been
ballast found
2004 ETR 500 Rome- 300 km/h Mono-block No snow New tack with
Naples, Italy sleepers, ballast above
ballast not the sleepers,
lowered see Fig 4.2.3
2006 ICE-T Hamburg- 230 km/h Mono-block Winter
Berlin, sleepers, conditions,
Germany lowered snow
ballast

The following sections give additional details of incidents and the current status of ballast projection

measures in different European countries.
5.2.2 Italy

During initial runs of the ETR 500 on the then newly constructed Rome-Naples high speed line in 2004 a

ballast projection incident occurred. The sleepers were of the mono-block type, as shown in the

photograph in Figure 1 taken at the time of the incident. It can be seen that the ballast was not specially

lowered between the sleepers, and significant amounts lay on top of the sleepers themselves.

On the first high speed line, the 25 kV Turin-Milan route, problems arose for 300 km/h running of the

ETR 500. Three levels of ballast height reductions were investigated with ballast impacts being

monitored using microphones. The best ballast level was chosen for the maintenance target. Maintenance

procedures were modified to ensure that ballast stones are properly placed, but the intervals between

---------------------- Page: 8 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
FprCEN/TR 14067-7:2020 (E)

track maintenance have not been increased. Since the initial problems, there have been no further

problems with flying ballast for trains regularly running up to the maximum speed of 300 km/h.

Homologation for the ETR 400 (also known as ETR 1000) running above 300 km/h required special

measures and configurations of track to ensure test running up to 360 km/h without problems.

There are no national notified technical rules for ballast projection in Italy. If ballast projection occurs,

the operator of the train has to establish a settlement with the infrastructure manager.

Figure 1 — Part of the Rome-Naples line at the time of the ballast projection incident in 2004, [1]

5.2.3 Spain

Railway Gazette (2005) stated that Spanish Development Minister Magdalena Álvarez, when presenting

a report in March 2005 to the Spanish Parliament on difficulties encountered with the Madrid - Lleida

section of the Madrid - Barcelona high speed line, that train operations at speeds greater than 300 km/h

caused ‘ballast particles to be sucked up and thrown around’.

The Universidad Politecnica Madrid and Adif have studied ballast projection since 2008. Preliminary

studies were undertaken in 2008-2010, followed by the AeroTRAIN Project (2010-2012), and then the

Aurigidas Project (2012-2014). In all of the projects, detailed measurements of surface loads and

induction phenomena were undertaken with ballast risk projection analysis. These were followed by

Norm definition studies in 2015-2017. A national guideline on the issue is being prepared by Adif.

5.2.4 France

In France, the major incident of ballast projection occurred in 2003 and 2004 during homologation tests

of the ICE3 running at 320 km/h (single unit). Damage to the train and the track was very significant and

of a magnitude never seen to TGVs or other high speed trains running in France, even at higher speeds.

Following this, different types of studies were carried out by German and French personnel to understand

the origin of these incidents and to try to avoid or at least limit them.
---------------------- Page: 9 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
FprCEN/TR 14067-7:2020 (E)

As a result of this work, the underbody of ICE3 running in France was modified and tests were carried

out (air speed measurements in the track bed during train passing, microphones, video control,

underbody inspection) in 2005, to check the behaviour of the modified train regarding ballast projection.

These tests confirmed the decrease of the aerodynamic load on the track and the frequency and intensity

of ballast projection.

A review of ballast incidents was carried out after one year of operation. Several incidents were identified,

but have always been observed during cold weather (temperature close to zero and snow) in Germany.

Due to these incidents, for all new high speed trains running in France or for test running at speeds above

320 km/h, some specific monitoring has been required since 2004 on the trains< (accelerometers or

microphones for stone impact counting and video control), and air speed measurements in track have to

be made for all new high speed trains.

A French regulation, SAM X 012 [4], was published by EPSF in 2015 to describe the methodology to assess

a new high speed train regarding ballast projection. This methodology is based on air speed

measurements in the track and consists of comparing the new train with an existing train or with an

absolute criterion (cf § 7.2).

In France, ballast projection also occurs in winter due to snow/ice conditions. To limit these incidents,

speed reductions are applied on French high speed lines.
5.2.5 Germany

The major incident of ballast projection of concern to Germany actually occurred not in Germany, but in

Belgium, during homologation tests on the ICE 3 on a new high speed line. The ICE 3 had run without

incident on high speed lines in Germany. The Belgian high speed line was fitted with mono-block sleepers,

but no ballast lowering had been instigated. Successful trials had taken place with single traction units of

200 m length running at up to 300 km/h. However, when the double units were running at 270 km/h,

ballast impacts on the train underside were audible. During one run severe damage occurred to the train

underside, which led to Siemens having to investigate improved underbody designs to limit the problem.

Passenger reports on 15 Jan 2016 stated that an ICE travelling from Stuttgart to Frankfurt was hit hard

by ballast stones. The incident was reportedly caused by ice lumps dropping from the train. Damage was

caused to the train under-floor surfaces and side windows were cracked. The train continued at reduced

speed. (SOURCE: https://rail-sim.de/forum/index.php/Thread/20576-Bahn-reduziert-
H%C3%B6chstgeschwindigkeit-im-Fernverkehr/?pageNo=3:).
5.2.6 Great Britain

However, the High Speed 1 line (HS1) in Great Britain, runs from London to the Channel tunnel, and

Eurostar trains using the line reach a top speed of 300 km/h. A form of rail damage, known as ‘ballast

pitting’, has been reported, but no ballast projection problems have. This type of damage appears to be

associated with small particles of ballast becoming trapped between the railhead and the wheels of rail

vehicles. It is thought that the speed and the energy of trains cause an explosive crushing of the ballast

particle, which damages both the railhead and the wheel. Inspection and maintenance records of train

wheels on HS1 show that wheel pitting occurs predominantly on the front and rear bogies of a train with

a steady reduction towards the centre of the vehicle. Quinn et al [2010], suggest that the vibrations and

pressure pulse associated with the approaching train play a part in making ballast particles airborne as

the trains travel in the reverse direction on the return journey.

High Speed 2 is a new line soon to begin construction in 2019, and will have a design speed of 360 km/h

and an operating speed of 330 km/h. Obviously, there are no ballast projection problems on this line.

---------------------- Page: 10 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
FprCEN/TR 14067-7:2020 (E)
5.3 Overview of ballasted track systems in Europe
5.3.1 General

There are several aspects of the design of ballasted track directly under passing trains, which may be

relevant to the issue of aerodynamically induced ballast projection. These are:
— sleeper type and sleeper spacing;

— rail fastening systems, and whether these provide restraint to ballast movement;

— ballast size;
— ballast maintenance procedures.

How these aspects vary in different European countries could have an impact on risk of ballast projection

on different railway infrastructure designs.
5.3.2 Sleepers

There are a number of different types of sleepers, which are used in varying proportions by European

railways. They are used to support the rails in position on the ballast bed and are generally of similar

sizes, and differ mostly in their construction materials. These are summarized in Table 2.

Table 2 — Common sleeper types used on European ballasted track.
Sleeper material Size Notes
Timber Typically, 150 mm Different types of wood can be used.
high, 250 mm wide
Ballast longitudinal movements restricted by the
sleeper, unless ballast above sleeper level
Steel Similar size to wooden
sleeper.

Concrete mono-block Similar size to wooden Ballast longitudinal movements restricted by the

sleeper. sleeper, unless ballast above sleeper level.
Concrete twin- or bi- Consists of two blocks connected by a coupling rod
block or pipe to maintain separation of blocks.
Ballast free to move longitudinally between blocks.

Of particular interest is the bi-block sleeper, where there is no constraint to the movement of the ballast

in the direction of the train from the sleeper between the two end blocks.
Examples of the different sleepers are shown in Figure 2.

The sleeper spacing, which for instance varies between 600 mm and 800 mm in Great Britain, depends

on the axle loading of trains using the line, track curvature and whether there are local track formation

difficulties. This is to ensure the vertical and lateral stability of the track. Due to sleeper functionality,

there is unlikely to be any systematic difference between European countries in sleeper spacing, although

within a country there could be differences between lines depending on the factors above. For high speed

lines, it is expected that differences in sleeper spacing between countries will be relatively small, (as axle

loads will be similar, track formation will be of high quality and track curvatures will be larger than on

conventional lines).
---------------------- Page: 11 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
FprCEN/TR 14067-7:2020 (E)
a) Wooden sleepers b) Steel sleepers
c) Mono-block sleepers d) Bi-block sleepers
Figure 2 — Examples of railway sleeper types
5.3.3 Rail fastenings

Rail fastening are used to secure the rails to the sleepers and there are a number of different designs

currently in use. Baseplates may be also used under rails to hold the rails in place and may be used in

conjunction with clip devices.

The DE (Deenik, Eisses) clip, shown in Figure 2 a), is widely used and can be fitted on concrete or wooden

sleepers. A number of manufacturers have also produced other fastening devices, such as Pandrol,

Vossloh, McKay, and Nabla. These other devices are shown in Figure 3.
---------------------- Page: 12 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
FprCEN/TR 14067-7:2020 (E)
a) Rail baseplate b) Pandrol clip c) Vossloh fastening
d) McKay fastening e) Nabla fastening
Figure 3 — Rail fastening systems

It can be observed that the rail fastening systems, although having differing designs, are unlikely to

influence ballast movement or provide any significant impediment to aerodynamic ballast projection.

5.3.4 Ballast Size

EN 13450:2013 Aggregates for railway ballast is a standard which specifies a standard for railway ballast

sizes. Although currently withdrawn, the standard is still referenced in company standards e.g. by

Network Rail in Great Britain. Essentially, ballast is graded according to the mass of ballast which passes

through sieves with holes of varying sizes. Ballast particles range between a nominal 31,5 mm up to a

maximum of either 50 mm or 63 mm. Within each of these ranges there are three sub-ranges referred to

as grading categories, A to F overall. Figure 4 shows grade category A in the range up to 50 mm, and grade

F in the range up to 63 mm, and represents the full range of ballast sizes and distributions. For each grade

category there is also a further sub-range at each sieve size, indicated by a solid line at the maximum

value and a chained line at the minimum. It can be seen that most ballast particles are between 20 mm

and 63 mm, whichever grade of category they are in.
---------------------- Page: 13 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
FprCEN/TR 14067-7:2020 (E)
Key
X sieve size, mm
Y percentage passings by mass
cat A
cat B
Figure 4 — Distribution of ballast sizes, Categories A and F

Ballast is maintained using a number of machines, such as stone blowers. These use smaller ballast

particles, capable of passing through a 20 mm sieve, which are blown under the sleepers once the

machine has lifted them, to maintain the track level. At worst, 80 % of this type of ballast will be large

enough to pass through a 14 mm sieve. It is possible that these sized particles can find their way to the

surface of the ballast bed.

There is no evidence known to the authors of systematic ballast size and shape distributions being

different in different European countries.
5.3.5 Ballast maintenance regimes
5.3.5.1 General

An important consideration for aerodynamic ballast projection is where ballast is permitted to lie

between the running rails, which will depend on the maintenance regime for high speed lines in each

country.
5.3.5.2 Great Britain
5.3.5.2.1 Network Rail

A variety of railway sleepers are used on the standard railway lines in Great Britain. These include

wooden sleepers, concrete mono-block sleepers and steel sleepers. Figure 5 shows a still image from a

Network Rail ballast maintenance video; ballast stones can be seen on the sleepers, despite the

commentary stating “No ballast must be left on the railhead, piled against the rail webs, over the

fastenings or loose on the sleepers”. It is not clear if the instruction was eventually complied with in the

video.
---------------------- Page: 14 ----------------------
kSIST-TP FprCEN/TR 14067-7:2021
FprCEN/TR 14067-7:2020 (E)
Figure 5 — Still from Network Rail video on ballast maintenance
5.3.5.2.2 High Speed 1

High Speed 1 is constructed using twin-block concrete sleepers on plain line and mono-block pre-stressed

concrete sleepers in the- vicinity of turnouts and switches. It uses a mixture of ballasted and slab track.

5.3.5.2.3 High Speed 2

High Speed 2 will be constructed with a mixture of slab track and ballasted track. No information has

been obtained regarding the sleeper types to be used.
5.3.5.3 Germany

German infrastructure managers established a procedure to counteract damage by ice dropping

instigating ballast projection. In late autumn the height of ballast is checked and lowered by a sweeping

machine to 4 cm to 6 cm below the base of the rail. This maintenance work is performed according to

internal rule 820.2010 7 (6) for every railway line above 140 km/h except for curves with small radius.

As sleepers are then elevated compared to the ballast bed level, objects dropping from fast running trains

will most likely hit the sleeper only, due to their flat-angle trajectory. The impact on sleepers is acceptable

and avoids the swirl of further ballast stones from the ballast.
5.3.5.4 CER position paper

In 2015, the Community of European Railway and Infrastructure Companies (CER) and European Rail

Infrastructure Managers (EIM) produced a joint position paper on aerodynamic ballast projection,

CER/EIM (2015). This specifically addressed the open points relating to ballast projection in the

LOC&PAS and INF TSIs and set out some principles that were felt should be respected when regulating

for the issue. The paper acknowledges the full-scale track test procedure for the assessment of rolling

stock set out in Annex A of EN 14067-4:2013+A1:2018 Railway applications - Aerodynamics - Part 4:

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
