EUROPEAN STANDARD
EN 539-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2005
ICS 91.100.25 Supersedes EN 539-1:1994
English Version
Clay roofing tiles for discontinuous laying - Determination of
physical characteristics - Part 1: Impermeability test
Tuiles en terre cuite pour pose en discontinu - Tondachziegel für überlappende Verlegung - Bestimmung
Détermination des caractéristiques physiques - Partie 1: der physischen Charaktere - Teil 1: Prüfung der
Essai d'imperméabilité Wasserundurchlässigkeit
This European Standard was approved by CEN on 1 April 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 539-1:2005: E
worldwide for CEN national Members.

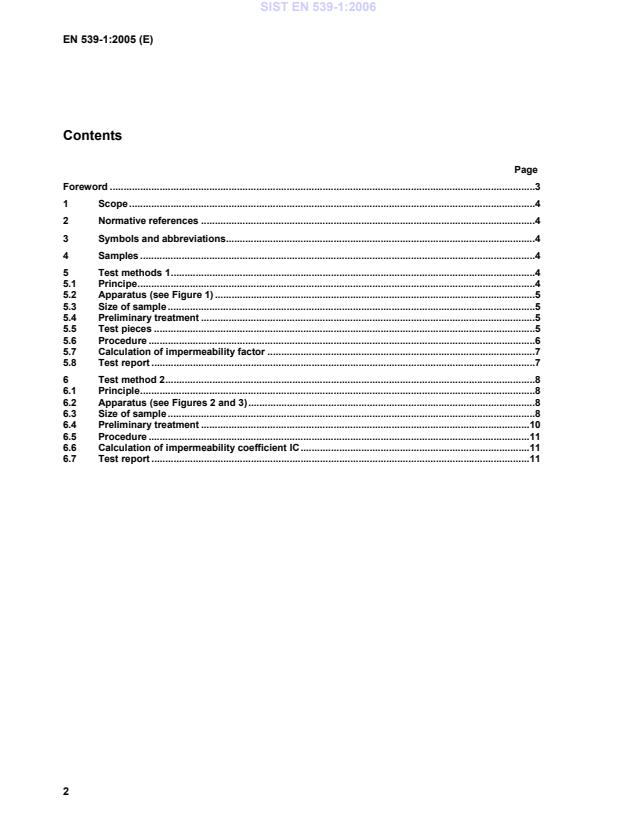

Contents
Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Symbols and abbreviations.4
4 Samples .4
5 Test methods 1.4
5.1 Principe.4
5.2 Apparatus (see Figure 1) .5
5.3 Size of sample .5
5.4 Preliminary treatment .5
5.5 Test pieces .5
5.6 Procedure .6
5.7 Calculation of impermeability factor .7
5.8 Test report .7
6 Test method 2.8
6.1 Principle.8
6.2 Apparatus (see Figures 2 and 3).8
6.3 Size of sample .8
6.4 Preliminary treatment .10
6.5 Procedure .11
6.6 Calculation of impermeability coefficient IC.11
6.7 Test report .11
Foreword
This European Standard (EN 539-1:2005) has been prepared by Technical Committee CEN/TC 128 “Roof
covering products for discontinuous laying and products for wall cladding”, the secretariat of which is held by
IBN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by March 2006, and conflicting national standards shall be withdrawn at
the latest by March 2006.
This document supersedes EN 539-1:1994.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland
and United Kingdom.
1 Scope
This European Standard describes two test methods for testing the impermeability to water of clay roof tiles
and fittings which can be considered as equivalent.
NOTE The methods are not applicable to all fittings, because of their different shapes.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 1304, Clay roofing tiles and fittings - Product definitions and specifications.
3 Symbols and abbreviations
X length of time in hours, before the first drop of water falls
i
X average length of time, in hours before the first drop of water falls
i
V volume of water passing through in 48 h
V volume of water evaporated in 48 h
A projected area of test piece in cm
d day
h hour
IF impermeability factor (method 1)
IC impermeability coefficient (method 2)
HR relative humidity
4 Samples
If the tiles or fittings are supplied with a surface coating or treatment then the test shall be carried out on
samples which include the surface coating or treatment.
When the tiles or fittings are taken from a site or building, they shall be tested in the state in which they are
found, but the interpretation of the test results shall take into account the stresses to which these installed
products have been subjected.
5 Test methods 1
5.1 Principe
The amount of water passing in 48 h through the ceramic body of the tile or fitting per cm of surface area,
under a load of 10 cm of water kept constant throughout the test is determined.
5.2 Apparatus (see Figure 1)
5.2.1 A glass tube (or other rigid transparent material) with an inside diameter of (38 ± 1) mm, and a height
of (150 ± 2) mm for each test piece and one for the measurement of the evaporation level.
5.2.2 A container to hold the test pieces after preparation.
5.2.3 A device at a constant level consisting of a graduated test tube or measuring cylinder with a capacity
3 3
of at least 100 cm graduated in steps not greater than 2 cm .
1)
5.3 Size of sample
...
