EN 3155-081:2019

Aerospace series - Electrical contacts used in elements of connection - Part 081: Contacts size 22 for EN 2997, electrical, female, type A, crimp, class T - Product standard

This document specifies the required characteristics and tests applicable to female electrical contacts 081, type A, crimp, class T, used in elements of connection according to EN 3155 002.
It shall be used together with EN 3155 001.
The associated male contacts are defined in EN 3155 080

Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 081: Elektrische Buchsenkontakte, Größe 22 für EN 2997, Typ A, crimpbar, Klasse T - Produktnorm

Dieses Dokument legt die Anforderungen und Prüfungen für elektrische Buchsenkontakte, Größe 081, Typ A, crimpbar, Klasse T zur Verwendung in Verbindungselementen nach EN 3155-002 fest.
Es ist in Verbindung mit EN 3155-001 anzuwenden.
Die zugehörigen Stiftkontakte sind in EN 3155-080 festgelegt.

Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 081 : Contacts électriques taille 22 pour EN 2997, femelles, type A, à sertir, classe T - Norme de produit

Le présent document spécifie les caractéristiques requises et les essais applicables aux contacts électriques femelles 081, de type A, à sertir, de classe T, utilisés dans les organes de connexion suivant l’EN 3155-002.
Il doit être utilisé conjointement avec l’EN 3155-001.
Les contacts mâles associés sont définis dans l’EN 3155-080.

Aeronavtika - Električni kontakti za uporabo v veznih elementih - 081. del: Kontakti velikosti 22 za EN 2997, električni, ženski, tip A, nagubani, razred T - Standard za proizvod

Ta dokument določa zahtevane značilnosti in preskuse, ki se uporabljajo za ženske električne
kontakte 081, tipa A, nagubane, razred T, za uporabo v veznih elementih v skladu s standardom EN 3155-002.
Uporabljati ga je treba skupaj s standardom EN 3155-001.
Povezani moški kontakti so določeni v standardu EN 3155-080.

General Information

• Status: Published
• Publication Date: 10-Sep-2019
• Withdrawal Date: 30-Mar-2020
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 2/S 3 - Elements of Connection (Connectors, Contacts, rear accessories, crimping tools
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 11-Sep-2019
• Completion Date: 11-Sep-2019
• Ref Project: SIST EN 3155-081:2019 - Aerospace series - Electrical contacts used in elements of connection - Part 081: Contacts size 22 for EN 2997, electrical, female, type A, crimp, class T - Product standard

Relations

• Replaces: EN 3155-081:2014 - Aerospace series - Electrical contacts used in elements of connection - Part 081: Contacts size 22 for EN 2997, electrical, female, type A, crimp, class T - Product standard
• Effective Date: 02-Nov-2016

Overview

EN 3155-081:2019 is a CEN product standard in the aerospace series that defines required characteristics and qualification tests for electrical female contacts size 22, type A, crimp, class T used in elements of connection (per EN 3155-002). Published in 2019, this document is intended to be used together with EN 3155-001 (technical specification) and references the associated male contacts defined in EN 3155-080. It applies to aerospace applications where reliable, high-temperature-capable crimp contacts are required.

Key topics and requirements

• Contact type and class: Female, Type A, crimp termination, Class T (operating temperature range −65 °C to 260 °C).
• Dimensions and mass: Detailed dimensional drawings and tolerances (in mm) are specified; maximum mass 0.20 g.
• Identification and marking: Colour-code bands per ISO 8843 (green/white for size 22) and designation format (e.g. CONTACT, ELECTRICAL EN3155-081F2222).
• Materials and finishes: Copper alloy body with gold plating on an appropriate undercoat; coating thickness recorded and minimums required on active areas (initial and after test).
• Permissible cables and crimping: Allowed conductor sizes and AWG equivalents are listed; crimp tooling conforms to SAE‑AS22520 (M22520/2 series) and insertion/extraction tools to SAE‑AS81969.
• Cable preparation: Specified stripping length (4.5 mm ±0.5 mm for size 22).
• Qualification and tests: Comprehensive test program referencing the EN 2591 test methods, including:
  • Contact resistance (low level and at rated current), insulation resistance, voltage proof
  • Environmental endurance: high-temperature cycling (260 °C), rapid temperature changes, salt mist, fluid and ozone resistance
  • Mechanical: shock, vibration, mechanical endurance, gauge insertion/extraction forces, tensile and bending strength
  • Plating and solderability checks, restricted entry, probe damage, and coating thickness measurement

Applications and users

Who uses EN 3155-081:2019:

• Aerospace connector manufacturers specifying and producing size 22 female crimp contacts
• Design and systems engineers integrating circular connectors compliant with EN 2997
• Quality, test and certification laboratories performing EN 2591 test sequences
• Maintenance, procurement and avionics specialists ensuring component interchangeability and traceability

Practical uses:

• Selection and procurement of crimp contacts for aircraft wiring harnesses operating in high-temperature environments
• Defining manufacturing, inspection and qualification criteria for contact production and crimp processes
• Ensuring compatibility with mating male contacts (EN 3155-080) and connector shells compliant with EN 2997

Related standards

• EN 3155-001 (Technical specification)
• EN 3155-002 (List and utilisation of contacts)
• EN 3155-080 (Male contacts size 22)
• EN 2997 (Circular electrical connectors)
• EN 2591 (Test methods), EN 2083 / EN 4434 (conductors), SAE‑AS22520, SAE‑AS81969

Keywords: EN 3155-081:2019, aerospace series, electrical contacts, contacts size 22, female type A crimp, class T, EN 3155, EN 2997, crimping tools, contact qualification.

Standards Content (Sample)

SLOVENSKI STANDARD
01-november-2019
Nadomešča:
SIST EN 3155-081:2015
Aeronavtika - Električni kontakti za uporabo v veznih elementih - 081. del: Kontakti
velikosti 22 za EN 2997, električni, ženski, tip A, nagubani, razred T - Standard za
proizvod
Aerospace series - Electrical contacts used in elements of connection - Part 081:
Contacts size 22 for EN 2997, electrical, female, type A, crimp, class T - Product
standard
Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen -
Teil 081: Elektrische Buchsenkontakte Größe 22 für EN 2997, Typ A, crimpbar, Klasse T -
Produktnorm
Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie
081 : Contacts électriques taille 22 pour EN 2997, femelles, type A, à sertir, classe T -
Norme de produit
Ta slovenski standard je istoveten z: EN 3155-081:2019
ICS:
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 3155-081
EUROPEAN STANDARD
NORME EUROPÉENNE
September 2019
EUROPÄISCHE NORM
ICS 49.060 Supersedes EN 3155-081:2014
English Version
Aerospace series - Electrical contacts used in elements of
connection - Part 081: Contacts size 22 for EN 2997,
electrical, female, type A, crimp, class T - Product standard
Série aérospatiale - Contacts électriques utilisés dans Luft- und Raumfahrt - Elektrische Kontakte zur
les organes de connexion - Partie 081 : Contacts Verwendung in Verbindungselementen - Teil 081:
électriques taille 22 pour EN 2997, femelles, type A, à Elektrische Buchsenkontakte Größe 22 für EN 2997,
sertir, classe T - Norme de produit Typ A, crimpbar, Klasse T - Produktnorm
This European Standard was approved by CEN on 14 July 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3155-081:2019 E
worldwide for CEN national Members.

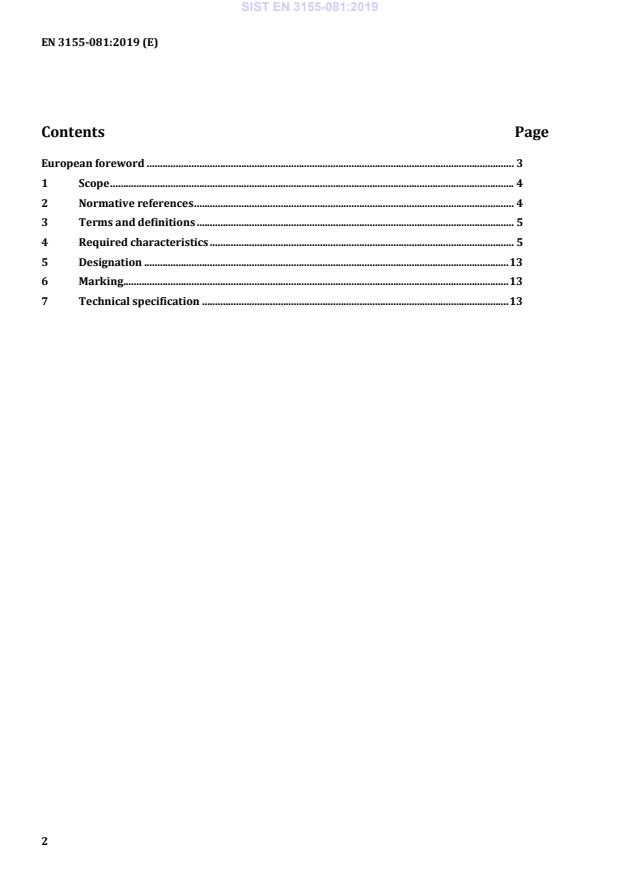

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Required characteristics . 5
5 Designation . 13
6 Marking . 13
7 Technical specification . 13

European foreword
This document (EN 3155-081:2019) has been prepared by the Aerospace and Defence Industries
Association of Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by March 2020, and conflicting national standards shall be
withdrawn at the latest by March 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 3155-081:2014.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
1 Scope
This document specifies the required characteristics and tests applicable to female electrical
contacts 081, type A, crimp, class T, used in elements of connection according to EN 3155-002.
It shall be used together with EN 3155-001.
The associated male contacts are defined in EN 3155-080.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2083, Aerospace series — Copper or copper alloy conductors for electrical cables — Product standard
EN 2591 (all parts), Aerospace series — Elements of electrical and optical connection — Test methods
EN 2997 (all parts), Aerospace series — Connectors, electrical, circular, coupled by threaded ring,
fire-resistant or non fire-resistant, operating temperatures − 65 °C to 175 °C continuous, 200 °C continuous,
260 °C peak
EN 3155-001, Aerospace series — Electrical contacts used in elements of connection — Part 001: Technical
specification
EN 3155-002, Aerospace series — Electrical contacts used in elements of connection — Part 002: List and
utilization of contacts
EN 3155-080, Aerospace series — Electrical contacts used in elements of connection — Part 080: Contacts
size 22 for EN 2997, electrical, male, type A, crimp, class T — Product standard
EN 4434, Aerospace series — Copper or copper alloy lightweight conductors for electrical cables — Product
standard (Normal and tight tolerances)
1)
ISO 8843, Aircraft — Crimp-removable contacts for electrical connectors — Identification system
2)
SAE-AS22520, Crimping tools, wire termination, general specification for
2)
SAE-AS81969, Installing and removal tools, connector electrical contact, general specification for

1) Published by: ISO International Organization for Standardization http://www.iso.ch/
2) Published by: SAE National (US) Society of Auto
...
