EN 1596:1998/A1:2004

Specification for dedicated liquefied petroleum gas appliances - Mobile and portable non-domestic forced convection direct fired air heaters

This amendment is to account for technical comments received after the Formal Vote.

Festlegungen für Flüssiggasgeräte - Ortsveränderliche und tragbare, nicht für den Hausgebrauch bestimmte Warmlufterzeuger ohne Wärmeaustauscher mit erzwungener Konvektion

Spécifications pour les appareils fonctionnant exclusivement aux gaz de pétrole liquéfiés - Générateurs d'air chaud à gaz, non domestiques, à chauffage direct et convection forcée, mobiles et portatifs

Specifikacija za plinske aparate na utekočinjeni naftni plin – Mobilni in prenosni plinski grelniki zraka brez prenosnika toplote, s prisilno konvekcijo, za nestanovanjske prostore - Dopolnilo A1

General Information

• Status: Published
• Publication Date: 02-Mar-2004
• Withdrawal Date: 29-Sep-2004
• ICS: 97.100.20 - Gas heaters
• Technical Committee: CEN/TC 181 - Dedicated liquified petroleum gas appliances
• Drafting Committee: CEN/TC 181/WG 1 - Flueless space heaters
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 03-Mar-2004
• Completion Date: 03-Mar-2004
• Directive: 2009/142/EC - DIRECTIVE 2009/142/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 30 November 2009 relating to appliances burning gaseous fuels
• Directive: 90/396/EEC - Appliances burning gaseous fuels
• Mandate: M/BC/CEN/89/6 - Standardization request to CEN concerning appliances burning gaseous fuels
• Ref Project: SIST EN 1596:1999/A1:2004 - Specification for dedicated liquefied petroleum gas appliances - Mobile and portable non-domestic forced convection direct fired air heaters

Relations

• Amends: EN 1596:1998 - Specification for dedicated liquefied petroleum gas appliances - Mobile and portable non-domestic forced convection direct fired air heaters
• Effective Date: 22-Dec-2008

Overview

EN 1596:1998/A1:2004 is a European standard published by CEN that specifies requirements for dedicated liquefied petroleum gas (LPG) appliances, focusing on mobile and portable non-domestic forced convection direct fired air heaters. This amendment, approved in 2003, introduces technical revisions to the original 1998 standard to improve clarity, safety, and interoperability across member states. It supports compliance with EU directives and must be implemented by national standards bodies throughout Europe.

The standard governs design, safety features, installation, performance, and marking requirements essential for these LPG appliances used in commercial and industrial settings, excluding domestic applications.

---

Key Topics

• Scope and Modifications
  The amendment revises crucial operational parameters such as gas pressure limits (reducing from 4 bar to 2 bar), flame ignition rates, and extinction delay times to ensure safer operation.

• Gas Inlet Connections
  Specifications for gas inlet connections ensure compatibility and safety, with requirements for threaded connections and sealing washers.

• Air Flow and Ventilation
  Forced air draft burners must include devices that verify adequate air flow during ignition and operation, supporting safe combustion and preventing hazardous conditions.

• Temperature Limits
  Air delivery temperatures are controlled, with adjustments made from 80K to 70K difference limits, and no temperature limit for commercial drying applications.

• Markings and Warnings
  Appliances must carry clear data plates with serial numbers, gas types, supply pressures or pressure ranges, and explicit warnings that the heaters are not suitable for heating domestic habitable areas. This ensures users are aware of intended non-domestic use only.

• Installation and Use Instructions
  Instructions must detail safety warnings, gas pressures, and operational procedures tailored for public and commercial buildings, reinforcing compliance with national ventilation and safety regulations.

• Packaging Requirements
  Packaging must include warnings to prevent misuse in domestic premises and ensure safe transportation and handling.

---

Applications

EN 1596:1998/A1:2004 applies specifically to mobile and portable LPG air heaters used in:

• Construction Sites
  Temporary heating during building or renovation.

• Warehouses and Workshops
  Providing controlled, forced convection heat for employee comfort or material processing.

• Event Spaces and Public Buildings
  Non-domestic use where temporary or supplemental heating is needed under regulated conditions.

• Commercial Drying Processes
  Situations where heated air aids drying operations without temperature restrictions.

This standard ensures these heaters operate safely, meet EU and national regulations, and include essential safety features like flame supervision and air proving devices.

---

Related Standards

• EN ISO 228-1
  Specifies requirements for pipe threads where sealing is not made on the threads - relevant for gas inlet connections.

• CEN/TC 181 Standards
  The technical committee responsible for dedicated LPG appliances, providing related specifications for other LPG device categories.

• National Ventilation Regulations
  Installation according to EN 1596 must also comply with specific national rules for air supply and ventilation to maintain safe indoor air quality.

---

Keywords: EN 1596 amendment, liquefied petroleum gas appliances, mobile LPG heaters, forced convection air heaters, non-domestic gas heaters, LPG safety standards, CEN gas appliance regulations, gas inlet connection standards, air flow verification devices, commercial heating standards, EU directive compliance, LPG heater marking requirements.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2004
6SHFLILNDFLMD]DSOLQVNHDSDUDWHQDXWHNRþLQMHQLQDIWQLSOLQ±0RELOQLLQSUHQRVQL
SOLQVNLJUHOQLNL]UDNDEUH]SUHQRVQLNDWRSORWHVSULVLOQRNRQYHNFLMR]D
QHVWDQRYDQMVNHSURVWRUH'RSROQLOR$
Specification for dedicated liquefied petroleum gas appliances - Mobile and portable non-
domestic forced convection direct fired air heaters
Festlegungen für Flüssiggasgeräte - Ortsveränderliche und tragbare, nicht für den
Hausgebrauch bestimmte Warmlufterzeuger ohne Wärmeaustauscher mit erzwungener
Konvektion
Spécifications pour les appareils fonctionnant exclusivement aux gaz de pétrole liquéfiés
- Générateurs d'air chaud a gaz, non domestiques, a chauffage direct et convection
forcée, mobiles et portatifs
Ta slovenski standard je istoveten z: EN 1596:1998/A1:2004
ICS:
97.100.20
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 1596:1998/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2004
ICS 97.100.20
English version
Specification for dedicated liquefied petroleum gas appliances -
Mobile and portable non-domestic forced convection direct fired
air heaters
Spécifications pour les appareils fonctionnant Festlegungen für Flüssiggasgeräte - Ortsveränderliche und
exclusivement aux gaz de pétrole liquéfiés - Générateurs tragbare, nicht für den Hausgebrauch bestimmte
d'air chaud à gaz, non domestiques, à chauffage direct et Warmlufterzeuger ohne Wärmeaustauscher mit
convection forcée, mobiles et portatifs erzwungener Konvektion
This amendment A1 modifies the European Standard EN 1596:1998; it was approved by CEN on 24 December 2003.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of this
amendment into the relevant national standard without any alteration. Up-to-date lists and bibliographical references concerning such
national standards may be obtained on application to the Central Secretariat or to any CEN member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1596:1998/A1:2004: E
worldwide for CEN national Members.

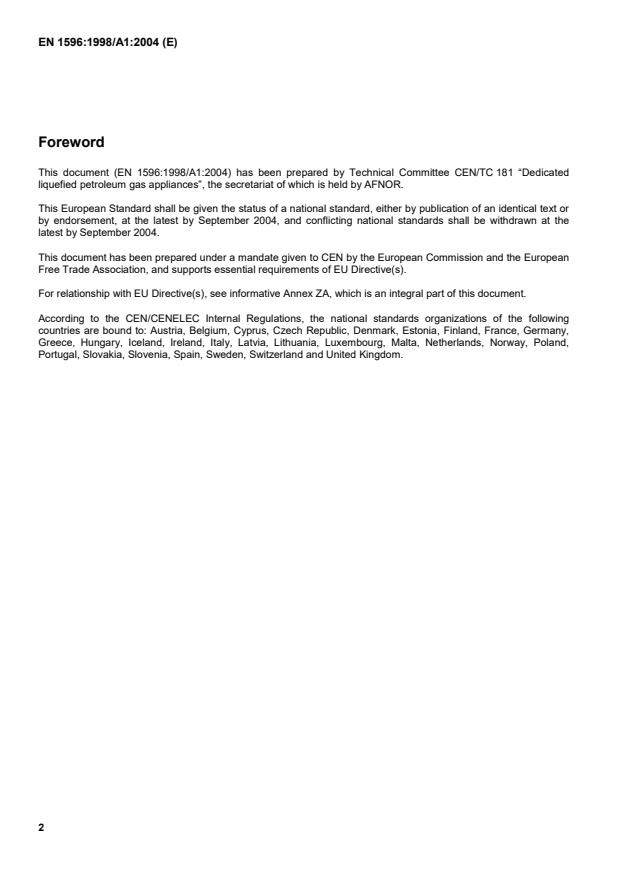

Foreword
This document (EN 1596:1998/A1:2004) has been prepared by Technical Committee CEN/TC 181 “Dedicated
liquefied petroleum gas appliances”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by September 2004, and conflicting national standards shall be withdrawn at the
latest by September 2004.
This document has been prepared under a mandate given to CEN by the European Commission and the European
Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
1 Scope
Replace in bullet point b) the pressure of 4,0 bar with 2 bar.
th
Delete the 5 paragraph.
3.21
gas rate adjuster
Add the following sentence at the end of the paragraph:
"In this case the
...
