CEN

EN 1596:1998

(Main)

Specification for dedicated liquefied petroleum gas appliances - Mobile and portable non-domestic forced convection direct fired air heaters

Specification for dedicated liquefied petroleum gas appliances - Mobile and portable non-domestic forced convection direct fired air heaters

This standard defines, for the purpose of type examination, the construction, the safety characteristics, the test methods and the marking of mobile and portable non-domestic forced convection direct fired air heaters with a rated heat input not exceeding 180 kW (Hs) and burning 3rd family gases, referred to in the body of the text as 'appliances'.  This standard covers the following type of mobile and portable non domestic forced convection direct fired air heaters of type A3 (see CR 1749) fitted with an integral burner intended for use in other than residential dwellings:  a) low gas pressure appliances operating at pressures up to and including 50 mbar burning commercial butane and/or commercial propane;  b) medium gas pressure appliances operating at pressures above 50 mbar and up to 4,0 bar burning commercial butane and/or commercial propane.  It does not apply to appliances which are intended to be fixed or permanently installed, or to appliances which incorporate liquid feed burners.     Requirements for appliances given in this standard assume that the supply of gas from the gas cylinder will be governed by a pressure regulator.  These appliances are not equipped with an appliance governor.  Requirements for controls, given herein, relate to controls fitted as part of, or supplied with, particular appliances; they do not necessarily provide a complete specification for controls intended for general use.  This Standard does not cover cylinders for liquefied petroleum gases or their associated regulators.  There are no specific thermal efficiency requirements appropriate to these types of  appliances as:  c) all the heat produced by the combustion process is released into the space to be heated;  d) the requirements with regard to the combustion performance, which is a safety matter, ensure the effective burning of the fuel gas.

Festlegungen für Flüssiggasgeräte - Ortsveränderliche und tragbare, nicht für den Hausgebrauch bestimmte Warmlufterzeuger ohne Wärmeaustauscher mit erzwungener Konvektion

Diese Norm definiert zum Zwecke der Typprüfung die Sicherheitseigenchaften, Prüfmethoden und die Kennzeichnung ortsveränderlicher, nicht für den Hausgebrauch bestimmter Warmlufterzeuger ohne Wärmeaustauscher mit einer angegebenen Nennwärmebelastung bis 180 kW (Hs) zur Verbrennung von Gasen der 3. Familie. Diese Heizgeräte werden im Text kurz als 'Geräté bezeichnet.

Spécifications pour les appareils fonctionnant exclusivement aux gaz de pétrole liquéfiés - Générateurs d'air chaud à gaz, non domestiques, à chauffage direct et convection forcée, mobiles et portatifs

Cette norme définit, pour les besoins de l'examen de type, les caractéristiques de sécurité, les techniques d'essai et le marquage des générateurs d'air chaud non domestiques à  chauffage direct calorifique nominal inférieur à 180 kW (Hs) alimentés par un gaz de la 3ème famille, désignés dans le texte par 'appareils'.

Specifikacija za plinske aparate na utekočinjeni naftni plin – Mobilni in prenosni plinski grelniki zraka brez prenosnika toplote, s prisilno konvekcijo, za nestanovanjske prostore

General Information

Status
Published
Publication Date
16-Jun-1998
Withdrawal Date
30-Dec-1998
ICS
97.100.20 - Gas heaters
Technical Committee
CEN/TC 181 - Dedicated liquified petroleum gas appliances
Drafting Committee
CEN/TC 181/WG 1 - Flueless space heaters
Current Stage
9093 - Decision to confirm - Review Enquiry
Completion Date
13-Oct-2020
Directive
2009/142/EC - DIRECTIVE 2009/142/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 30 November 2009 relating to appliances burning gaseous fuels
90/396/EEC - Appliances burning gaseous fuels
Mandate
M/BC/CEN/89/6 - Standardization request to CEN concerning appliances burning gaseous fuels
Ref Project
SIST EN 1596:1999 - Specification for dedicated liquefied petroleum gas appliances - Mobile and portable non-domestic forced convection direct fired air heaters

Relations

Amended By
EN 1596:1998/A1:2004 - Specification for dedicated liquefied petroleum gas appliances - Mobile and portable non-domestic forced convection direct fired air heaters
Effective Date
22-Dec-2008

Buy Standard

EN 1596:1999EN 1596:1999
PreviousNext
Standard
EN 1596:1999
English language
69 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

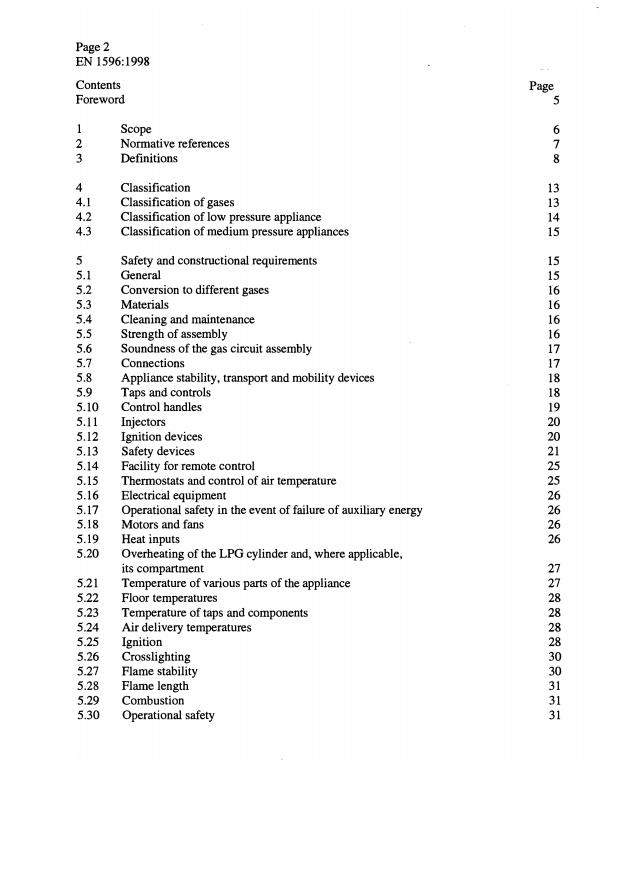

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 1596:1999
01-december-1999
6SHFLILNDFLMD]DSOLQVNHDSDUDWHQDXWHNRþLQMHQLQDIWQLSOLQ±0RELOQLLQSUHQRVQL
SOLQVNLJUHOQLNL]UDNDEUH]SUHQRVQLNDWRSORWHVSULVLOQRNRQYHNFLMR]D
QHVWDQRYDQMVNHSURVWRUH
Specification for dedicated liquefied petroleum gas appliances - Mobile and portable non-
domestic forced convection direct fired air heaters
Festlegungen für Flüssiggasgeräte - Ortsveränderliche und tragbare, nicht für den
Hausgebrauch bestimmte Warmlufterzeuger oh
...
