Plastics piping systems for non-pressure underground
conveyance and storage of non-potable water - Boxes used
for infiltration, attenuation and storage systems - Part 3:
Conformity assessment scheme
Kunststoff-Rohrleitungssysteme für die drucklose
unterirdische Entwässerung für Nicht-Trinkwasser -
Versickerungsblöcke zur Verwendung in Infiltrations-,
Zwischenspeicher- und Speichersystemen - Teil 3:
Beurteilung der Konformität
This Technical Specification (CEN/TS) was approved by CEN on 27 June 2022 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to
submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS
available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in
parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 17152-3:2022 E
worldwide for CEN national Members.

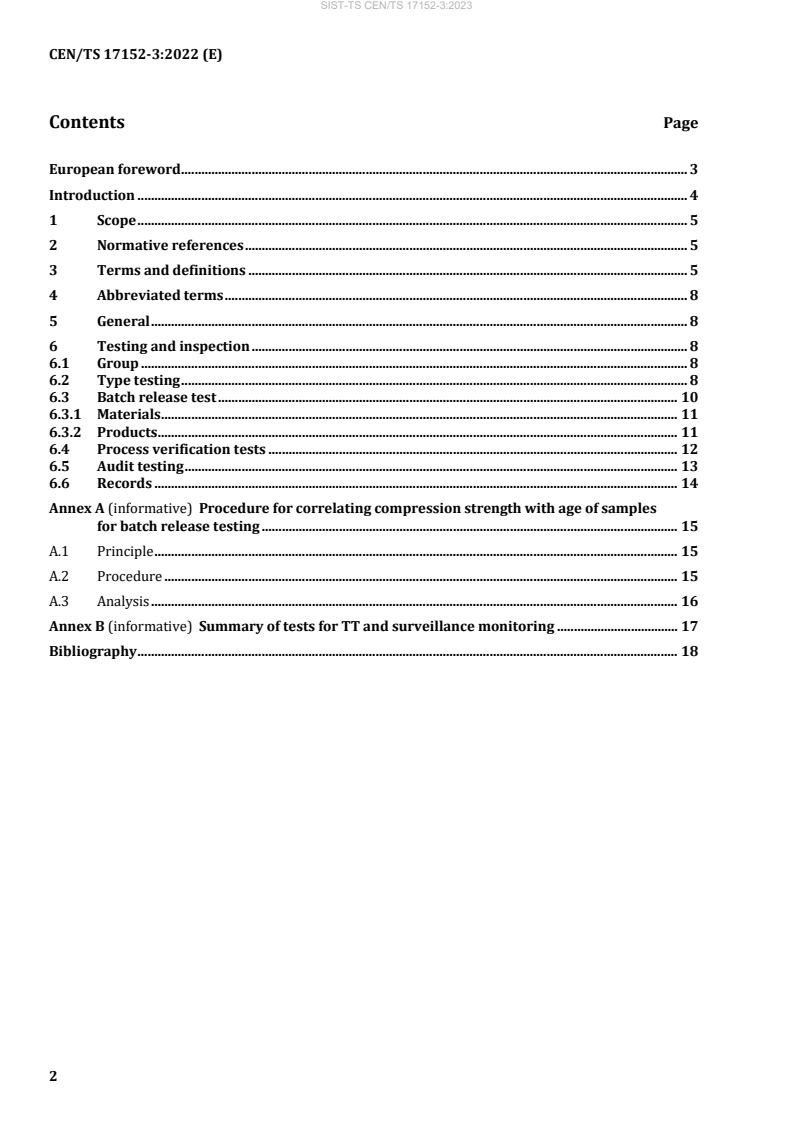

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Abbreviated terms . 8
5 General . 8
6 Testing and inspection . 8
6.1 Group . 8
6.2 Type testing . 8
6.3 Batch release test . 10
6.3.1 Materials . 11
6.3.2 Products . 11
6.4 Process verification tests . 12
6.5 Audit testing . 13
6.6 Records . 14
Annex A (informative) Procedure for correlating compression strength with age of samples
for batch release testing . 15
A.1 Principle . 15
A.2 Procedure . 15
A.3 Analysis . 16
Annex B (informative) Summary of tests for TT and surveillance monitoring . 17
Bibliography . 18
European foreword
This document (CEN/TS 17152-3:2022) has been prepared by Technical Committee CEN/TC 155
“Plastics piping systems and ducting systems”, the secretariat of which is held by NEN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
EN 17152 consists of the following parts, under the general title "Plastics piping systems for non-pressure
underground conveyance and storage of non-potable water — Boxes used for infiltration, attenuation and
storage systems":
— Part 1: Specifications for storm water boxes made of PP and PVC-U;
— Part 2: Specifications for systems (water reservoir) - (under development);
— Part 3: Assessment of conformity (the present CEN/TS).
This edition of Part 3 covers products according to Part 1. For future revisions, it is intended to also cover
products according to EN 17152-2 (currently under development).
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Introduction
This document details the applicable characteristics to be assessed for type testing (TT), batch release
test (BRT), process verification test (PVT), and audit test (AT), as well as the frequency and sampling for
testing.
The concept of testing and organisation of those tests used for the assessment of conformity (AoC) is
shown, without or with certification, in Figures 1 and 2.
Figure 1 — Typical scheme for the assessment of conformity by a manufacturer
A typical scheme for the assessment of conformity of materials or box assemblies by manufacturers,
including certification, is given in Figure 2.
Figure 2 — Typical scheme for the assessment of conformity by a manufacturer, including
certification
1 Scope
This document gives guidance for requirements for the assessment of conformity (AoC) of materials,
compounds, formulations, products, and assemblies in accordance with the applicable part(s) of
EN 17152 intended to be included in the manufacturer’s quality plan as part of the quality management
system and for the establishment of certification procedures.
NOTE Annex B, Table B.1 contains a summary of tests for TT and surveillance monitoring.
In conjunction with EN 17152-1 (see European foreword) this document is applicable to boxes used for
infiltration, attenuation and storage systems.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 17152-1:2019, Plastics piping systems for non-pressure underground conveyance and storage of non-
potable water — Boxes used for infiltration, attenuation and storage systems — Part 1: Specifications for
storm water boxes made of PP and PVC-U
EN 17151, Plastics piping systems for non-pressure underground conveyance and storage of non-potable
water — Test method for determination of long-term compression strength of boxes
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 17152-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
certification body
impartial body, governmental or non-governmental, possessing the necessary competence to carry out
certification of conformity according to given rules of procedure and management
Note 1 to entry: In this document, certification is understood as third party certification
Note 2 to entry: For assessment purposes, the certification body can delegate tasks to an inspection body or a
testing laboratory
Note 3 to entry: The certification body preferably operates in accordance with EN ISO/IEC 17065 [1].
3.2
inspection body
body that performs examinations of a product, process, service, or installation or their design and
determinations of its conformity with specific requirements or, on the basis of professional judgment,
with general requirements
[SOURCE: EN ISO/IEC 17020:2012 [2], definition 3.1 modified – Combined with EN ISO/IEC 17020:2012
[2], definition 3.5, Notes to entry 1, 2, 3, and 4 deleted, new Notes to entry 1, 2 added]
Note 1 to entry: An inspection body is, either an organisation or a part of an organisation, mandated by the
certification body
Note 2 to entry: An inspection body preferably operates in accordance with EN ISO/IEC 17020 [2].
3.3
testing laboratory
laboratory which measures, tests, calibrates or otherwise verifies the performance of the characteristics
of materials and products
Note 1 to entry: In the context of this document, the materials and products can be subjected to type testing, batch
release testing, process verification testing and audit testing, as applicable
Note 2 to entry: A testing laboratory preferably operates in accordance with EN ISO/IEC 17025 [3]
3.4
quality management system
part of a management system with regard to quality
[SOURCE: EN ISO 9000:2015 [4], definition 3.5.4]
Note 1 to entry: Requirements for quality management systems are given in EN ISO 9001 [6].
3.5
quality plan
document setting out the specific quality practices, resources and sequence of activities relevant to a
particular product or range of products
3.6
type testing
TT
test performed to prove that the product is capable of conforming to the requirement(s) given in the
relevant standard
3.7
batch release test
BRT
test performed on a batch of material, products, which has to be satisfactorily completed before the batch
can be released
Note 1 to entry: A batch release test can be performed by the manufacturer or outsourced on behalf of the
manufacturer.
3.8
process verification test
PVT
test performed on material, product at specific intervals to confirm that the process continues to be
capable of producing products which conform to the requirements given in the relevant standard
Note 1 to entry: Process verification tests can be performed by the manufacturer or outsourced on behalf of the
manufacturer.
Note 2 to entry: Process verification tests are regularly performed to demonstrate that the product remain
...
SLOVENSKI STANDARD
01-februar-2023
Cevni sistemi iz polimernih materialov, ki delujejo po težnostnem principu in so
položeni v zemljo, za transport in shranjevanje vode, ki ni namenjena pitju - Zaboji
za sisteme infiltriranja, reduciranja in hrambe - 3. del: Shema ugotavljanja
skladnosti
Plastics piping systems for non-pressure underground conveyance and storage of non-
potable water - Boxes used for infiltration, attenuation and storage systems - Part 3:
Conformity assessment scheme
Kunststoff-Rohrleitungssysteme für die drucklose unterirdische Entwässerung für Nicht-
Trinkwasser - Versickerungsblöcke zur Verwendung in Infiltrations-, Zwischenspeicher-
und Speichersystemen - Teil 3: Beurteilung der Konformität
Ta slovenski standard je istoveten z: CEN/TS 17152-3:2022
ICS:
23.040.03 Cevovodi za zunanje sisteme Pipeline and its parts for
transporta vode in njihovi deli external water conveyance
systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
CEN/TS 17152-3
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
November 2022
TECHNISCHE SPEZIFIKATION
ICS 23.040.01
English Version
Plastics piping systems for non-pressure underground
conveyance and storage of non-potable water - Boxes used
for infiltration, attenuation and storage systems - Part 3:
Conformity assessment scheme
Kunststoff-Rohrleitungssysteme für die drucklose
unterirdische Entwässerung für Nicht-Trinkwasser -
Versickerungsblöcke zur Verwendung in Infiltrations-,
Zwischenspeicher- und Speichersystemen - Teil 3:
Beurteilung der Konformität
This Technical Specification (CEN/TS) was approved by CEN on 27 June 2022 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to

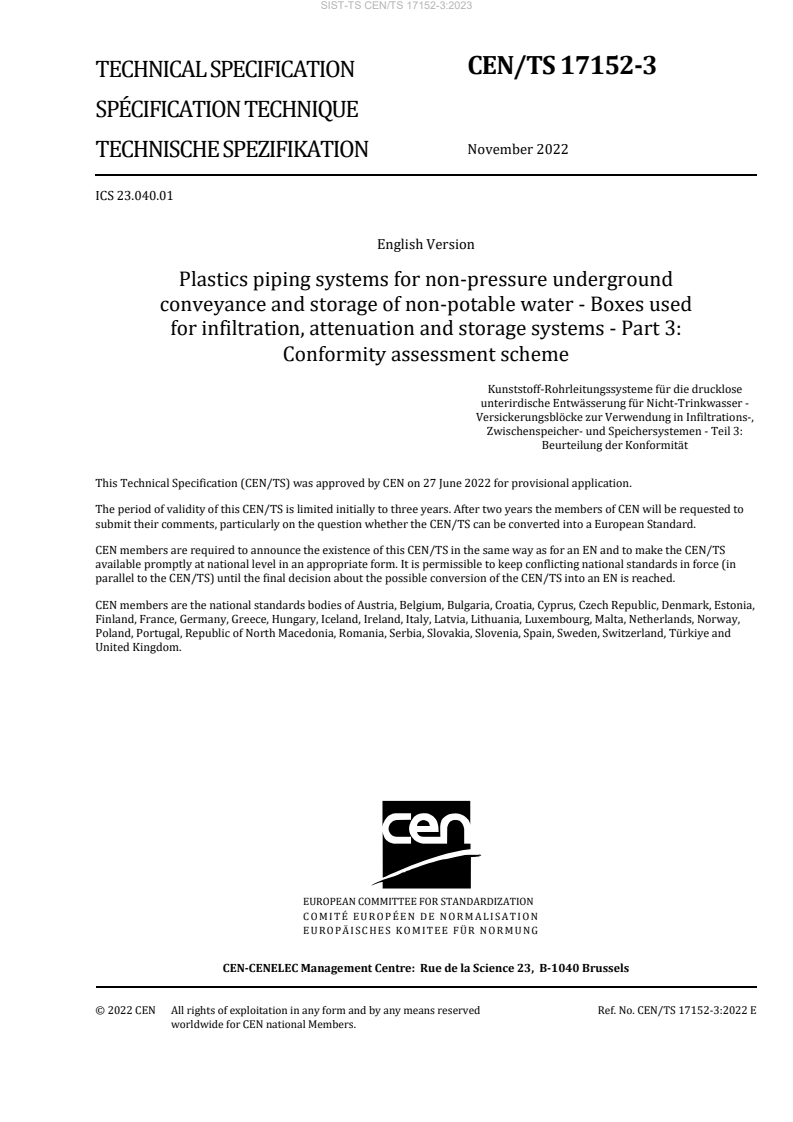

submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS
available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in
parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 17152-3:2022 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Abbreviated terms . 8
5 General . 8
6 Testing and inspection . 8
6.1 Group . 8
6.2 Type testing . 8
6.3 Batch release test . 10
6.3.1 Materials . 11
6.3.2 Products . 11
6.4 Process verification tests . 12
6.5 Audit testing . 13
6.6 Records . 14
Annex A (informative) Procedure for correlating compression strength with age of samples
for batch release testing . 15
A.1 Principle . 15
A.2 Procedure . 15
A.3 Analysis . 16
Annex B (informative) Summary of tests for TT and surveillance monitoring . 17
Bibliography . 18
European foreword
This document (CEN/TS 17152-3:2022) has been prepared by Technical Committee CEN/TC 155
“Plastics piping systems and ducting systems”, the secretariat of which is held by NEN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
EN 17152 consists of the following parts, under the general title "Plastics piping systems for non-pressure
underground conveyance and storage of non-potable water — Boxes used for infiltration, attenuation and
storage systems":
— Part 1: Specifications for storm water boxes made of PP and PVC-U;
— Part 2: Specifications for systems (water reservoir) - (under development);
— Part 3: Assessment of conformity (the present CEN/TS).
This edition of Part 3 covers products according to Part 1. For future revisions, it is intended to also cover
products according to EN 17152-2 (currently under development).
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Introduction
This document details the applicable characteristics to be assessed for type testing (TT), batch release
test (BRT), process verification test (PVT), and audit test (AT), as well as the frequency and sampling for
testing.
The concept of testing and organisation of those tests used for the assessment of conformity (AoC) is
shown, without or with certification, in Figures 1 and 2.
Figure 1 — Typical scheme for the assessment of conformity by a manufacturer
A typical scheme for the assessment of conformity of materials or box assemblies by manufacturers,
including certification, is given in Figure 2.
Figure 2 — Typical scheme for the assessment of conformity by a manufacturer, including
certification
1 Scope
This document gives guidance for requirements for the assessment of conformity (AoC) of materials,
compounds, formulations, products, and assemblies in accordance with the applicable part(s) of
EN 17152 intended to be included in the manufacturer’s quality plan as part of the quality management
system and for the establishment of certification procedures.
NOTE Annex B, Table B.1 contains a summary of tests for TT and surveillance monitoring.
In conjunction with EN 17152-1 (see European foreword) this document is applicable to boxes used for
infiltration, attenuation and storage systems.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 17152-1:2019, Plastics piping systems for non-pressure underground conveyance and storage of non-
potable water — Boxes used for infiltration, attenuation and storage systems — Part 1: Specifications for
storm water boxes made of PP and PVC-U
EN 17151, Plastics piping systems for non-pressure underground conveyance and storage of non-potable
water — Test method for determination of long-term compression strength of boxes
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 17152-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
certification body
impartial body, governmental or non-governmental, possessing the necessary competence to carry out
certification of conformity according to given rules of procedure and management
Note 1 to entry: In this document, certification is understood as third party certification
Note 2 to entry: For assessment purposes, the certification body can delegate tasks to an inspection body or a
testing laboratory
Note 3 to entry: The certification body preferably operates in accordance with EN ISO/IEC 17065 [1].
3.2
inspection body
body that performs examinations of a product, process, service, or installation or their design and
determinations of its conformity with specific requirements or, on the basis of professional judgment,
with general requirements
[SOURCE: EN ISO/IEC 17020:2012 [2], definition 3.1 modified – Combined with EN ISO/IEC 17020:2012
[2], definition 3.5, Notes to entry 1, 2, 3, and 4 deleted, new Notes to entry 1, 2 added]
Note 1 to entry: An inspection body is, either an organisation or a part of an organisation, mandated by the
certification body
Note 2 to entry: An inspection body preferably operates in accordance with EN ISO/IEC 17020 [2].
3.3
testing laboratory
laboratory which measures, tests, calibrates or otherwise verifies the performance of the characteristics
of materials and products
Note 1 to entry: In the context of this document, the materials and products can be subjected to type testing, batch
release testing, process verification testing and audit testing, as applicable
Note 2 to entry: A testing laboratory preferably operates in accordance with EN ISO/IEC 17025 [3]
3.4
quality management system
part of a management system with regard to quality
[SOURCE: EN ISO 9000:2015 [4], definition 3.5.4]
Note 1 to entry: Requirements for quality management systems are given in EN ISO 9001 [6].
3.5
quality plan
document setting out the specific quality practices, resources and sequence of activities relevant to a
particular product or range of products
3.6
type testing
TT
test performed to prove that the product is capable of conforming to the requirement(s) given in the
relevant standard
3.7
batch release test
BRT
test performed on a batch of material, products, which has to be satisfactorily completed before the batch
can be released
Note 1 to entry: A batch release test can be performed by the manufacturer or outsourced on behalf of the
manufacturer.
3.8
process verification test
PVT
test performed on material, product at specific intervals to confirm that the process continues to be
capable of producing products which conform to the requirements given in the relevant standard
Note 1 to entry: Process verification tests can be performed by the manufacturer or outsourced on behalf of the
manufacturer.
Note 2 to entry: Process verification tests are regularly performed to demonstrate that the product remains
compliant with the type test results.
3.9
audit test
AT
test perform
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
