EN IEC 60317-82:2020/A1:2024

Specifications for particular types of winding wires - Part 82: Polyesterimide enamelled rectangular copper wire, class 200

Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 82: Flachdrähte aus Kupfer, lackisoliert mit Polyesterimid, Klasse 200

Spécifications pour types particuliers de fils de bobinage - Partie 82: Fil de section rectangulaire en cuivre émaillé avec polyesterimide, de classe 200

Specifikacije za posebne vrste navijalnih žic - 82. del: S poliesterimidom emajlirana pravokotna bakrena žica, razred 200 - Dopolnilo A1 (IEC 60317-82:2020/AMD1:2024)

General Information

• Status: Published
• Publication Date: 01-Aug-2024
• ICS: 29.060.10 - Wires
• Technical Committee: CLC/TC 55 - Winding wires
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 02-Aug-2024
• Due Date: 29-Dec-2023
• Completion Date: 02-Aug-2024
• Ref Project: SIST EN IEC 60317-82:2020/A1:2024 - Specifications for particular types of winding wires - Part 82: Polyesterimide enamelled rectangular copper wire, class 200 (IEC 60317-82:2020/AMD1:2024)

Relations

• Amends: EN IEC 60317-82:2020 - Specifications for particular types of winding wires - Part 82: Polyesterimide enamelled rectangular copper wire, class 200
• Effective Date: 14-Feb-2023

Overview

EN IEC 60317-82:2020/A1:2024 is the CENELEC-adopted amendment to IEC 60317‑82 and specifies requirements for polyesterimide enamelled rectangular copper winding wire, class 200. It is part of the IEC 60317 family of documents that define characteristics, tests and marking for particular types of winding wires. Amendment A1 (published 2024) updates the 2020 edition and has been approved for national adoption across CENELEC members.

Key metadata:

• Title: Specifications for particular types of winding wires - Part 82: Polyesterimide enamelled rectangular copper wire, class 200 (IEC 60317‑82:2020/AMD1:2024)
• Adopted as EN IEC 60317-82:2020/A1:2024 (CENELEC, Aug 2024)
• Implementation dates: national adoption by 2025‑04‑19; withdrawal of conflicting standards by 2027‑07‑19

Key topics and requirements

This amendment and the underlying standard focus on defining the technical specification and conformity requirements for this specific enamelled rectangular copper wire type. Main technical topics covered include:

• Material and construction: polyesterimide enamel insulation applied to rectangular copper conductors (as indicated by the standard title).
• Class designation: class 200 - the designation used in the document title to identify the applicable class level for this wire type (commonly used in winding wire standards to denote high-temperature insulation performance).
• Testing and conformity: standardized tests and acceptance criteria for mechanical and electrical properties relevant to winding wire applications.
• Amendment detail: A1 explicitly replaces the prior “Resistance to transformer oil” test text with the statement “Test inappropriate.” This clarifies that transformer oil resistance testing is not applicable for this wire type in the amended standard.

Note: The standard text and normative references are authoritative for exact test methods, procedures and acceptance limits.

Applications and who uses it

This standard is intended for professionals and organizations involved in the specification, manufacture, testing and procurement of winding wires:

• Electrical and electronics manufacturers (motors, transformers, inductors, solenoids)
• Coil and winding manufacturers specifying rectangular enamelled conductors
• Design and quality engineers responsible for insulation system selection and component qualification
• Test laboratories and conformity assessment bodies verifying compliance with EN/IEC requirements
• Procurement and standards teams ensuring purchased wire meets harmonized European/IEC criteria

Using the standard helps ensure consistent material selection, reliable high-temperature performance, and harmonized testing across suppliers and markets.

Related standards

• IEC 60317 series (general family of standards for particular types of winding wires)
• EN IEC 60317-82:2020 (base document amended by A1)

Keywords: polyesterimide enamelled wire, rectangular copper wire, winding wires, class 200, EN IEC 60317-82:2020/A1:2024, CENELEC, winding wire specifications.

Standards Content (Sample)

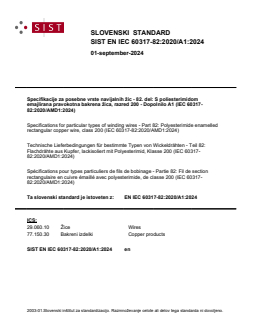

SLOVENSKI STANDARD
01-september-2024
Specifikacije za posebne vrste navijalnih žic - 82. del: S poliesterimidom
emajlirana pravokotna bakrena žica, razred 200 - Dopolnilo A1 (IEC 60317-
82:2020/AMD1:2024)
Specifications for particular types of winding wires - Part 82: Polyesterimide enamelled
rectangular copper wire, class 200 (IEC 60317-82:2020/AMD1:2024)
Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 82:
Flachdrähte aus Kupfer, lackisoliert mit Polyesterimid, Klasse 200 (IEC 60317-
82:2020/AMD1:2024)
Spécifications pour types particuliers de fils de bobinage - Partie 82: Fil de section
rectangulaire en cuivre émaillé avec polyesterimide, de classe 200 (IEC 60317-
82:2020/AMD1:2024)
Ta slovenski standard je istoveten z: EN IEC 60317-82:2020/A1:2024
ICS:
29.060.10 Žice Wires
77.150.30 Bakreni izdelki Copper products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60317-82:2020/A1

NORME EUROPÉENNE
EUROPÄISCHE NORM August 2024
ICS 29.060.10
English Version
Specifications for particular types of winding wires - Part 82:
Polyesterimide enamelled rectangular copper wire, class 200
(IEC 60317-82:2020/AMD1:2024)
Spécifications pour types particuliers de fils de bobinage - Technische Lieferbedingungen für bestimmte Typen von
Partie 82: Fil de section rectangulaire en cuivre émaillé Wickeldrähten - Teil 82: Flachdrähte aus Kupfer, lackisoliert
avec polyesterimide, de classe 200 mit Polyesterimid, Klasse 200
(IEC 60317-82:2020/AMD1:2024) (IEC 60317-82:2020/AMD1:2024)
This amendment A1 modifies the European Standard EN IEC 60317-82:2020; it was approved by CENELEC on 2024-07-19. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60317-82:2020/A1:2024 E

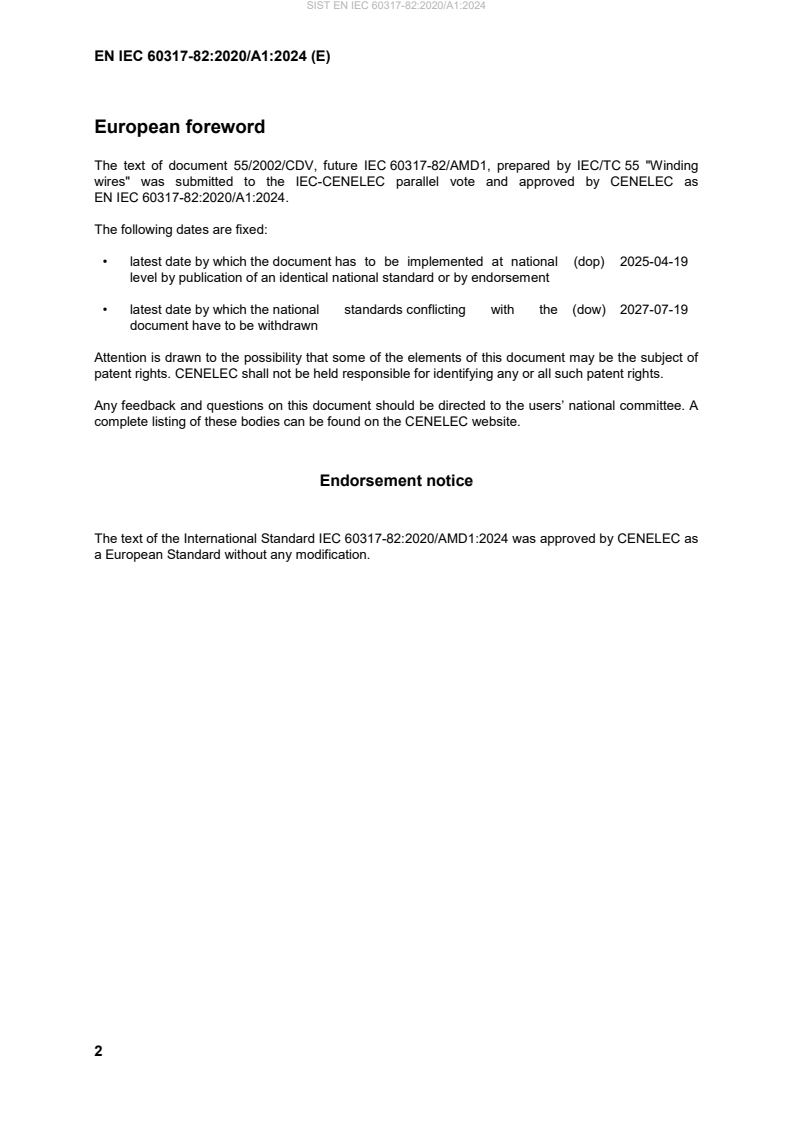

European foreword
The text of document 55/2002/CDV, future IEC 60317-82/AMD1, prepared by IEC/TC 55 "Winding
wires" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-04-19
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-07-19
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60317-82:2020/AMD1:2024 was approved by CENELEC as
a European Standard without any modification.

IEC 60317-82 ®
Edition 1.0 2024-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Specifications for particular types of winding wires –

Part 82: Polyesterimide enamelled rectangular copper wire, class 200

Spécifications pour types particuliers de fils de bobinage –

Partie 82: Fil de section rectangulaire en cuivre émaillé avec polyesterimide, de

classe 200
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.10  ISBN 978-2-8322-9074-3

Attention! Veuill
...
