EN 60264-2-3:1994

Packaging of winding wires - Part 2-3: Cylindrical barrelled delivery spools - Specification for non-returnable spools made from thermoplastic material

Specifies the requirements for non-returnable cylindrical barrelled delivery spools made from thermoplastic material.

Verpackung von Wickeldrähten - Teil 2-3: Lieferspulen mit zylindrischem Kern - Spezifikation für Einweg-Lieferspulen aus thermoplastischem Werkstoff

Conditionnement des fils de bobinage - Partie 2-3: Bobines de livraison à fût de forme cylindrique - Spécification pour les bobines non réutilisables, faites de matériau thermoplastique

Définit les exigences pour les bobines de livraison à fût de forme cylindrique, non réutilisables, faites de matériau thermoplastique.

Pakiranje navijalnih žic - 2-3. del: Dostavne tuljave s cilindričnim jedrom - Specifikacije za nevračljive tuljave iz plastomerne snovi

General Information

• Status: Published
• Publication Date: 15-Dec-1994
• Withdrawal Date: 15-Jun-1995
• ICS: 55.060 - Spools. Bobbins
• Technical Committee: CLC/TC 55 - Winding wires
• Drafting Committee: IEC/TC 55 - IEC_TC_55
• Parallel Committee: IEC/TC 55 - IEC_TC_55
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 16-Dec-1994
• Completion Date: 16-Dec-1994
• Ref Project: SIST EN 60264-2-3:2001 - Packaging of winding wires -- Part 2-3: Cylindrical barrelled delivery spools - Specification for non-returnable spools made from thermoplastic material

Relations

• Amended By: EN 60264-2-3:1994/A1:2004 - Packaging of winding wires - Part 2-3: Cylindrical barrelled delivery spools - Specification for non-returnable spools made from thermoplastic material
• Effective Date: 29-Jan-2023

Overview

EN 60264-2-3:1994 (CLC) specifies requirements for non-returnable cylindrical barrelled delivery spools made from thermoplastic material used in the packaging of winding wires. The standard defines the expected characteristics for single-use thermoplastic spools to ensure consistent handling, protection and compatibility with wire winding, storage and transport. It is part of the EN 60264 series addressing packaging for winding wires and is reflected in national adoptions (for example SIST EN 60264-2-3:2001).

Key topics and requirements

While the full standard contains precise clauses, the document focuses on core aspects typically required for delivery spools, including:

• Material specification: use of thermoplastic materials suited to mechanical handling and contact with winding wires.
• Geometric features: cylindrical barrelled core shape and related dimensional characteristics to ensure correct winding and unwinding.
• Mechanical performance: strength and durability for transport, handling and stacking during distribution.
• Tolerances and fit: dimensional tolerances that affect compatibility with winding equipment and axles.
• Marking and identification: requirements for spool markings to indicate part identification, material, capacity or handling instructions.
• Protection and compatibility: considerations for wire insulation protection, prevention of contamination or damage during transit.
• Storage and disposal guidance: recommendations for storage conditions and end-of-life handling of non-returnable thermoplastic spools.

Note: This summary highlights topical areas; consult the official EN 60264-2-3 text for specific clauses and numerical requirements.

Applications and who uses this standard

EN 60264-2-3 is relevant for organizations involved in the manufacture, procurement and use of wound conductive or insulating wires:

• Wire and cable manufacturers specifying packaging to protect products and to ensure compatibility with automated processes.
• Spool manufacturers and plastics molders producing non-returnable thermoplastic delivery spools.
• Procurement and quality assurance teams verifying supplier compliance and performance for packaging materials.
• Logistics and distribution operators handling, storing and transporting reels for domestic or international shipments.
• Equipment integrators designing winding/unwinding machines that interface with standard spool geometries.

Related standards

• Other parts of the EN 60264 series covering different spool types, returnable spools or alternative materials.
• National adoptions and translations (e.g., SIST EN 60264-2-3:2001).
• ICS classifications: 29.060.10 (Wires) and 55.060 (Spools, Bobbins).

Keywords: packaging of winding wires, delivery spools, non-returnable spools, thermoplastic spools, EN 60264-2-3, spool specification, CLC standard.

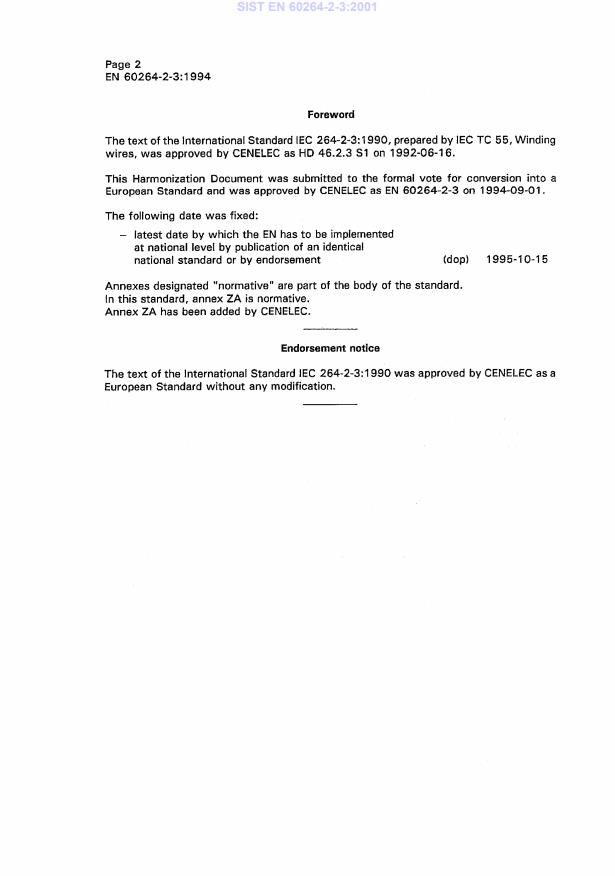

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2001
3DNLUDQMHQDYLMDOQLKåLFGHO'RVWDYQHWXOMDYHVFLOLQGULþQLPMHGURP
6SHFLILNDFLMH]DQHYUDþOMLYHWXOMDYHL]SODVWRPHUQHVQRYL
Packaging of winding wires -- Part 2-3: Cylindrical barrelled delivery spools -
Specification for non-returnable spools made from thermoplastic material
Verpackung von Wickeldrähten -- Teil 2-3: Lieferspulen mit zylindrischem Kern -
Spezifikation für Einweg-Lieferspulen aus thermoplastischem Werkstoff
Conditionnement des fils de bobinage -- Partie 2-3: Bobines de livraison à fût de forme
cylindrique - Spécification pour les bobines non réutilisables, faites de matériau
thermoplastique
Ta slovenski standard je istoveten z: EN 60264-2-3:1994
ICS:
29.060.10 Žice Wires
55.060 Tulci. Vretena Spools. Bobbins
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

-------------
...
