EN 61558-2-23:2010

Safety of transformers, reactors, power supply units and combinations thereof - Part 2-23: Particular requirements and tests for transformers and power supply units for construction sites

IEC 61558-2-23:2010 deals with the safety of transformers for construction sites and power supply units incorporating transformers for construction sites. Transformers incorporating electronic circuits are also covered by this standard. This second edition cancels and replaces the first edition published in 2000. It constitutes a technical revision. The main changes consist of updating this Part 2-23 in accordance with IEC 61558-1:2005. This part has the status of a group safety publication in accordance with IEC Guide 104: The preparation of safety publications and the use of basic safety publications and group safety publications. The attention of National Committees is drawn to the fact that equipment manufacturers and testing organizations may need a transitional period following publication of a new, amended or revised IEC publication in which to make products in accordance with the new requirements and to equip themselves for conducting new or revised tests. It is the recommendation of the committee that the content of this publication be adopted for implementation nationally not earlier than 12 months from the date of publication. In the meantime, the previous edition can still be ordered by contacting your local IEC member National Committee or the IEC Central Office.

Sicherheit von Transformatoren, Drosseln, Netzgeräten und entsprechenden Kombinationen - Teil 2-23: Besondere Anforderungen und Prüfungen für Transformatoren und Netzgeräte für Baustellen

Sécurité des transformateurs, bobines d'inductance, blocs d'alimentation et des combinaisons de ces éléments - Partie 2-23: Règles particulières et essais pour les transformateurs et les blocs d'alimentation pour chantiers

La CEI 61558-2-23:2010 traite de la sécurité des transformateurs pour chantiers et des blocs d'alimentation incorporant des transformateurs pour chantiers. Les transformateurs incorporant des circuits électroniques sont également couverts par la présente norme. Cette deuxième édition annule et remplace la première édition publiée en 2000. Elle constitue une révision technique. Les principales modifications consistent en la mise à jour de la présente partie conformément à la CEI 61558-1:2005. La présente partie a le statut de publication groupée de sécurité conformément au Guide CEI 104: Élaboration des publications de sécurité et utilisation des publications fondamentales de sécurité et publications groupées de sécurité. L'attention des Comités Nationaux est attirée sur le fait que les fabricants des appareils et les organismes d'essai peuvent avoir besoin d'une période transitoire, à la parution d'une publication CEI qu'elle soit nouvelle, modifiée ou révisée, pour mettre les produits en conformité avec les nouvelles exigences et pour s'équiper eux-mêmes afin de réaliser de nouveaux essais ou des essais révisés. Le comité recommande que le contenu de la présente publication soit adopté pour mise en oeuvre au niveau national au plus tôt 12 mois après la date de publication. Pendant ce temps, l'édition précédente peut toujours être commandée auprès du Comité National CEI de votre pays ou auprès du bureau Central de la CEI.

Varnost transformatorjev, dušilk, napajalnikov in kombinacij teh elementov - 2-23. del: Posebne zahteve in preskusi za transformatorje in napajalnike za gradbišča (IEC 61558-2-23:2010)

Ta del IEC 61558 obravnava varnost transformatorjev za gradbišča in napajalnikov, ki vsebujejo transformatorje, za gradbišča. Transformatorji, ki vsebujejo elektronska vezja, so prav tako zajeti v tem standardu. Razen če je drugače navedeno, v nadaljevanju izraz transformator zajema  transformatorje za gradbišča in napajalnike, ki vsebujejo transformatorje za gradbišča. Ta del velja za nepremične ali prenosne, enofazne ali večfazne, zračno hlajene (naravno ali vsiljeno), samostojne ali povezane transformatorje, ki so ločilni ali varnostno ločilni transformatorji suhega tipa za uporabo na gradbiščih. Navitje je lahko inkapsulirano ali nekapsulirano. Nazivna napetost napajanja ne presega 1.000 V izmeničnega toka in nazivna frekvenca napajanja in notranja obratovalna frekvenca ne presega 500 Hz. Ta standard v kombinaciji z delom 2-16 za stikalni napajalnik (SMPS) velja tudi za napajalnike z notranjimi obratovalnimi frekvencami, višjimi od 500 Hz. Če sta zahtevi v nasprotju, ima prednost najstrožja. Nazivni izhod ne presega: - 25 kVA za enofazne transformatorje; - 40 kVA za večfazne transformatorje. Ta del velja za transformatorje brez omejitve nazivnega izhoda, ki je predmet dogovora med kupcem in proizvajalcem. Ločilni transformatorji in napajalniki, ki vsebujejo ločilne transformatorje za gradbišča, imajo izhodno napetost v prostem teku in nazivno izhodno napetost, ki presega 50 V izmeničnega toka in ne presega 250 V izmeničnega toka. Varnostni ločilni transformatorji in napajalniki, ki vsebujejo varnostne ločilne transformatorje, za gradbišča, imajo izhodno napetost v prostem teku in nazivno izhodno napetost, ki ne presega 50 V izmeničnega toka. Transformatorji in napajalniki, ki jih zajema ta del, se uporabljajo v napravah, kjer to zahtevajo pravila za namestitev ali specifikacije naprave, z namenom zaščite. Kadar so transformatorji ali napajalniki vgrajeni v nizkonapetostne stikalne in krmilne naprave za gradbišča, kot je opredeljeno v IEC 60439-4, se za sklop uporabljajo dodatne zahteve IEC 60439-4.

General Information

• Status: Published
• Publication Date: 14-Oct-2010
• Withdrawal Date: 30-Sep-2013
• ICS: 29.180 - Transformers. Reactors
• Technical Committee: CLC/SR 96 - Small power transformers, reactors, power supply units and similar products
• Drafting Committee: IEC/TC 96 - IEC_TC_96
• Parallel Committee: IEC/TC 96 - IEC_TC_96
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 15-Oct-2010
• Completion Date: 15-Oct-2010
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Directive: 2014/53/EU - Directive 2014/53/EU of The European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC
• Ref Project: SIST EN 61558-2-23:2010 - Safety of transformers, reactors, power supply units and combinations thereof - Part 2-23: Particular requirements and tests for transformers and power supply units for construction sites (IEC 61558-2-23:2010)

Relations

• Replaces: EN 61558-2-23:2000 - Safety of power transformers, power supply units and similar devices - Part 2-23: Particular requirements for transformers for construction sites
• Effective Date: 28-Jan-2023
• Revised: FprEN IEC 61558-2-23:2024 - Safety of transformers, reactors, power supply units and combinations thereof - Part 2-23: Particular requirements and tests for transformers and power supply units for construction sites
• Effective Date: 23-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 61558-2-23:2010
01-december-2010
1DGRPHãþD
SIST EN 61558-2-23:2001
9DUQRVWWUDQVIRUPDWRUMHYGXãLONQDSDMDOQLNRYLQNRPELQDFLMWHKHOHPHQWRY
GHO3RVHEQH]DKWHYHLQSUHVNXVL]DWUDQVIRUPDWRUMHLQQDSDMDOQLNH]DJUDGELãþD
,(&
Safety of transformers, reactors, power supply units and combinations thereof - Part 2-
23: Particular requirements and tests for transformers and power supply units for
construction sites (IEC 61558-2-23:2010)
Sicherheit von Transformatoren, Drosseln, Netzgeräten und entsprechenden
Kombinationen - Teil 2-23: Besondere Anforderungen und Prüfungen für
Transformatoren und Netzgeräte für Baustellen (IEC 61558-2-23:2010)
Sécurité des transformateurs, bobines d'inductance, blocs d'alimentation et des
combinaisons de ces éléments - Partie 2-23: Règles particulières et essais pour les
transformateurs et les blocs d'alimentation pour chantiers (CEI 61558-2-23:2010)
Ta slovenski standard je istoveten z: EN 61558-2-23:2010
ICS:
29.180 Transformatorji. Dušilke Transformers. Reactors
91.200 Gradbena tehnologija Construction technology
SIST EN 61558-2-23:2010 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 61558-2-23:2010

---------------------- Page: 2 ----------------------

SIST EN 61558-2-23:2010

EUROPEAN STANDARD
EN 61558-2-23

NORME EUROPÉENNE
October 2010
EUROPÄISCHE NORM

ICS 29.180 Supersedes EN 61558-2-23:2000


English version


Safety of transformers, reactors, power supply units and combinations
thereof -
Part 2-23: Particular requirements and tests for transformers and power
supply units for construction sites
(IEC 61558-2-23:2010)


Sécurité des transformateurs, bobines Sicherheit von Transformatoren, Drosseln,
d'inductance, blocs d'alimentation et des Netzgeräten und entsprechenden
combinaisons de ces éléments - Kombinationen -
Partie 2-23: Règles particulières et essais Teil 2-23: Besondere Anforderungen und
pour les transformateurs et les blocs Prüfungen für Transformatoren und
d'alimentation pour chantiers Netzgeräte für Baustellen
(CEI 61558-2-23:2010) (IEC 61558-2-23:2010)




This European Standard was approved by CENELEC on 2010-10-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels


© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61558-2-23:2010 E

---------------------- Page: 3 ----------------------

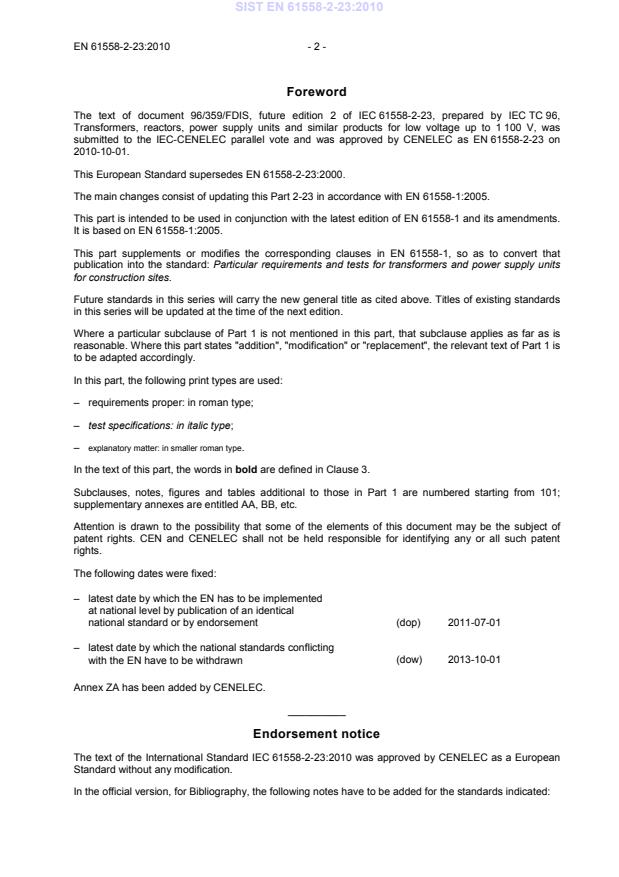

SIST EN 61558-2-23:2010
EN 61558-2-23:2010 - 2 -
Foreword
The text of document 96/359/FDIS, future edition 2 of IEC 61558-2-23, prepared by IEC TC 96,
Transformers, reactors, power supply units and similar products for low voltage up to 1 100 V, was
submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 61558-2-23 on
2010-10-01.
This European Standard supersedes EN 61558-2-23:2000.
The main changes consist of updating this Part 2-23 in accordance with EN 61558-1:2005.
This part is intended to be used in conjunction with the latest edition of EN 61558-1 and its amendments.
It is based on EN 61558-1:2005.
This part supplements or modifies the corresponding clauses in EN 61558-1, so as to convert that
publication into the standard: Particular requirements and tests for transformers and power supply units
for construction sites.
Future standards in this series will carry the new general title as cited above. Titles of existing standards
in this series will be updated at the time of the next edition.
Where a particular subclause of Part 1 is not mentioned in this part, that subclause applies as far as is
reasonable. Whe
...
