EN IEC 63203-801-2:2022

Wearable electronic devices and technologies - Part 801-2: Smart body area network (SmartBAN) - Low complexity medium access control (MAC) for SmartBAN

This part of IEC 63203-801 specifies low complexity Medium Access Control (MAC) for SmartBAN. As the use of wearables and connected body sensor devices grows rapidly in the Internet of Things (IoT), Wireless Body Area Networks (BAN) facilitate the sharing of data in smart environments such as smart homes, smart life etc. In specific areas of digital healthcare, wireless connectivity between the edge computing device or hub coordinator and the sensing nodes requires a standardized communication interface and protocols. The present document describes the MAC specifications: - Channel Structure, - MAC Frame Formats, - MAC functions.

Tragbare elektronische Geräte und Technologien -Teil 801-2: Smartes am Körper getragenes Netzwerk (SmartBAN) - Medium Access Control (MAC) mit geringer Komplexität für SmartBAN

Technologies et dispositifs électroniques prêts-à-porter - Partie 801-2: Smart body area network (SmartBAN) - Contrôle d’accès au support (MAC) à faible complexité pour SmartBAN

L’IEC 63203-801-2:2022 spécifie un contrôle d'accès au support (MAC) à faible complexité pour SmartBAN. Alors que l'utilisation des dispositifs de capteurs corporels prêts-à-porter et connectés s'accroît rapidement dans l'Internet des objets (IoT, Internet of Things), les réseaux corporels sans fil (BAN) facilitent le partage des données dans les environnements intelligents tels que les maisons intelligentes, la vie intelligente, etc. Dans des domaines spécifiques des soins de santé numériques, la connectivité sans fil entre le dispositif informatique périphérique ou le coordinateur du concentrateur et les nœuds de détection exige une interface et des protocoles de communication normalisés. Le présent document décrit les spécifications relatives au contrôle d'accès au support (MAC) suivantes:
structure du canal ;
formats de trame MAC ;
fonctions MAC.

Nosljive elektronske naprave in tehnologije - 801-2. del: Pametno telesno omrežje (SmartBAN) - Manj zahteven nadzor dostopa do medija (MAC) za SmartBAN (IEC 63203-801-2:2022)

Ta del standarda IEC 63203-801 določa nadzor dostopa do medija (MAC) za pametno telesno omrežje (SmartBAN).
Ker se uporaba nosljivih naprav in povezanih telesnih senzorjev v internetu stvari (IoT) hitro povečuje, brezžična telesna omrežja (BAN) poenostavijo skupno rabo podatkov v pametnih okoljih, kot so pametni domovi, pametno življenje itd. Na določenih področjih digitalnega zdravstvenega varstva brezžična povezljivost med napravo robnega računalništva ali koordinatorjem vozlišča in senzorskimi vozlišči zahteva standardiziran komunikacijski vmesnik in protokole.
Ta dokument opisuje specifikacije nadzora dostopa do medija:
– struktura kanalov;
– format okvirjev nadzora dostopa do medija;
– funkcije nadzora dostopa do medija.

General Information

• Status: Published
• Publication Date: 15-Dec-2022
• ICS: 35.100.01 - Open systems interconnection in general
• ICS: 35.110 - Networking
• ICS: 35.240.80 - IT applications in health care technology
• ICS: 35.240.99 - IT applications in other fields
• Technical Committee: CLC/SR 124 - Wearable Electronic Devices and Technologies
• Drafting Committee: IEC/TC 124 - Wearable electronic devices and technologies
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 16-Dec-2022
• Completion Date: 16-Dec-2022
• Ref Project: SIST EN IEC 63203-801-2:2023 - Wearable electronic devices and technologies - Part 801-2: Smart body area network (SmartBAN) - Low complexity medium access control (MAC) for SmartBAN (IEC 63203-801-2:2022)

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2023
Nosljive elektronske naprave in tehnologije - 801-2. del: Pametno telesno omrežje
(SmartBAN) - Manj zahteven nadzor dostopa do medija (MAC) za SmartBAN (IEC
63203-801-2:2022)
Wearable electronic devices and technologies - Part 801-2: Smart body area network
(SmartBAN) - Low complexity medium access control (MAC) for SmartBAN (IEC 63203-
801-2:2022)
Tragbare elektronische Geräte und Technologien -Teil 801-2: Smartes am Körper
getragenes Netzwerk (SmartBAN) - Medium Access Control (MAC) mit geringer
Komplexität für SmartBAN (IEC 63203-801-2:2022)
Technologies et dispositifs électroniques prêts-à-porter - Partie 801-2: Smart body area
network (SmartBAN) - Contrôle d’accès au support (MAC) à faible complexité pour
SmartBAN (IEC 63203-801-2:2022)
Ta slovenski standard je istoveten z: EN IEC 63203-801-2:2022
ICS:
31.080.99 Drugi polprevodniški elementi Other semiconductor devices
35.110 Omreževanje Networking
59.080.80 Inteligentne tekstilije Smart textiles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 63203-801-2

NORME EUROPÉENNE
EUROPÄISCHE NORM December 2022
ICS 35.100.01; 35.240.80
English Version
Wearable electronic devices and technologies - Part 801-2:
Smart body area network (SmartBAN) - Low complexity medium
access control (MAC) for SmartBAN
(IEC 63203-801-2:2022)
Technologies et dispositifs électroniques prêts-à-porter - Tragbare elektronische Geräte und Technologien -Teil 801-
Partie 801-2: Smart body area network (SmartBAN) - 2: Smartes am Körper getragenes Netzwerk (SmartBAN) -
Contrôle d'accès au support (MAC) à faible complexité pour Medium Access Control (MAC) mit geringer Komplexität für
SmartBAN SmartBAN
(IEC 63203-801-2:2022) (IEC 63203-801-2:2022)
This European Standard was approved by CENELEC on 2022-12-09. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 63203-801-2:2022 E

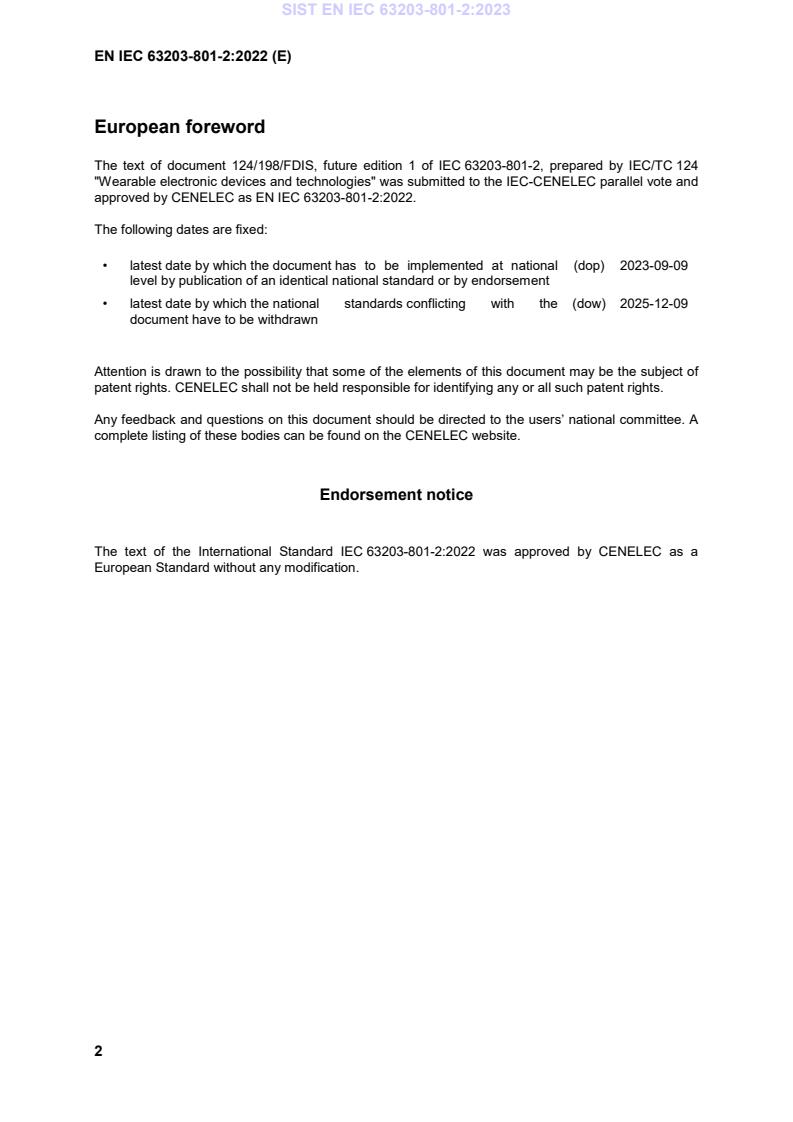

European foreword
The text of document 124/198/FDIS, future edition 1 of IEC 63203-801-2, prepared by IEC/TC 124
"Wearable electronic devices and technologies" was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN IEC 63203-801-2:2022.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-09-09
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2025-12-09
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 63203-801-2:2022 was approved by CENELEC as a
European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 63203-801-1 2022 Wearable electronic devices and EN IEC 63203-801-1 2022
technologies - Part 801-1: Smart body area
network (SmartBAN) - Enhanced ultra-low
power physical layer
IEC 63203-801-2 ®
Edition 1.0 2022-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Wearable electronic devices and technologies –

Part 801-2: Smart body area network (SmartBAN) – Low complexity medium

access control (MAC) for SmartBAN

Technologies et dispositifs électroniques prêts-à-porter –

Partie 801-2: Smart body area network (SmartBAN) – Contrôle d'accès au

support (MAC) à faible complexité pour SmartBAN

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 35.100.01; 35.240.80 ISBN 978-2-8322-6001-2

– 2 – IEC 63203-801-2:2022 © IEC 2022
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Abbreviated terms . 8
5 General MAC framework . 9
5.1 Different device types . 9
5.2 Frequency spectrum . 10
5.3 Channel format . 10
5.3.1 Control channel format . 10
5.3.2 Data channel format . 10
5.4 User priorities . 13
5.5 Node ID . 14
5.6 IU . 14
6 Frame formats . 15
6.1 MAC general frame format . 15
6.1.1 General description . 15
6.1.2 MAC header . 15
6.1.3 MAC frame body . 18
6.1.4 Frame parity . 18
6.2 Management frames . 18
6.2.1 C-Beacon . 18
6.2.2 D-Beacon . 20
6.2.3 C-Req . 23
6.2.4 C-Ass . 25
6.2.5 S-Ras . 26
6.2.6 D-Req . 27
6.2.7 D-Res . 27
6.3 C-Frame . 27
6.4 D-Frame . 27
7 MAC functions . 28
7.1 General . 28
7.2 SmartBAN creation and connection initialization . 28
7.2.1 SmartBAN creation . 28
7.2.2 Connection initialization . 28
7.3 Channel access . 29
7.3.1 Scheduled channel access . 29
7.3.2 Slotted aloha channel access . 30
7.3.3 Multi-use channel access . 31
7.4 Supplementary downlink data transmission . 33
7.5 Slot reassignment . 34
7.6 Data channel migration . 35
8 MAC parameters. 36
Annex A (informative) Multi-use channel access . 37
Bibliography . 38

IEC 63203-801-2:2022 © IEC 2022 – 3 –
Figure 1 – SmartBAN topology . 9
Figure 2 – Structure of Control Channel . 10
Figure 3 – Access periods in Data Channel . 11
Figure 4 – Scheduled access slot structure . 12
Figure 5 – Control and management slot structure . 12
Figure 6 – Multi-use access slot structure . 12
Figure 7 – Structure of an IU . 14
Figure 8 – MAC general frame format . 15
Figure 9 – MAC header format . 15
Figure 10 – Frame control format . 16
Figure 11 – C-Beacon frame format . 19
Figure 12 – D-Beacon frame format . 21
Figure 13 – C-Req frame format . 23
Figure 14 – C-Ass frame format . 25
Figure 15 – D-Req frame structure (hub to node) . 27
Figure 16 – Connection pr
...
