EN IEC 60879:2019
(Main)Comfort fans and regulators for household and similar purposes - Methods for measuring performance
Comfort fans and regulators for household and similar purposes - Methods for measuring performance
IEC 60879:2019 specifies the performance-measuring methods of comfort fans and regulators for household and similar purposes, including conventional fans, tower fans and bladeless fans, their rated voltage being not more than 250 V for single-phase fans and 480 V for other fans, and their rated power input being less than 125 W. According to the testing method, the comfort fans are classified into two groups: – pedestal fans, table fans, wall fans, louvre fans, tower fans, bladeless fans; – ceiling fans. Wherever applicable, the term "fan" used in this document includes its associated regulator, if any. This document does not apply to: – safety of electric fans for household and similar purposes (IEC 60335-2-80); – performance of ventilating fans (IEC 60665); – electromagnetic compatibility of fans (CISPR 14-1 and CISPR 14-2, IEC 61000-3-2, IEC 61000-3-3). This second edition cancels and replaces the first edition published in 1986. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) the definitions of fans have been revised; b) the test methods for the different types of fans have been revised to allow modern test instrumentation to be used; c) acoustic noise measurement and standby power measurement methods have been introduced.
Komfortventilatoren und Regler für den Hausgebrauch und ähnliche Zwecke – Verfahren zur Messung der Gebrauchseigenschaften
Ventilateurs de confort et régulateurs de vitesse pour applications domestiques et analogues - Méthodes de mesure de l'aptitude à la fonction
L'IEC 60879:2019 spécifie les méthodes de mesure de l'aptitude à la fonction des ventilateurs de confort et des régulateurs de vitesse pour applications domestiques et analogues, notamment les ventilateurs conventionnels, les ventilateurs à colonne et les ventilateurs sans pales, présentant une tension assignée inférieure ou égale à 250 V pour les ventilateurs monophasés et inférieure ou égale à 480 V pour les autres ventilateurs, ainsi qu'une puissance absorbée nominale inférieure à 125 W. Selon la méthode d'essai, les ventilateurs de confort se classent en deux groupes: – ventilateurs sur pied, ventilateurs de table, ventilateurs muraux, ventilateurs rotatifs, ventilateurs à colonne, ventilateurs sans pales; – ventilateurs de plafond. Lorsqu'il y a lieu, le terme "ventilateur" employé dans le présent document couvre également son régulateur (si le ventilateur en est équipé d'un). Le présent document ne s'applique pas à: – la sécurité des ventilateurs électriques pour applications domestiques et analogues (IEC 60335-2-80); – l'aptitude à la fonction des aérateurs (IEC 60665); – la compatibilité électromagnétique des ventilateurs (CISPR 14-1 et CISPR 14-2, IEC 61000-3-2, IEC 61000 3-3). Cette deuxième édition annule et remplace la première édition parue en 1986. Cette édition constitue une révision technique. Cette édition comprend les modifications techniques majeures suivantes par rapport à l'édition précédente: a) les définitions des ventilateurs ont été révisées; b) les méthodes d'essai des différents types de ventilateurs ont été révisées afin de permettre l'emploi d'appareils de mesure modernes; c) des méthodes de mesure ont été ajoutées pour les mesurages du bruit acoustique et de la consommation d'électricité.
Prezračevalni ventilatorji in regulatorji za gospodinjstvo in podobno uporabo - Metode za merjenje lastnosti
Ta standard določa metode merjenja zmogljivosti prezračevalnih ventilatorjev in regulatorjev za gospodinjske ter podobne namene, vključno z običajnimi ventilatorji, stolpnimi ventilatorji in ventilatorji brez lopatic, pri čemer njihova nazivna napetost ne presega 250 V pri enofaznih ventilatorjih in 480 V pri drugih ventilatorjih, njihova nazivna vhodna moč pa je manjša od 125 W. Kjer je primerno, izraz »ventilator«, uporabljen v tem dokumentu, vključuje tudi pripadajoči regulator, če obstaja.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-november-2019
Prezračevalni ventilatorji in regulatorji za gospodinjstvo in podobno uporabo -
Metode za merjenje lastnosti
Comfort fans and regulators for household and similar purposes - Methods for measuring
performance
Ta slovenski standard je istoveten z: EN 60879:2019
ICS:
23.120 Zračniki. Vetrniki. Klimatske Ventilators. Fans. Air-
naprave conditioners
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 60879
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2019
ICS 23.120
English Version
Comfort fans and regulators for household and similar purposes
- Methods for measuring performance
(IEC 60879:2019)
Ventilateurs de confort et régulateurs de vitesse pour Komfortventilatoren und Regler für den Hausgebrauch und
applications domestiques et analogues - Méthodes de ähnliche Zwecke - Verfahren zur Messung der
mesure de l'aptitude à la fonction Gebrauchseigenschaften
(IEC 60879:2019) (IEC 60879:2019)
This European Standard was approved by CENELEC on 2019-06-26. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60879:2019 E

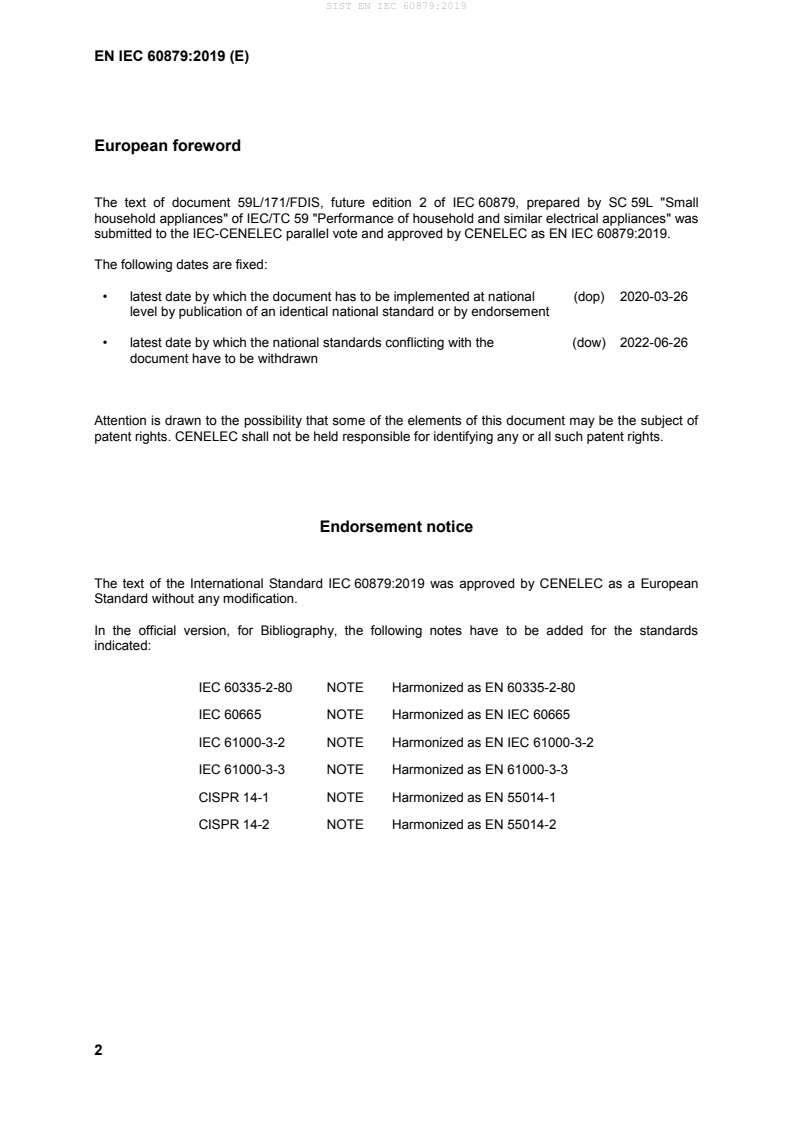

European foreword
The text of document 59L/171/FDIS, future edition 2 of IEC 60879, prepared by SC 59L "Small
household appliances" of IEC/TC 59 "Performance of household and similar electrical appliances" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 60879:2019.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2020-03-26
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2022-06-26
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Endorsement notice
The text of the International Standard IEC 60879:2019 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60335-2-80 NOTE Harmonized as EN 60335-2-80
IEC 60665 NOTE Harmonized as EN IEC 60665
IEC 61000-3-2 NOTE Harmonized as EN IEC 61000-3-2
IEC 61000-3-3 NOTE Harmonized as EN 61000-3-3
CISPR 14-1 NOTE Harmonized as EN 55014-1
CISPR 14-2 NOTE Harmonized as EN 55014-2
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60704-2-7 - Household and similar electrical appliances - Test EN 60704-2-7 -
code for the determination of airborne acoustical
noise - Part 2-7: Particular requirements for fans
IEC 62301 - Household electrical appliances - Measurement of EN 50564 -
standby power
IEC 60879 ®
Edition 2.0 2019-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Comfort fans and regulators for household and similar purposes – Methods for
measuring performance
Ventilateurs de confort et régulateurs de vitesse pour applications domestiques
et analogues – Méthodes de mesure de l'aptitude à la fonction
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 23.120 ISBN 978-2-8322-6957-2
– 2 – IEC 60879:2019 © IEC 2019
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Information provision . 7
5 Tests . 7
5.1 General conditions for testing . 7
5.1.1 Atmospheric conditions . 7
5.1.2 Conditioning of test equipment . 7
5.1.3 Voltage and frequency . 7
5.1.4 Running-in of the fan . 8
5.1.5 Operation of the fan . 8
5.1.6 Conditioning prior to each test . 8
5.2 Testing of air performance . 8
5.2.1 Ceiling fans . 8
5.2.2 Comfort fans other than ceiling fans . 9
5.3 Measurement of regulator performance . 12
5.3.1 Measurement of the regulation ratio for comfort fans other than
bladeless fans . 12
5.3.2 Measurement of the regulation ratio for bladeless fans . 12
5.4 Measurement of fan power input . 12
5.5 Measurement of sound power level . 12
5.6 Measurement of standby power . 13
Annex A (informative) Positioning of 4 anemometers in horizontal and vertical
directions . 16
Annex B (informative) Dimensions, measuring ranges and accuracies of some vane
anemometers . 17
Annex C (normative) Setting air flow direction for tower fans . 18
Bibliography . 19
Figure 1 – Arrangement of test chamber and outer screen for ceiling fans . 13
Figure 2 – Plan of test chamber and outer screen for ceiling fans . 14
Figure 3 – Measurement configuration for bladeless fans and tower fans . 15
Figure A.1 – Configuration of 4 anemometers for conventional fans . 16
Figure B.1 – Typical anemometers for use when testing bladeless fans and tower fans . 17
Figure C.1 – Tower fan positioning . 18
IEC 60879:2019 © IEC 2019 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COMFORT FANS AND REGULATORS
FOR HOUSEHOLD AND SIMILAR PURPOSES –
METHODS FOR MEASURING PERFORMANCE
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60879 has been prepared by subcommittee 59L: Small household
appliances, of IEC technical committee 59: Performance of household and similar electrical
appliances
This second edition cancels and replaces the first edition published in 1986. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the definitions of fans have been revised;
b) the test methods for the different types of fans have been revised to allow modern test
instrumentation to be used;
c) acoustic noise measurement and standby power measurement methods have been
introduced.
– 4 – IEC 60879:2019 © IEC 2019
The text of this International Standard
...
