ENV 50204:1995
(Main)Radiated electromagnetic field from digital radio telephones - Immunity test
- BACK
- 19-Mar-1995
- 29.020
- CLC/TC 210
Radiated electromagnetic field from digital radio telephones - Immunity test
The standard relates to the immunity of electrical and electronic equipment to the electromagnetic fields radiated from GSM (Group Special Mobile) and the DECT (Digital European Cordless Telephone) radio systems operating at the frequencies 900 MHz and 1,89 GHz using TDMA (Time Division Multiple Access) techniques. The object of this standard is to establish a common reference for evaluating by test the performance of apparatus when subjected to this type of radiated electromagnetic field.
Störfestigkeit gegen hochfrequente elektromagnetische Felder von digitalen Funktelefonen
Essai d'immunité aux émissions RF des radios téléphones numériques
Radiated electromagnetic field from digital radio telephones - Immunity test
General Information

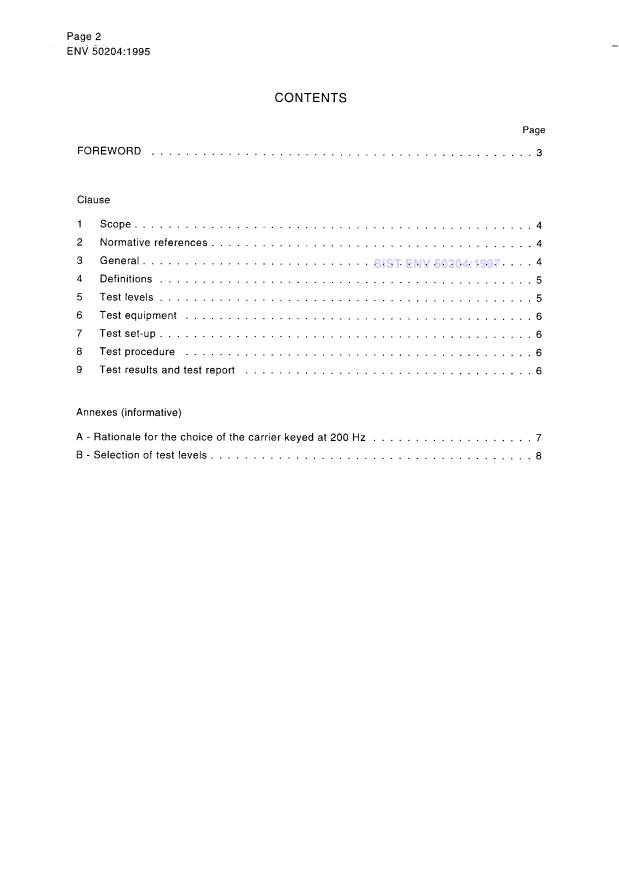

Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-1997
Radiated electromagnetic field from digital radio telephones - Immunity test
Radiated electromagnetic field from digital radio telephones - Immunity test
Störfestigkeit gegen hochfrequente elektromagnetische Felder von digitalen
Funktelefonen
Essai d'immunité aux émissions RF des radios téléphones numériques
Ta slovenski standard je istoveten z: ENV 50204:1995
ICS:
33.050.10 Telefonska oprema Telephone equipment
33.100.20 Imunost Immunity
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
...
