EN IEC 62325-451-10:2021

(Main)

Framework for energy market communications - Part 451-10: Profiles for Energy Consumption Data ("My Energy Data")

Framework for energy market communications - Part 451-10: Profiles for Energy Consumption Data ("My Energy Data")

IEC 62325-451-10:2020 specifies a UML package for the Energy Consumption Data business process and its associated document contextual model, assembly model and XML schema for use within the European style electricity markets. The relevant aggregate core components (ACCs) defined in IEC 62325-351 have been contextualised into aggregated business information entities (ABIEs) to satisfy the requirements of the European style market Energy Consumption Data business process. The contextualised ABIEs have been assembled into the Energy Consumption Data document contextual model. A related assembly model and an XML schema for the exchange of Energy Consumption information between market participants is automatically generated from the assembled document contextual model. The XML schema follows IEC Code Components management and copyright licensing

Kommunikation im Energiemarkt – Teil 451-10: Profile für Energieverbrauchsdaten („Meine Energiedaten“)

Cadre pour les communications pour le marché de l'énergie – Partie 451-10: Profils de données sur la consommation d'énergie ("Mes données d'énergie")

l'IEC 62325-451-10:2020 spécifie un paquetage UML pour le processus métier des données de consommation d'énergie ainsi que le modèle contextuel de document, le modèle d'assemblage et le schéma XML associés à appliquer au sein des marchés de l'électricité de style européen. Les composants de base agrégés (ACC) pertinents définis dans l'IEC 62325-351 ont été contextualisés sous la forme d'entités d'information métier agrégées (ABIE) afin de satisfaire aux exigences du processus métier de données sur la consommation d'énergie sur les marchés de style européen. Les ABIE contextualisées ont été assemblées au sein du modèle contextuel de document des données sur la consommation d'énergie. Un modèle d'assemblage et le schéma XML associé pour l'échange des informations de consommation d'énergie entre les participants du marché sont générés automatiquement à partir du modèle contextuel de document assemblé. Le schéma XML respecte les conditions de gestion et la licence de droits d'auteur relatives aux Eléments de Code IEC.

Okvir za komunikacije na trgu z električno energijo - 451-10. del: Profili za podatke o porabljeni energiji ("podatki Moja energija")

General Information

Status
Published
Publication Date
14-Jan-2021
ICS
33.200 - Telecontrol. Telemetering
Technical Committee
CLC/TC 57 - Power systems management and associated information exchange
Drafting Committee
IEC/TC 57 - IEC_TC_57
Current Stage
6060 - Document made available - Publishing
Start Date
15-Jan-2021
Completion Date
15-Jan-2021
Ref Project
SIST EN IEC 62325-451-10:2021 - Framework for energy market communications - Part 451-10: Profiles for energy consumption data ("My Energy Data")

Buy Standard

EN IEC 62325-451-10:2021 - POZOR ! k standardu IEC spada tudi datoteka "Code component IEC 62325_451_10". BARVEEN IEC 62325-451-10:2021 - POZOR ! k standardu IEC spada tudi datoteka "Code component IEC 62325_451_10". BARVE
PreviousNext
Standard
EN IEC 62325-451-10:2021 - POZOR ! k standardu IEC spada tudi datoteka "Code component IEC 62325_451_10". BARVE
English language
138 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN IEC 62325-451-10:2021
01-marec-2021
Okvir za komunikacije na trgu z električno energijo - 451-10. del: Profili za podatke
o porabljeni energiji ("podatki Moja energija")
Framework for energy market communications - Part 451-10: Profiles for energy
consumption data ("My Energy Data")
Ta slovenski standard je istoveten z: EN IEC 62325-451-10:2021
ICS:
29.240.30 Krmilna oprema za Control equipment for electric
elektroenergetske sisteme power systems
33.200 Daljinsko krmiljenje, daljinske Telecontrol. Telemetering
meritve (telemetrija)
SIST EN IEC 62325-451-10:2021 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 62325-451-10:2021

---------------------- Page: 2 ----------------------
SIST EN IEC 62325-451-10:2021


EUROPEAN STANDARD EN IEC 62325-451-10

NORME EUROPÉENNE

EUROPÄISCHE NORM
January 2021
ICS 33.200

English Version
Framework for energy market communications - Part 451-10:
Profiles for Energy Consumption Data ("My Energy Data")
(IEC 62325-451-10:2020)
Cadre pour les communications pour le marché de l'énergie Kommunikation im Energiemarkt - Teil 451-10: Profile für
- Partie 451-10: Profils de données sur la consommation Energieverbrauchsdaten ("Meine Energiedaten")
d'énergie ("Mes données d'énergie") (IEC 62325-451-10:2020)
(IEC 62325-451-10:2020)
This European Standard was approved by CENELEC on 2021-01-01. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN IEC 62325-451-10:2021 E

---------------------- Page: 3 ----------------------
SIST EN IEC 62325-451-10:2021
EN IEC 62325-451-10:2021 (E)

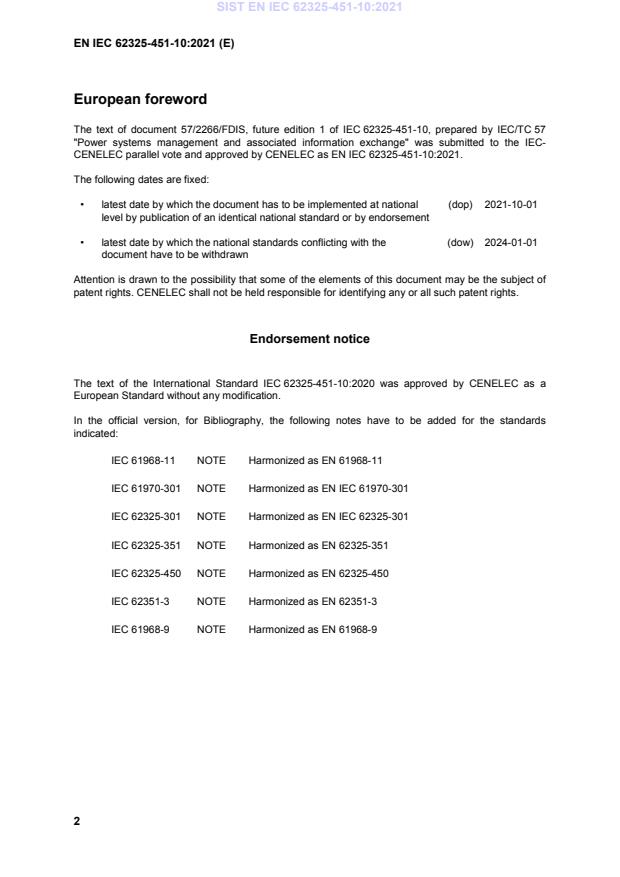

European foreword
The text of document 57/2266/FDIS, future edition 1 of IEC 62325-451-10, prepared by IEC/TC 57
"Power systems management and associated information exchange" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN IEC 62325-451-10:2021.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2021-10-01
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2024-01-01
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Endorsement notice
The text of the International Standard IEC 62325-451-10:2020 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 61968-11 NOTE Harmonized as EN 61968-11
IEC 61970-301 NOTE Harmonized as EN IEC 61970-301
IEC 62325-301 NOTE Harmonized as EN IEC 62325-301
IEC 62325-351 NOTE Harmonized as EN 62325-351
IEC 62325-450 NOTE Harmonized as EN 62325-450
IEC 62351-3 NOTE Harmonized as EN 62351-3
IEC 61968-9 NOTE Harmonized as EN 61968-9


2

---------------------- Page: 4 ----------------------
SIST EN IEC 62325-451-10:2021
EN IEC 62325-451-10:2021 (E)
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated refe
...
