Instrument transformers - Part 5: Capacitor voltage transformers

This part of EN 60044 applies to new single-phase capacitor voltage transformers connected between line and ground for system voltages Um 72,5 kV at power frequencies from 15 Hz to 100 Hz. They are intended to supply a low voltage for measurement, control and protective functions. The capacitor voltage transformer can be equipped with or without carrier-frequency accessories for power line carrier-frequency (PLC) application at carrier frequencies from 30 kHz to 500 kHz.

Messwandler - Teil 5: Kapazitive Spannungswandler

Transformateurs de mesure - Partie 5: Transformateurs condensateurs de tension

La présente partie de la EN 60044 s'applique aux transformateurs condensateurs de tension monophasés neufs connectés entre la ligne et la terre pour des tensions de réseau Um 72,5 kV aux fréquences industrielles comprises entre 15 Hz et 100 Hz. Ils sont destinés à fournir une basse tension pour les fonctions mesure, commande et protection. Le transformateur condensateur de tension peut être équipé avec ou sans accessoires de couplage pour courant porteur sur ligne (CPL) aux fréquences porteuses de 30 kHz à 500 kHz.

Instrumentni transformatorji – 5. del: Kapacitivni napetostnik (IEC 60044-5:2004)

General Information

Status
Withdrawn
Publication Date
20-Jun-2004
Withdrawal Date
31-May-2007
Drafting Committee
Parallel Committee
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
17-Aug-2014
Completion Date
17-Aug-2014

Relations

Effective Date
29-Jan-2023

Buy Standard

Standard
EN 60044-5:2005
English language
76 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SIST EN 60044-5:2005SLOVENSKIdecember 2005
STANDARDInstrumentni transformatorji – 5. del: Kapacitivni napetostnik (IEC 60044-5:2004)Instrument transformers - Part 5: Capacitor voltage transformers (IEC 60044-5 :2004)©
Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljenoReferenčna številkaSIST EN 60044-5:2005(en)ICS17.220.20







EUROPEAN STANDARD
EN 60044-5 NORME EUROPÉENNE EUROPÄISCHE NORM
June 2004 CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2004 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60044-5:2004 E
ICS 17.220.20 Supersedes HD 554 S1:1992
English version
Instrument transformers Part 5: Capacitor voltage transformers (IEC 60044-5:2004)
Transformateurs de mesure Partie 5: Transformateurs condensateurs de tension (CEI 60044-5:2004)
Messwandler Teil 5: Kapazitive Spannungswandler (IEC 60044-5:2004)
This European Standard was approved by CENELEC on 2004-06-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.



EN 60044-5:2004 - 2 -

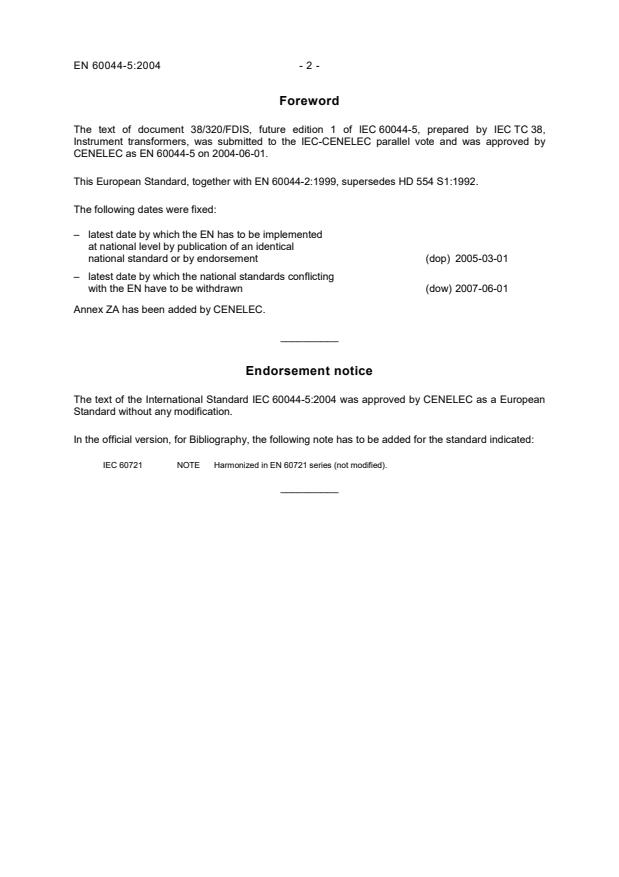

Foreword The text of document 38/320/FDIS, future edition 1 of IEC 60044-5, prepared by IEC TC 38, Instrument transformers, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 60044-5 on 2004-06-01. This European Standard, together with EN 60044-2:1999, supersedes HD 554 S1:1992. The following dates were fixed: – latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement
(dop) 2005-03-01 – latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow) 2007-06-01 Annex ZA has been added by CENELEC. __________ Endorsement notice The text of the International Standard IEC 60044-5:2004 was approved by CENELEC as a European Standard without any modification. In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 60721 NOTE Harmonized in EN 60721 series (not modified). __________



- 3 - EN 60044-5:2004
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. NOTE Where an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies. Publication Year Title EN/HD Year IEC 60028 - 1) International standard of resistance for copper
- - IEC 60038 (mod) - 1) IEC standard voltages 2)
HD 472 S1 + corr. February 1989 3) 2002
IEC 60044-2 (mod) - 1) Instrument transformers Part 2: Inductive voltage transformers
EN 60044-2 1999 3) IEC 60050-321 - 1) International electrotechnical vocabulary - Chapter 321: Instrument transformers
- - IEC 60050-436 - 1) Chapter 436: Power capacitors
- - IEC 60050-601 - 1) Chapter 601: Generation, transmission and distribution of electricity - General
- - IEC 60050-604 - 1) Chapter 604: Generation, transmission and distribution of electricity - Operation
- - IEC 60060-1 - 1) High-voltage test techniques Part 1: General definitions and test requirements
HD 588.1 S1 1991 3) IEC 60071-1 - 1) Insulation co-ordination Part 1: Definitions, principles and rules
EN 60071-1 1995 3) IEC 60085 - 1) Thermal evaluation and classification of electrical insulation
HD 566 S1 1990 3) IEC 60270 - 1) High-voltage test techniques - Partial discharge measurements
EN 60270 2001 3) IEC 60358 - 1) Coupling capacitors and capacitor dividers
HD 597 S1 + corr. March 1992 3) 1992
1) Undated reference. 2) The title of HD 472 S1 is: Nominal voltages for low-voltage public elec
...
