EN 62056-6-1:2017

Electricity metering data exchange - The DLMS/COSEM suite - Part 6-1: Object Identification System (OBIS)

IEC 62056-6-1:2017 specifies the overall structure of the OBject Identification System (OBIS) and the mapping of all commonly used data items in metering equipment to their identification codes. This third edition cancels and replaces the second edition of IEC 62056-6-1, published in 2015. It constitutes a technical revision. The main technical changes with respect to the previous edition are listed in Annex B (informative).

Datenkommunikation der elektrischen Energiemessung - DLMS/COSEM - Teil 6-1: COSEM Object Identification System (OBIS)

Échange des données de comptage de l'électricité - La suite DLMS/COSEM - Partie 6-1: Système d’identification des objets (OBIS)

L'IEC 62056-6-1:2017 spécifie la structure globale du Système d'Identification d’OBjet (OBIS) et la mise en correspondance de tous les éléments de données couramment utilisés dans le matériel de comptage avec leurs codes d'identification. Cette troisième édition annule et remplace la deuxième édition de l’IEC 62056-6-1, parue en 2015. Cette édition constitue une révision technique. Les modifications techniques majeures par rapport à l'édition précédente sont énumérées dans l’Annexe B (informative).

Izmenjevanje podatkov za odbiranje stanja števcev - Sestav DLMS/COSEM - 6-1. del: Sistem za prepoznavanje objektov (OBIS)

Ta del standarda IEC 62056 določa splošno strukturo sistema za prepoznavanje objektov (OBIS) in preslikave vseh pogosto uporabljanih podatkovnih elementov v opremi za merjenje v njihove identifikacijske oznake. Sistem OBIS zagotavlja enolično oznako za vse podatke v opremi za merjenje, vključno z vrednostmi meritev in abstraktnimi vrednostmi, ki se uporabljajo za konfiguracijo ali pridobivanje informacij o delovanju opreme za merjenje. Oznake ID, opredeljene v tem dokumentu, se uporabljajo za prepoznavanje:
• logičnih imen različnih primerkov integriranih vezij ali objektov, kot je opredeljeno v standardu IEC 62056-6-2;
• podatkov, prenesenih prek komunikacijskih vodov;
• podatkov, prikazanih prek opreme za merjenje (glej točko A.2).
Ta dokument se uporablja za vse vrste opreme za merjenje, kot so vgrajeni števci, modularni števci, tarifni priključki, podatkovni koncentratorji itd.
Za potrebe opreme za merjenje energije, ki ni električna energija, kombinirane opreme za merjenje več kot ene vrste energije ali opreme za merjenje z več fizičnimi merilnimi kanali sta uvedena koncepta medija in kanalov. To omogoča prepoznavanje merilnih podatkov z različnih virov. Čeprav ta dokument v celoti opredeljuje strukturo sistema prepoznavanja za druge medije, se preslikava podatkovnih elementov, povezanih z energijo druge vrste, v oznake ID izvede ločeno.
OPOMBA: Standard EN 13757-1:2014 opredeljuje oznake za opremo za merjenje energije, ki ni električna energija: delilniki stroškov, toplotna energija, plin, hladna in vroča voda.

General Information

• Status: Published
• Publication Date: 07-Dec-2017
• Withdrawal Date: 12-Sep-2020
• ICS: 17.220 - Electricity. Magnetism. Electrical and magnetic measurements
• ICS: 35.110 - Networking
• ICS: 91.140.50 - Electricity supply systems
• Technical Committee: CLC/TC 13 - Equipment for electrical energy measurement and load control
• Drafting Committee: IEC/TC 13 - IEC_TC_13
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 08-Dec-2017
• Completion Date: 08-Dec-2017
• Mandate: M/441 - Standardisation mandate to CEN, CENELEC and ETSI in the field of measuring instruments for the development of an open architecture for utility meters involving communication protocols enabling interoperability
• Mandate: M/490 - Standardisation mandate to the European Standardisation Organisations (ESOs) to support European Smart Grid deployment
• Ref Project: SIST EN 62056-6-1:2018 - Electricity metering data exchange - The DLMS/COSEM suite - Part 6-1: Object Identification System (OBIS)

Relations

• Replaces: EN 62056-6-1:2016 - Electricity metering data exchange - The DLMS/COSEM suite - Part 6-1: Object Identification System (OBIS)
• Effective Date: 08-Mar-2016
• Replaced By: EN IEC 62056-6-1:2024 - Electricity metering data exchange - The DLMS®/COSEM suite - Part 6-1: Object Identification System (OBIS)
• Effective Date: 26-Jul-2021

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2018
1DGRPHãþD
SIST EN 62056-6-1:2017
Izmenjevanje podatkov za odbiranje stanja števcev - Sestav DLMS/COSEM - 6-1.
del: Sistem za prepoznavanje objektov (OBIS)
Electricity metering data exchange - The DLMS/COSEM suite - Part 6-1: Object
Identification System (OBIS)
Datenkommunikation der elektrischen Energiemessung - DLMS/COSEM - Teil 6-1:
COSEM Object Identification System (OBIS)
Echange des données de comptage de l'électricité - La suite DLMS/COSEM - Partie 6-1:
Système d'identification des objets (OBIS)
Ta slovenski standard je istoveten z: EN 62056-6-1:2017
ICS:
17.220.20 0HUMHQMHHOHNWULþQLKLQ Measurement of electrical
PDJQHWQLKYHOLþLQ and magnetic quantities
35.040.99 Drugi standardi v zvezi s Other standards related to
kodiranjem informacij information coding
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 62056-6-1

NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2017
ICS 35.110; 17.220; 91.140.50 Supersedes EN 62056-6-1:2016
English Version
Electricity metering data exchange - The DLMS/COSEM suite -
Part 6-1: Object Identification System (OBIS)
(IEC 62056-6-1:2017)
Échange des données de comptage de l'électricité - La Datenkommunikation der elektrischen Energiemessung -
suite DLMS/COSEM - Partie 6-1: Système d'identification DLMS/COSEM - Teil 6-1: COSEM Object Identification
des objets (OBIS) System (OBIS)
(IEC 62056-6-1:2017) (IEC 62056-6-1:2017)
This European Standard was approved by CENELEC on 2017-09-13. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62056-6-1:2017 E

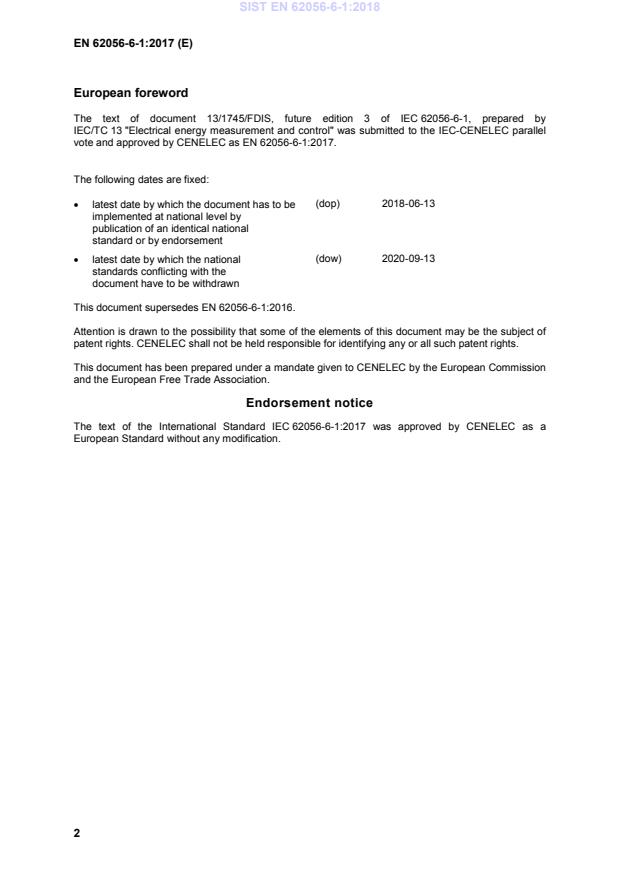

European foreword
The text of document 13/1745/FDIS, future edition 3 of IEC 62056-6-1, prepared by
IEC/TC 13 "Electrical energy measurement and control" was submitted to the IEC-CENELEC parallel
vote and approved by CENELEC as EN 62056-6-1:2017.

The following dates are fixed:
• latest date by which the document has to be (dop) 2018-06-13
implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2020-09-13
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes EN 62056-6-1:2016.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association.
Endorsement notice
The text of the International Standard IEC 62056-6-1:2017 was approved by CENELEC as a
European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu
Publication Year Title EN/HD Year

IEC 62053-23 2003 Electricity metering equipment (a.c.) - Particular EN 62053-23 2003
requirements - Part 23: Static meters for reactive
energy (classes 2 and 3)
1)
IEC 62056-6-2 2017 Electricity metering data exchange - The EN 62056-6-2 -
DLMS/COSEM suite - Part 6-2: COSEM interface
classes
IEC 62056-21 2002 Electricity metering - Data exchange for meter EN 62056-21 2002
reading, tariff and load control - Part 21: Direct
local data exchange
IEC/TR 61000-2-8 2002 Electromagnetic compatibility (EMC) - Part 2-8: - -
Environment - Voltage dips and short
interruptions on public electric power supply
systems with statistical measurement results
IEC/TR 62051 1999 Electricity metering - Glossary of terms - -
IEC/TR 62051-1 2004 Electricity metering - Data exchange for meter - -
reading, tariff and load control - Glossary of
terms - Part 1: Terms related to data exchange
with metering equipment using DLMS/COSEM

1)
At draft stage.
IEC 62056-6-1 ®
Edition 3.0 2017-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electricity metering data exchange – The DLMS/COSEM suite –

Part 6-1: Object Identification System (OBIS)

Échange des données de comptage de l'électricité – La suite DLMS/COSEM –

Partie 6-1: Système d’identification des objets (OBIS)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.220; 35.110; 91.140.50 ISBN 978-2-8322-4600-9

– 2 – IEC 62056-6-1:2017  IEC 2017

CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms, definitions and abbreviated terms . 9
3.1 Terms and definitions . 9
3.2 Abbreviated terms . 9
4 OBIS code structure . 9
4.1 Value groups and their use . 9
4.2 Manufacturer specific codes . 10
4.3 Reserved ranges . 10
4.4 Summary of rules for manufacturer, utility, consortia and country specific
codes . 10
4.5 Standard object codes . 11
5 Value group definitions – overview . 12
5.1 Value group A . 12
5.2 Value group B . 12
5.3 Value group C . 12
5.3.1 General . 12
5.3.2 Abstract objects . 13
5.4 Value group D . 13
5.4.1 General . 13
5.4.2 Consortia specific identifiers . 13
5.4.3 Country specific identifiers . 14
5.4.4 Identification of general and service entry objects . 15
5.5 Value group E . 15
5.6 Value group F . 16
5.6.1 General . 16
5.6.2 Identification of billing periods . 16
6 Abstract objects (Value group A = 0) . 16
6.1 General and service entry objects – Abstract . 16
6.2 Error registers, alarm registers / filters / descriptor objects – Abstract . 20
6.3 List objects – Abstract . 21
6.4 Register table objects – Abstract . 21
6.5 Data profile objects – Abstract . 21
7 Electricity (Value group A = 1) . 22
7.1 Value group C codes – Electricity . 22
7.2 Value group D codes – Electricity . 24
7.2.1 Processing of measurement values . 24
7.2.2 Use of value group D for identification of other objects . 27
7.3 Value group E codes – Electricity . 27
7.3.1 General . 27
7.3.2 Tariff rates . 27
7.3.3 Harmonics . 28
7.3.4 Phase angles . 28
7.3.5 Transformer and line loss quantities . 29

IEC 62056-6-1:2017  IEC 2017 – 3 –
7.3.6 UNIPEDE voltage dips . 32
7.3.7 Use of value group E for the identification of other objects. 32
7.4 Value group F codes – Electricity . 32
7.4.1 Billing periods . 32
7.4.2 Multiple thresholds . 33
7.5 OBIS codes – Electricity . 33
7.5.1 General and service entry objects – Electricity . 33
7.5.2 Error register objects – Electricity . 37
7.5.3 List objects – Electricity . 37
7.5.4 Data profile objects – Electricity . 37
7.5.5 Register table objects – Electricity . 38
8 Other media (Value group A = 15) . 38
8.1 General . 38
8.2 Value group C codes – Other media . 38
8.3 Value group D codes – Other media .
...
