Safety of transformers, reactors, power supply units and combinations thereof - Part 2-12: Particular requirements and tests for constant voltage transformers and power supply units for constant voltage

IEC 61558-2-12:2011 deals with the safety of constant voltage transformers for general applications and power supply units for constant voltage for general applications. Constant voltage transformers incorporating electronic circuits are also covered by this standard. This second edition cancels and replaces the first edition published in 2001. It constitutes a technical revision. The main changes consist of updating this part in accordance with IEC 61558-1:2009. This part has the status of a group safety publication in accordance with IEC Guide 104: The preparation of safety publications and the use of basic safety publications and group safety publications. The attention of National Committees is drawn to the fact that equipment manufacturers and testing organizations may need a transitional period following publication of a new, amended or revised IEC publication in which to make products in accordance with the new requirements and to equip themselves for conducting new or revised tests. It is the recommendation of the committee that the content of this publication be adopted for implementation nationally not earlier than 12 months from the date of publication. In the meantime, the previous edition can still be ordered by contacting your local IEC member National Committee or the IEC Central Office.

Sicherheit von Transformatoren, Drosseln, Netzgeräten und entsprechende Kombinationen - Teil 2-12: Besondere Anforderungen und Prüfungen für magnetische Spannungskonstanthalter und Netzgeräte, die Spannungskonstanthalter enthalten

Sécurité des transformateurs, bobines d'inductance, blocs d'alimentation et des combinaisons de ces éléments - Partie 2-12: Exigences particulières et essais pour les transformateurs à tension constante et les blocs d'alimentation pour tension constante

La CEI 61558-2-12:2011 traite de la sécurité des transformateurs à tension constante pour applications d'ordre général et des blocs d'alimentation pour tension constante pour applications d'ordre général. Les transformateurs à tension constante incorporant des circuits électroniques sont également couverts par la présente norme. Cette deuxième édition annule et remplace la première édition parue en 2001, dont elle constitue une révision technique. Les principales modifications consistent en la mise à jour de la présente partie, conformément à la CEI 61558-1:2009. La présente partie a le statut de publication groupée de sécurité, conformément au Guide CEI 104: Élaboration des publications de sécurité et utilisation des publications fondamentales de sécurité et publications groupées de sécurité. L'attention des Comités nationaux est attirée sur le fait que les constructeurs des appareils et les organismes d'essai peuvent avoir besoin d'une période transitoire, à la parution d'une publication CEI qu'elle soit nouvelle, modifiée ou révisée, pour mettre les produits en conformité avec les nouvelles exigences et pour s'équiper eux-mêmes afin de réaliser de nouveaux essais ou des essais révisés. Le comité recommande que le contenu de la présente publication soit adopté pour mise en uvre au niveau national au plus tôt 12 mois après la date de publication. Pendant ce temps, l'édition précédente peut toujours être commandée auprès du Comité National CEI de votre pays ou auprès du bureau Central de la CEI.

Varnost transformatorjev, dušilk, napajalnikov in kombinacij teh elementov - 2-12. del: Posebne zahteve in preskusi za transformatorje s konstantno napetostjo in napajalnike s konstantno napetostjo (IEC 61558-2-12:2011)

Ta del IEC 61558 obravnava varnost transformatorjev s konstantno napetostjo za splošno uporabo in napajalnike s konstantno napetostjo za splošno uporabo. V tem standardu so prav tako zajeti transformatorji s konstantno napetostjo, ki vsebujejo elektronska vezja.
OPOMBA 1: Varnost vključuje električne, toplotne in mehanske vidike.
Razen če je drugače navedeno, v nadaljevanju izraz transformator zajema transformatorje s konstantno napetostjo za splošno uporabo in napajalnike s konstantno napetostjo za splošno uporabo.
Ta del velja za nepremične ali prenosne, enofazne ali večfazne, zračno hlajene (naravno ali vsiljeno), samostojne ali povezane transformatorje suhega tipa:
– avtotransformatorji s konstantno napetostjo;
– ločilni transformatorji s konstantno napetostjo;
– izolacijski transformatorji s konstantno napetostjo;
– varnostni izolacijski transformatorji s konstantno napetostjo.
Navitje je lahko inkapsulirano ali nekapsulirano.
Ta standard velja za transformatorje in napajalnike (linearne) z notranjimi obratovalnimi frekvencami, ki ne presegajo 500 Hz.
Ta standard, v kombinaciji z delom za stikalne napajalnike od 2 do 16 (SMPS), velja tudi za napajalnike z notranjimi obratovalnimi frekvencami, višjimi od 500 Hz. Kjer sta zahtevi v nasprotju, ima prednost najstrožja.
Nazivna napetost napajanja ne presega 1000 V izmeničnega toka, nazivna frekvenca napajanja ne presega 500 Hz, notranja obratovalna resonančna frekvenca ne presega 30 kHz in notranja obratovalna frekvenca ne presega 100 MHz.
Nazivna izhodna moč ne presega:
– 40 kVA za enofazne avtotransformatorje s konstantno napetostjo;
– 200 kVA za večfazne avtotransformatorje s konstantno napetostjo;
– 25 kVA za enofazne ločilne transformatorje s konstantno napetostjo in izolacijske transformatorje s konstantno napetostjo;
– 40 kVA za večfazne ločilne transformatorje s konstantno napetostjo in izolacijske transformatorje s konstantno napetostjo;
– 10 kVA za enofazne varnostne izolacijske transformatorje s konstantno napetostjo;
– 16 kVA za večfazne varnostne izolacijske transformatorje s konstantno napetostjo.
Ta del velja za transformatorje brez omejitve nazivne izhodne moči, ki je predmet dogovora med kupcem in proizvajalcem.

General Information

Status
Published
Publication Date
10-Mar-2011
Current Stage
6060 - Document made available
Due Date
11-Mar-2011
Completion Date
11-Mar-2011

RELATIONS

Buy Standard

Standard
EN 61558-2-12:2011
English language
22 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Varnost transformatorjev, dušilk, napajalnikov in kombinacij teh elementov - 2-12. del: Posebne zahteve in preskusi za transformatorje s konstantno napetostjo in napajalnike s konstantno napetostjo (IEC 61558-2-12:2011)Sicherheit von Transformatoren, Drosseln, Netzgeräten und entsprechende Kombinationen - Teil 2-12: Besondere Anforderungen und Prüfungen für magnetische Spannungskonstanthalter und Netzgeräte, die Spannungskonstanthalter enthalten (IEC 61558-2-12:2011)Sécurité des transformateurs, bobines d'inductance, blocs d'alimentation et des combinaisons de ces éléments - Partie 2-12: Exigences particulières et essais pour les transformateurs à tension constante et les blocs d'alimentation pour tension constante (CEI 61558-2-12:2011)Safety of transformers, reactors, power supply units and combinations thereof - Part 2-12: Particular requirements and tests for constant voltage transformers and power supply units for constant voltage (IEC 61558-2-12:2011)29.180Transformatorji. DušilkeTransformers. ReactorsICS:Ta slovenski standard je istoveten z:EN 61558-2-12:2011SIST EN 61558-2-12:2011en01-maj-2011SIST EN 61558-2-12:2011SLOVENSKI

STANDARDSIST EN 61558-2-12:20021DGRPHãþD
SIST EN 61558-2-12:2011
EUROPEAN STANDARD EN 61558-2-12 NORME EUROPÉENNE EUROPÄISCHE NORM March 2011

CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members. Ref. No. EN 61558-2-12:2011 E

ICS 29.180 Supersedes EN 61558-2-12:2001
English version
Safety of transformers, reactors, power supply units
and combinations thereof -

Part 2-12: Particular requirements and tests for constant voltage transformers and power supply units for constant voltage (IEC 61558-2-12:2011)

Sécurité des transformateurs, bobines d'inductance, blocs d'alimentation et des combinaisons de ces éléments -

Partie 2-12: Exigences particulières et essais pour les transformateurs à tension constante et les blocs d'alimentation pour tension constante (CEI 61558-2-12:2011) Sicherheit von Transformatoren, Drosseln, Netzgeräten und entsprechende Kombinationen -

Teil 2-12: Besondere Anforderungen und Prüfungen für magnetische Spannungskonstanthalter und Netzgeräte, die Spannungskonstanthalter enthalten (IEC 61558-2-12:2011)

This European Standard was approved by CENELEC on 2011-03-03. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

SIST EN 61558-2-12:2011

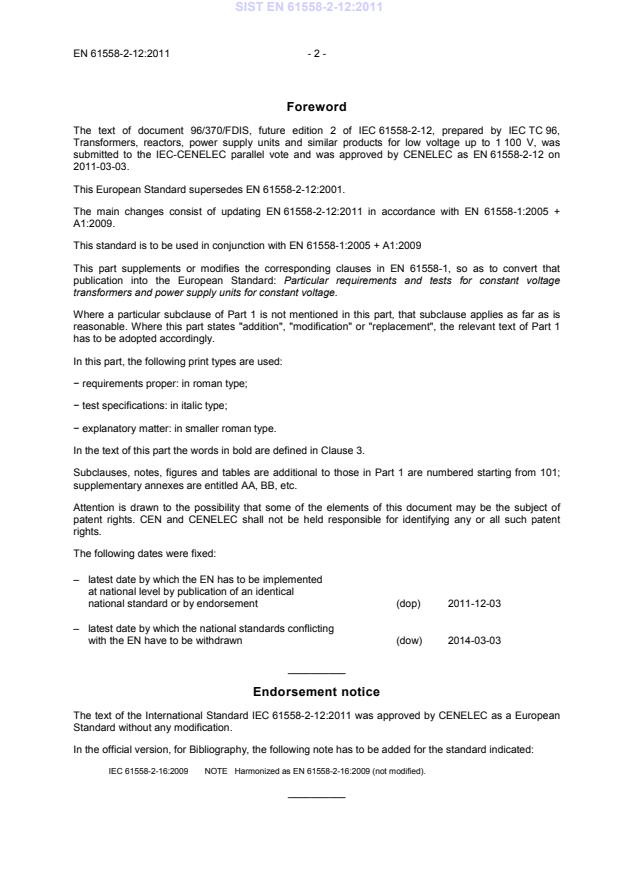

EN 61558-2-12:2011 - 2 -

Foreword The text of document 96/370/FDIS, future edition 2 of IEC 61558-2-12, prepared by IEC TC 96, Transformers, reactors, power supply units and similar products for low voltage up to 1 100 V, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 61558-2-12 on 2011-03-03. This European Standard supersedes EN 61558-2-12:2001. The main changes consist of updating EN 61558-2-12:2011 in accordance with EN 61558-1:2005 + A1:2009. This standard is to be used in conjunction with EN 61558-1:2005 + A1:2009 This part supplements or modifies the corresponding clauses in EN 61558-1, so as to convert that publication into the European Standard: Particular requirements and tests for constant voltage transformers and power supply units for constant voltage. Where a particular subclause of Part 1 is not mentioned in this part, that subclause applies as far as is reasonable. Where this part states "addition", "modification" or "replacement", the relevant text of Part 1 has to be adopted accordingly. In this part, the following print types are used: − requirements proper: in roman type; − test specifications: in italic type; − explanatory matter: in smaller roman type. In the text of this part the words in bold are defined in Clause 3. Subclauses, notes, figures and tables are additional to those in Part 1 are numbered starting from 101; supplementary annexes are entitled AA, BB, etc. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent rights. The following dates were fixed: – latest date by which the EN has to be implemented

at national level by publication of an identical
national standard or by endorsement
(dop)
2011-12-03 – latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow)

2014-03-03 __________ Endorsement notice The text of the International Standard IEC 61558-2-12:2011 was approved by CENELEC as a European Standard without any modification. In the official version, for Bibliography, the following note has to be added for the standard indicated: IEC 61558-2-16:2009 NOTE

Harmonized as EN 61558-2-16:2009 (not modified). __________ SIST EN 61558-2-12:2011

IEC 61558-2-12 Edition 2.0 2011-01

INTERNATIONAL STANDARD NORME INTERNATIONALE Safety of transformers, reactors, power supply units and combination thereof –

Part 2-12: Particular requirements and tests for constant voltage transformers and power supply units for constant voltage

Sécurité des transformateurs, bobines d’inductance, blocs d’alimentation et des combinaisons de ces éléments –

Partie 2-12: Exigences particulières et essais pour les transformateurs à tension constante et les blocs d'alimentation pour tension constante

INTERNATIONAL ELECTROTECHNICAL COMMISSION COMMISSION ELECTROTECHNIQUE INTERNATIONALE S ICS 29.180 PRICE CODE CODE PRIX GROUP SAFETY PUBLICATION PUBLICATION GROUPÉE DE SÉCURITÉ

ISBN 978-2-88912-341-4
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale ®
SIST EN 61558-2-12:2011

– 2 – 61558-2-12  IEC:2011 CONTENTS FOREWORD ........................................................................................................................... 3 1 Scope ............................................................................................................................... 5 2 Normative references ....................................................................................................... 7 3 Terms and definitions ....................................................................................................... 7 4 General requirements ....................................................................................................... 7 5 General notes on tests ..................................................................................................... 7 6 Ratings ............................................................................................................................. 7 7 Classification .................................................................................................................... 8 8 Marking and other information .......................................................................................... 8 9 Protection against electric shock ...................................................................................... 9 10 Change of input voltage setting ........................................................................................ 9 11 Output voltage and output current under load ................................................................... 9 12 No-load output voltage ................................................................................................... 10 13 Short-circuit voltage ....................................................................................................... 11 14 Heating .......................................................................................................................... 11 15 Short-circuit and overload protection .............................................................................. 11 16 Mechanical strength ....................................................................................................... 12 17 Protection against harmful ingress of dust, solid objects and moisture ............................ 12 18 Insulation resistance, dielectric strength and leakage current ......................................... 12 19 Construction ................................................................................................................... 13 20 Components ................................................................................................................... 17 21 Internal wiring ................................................................................................................. 17 22 Supply connection and other external flexible cables or cords ........................................ 17 23 Terminals for external conductors ................................................................................... 17 24 Provision for protective earthing ..................................................................................... 17 25 Screws and connections ................................................................................................. 17 26 Creepage distances, clearances and distances through insulation .................................. 17 27 Resistance to heat, fire and tracking ............................................................................... 18 28 Resistance to rusting ...................................................................................................... 18 Annexes ............................................................................................................................... 19 Annex C (normative) ............................................................................................................. 19 Annex D (normative) ............................................................................................................. 19 Annex L (normative) ............................................................................................................. 19 Annex R (normative) ............................................................................................................. 19 Bibliography .......................................................................................................................... 20

SIST EN 61558-2-12:2011

61558-2-12  IEC:2011 – 3 – INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________

SAFETY OF TRANSFORMERS, REACTORS,
POWER SUPPLY UNITS AND COMBINATION THEREOF –
Part 2-12: Particular requirements and tests
for constant voltage transformers
and power supply units for constant voltage

FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any services carried out by independent certification bodies. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 61558-2-12 has been prepared by IEC technical committee 96: Transformers, reactors, power supply units, and combination thereof.

This second edition cancels and replaces the first edition published in 2001. It constitutes a technical revision. The main changes consist of updating this part in accordance with IEC 61558-1:2009.

This part has the status of a group safety publication in accordance with IEC Guide 104: The preparation of safety publications and the use of basic safety publications and group safety publications. SIST EN 61558-2-12:2011

– 4 – 61558-2-12  IEC:2011 The text of this standard is based upon the following documents: FDIS Report on voting 96/253/FDIS 96/266/RVD

Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. This part is intended to be used in conjunction with the latest edition of IEC 61558-1 and its amendments. It is based on the second edition (2005) of that standard. This part supplements or modifies the corresponding clauses in IEC 61558-1, so as to convert that publication into the IEC standard: Particular requirements and tests for constant voltage transformers and power supply units for constant voltage. A list of all parts of the IEC 61558 series, under the general title: Safety of transformers, reactors, power supply units and combinations thereof, can be found on the IEC website. Future standards in this series will carry the new general title as cited above. Titles of existing standards in this series will be updated at the time of the next edition. Where a particular subclause of Part 1 is not mentioned in this part, that subclause applies as far as is reasonable. Where this part states "addition", "modification" or "replacement", the relevant text of Part 1 has to be adopted accordingly. In this part, the following print types are used: − requirements proper: in roman type; − test specifications: in italic type; − explanatory matter: in smaller roman type. In the text of this part the words in bold are defined in Clause 3. Subclauses, notes, figures and tables are additional to those in Part 1 are numbered starting from 101; supplementary annexes are entitled AA, BB, etc. The committee has decided that the contents of this publication will remain unchanged until the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be

• reconfirmed, • withdrawn, • replaced by a revised edition, or • amended. NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing organizations may need a transitional period following publication of a new, amended or revised IEC publication in which to make products in accordance with the new requirements and to equip themselves for conducting new or revised tests. It is the recommendation of the committee that the content of this publication be adopted for implementation nationally not earlier than 12 months from the date of publication. SIST EN 61558-2-12:2011

61558-2-12  IEC:2011 – 5 – SAFETY OF TRANSFORMERS, REACTORS,
POWER SUPPLY UNITS AND COMBINATION THEREOF –
Part 2-12: Particular requirements and tests
for constant voltage transformers
and power supply units for constant voltage

1 Scope Replacement: This part of IEC 61558 deals with the safety of constant voltage transformers for general applications and power supply units for constant voltage for general applications. Constant voltage transformers incorporating electronic circuits are also covered by this standard. NOTE 1 Safety includes electrical, thermal and mechanical aspects. Unless otherwise specified, from here onward, the term transformer covers constant voltage transformers for general applications and power supply units for constant voltage for general applications. This part is applicable to stationary or portable, single-phase or polyphase, air-cooled (natural or forced), independent or associated dry-type:

– constant voltage auto-transformers; – constant voltage separating transformers; – constant voltage isolating transformers; – constant voltage safety isolating transformers. The windings may be encapsulated or non-encapsulated. This standard is applicable to transformers and power supply (linear) with internal operating frequencies not exceeding 500 Hz. This standard used in combination with Part 2-16 for switch mode power supply (SMPS) units is also applicable to power supplies with internal operating frequencies higher than 500 Hz. Where the two requirements are in conflict, the most severe take precedence. The rated supply voltage does not exceed 1 000 V a.c., the rated supply frequency does not exceed 500 Hz, the internal operating resonant frequency does not exceed 30 kHz and the internal operating frequency does not exceed 100 MHz. The rated output does not exceed: – 40 kVA for single-phase constant voltage auto-transformers; – 200 kVA for poly-phase constant voltage auto-transformers; – 25 kVA for single-phase constant voltage separating transformers and constant voltage isolating transformers; – 40 kVA for poly-phase constant voltage separating transformers and constant voltage isolating transformers; – 10 kVA for single-phase constant voltage safety isolating transformers; SIST EN 61558-2-12:2011

– 6 – 61558-2-12  IEC:2011 – 16 kVA for poly-phase constant voltage safety isolating transformers. This part is applicable to transformers without limitation of the rated output subject to an agreement between the purchaser and the manufacturer.

NOTE 2 Transformers intended to supply distribution networks are not included in the scope. Where applicable to constant voltage auto-transformers – the no-load output voltage or the rated output voltage does not exceed 1 000 V a.c. or 1 415 V ripple-free d.c., and for independent constant voltage auto-transformers, the no-load output voltage and the rated output voltage exceed 50 V a.c. or 120 V ripple-free d.c.; – constant voltage auto-transformers covered by this part are used only in applications where no insulation between circuits is required by the installation rules or by the end product standard. Where applicable to constant voltage separating transformers – the no-load output voltage or the rated output voltage does not exceed 1 000 V a.c. or 1 415 V ripple-free d.c., and for independent constant voltage separating transformers, the no-load output voltage and the rated output voltage exceed 50 V a.c. or 120 V ripple-free d.c.; – constant voltage separating transformers covered by this part are used only in applications where double or reinforced insulation between circuits is not required by the installation rules or by the end product standard. Where applicable to constant voltage isolating transformers – the no-load output voltage or the rated output voltage does exceed 50 V a.c. or 120 V ripple-free d.c. and where applicable, does not exceed 500 V a.c. or 708 V ripple-free d.c. The no-load output voltage and the rated output voltage may be up to 1 000 V a.c. or 1 415 V ripple-free d.c. for special applications; – constant voltage isolating transformers covered by this part are used only in applications where double or reinforced insulation between circuits is required by the installation rules or by the end product standard. Where applicable to constant voltage safety isolating transformers – the no-load output voltage or the rated output voltage does not exceed 50 V a.c. or 120 V ripple-free d.c.; – constant voltage safety isolating transformers covered by this part are used only in applications where double or reinforced insulation between circuits is required by the installation rules or by the end product standard. This part is not applicable to external circuits and their components intended to be connected to the input terminals and output terminals of the transformers. NOTE 3 Attention is drawn to the following: – for transformers intended to be used in vehicles, on board ships, and aircraft, additional requirements (from other applicable standards, national rules, etc.) may be necessary; – measures to protect the enclosure and the components inside the enclosure against external influences such as fungus, vermin, termites, solar-radiation, and icing should also be considered;

– the different conditions for transportation, storage, and operation of the transformers should also be considered; – additional requirements in accordance with other appropriate standards and national rules may be applicable to transformers intended for use in special environments. NOTE 4 Future technological development of transformers may necessitate a need to increase the upper limit of the frequencies, until then this part may be used as a guidance document. SIST EN 61558-2-12:2011

61558-2-12  IEC:2011 – 7 – 2 Normative references This clause of Part 1 is applicable. 3 Terms and definitions This clause of Part 1 is applicable except as follows: Addition: 3.101 constant voltage transformer transformer intended to limit the influence of the input voltage variations NOTE This type of transformer may also limit the influence of transients. 3.102 regulation tolerance deviation in per cent of the rated output voltage when the constant voltage transformer is supplied within the rated supply voltage variation 3.103 internal operating resonant frequency frequency produced within a constant voltage transformer

4 General requirements This clause of Part 1 is applicable. 5 General notes on tests This clause of Part 1 is applicable. 6 Ratings This clause of Part 1 is applicable except as follows: Addition: 6.101 The rated output voltage shall not exceed: – 1 000 V a.c. or 1 415 V ripple-free d.c. for constant voltage auto-transformers and constant voltage separating transformers; – 250 V a.c. for single-phase portable constant voltage isolating transformers; – 400 V a.c. for polyphase portable constant voltage isolating transformers, and – 500 V a.c. or 708 V ripple-free d.c. for constant voltage isolating transformers. For constant voltage isolating transformers, the rated output voltage may be up to 1 000 V a.c. or 1 415 V ripple-free d.c. to be in accordance with the national wiring rules or for a special purpose; – 50 V a.c. or 120 V ripple-free d.c. for constant voltage safety isolating transformers. SIST EN 61558-2-12:2011

– 8 – 61558-2-12  IEC:2011 The rated output voltage shall exceed: – 50 V a.c. or 120 V ripple-free d.c. for independent constant voltage auto-transformers, constant voltage separating transformers and constant voltage isolating transformers. 6.102 The rated output shall not exceed: – 40 kVA for single-phase constant voltage auto-transformers, – 200 kVA for polyphase constant voltage auto-transformers, – 25 kVA for single-phase constant voltage separating and isolating transformers, – 40 kVA for polyphase constant voltage separating and isolating transformers, – 10 kVA for single-phase constant voltage safety isolating transformers, – 16 kVA for polyphase constant voltage safety isolating transformers, except for constant voltage transformers subject to an agreement between the purchaser and the manufacturer. 6.103 The rated supply frequency shall not exceed 500 Hz. 6.104 The rated value of the output regulation tolerance shall be given at the rated supply voltage range, the rated output, and the power factor = 1. 6.105 For constant voltage independent transformers, the input voltage variation shall not be less than 10 %. 6.106 The internal operating resonant frequency shall not exceed 30 kHz. 6.107 The internal operating frequency shall not exceed 100 MHz. Compliance with 6.101 to 6.107 is checked by inspection of the marking. 7 Classification This clause of Part 1 is applicable. 8 Marking and other information This clause of Part 1 is applicable except as follows: 8.1 a) Replacement of the first sentence by the following: rated supply voltage(s) and the input voltage variation in %; 8.1 b) Replacement of the first sentence by the following: Replace the first sentence by the following: rated output voltage(s) and the regulation tolerance of this voltage(s) in %; 8.1 h) Replacement of the first sentence by the following: relevant graphical symbols shown in 8.11 indicating the kind of transformer; SIST EN 61558-2-12:2011

61558-2-12  IEC:2011 – 9 – 8.11 Addition: Symbol or graphical symbol Explanation or title Identification

Fail-safe constant voltage separating transformer IEC 60417-6011
Non-short-circuit-proof constant voltage separating transformer IEC 60417-6011
Short-circuit-proof constant voltage separating transformer IEC 60417-6011
Fail-safe constant voltage isolating transformer IEC 60417-6012
Non-short-circuit-proof constant voltage isolating transformer IEC 60417-6012
Short-circuit-proof constant voltage isolating transformer IEC 60417-6012
Fail-safe constant voltage safety isolating transformer IEC 60417-6013

Non-short-circuit-proof constant voltage safety isolating transformer IEC 60417-6013

Short-circuit-proof constant voltage safety isolating transformer IEC 60417-6013
Fail-safe constant voltage auto-transformer IEC 60417-6017
Non-short-circuit-proof constant voltage auto-transformer IEC 60417-6017
Short-circuit-proof constant voltage auto-transformer IEC 60417-6017

9 Protection against electric shock This clause of Part 1 is applicable. 10 Change of input voltage setting This clause of Part 1 is applicable. 11 Output voltage and output current under load This clause of Part 1 is applicable except as follows: 11.1 Replacement: SIST EN 61558-2-12:2011

– 10 – 61558-2-12  IEC:2011 11.1 When the transformer is connected to the rated supply voltage plus or minus the input voltage variation declared by the manufacturer, at the rated supply frequency, and loaded with an impedance resulting in the rated output at the rated output voltage and, for a.c., at the rated power factor, the output voltage shall not differ from the rated value by more than the regulation tolerance. Compliance is checked by measuring the output voltage when steady-state conditions are established. During the test, the transformer is connected to the rated supply voltage, plus or minus the highest input voltage variation, at the rated supply frequency, and loaded with an impedance resulting in the rated output at the rated output voltage and the rated power factor. For transformers incorporating a rectifier, the output voltage shall be measured at the terminals of the d.c. circuit by means of a voltmeter giving the arithmetical mean value, unless the effective (r.m.s.) value is specifically stated (see 8.1). For transformers with more than one rated supply voltage, the requirement is applicable for each of the rated supply voltages. For transformers with multiple output windings, the loads are applied to every multiple section simultaneously, unl

...
