EN 50160:2022/A1:2025
(Amendment)Voltage characteristics of electricity supplied by public electricity networks
Voltage characteristics of electricity supplied by public electricity networks
This document specifies the main characteristics of the voltage at a network user's supply terminals in public low voltage, medium, high, and extra-high voltage AC electricity networks under normal operating conditions. This document specifies the limits or values within which the voltage characteristics can be expected to remain at any supply terminal in public European electricity networks, only. Industrial networks are excluded from the scope of EN 50160. NOTE 1 If non-public networks (e.g. residential quarters, energy communities, office centres, shopping centres) have similar end-users as public networks, it is strongly advised to apply the same requirements as for public networks. This document does not apply under abnormal operating conditions, including the following: a) a temporary supply arrangement to keep network users supplied during conditions arising as a result of a fault, maintenance and construction work, or to minimize the extent and duration of a loss of supply; b) in the case of non-compliance of a network user's installation or equipment with the relevant standards or with the technical requirements for connection, established either by the public authorities or the network operator, including the limits for the emission of conducted disturbances; NOTE 2 A network user’s installation can include load and generation. c) in exceptional situations, in particular: 1) exceptional weather conditions and other natural disasters; 2) third party interference; 3) acts by public authorities, 4) industrial actions (subject to legal requirements); 5) force majeure; 6) power shortages resulting from external events. The voltage characteristics given in this document refer to conducted disturbances in public electric power networks. They are not intended to be used as electromagnetic compatibility (EMC) levels or product emission limits. Power quality is related to EMC in several ways - especially because compliance with power quality requirements depends on the control of cumulative effect of electromagnetic emissions from all/multiple equipment and/or installations. Therefore, the voltage characteristics given in this document gives guidance for specifying requirements in equipment product standards and in installation standards. NOTE 3 The performance of equipment might be impaired if it is subjected to supply conditions which are not specified in the equipment product standard. NOTE 4 This document can be superseded in total or in part by the terms of a contract between the individual network user and the network operator. The sharing of complaint management and problem mitigation costs between the involved parties is outside the scope of EN 50160. Measurement methods to be applied in this document are described in EN 61000-4-30.
Merkmale der Spannung in öffentlichen Energieversorgungsnetzen
Caractéristiques de la tension fournie par les réseaux publics d'electricité
Značilnosti napetosti v javnih razdelilnih omrežjih - Dopolnilo A1
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2024
Značilnosti napetosti v javnih razdelilnih omrežjih - Dopolnilo A1
Voltage characteristics of electricity supplied by public electricity networks
Merkmale der Spannung in öffentlichen Energieversorgungsnetzen
Caractéristiques de la tension fournie par les réseaux publics d'electricité
Ta slovenski standard je istoveten z: EN 50160:2022/prA1:2024
ICS:
29.240.01 Omrežja za prenos in Power transmission and
distribucijo električne energije distribution networks in
na splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD DRAFT
EN 50160:2022
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
June 2024
ICS 29.020 -
English Version
Voltage characteristics of electricity supplied by public electricity
networks
Caractéristiques de la tension fournie par les réseaux Merkmale der Spannung in öffentlichen
publics d'electricité Energieversorgungsnetzen
This draft amendment prA1, if approved, will modify the European Standard EN 50160:2022; it is submitted to CENELEC members for
enquiry.
Deadline for CENELEC: 2024-09-13.
It has been drawn up by CLC/TC 8X.
If this draft becomes an amendment, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.
This draft amendment was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 78493 Ref. No. EN 50160:2022/prA1:2024 E
EN 50160:2022/prA1 (E)

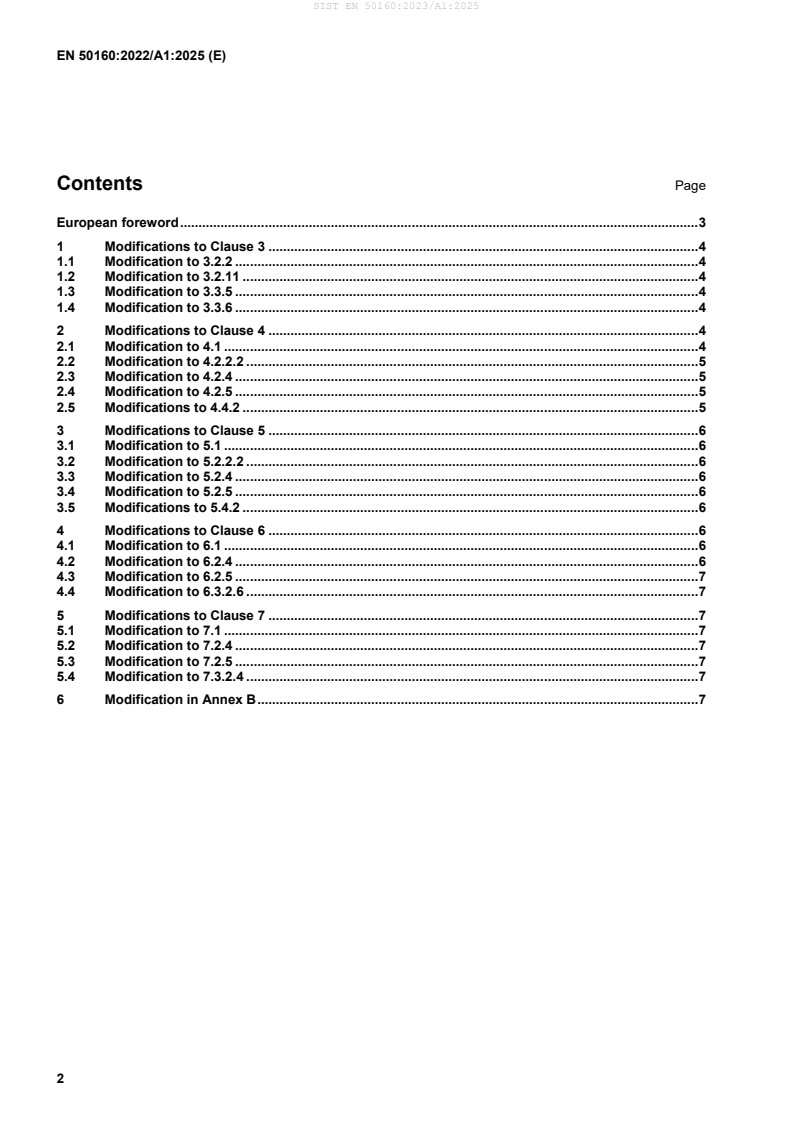

10 Contents Page
11 European foreword . 3
12 1 Modifications to Clause 3 . 4
13 1.1 Modification to 3.2.2 . 4
14 1.2 Modification to 3.2.11 . 4
15 1.3 Modification to 3.3.5 . 4
16 1.4 Modification to 3.3.6 . 4
17 2 Modifications to Clause 4 . 4
18 2.1 Modification to 4.1 . 4
19 2.2 Modification to 4.2.2.2 . 5
20 2.3 Modification to 4.2.4 . 5
21 2.4 Modification to 4.2.5 . 5
22 2.5 Modifications to 4.4.2 . 5
23 3 Modifications to Clause 5 . 6
24 3.1 Modification to 5.1 . 6
25 3.2 Modification to 5.2.4 . 6
26 3.3 Modification to 5.2.5 . 6
27 3.4 Modifications to 5.4.2 . 6
28 4 Modifications to Clause 6 . 6
29 4.1 Modification to 6.1 . 6
30 4.2 Modification to 6.2.4 . 6
31 4.3 Modification to 6.2.5 . 7
32 4.4 Modification to 6.3.2.6 . 7
33 5 Modifications to Clause 7 . 7
34 5.1 Modification to 7.1 General . 7
35 5.2 Modification to 7.2.4 . 7
36 5.3 Modification to 7.2.5 . 7
37 5.4 Modification to 7.3.2.4 . 7
EN 50160:2022/prA1 (E
...
