EUROPEAN STANDARD EN 61883-4
NORME EUROPÉENNE
EUROPÄISCHE NORM November 2005
ICS 35.200; 33.160.01 Supersedes EN 61883-4:1998
English version
Consumer audio/video equipment -
Digital interface
Part 4: MPEG2-TS data transmission
(IEC 61883-4:2004)
Matériel audio/vidéo grand public - Audio/Video-Geräte der
Interface numérique Unterhaltungselektronik -
Partie 4: Transmission de données Digitale Schnittstelle
MPEG2-TS Teil 4: MPEG2-TS-Datenübertragung
(CEI 61883-4:2004) (IEC 61883-4:2004)

This European Standard was approved by CENELEC on 2005-11-01. CENELEC members are bound to

comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European

Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on

application to the Central Secretariat or to any CENELEC member.

This European Standard exists in two official versions (English, German). A version in any other language

made by translation under the responsibility of a CENELEC member into its own language and notified to the

Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech

Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,

Switzerland and United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2005 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61883-4:2005 E
---------------------- Page: 2 ----------------------

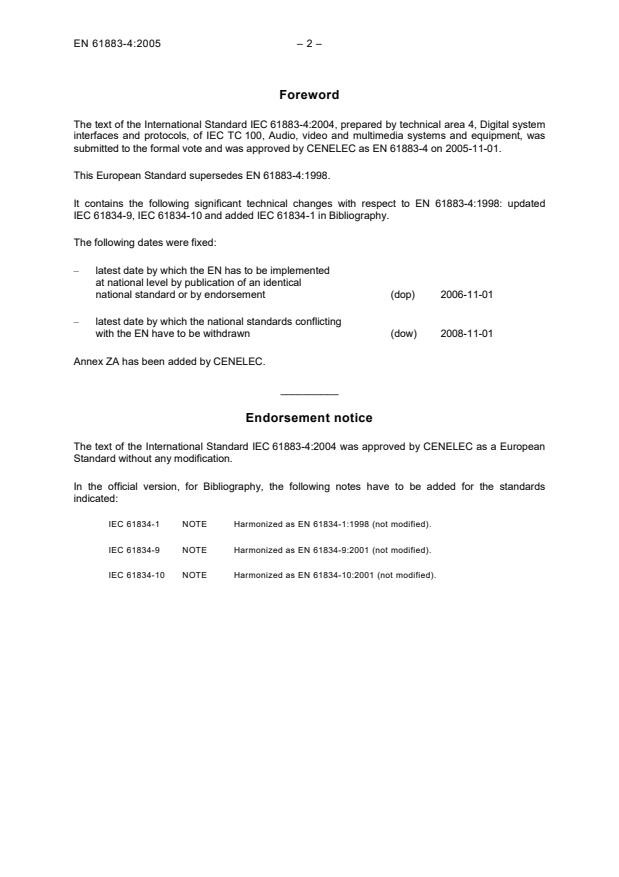

EN 61883-4:2005 – 2 –
Foreword

The text of the International Standard IEC 61883-4:2004, prepared by technical area 4, Digital system

interfaces and protocols, of IEC TC 100, Audio, video and multimedia systems and equipment, was

submitted to the formal vote and was approved by CENELEC as EN 61883-4 on 2005-11-01.

This European Standard supersedes EN 61883-4:1998.

It contains the following significant technical changes with respect to EN 61883-4:1998: updated

IEC 61834-9, IEC 61834-10 and added IEC 61834-1 in Bibliography.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2006-11-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2008-11-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice

The text of the International Standard IEC 61883-4:2004 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards

indicated:
IEC 61834-1 NOTE Harmonized as EN 61834-1:1998 (not modified).
IEC 61834-9 NOTE Harmonized as EN 61834-9:2001 (not modified).
IEC 61834-10 NOTE Harmonized as EN 61834-10:2001 (not modified).
---------------------- Page: 3 ----------------------
– 3 – EN 61883-4:2005
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

NOTE Where an international publication has been modified by common modifications, indicated by (mod), the relevant

EN/HD applies.
Publication Year Title EN/HD Year
1) 2)
IEC 61883-1 - Consumer audio/video equipment - EN 61883-1 2003
Digital interface
Part 1: General
ISO/IEC 13818-1 - Information technology - Generic coding - -
of moving pictures and associated audio
information
Part 1: Systems
ISO/IEC 13818-2 - Part 2: Video - -
ISO/IEC 13818-3 - Part 3: Audio - -
1) 2)

ISO/IEC 13818-9 - Part 9: Extension for real time interface EN ISO/IEC 13818-9 2000

for system decoders
ETSI EN 300 468 - Digital Video Broadcasting (DVB); - -
Specification for Service Information
(SI) in DVB systems
Undated reference.
Valid edition at date of issue.
---------------------- Page: 4 ----------------------
INTERNATIONAL IEC
STANDARD 61883-4
Second edition
2004-08
Consumer audio/video equipment –
Digital interface –
Part 4:
MPEG2-TS data transmission
” IEC 2004  Copyright - all rights reserved

No part of this publication may be reproduced or utilized in any form or by any means, electronic or

mechanical, including photocopying and microfilm, without permission in writing from the publisher.

International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland

Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch

PRICE CODE
Commission Electrotechnique Internationale
International Electrotechnical Commission
ɆɟɠɞɭɧɚɪɨɞɧɚɹɗɥɟɤɬɪɨɬɟɯɧɢɱɟɫɤɚɹɄɨɦɢɫɫɢɹ
For price, see current catalogue
---------------------- Page: 5 ----------------------
– 2 – 61883-4 ” IEC:2004(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
__________
CONSUMER AUDIO/VIDEO EQUIPMENT –
DIGITAL INTERFACE –
Part 4: MPEG2-TS data transmission
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any

equipment declared to be in conformity with an IEC Publication.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61883-4 has been prepared by technical area 4: Digital system

interfaces and protocols, of IEC technical committee 100: Audio, video and multimedia

systems and equipment.

This second edition of IEC 61883-4 cancels and replaces the first edition published in 1998.

This edition contains the following significant technical changes with respect to the previous

edition:
Updated IEC 61834-9, IEC 61834-10 and added IEC 61834-1 in Bibliography.
---------------------- Page: 6 ----------------------
61883-4 ” IEC:2004(E) – 3 –
The text of this standard is based on the following documents:
CDV Report on voting
100/729/CDV 100/818/RVC

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

IEC 61883 consists of the following parts under the general title Consumer audio/video

equipment – Digital interface:
Part 1: General
Part 2: SD-DVCR data transmission
Part 3: HD-DVCR data transmission
Part 4: MPEG2-TS data transmission
Part 5: SDL-DVCR data transmission
Part 6: Audio and music data transmission protocol
Part 7: Transmission of ITU-R BO.1294 System B

The committee has decided that the contents of this publication will remain unchanged until

the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in

the data related to the specific publication. At this date, the publication will be

 reconfirmed;
 withdrawn;
 replaced by a revised edition, or
 amended.
A bilingual version of this document may be issued at a later date.
---------------------- Page: 7 ----------------------
– 4 – 61883-4 ” IEC:2004(E)
CONSUMER AUDIO/VIDEO EQUIPMENT –
DIGITAL INTERFACE –
Part 4: MPEG2-TS data transmission
1 Scope

This part of IEC 61883 describes the packetization and the transmission timing for MPEG2

transport streams for the IEEE 1394 digital interface. It describes the specifications for the

IEEE 1394 packet, the CIP header and the transmission timing for use with the transport

stream as specified in prETS 300 468. This explanation is based on the transport stream as

specified in DVB.
2 Normative reference

The following referenced documents are indispensable for the application of this document.

For dated references, only the edition cited applies. For undated references, the latest edition

of the referenced document (including any amendments) applies.

IEC 61883-1, Consumer audio/video equipment – Digital interface – Part 1: General

ISO/IEC 13818-1, Information technology – Generic coding of moving pictures and associated

audio information: Systems

ISO/IEC 13818-2, Information technology – Generic coding of moving pictures and associated

audio information: Video

ISO/IEC 13818-3, Information technology – Generic coding of moving pictures and associated

audio information – Part 3: Audio

ISO/IEC 13818-9, Information technology – Generic coding of moving pictures and associated

audio information – Part 9: Extension for real time interface for system decoders

prETS 300 468, Digital broadcasting systems for television, sound and data services –

Specification for Service Information (SI) in digital video broadcasting (DVB) systems

3 Terms, definitions, and abbreviations
For the purposes of this document, the following abbreviations apply:
CIP Common Isochronous Packet
CTR Cycle Time Register
DVB
...

Questions, Comments and Discussion
