This European Standard applies to junction boxes up to 1 500 V DC for use on photovoltaic modules according to application class A of EN 61730-1:2007. NOTE For junction boxes according to application classes B and C of EN 61730-1:2007 in photovoltaic-systems, this standard can be used as a guideline.
Anschlussdosen für Photovoltaik-Module
Boîtes de jonction pour modules photovoltaïques
Priključnice fotonapetostnih modulov
Ta evropski standard velja za priključnice do 1 500 V DC za uporabo pri fotonapetosnih modulih v skladu z razredom uporabe A EN 61730-1:2007.
OPOMBA: Za priključnice v skladu z razredi uporabe B in C EN 61730-1:2007 v fotonapetostnih sistemih se lahko ta standard uporabi kot smernica.
General Information
Relations
Standards Content (Sample)

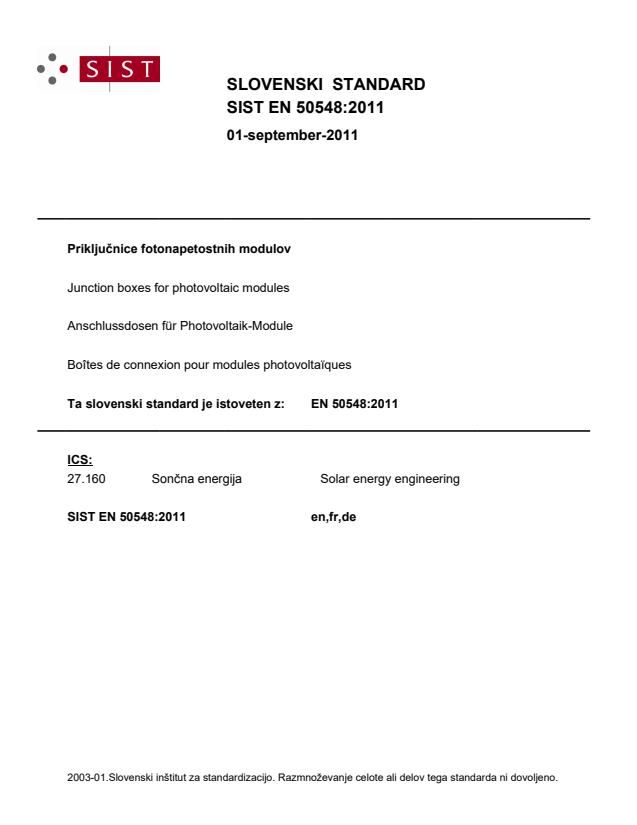

SLOVENSKI STANDARD
01-september-2011
3ULNOMXþQLFHIRWRQDSHWRVWQLKPRGXORY
Junction boxes for photovoltaic modules
Anschlussdosen für Photovoltaik-Module
Boîtes de connexion pour modules photovoltaïques
Ta slovenski standard je istoveten z: EN 50548:2011
ICS:
27.160 6RQþQDHQHUJLMD Solar energy engineering
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 50548
NORME EUROPÉENNE
June 2011
EUROPÄISCHE NORM
ICS 27.160

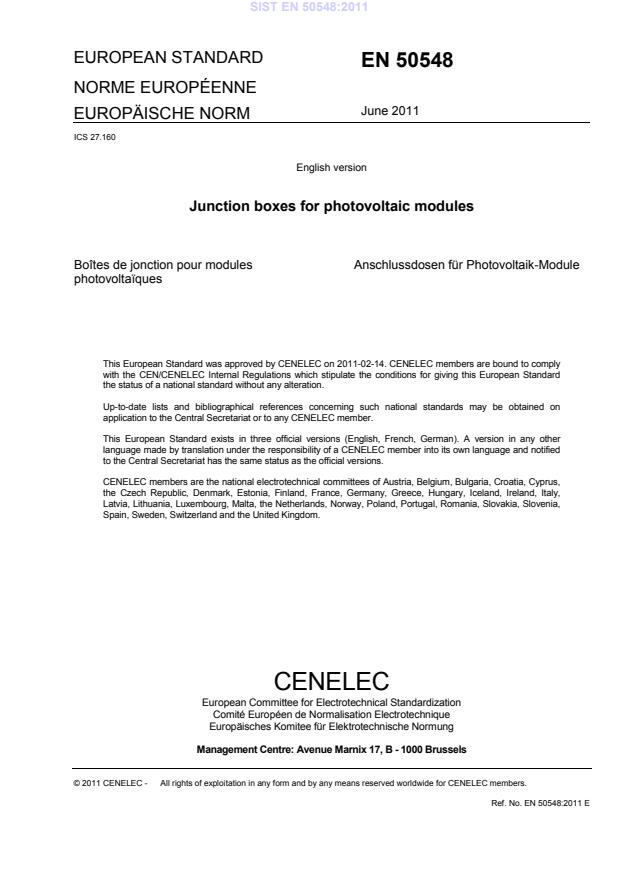

English version
