IEC 61937-2:2003

Digital audio - Interface for non-linear PCM encoded audio bitstreams applying IEC 60958 - Part 2: Burst-info

specifies a widely used interface for digital audio equipment with two-channel linear PCM audio. This part of IEC 61937 describes how the interface is used to convey non-linear PCM encoded audio streams.

General Information

• Status: Published
• Publication Date: 15-May-2003
• ICS: 33.160.30 - Audio systems
• Technical Committee: TC 100 - Audio, video and multimedia systems and equipment
• Drafting Committee: MT 61937-2 - TC 100/TA 20/MT 61937-2
• Current Stage: DELPUB - Deleted Publication
• Start Date: 23-May-2007
• Completion Date: 26-Oct-2025

Relations

• Replaces: IEC 61937:2000 - Digital audio - Interface for non-linear PCM encoded audio bitstreams applying IEC 60958
• Effective Date: 05-Sep-2023
• Corrected By: IEC 61937-2:2003/COR1:2004 - Corrigendum 1 - Digital audio - Interface for non-linear PCM encoded audio bitstreams applying IEC 60958 - Part 2: Burst-info
• Effective Date: 05-Sep-2023
• Revised: IEC 61937-2:2007 - Digital audio - Interface for non-linear PCM encoded audio bitstreams applying IEC 60958 - Part 2: Burst-info
• Effective Date: 05-Sep-2023

Overview

IEC 61937-2:2003 - Digital audio: Interface for non-linear PCM encoded audio bitstreams applying IEC 60958 - Part 2: Burst‑info - defines the burst‑info and packetization rules used to carry compressed (non‑linear PCM) audio bitstreams over standard digital audio interfaces specified by IEC 60958 (e.g., S/PDIF, AES3). The document describes how encoded audio frames (AC‑3, MPEG, AAC, DTS, ATRAC, etc.) are wrapped into 16‑bit words, prefixed by a burst‑preamble and a 16‑bit burst‑info header, and transmitted as audio data‑bursts.

Key topics and technical requirements

• Burst‑info (16‑bit): Contains metadata about the upcoming data‑burst (data‑type, flags, bitstream number, error indicator). It tells receivers how to interpret the burst‑payload.
• Audio data‑burst structure: Each data‑burst comprises a burst‑preamble (synchronization + descriptors) followed by the burst‑payload (encoded audio frame).
• Data‑types and mappings: The standard enumerates data‑types for common compressed formats (examples: AC‑3 (01h), MPEG‑1 layer‑1 (04h), MPEG‑1/2 layer‑2/3 (05h), MPEG‑2 with extension (06h), AAC (07h), DTS, ATRAC). Table entries specify reference points, frame sample counts, and repetition behavior.
• Terminology and primitives: Defines core terms such as audio frame, encoded audio frame, data‑burst, burst‑payload, length‑code, stuffing, stream gap, and audio data‑word (16‑bit).
• Timing & synchronization: Specifies reference points, repetition periods, and how transmitters should schedule bursts considering decoding latency to align decoded audio with picture (lip sync).
• Gap and stuffing rules: Describes how to handle stream gaps and unused capacity (stuffing / stuffing sub‑frames).

Applications and who uses it

• Consumer‑electronics and professional audio manufacturers implementing S/PDIF or AES3 outputs to carry Dolby Digital (AC‑3), DTS, MPEG audio, AAC or ATRAC streams.
• AV receiver and soundbar designers decoding non‑linear PCM bitstreams delivered over IEC 60958 links.
• Set‑top box, DVD/Blu‑ray, streaming device and TV OEMs that need to transport compressed multichannel audio over PCM interfaces.
• Broadcast and post‑production engineers ensuring interoperability, timing, and correct burst formatting for downstream decoders.

Related standards

• IEC 60958 (Digital audio interface)
• IEC 61937 (all parts; Part 1 General, Part 3 AC‑3, Part 4 MPEG, Part 5 DTS, Part 6 AAC, Part 7 ATRAC)
• ISO/IEC 11172‑3, ISO/IEC 13818‑3, ISO/IEC 13818‑7 (MPEG audio)
• ATSC A/52, ITU‑R BS.1196‑1 (AC‑3 / Dolby specifications)

Keywords: IEC 61937-2, burst-info, digital audio interface, IEC 60958, non-linear PCM, S/PDIF, AC-3, MPEG, AAC, DTS, ATRAC, audio data-burst.

Standards Content (Sample)

INTERNATIONAL IEC
STANDARD
61937-2
First edition
2003-05
Digital audio –
Interface for non-linear PCM encoded
audio bitstreams applying IEC 60958 –
Part 2:
Burst-info
Reference number
Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the

60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.

Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,

edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the

base publication incorporating amendment 1 and the base publication incorporating

amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (http://www.iec.ch/searchpub/cur_fut.htm)
enables you to search by a variety of criteria including text searches, technical
committees and date of publication. On-line information is also available on
recently issued publications, withdrawn and replaced publications, as well as
corrigenda.
• IEC Just Published
This summary of recently issued publications (http://www.iec.ch/online_news/
justpub/jp_entry.htm) is also available by email. Please contact the Customer
Service Centre (see below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:
Email: [e-mail]
Tel: [phone]
Fax: [phone]
INTERNATIONAL IEC
STANDARD
61937-2
First edition
2003-05
Digital audio –
Interface for non-linear PCM encoded
audio bitstreams applying IEC 60958 –
Part 2:
Burst-info
 IEC 2003  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail]  Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale
L
International Electrotechnical Commission
Международная Электротехническая Комиссия
For price, see current catalogue

– 2 – 61937-2  IEC:2003(E)

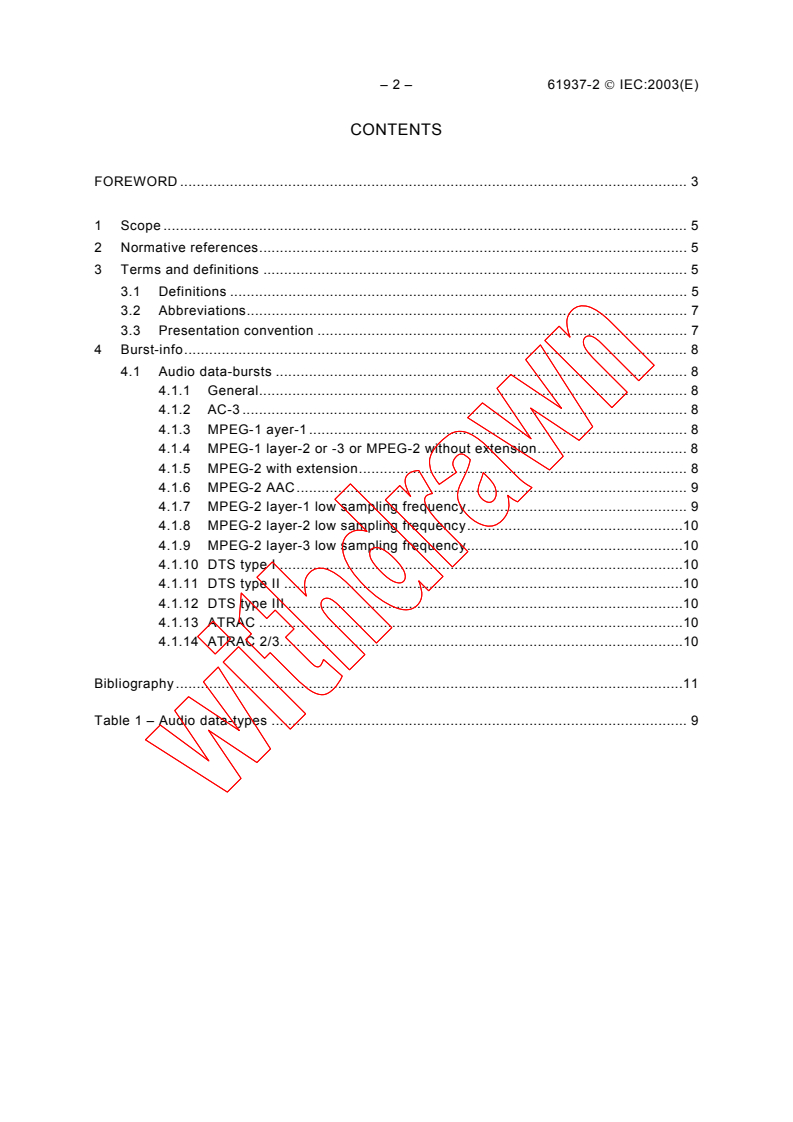

CONTENTS
FOREWORD . 3

1 Scope . 5

2 Normative references. 5

3 Terms and definitions . 5

3.1 Definitions . 5

3.2 Abbreviations. 7
3.3 Presentation convention . 7
4 Burst-info. 8
4.1 Audio data-bursts . 8
4.1.1 General. 8
4.1.2 AC-3 . 8
4.1.3 MPEG-1 ayer-1 . 8
4.1.4 MPEG-1 layer-2 or -3 or MPEG-2 without extension. 8
4.1.5 MPEG-2 with extension. 8
4.1.6 MPEG-2 AAC. 9
4.1.7 MPEG-2 layer-1 low sampling frequency. 9
4.1.8 MPEG-2 layer-2 low sampling frequency.10
4.1.9 MPEG-2 layer-3 low sampling frequency.10
4.1.10 DTS type I .10
4.1.11 DTS type II .10
4.1.12 DTS type III .10
4.1.13 ATRAC .10
4.1.14 ATRAC 2/3.10
Bibliography.11
Table 1 – Audio data-types . 9

61937-2  IEC:2003(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
DIGITAL AUDIO –
INTERFACE FOR NON-LINEAR PCM ENCODED

AUDIO BITSTREAMS APPLYING IEC 60958 –

Part 2: Burst-info
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61937-2 has been prepared by technical area 4: Digital system
interfaces, of IEC technical committee 100: Audio, video and multimedia systems and
equipment.
This standard cancels and replaces IEC 61937, published in 2000, which has been divided
into four parts (see below). This first edition constitutes a technical revision.
The text of this standard is based on the following documents:

FDIS Report on voting
100/645/FDIS 100/671/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 61937-2  IEC:2003(E)
IEC 61937 consists of the following parts under the general title Digital audio – Interface for
non-linear PCM encoded audio bitstreams applying IEC 60958:

Part 1: General
Part 2: Burst-info
Part 3: Non-linear PCM bitstreams according to the AC-3 format

Part 4: Non-linear PCM bistreams according to the MPEG audio formats

Part 5: Non-linear PCM bitstreams according to the DTS (Digital Theatre Systems) format(s)

Part 6: Non-linear PCM bitstreams according to the MPEG-2 AAC format

Part 7: Non-linear PCM bistreams according to the ATRAC and ATRAC2/3 formats
The committee has decided that the contents of this publication will remain unchanged until
October 2005. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
The contents of the corrigendum of March 2004 have been included in this copy.

61937-2  IEC:2003(E) – 5 –
DIGITAL AUDIO –
INTERFACE FOR NON-LINEAR PCM ENCODED

AUDIO BITSTREAMS APPLYING IEC 60958 –

Part 2: Burst-info
1 Scope
IEC 60958 specifies a widely used interface for digital audio equipment with two-channel
linear PCM audio. This part of IEC 61937 describes how the interface is used to convey
non-linear PCM encoded audio streams.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60958 (all parts), Digital audio interface
IEC 61937 (all parts), Digital audio – Interface for non-linear PCM encoded audio bitstreams
applying IEC 60958
ISO/IEC 11172-3:1993, Information technology – Coding of moving pictures and associated
audio for digital storage media at up to about 1,5 Mbit/s – Part 3: Audio
ISO/IEC 13818-3:1998, Information technology – Generic coding of moving pictures and
associated audio information – Part 3: Audio
ISO/IEC 13818-7:1997, Information technology – Generic coding of moving pictures and
associated audio information – Part 7: Advanced Audio Coding (AAC)
ITU-R Recommendation BS.1196-1, Audio coding for digital terrestrial television broadcasting
3 Terms and definitions
3.1 Definitions
3.1.1
audio data-burst
data-burst with an encoded audio frame as burst-payload
3.1.2
audio data-word
16-bit data word
3.1.3
audio frame
fixed number of audio samples
NOTE The number of samples in an audio frame depends on the particular encoding system which is used to
encode the audio frame into the encoded audio frame.

– 6 – 61937-2  IEC:2003(E)
3.1.4
audio gap
period in the sequence of baseband audio samples where valid samples of audio are not

available
3.1.5
bitstream
non-linear PCM encoded audio source, represented in a sequence of bits

NOTE In this interface the bitstream consists of a sequence of data-bursts.

3.1.6
data-burst
packet of data, including the burst-preamble, to be transmitted across the interface
3.1.7
burst-payload
information content of the data-burst
3.1.8
burst-preamble
header for the data-burst, containing synchronization, and information about the data
contained in the burst-p
...
