IEC 62885-8:2019

Surface cleaning appliances - Part 8: Dry vacuum cleaners for commercial use - Methods for measuring the performance

IEC 62885-8:2019 is applicable for measurements of the performance of mains-operated dry vacuum cleaners, including water filter vacuum cleaners, for commercial use. The requirements for the construction and testing covered by this document are applied in addition to the requirements for commercial vacuum cleaners in IEC 60335-2-69.
The purpose of this document is to specify essential performance characteristics of dry vacuum cleaners for commercial use that are of interest to operators and to describe methods for measuring these characteristics.
Due to the influence of environmental conditions, variations in time, origin of test materials and proficiency of the operator, some of the described test methods will give more reliable results when applied for comparative testing of a number of appliances at the same time, in the same laboratory and by the same operator.
The methods here can be applied with modifications for surface-cleaning product types or technologies not currently covered within the scope.
For safety requirements, reference is made to IEC 60335-1 and IEC 60335-2-69.
This first edition cancels and replaces IEC PAS 62611, published in 2009.

Appareils de nettoyage des sols - Partie 8: Aspirateurs à sec à usage commercial - Méthodes de mesure de l'aptitude à la fonction

L'IEC 62885-8:2019 s’applique aux mesures de l'aptitude à la fonction des aspirateurs à sec qui fonctionnent sur le réseau, y compris les aspirateurs à filtre à eau, à usage commercial. Les exigences relatives à la construction et aux essais couvertes par le présent document sont appliquées en complément des exigences applicables aux aspirateurs à usage commercial de l'IEC 60335-2-69.
Le présent document a pour objet de spécifier les caractéristiques essentielles d'aptitude à la fonction des aspirateurs à sec à usage commercial présentant un intérêt pour les opérateurs et de décrire des méthodes de mesure de ces caractéristiques.
En raison de l'influence des conditions environnementales, des variations dans le temps, de l'origine des matériaux d'essai et de l'aptitude de l'opérateur, certaines des méthodes d'essai décrites offrent des résultats plus fiables si elles sont appliquées lors d'essais comparatifs d'un certain nombre d'appareils à la fois, dans le même laboratoire et par le même opérateur.
Les méthodes citées ici peuvent être appliquées avec des modifications pour des types de produits ou des technologies de nettoyage des sols qui ne sont actuellement pas couverts par le domaine d'application.
Pour les exigences de sécurité, il est fait référence aux normes IEC 60335-1 et IEC 60335 2 69.
Cette première édition annule et remplace l'IEC PAS 62611, parue en 2009.

General Information

• Status: Published
• Publication Date: 21-Aug-2019
• ICS: 97.080 - Cleaning appliances
• Technical Committee: SC 59F - Surface cleaning appliances
• Drafting Committee: WG 6 - TC 59/SC 59F/WG 6
• Current Stage: PPUB - Publication issued
• Start Date: 22-Aug-2019
• Completion Date: 16-Sep-2019

Relations

• Replaces: IEC PAS 62611:2009 - Vacuum cleaners for commercial use - Methods for measuring performance
• Effective Date: 05-Sep-2023

Overview

IEC 62885-8:2019 is an International Electrotechnical Commission (IEC) standard that specifies the methods for measuring the performance of dry vacuum cleaners for commercial use, including water filter vacuum cleaners. This standard applies to mains-operated dry vacuum cleaners used in commercial environments and complements the construction and testing requirements established in IEC 60335-2-69. Developed to provide consistent performance testing methodologies, this standard focuses on essential performance characteristics important to operators and users of commercial dry vacuum cleaners.

By adhering to IEC 62885-8:2019, manufacturers and testing laboratories can ensure reliable and comparable results for dry vacuum cleaners, helping operators select the most efficient and suitable cleaning appliances for commercial facilities.

Key Topics

• Scope and Applicability: Covers mains-operated dry vacuum cleaners for commercial use, including water filter models. Designed to supplement IEC 60335-2-69 standards for construction and safety.

• Performance Characteristics: Defines critical attributes such as debris removal ability on carpets and hard floors, dust removal effectiveness, power consumption, and airborne acoustical noise.

• Testing Conditions:

  • Standardized test carpet and debris distribution methods.
  • Specified operator techniques including handle height adjustment (800 ± 50 mm above the test surface).
  • Requirements for cleaning head settings aligned with manufacturer instructions.
  • Motion resistance limits to ensure practical usability.

• Measurement Methods:

  • Detailed procedures for evaluating debris removal on carpets and hard floors.
  • Measurement of rated input power and noise emission during operation.
  • Guidelines for operation settings with maximum continuous airflow and disabling boost modes during testing.

• Environmental and Operational Considerations: Acknowledges factors like environmental conditions, operator proficiency, and test material variability. Recommends tests be conducted under controlled, consistent settings for optimal reliability.

• Safety References: Points testers to IEC 60335-1 and IEC 60335-2-69 for applicable safety requirements.

Applications

IEC 62885-8:2019 plays an integral role in multiple practical areas for stakeholders involved with commercial dry vacuum cleaners:

• Manufacturers can use this standard during product development and quality assurance to benchmark performance and ensure conformity with international expectations.

• Testing Laboratories benefit from precise, repeatable test methods that facilitate reliable comparative analysis between competing commercial vacuum cleaner models.

• Facility Managers and Operators gain confidence in purchasing decisions through access to consistent and credible appliance performance data-ensuring effective cleaning in office buildings, retail spaces, hotels, hospitals, and other commercial environments.

• Regulatory Bodies and Certification Agencies can adopt IEC 62885-8 methodologies to develop certification programs, enabling verified claims of vacuum cleaner performance and compliance with safety standards.

Related Standards

IEC 62885-8:2019 is part of the broader IEC 62885 series related to surface cleaning appliances. Key related documents include:

• IEC 60335-2-69: Safety requirements for wet and dry vacuum cleaners used commercially. This document establishes safety protocols which complement the performance testing methods in IEC 62885-8.

• IEC 62885-2:2016: Methods for measuring performance of dry vacuum cleaners designed for household or similar use. IEC 62885-8 builds on these methods with adaptations specific to commercial appliances.

• IEC 60335-1: General safety standards for household and similar electrical appliances, referenced for overarching safety considerations.

These coordinated standards provide a comprehensive framework for manufacturers, testing bodies, and users to assess both the safety and effectiveness of commercial dry vacuum cleaners.

---

By implementing IEC 62885-8:2019, stakeholders ensure the delivery, evaluation, and procurement of high-quality dry vacuum cleaners that meet rigorous performance criteria. This promotes enhanced cleaning effectiveness, operational efficiency, and user safety across commercial cleaning applications.

Standards Content (Sample)

IEC 62885-8 ®
Edition 1.0 2019-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Surface cleaning appliances –
Part 8: Dry vacuum cleaners for commercial use – Methods for measuring the
performance
Appareils de nettoyage des sols –
Partie 8: Aspirateurs à sec à usage commercial – Méthodes de mesure de
l'aptitude à la fonction
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].

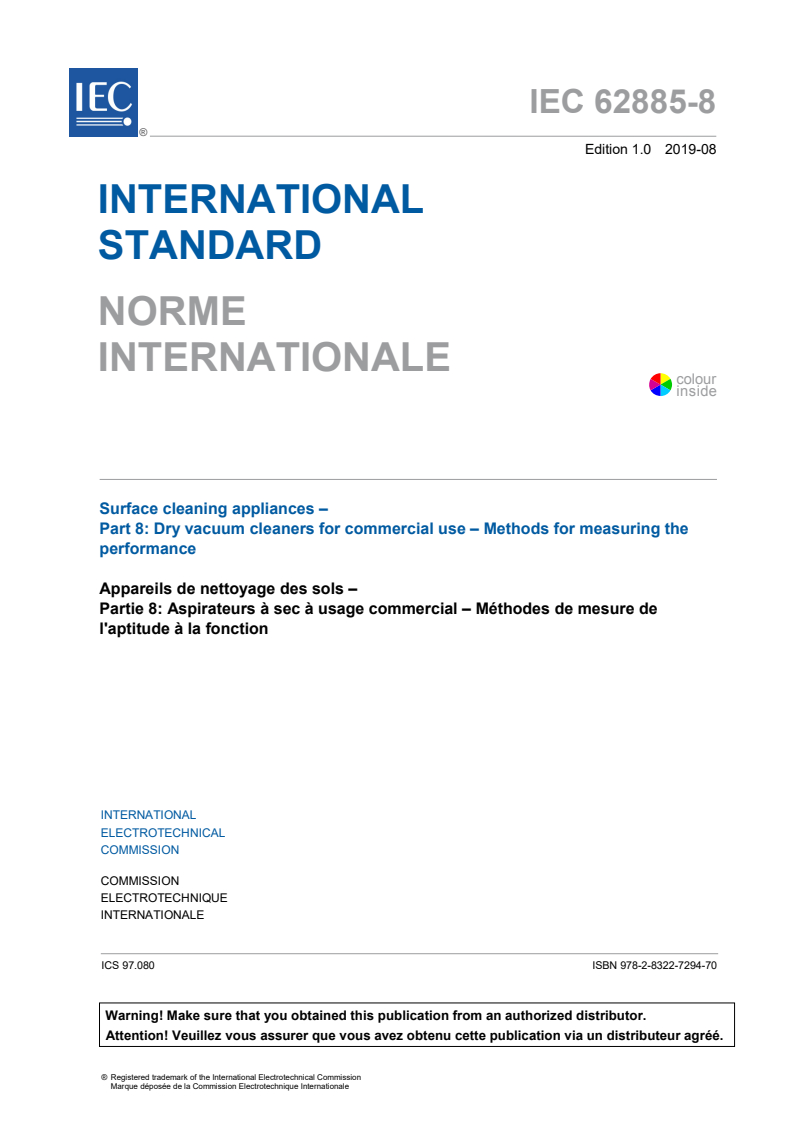

IEC 62885-8 ®
Edition 1.0 2019-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Surface cleaning appliances –
Part 8: Dry vacuum cleaners for commercial use – Methods for measuring the

performance
Appareils de nettoyage des sols –

Partie 8: Aspirateurs à sec à usage commercial – Méthodes de mesure de

l'aptitude à la fonction
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 97.080 ISBN 978-2-8322-7294-70

– 2 – IEC 62885-8:2019  IEC 2019

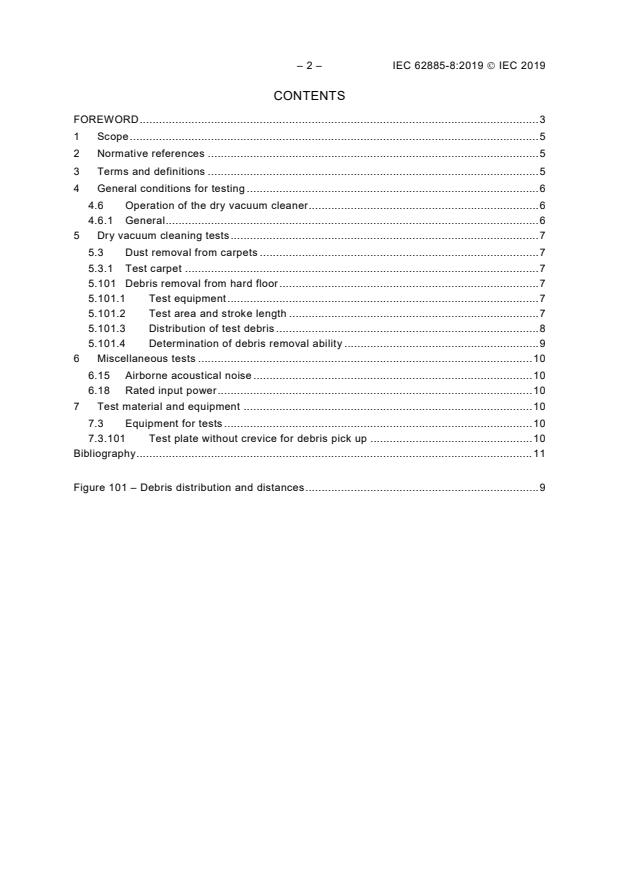

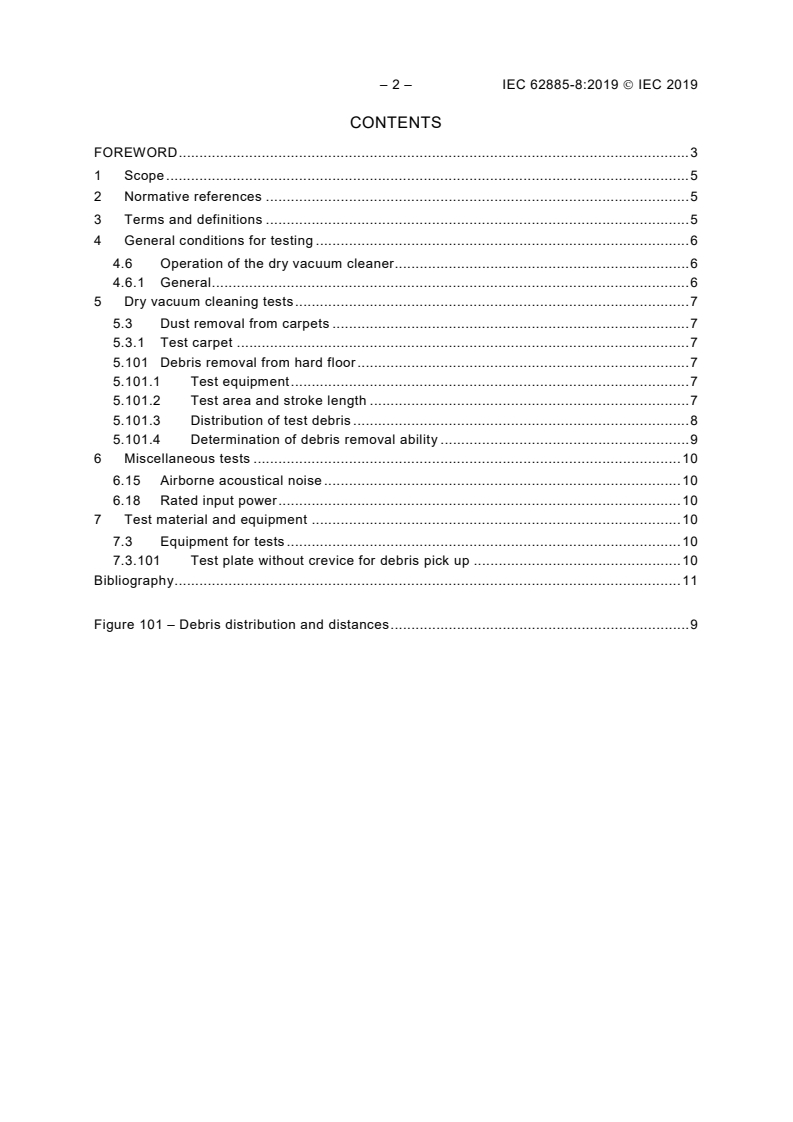

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General conditions for testing . 6
4.6 Operation of the dry vacuum cleaner . 6
4.6.1 General . 6
5 Dry vacuum cleaning tests . 7
5.3 Dust removal from carpets . 7
5.3.1 Test carpet . 7
5.101 Debris removal from hard floor . 7
5.101.1 Test equipment . 7
5.101.2 Test area and stroke length . 7
5.101.3 Distribution of test debris . 8
5.101.4 Determination of debris removal ability . 9
6 Miscellaneous tests . 10
6.15 Airborne acoustical noise . 10
6.18 Rated input power . 10
7 Test material and equipment . 10
7.3 Equipment for tests . 10
7.3.101 Test plate without crevice for debris pick up . 10
Bibliography . 11

Figure 101 – Debris distribution and distances . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SURFACE CLEANING APPLIANCES –
Part 8: Dry vacuum cleaners for commercial use –
Methods for measuring the performance

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62885-8 has been prepared by subcommittee 59F: Surface
cleaning appliances, of IEC technical committee 59: Performance of household and similar
electrical appliances.
This first edition cancels and replaces IEC PAS 62611, published in 2009.
This International Standard is to be used in conjunction with IEC 62885-2:2016. This
document supplements and modifies the requirements of IEC 62885-2:2016. When a
particular clause/subclause of IEC 62885-2:2016 is not mentioned in this document, that
clause/subclause applies. Whenever a requirement of this document is in conflict with a
requirement of IEC 62885-2.2016, the requirement of this document will take precedence.
Additional specific provisions to those in IEC 62885-2:2016, given as individual clauses or
subclauses, are numbered starting from 101.

– 4 – IEC 62885-8:2019  IEC 2019
The text of this International Standard is based on the following documents:
CDV Report on voting
59F/368/CDV 59F/378A/RVC
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 62885 series, under the general title Surface cleaning
appliances, can be found on the IEC website.
In this standard, the following print types are used:
– terms defined in Clause 3: bold type.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
SURFACE CLEANING APPLIANCES –
Part 8: Dry vacuum cleaners for commercial use –
Methods for measuring the performance

1 Scope
Replace the scope of IEC 62885-2:2016 by the following:
This part of IEC 62885 is applicable for measurements of the performance of mains-operated
dry vacuum cleaners, including water filter vacuum cleaners, for commercial use. The
requirements for the construction and testing covered by this document are applied in addition
to the requirements for commercial vacuum cleaners in IEC 60335-2-69.
The purpose of this document is to specify essential performance characteristics of dry
vacuum cleaners for commercial use that are of interest to operators and to describe
methods for measuring these characteristics.
NOTE 1 Due to the influence of environmental conditions, variations in time, origin of test materials and
proficiency of the operator, some of the described test methods will give more reliable results when applied for
comparative testing of a number of appliances at the same time, in the same laboratory and by the same operator.
NOTE 2 The methods here can be applied with modifications for surface-cleaning product types or technologies
not currently covered within the scope.
For safety requirements, reference is made to IEC 60335-1 and IEC 60335-2-69.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
This clause of IEC 62885-2 is applicable with the following modifications:
Delete the references IEC 60704-1 and IEC 60704-2-1 and replace by the following reference:
IEC 60335-2-69, Household and similar electrical appliances – Safety – Part 2-69: Particular
requirements for wet and dry vacuum cleaners, including power brush, for commercial use
Insert, after the entry for IEC TS 62885-1, the following reference:
IEC 62885-2:2016, Surface cleaning appliances – Part 2: Dry vacuum cleaners for household
or similar use – Methods for measuring the performance
3 Terms and definitions
This clause of IEC 62885-2:2016 is applicable with the following modifications:
Replace the first paragraph with the following:

– 6 – IEC 62885-8:2019  IEC 2019
For the purposes of this document, the terms and definitions given in IEC 60335-2-69 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 General conditions for testing
This clause of IEC 62885-2:2016 is applicable with the following modifications:
4.6 Operation of the dry vacuum cleaner
4.6.1 General
Replace the content of 4.6.1 by the following:
The tube grip of cleaners with suction hose or the handle of other cleaners shall be held at a
height of (800 ± 50) mm above the test surface. For nozzles without pivoting connectors, it
shall be ensured that the bottom of the cleaning head be made parallel with the test surface
by adjusting the handle height within the tolerances. If this is not possible, the length of a
telescopic tube may be adjusted. Any adjustment shall be reported.
During measurements where the agitation device of an active nozzle is not used as in normal
operation, the agitation device shall be running but not in contact with any surface.
The following wording regarding declaration and compliance shall also apply to
IEC 60335-2-69: "For declaration and compliance purposes, related tests conducted on a
surface type (carpet or hard surface with or without crevice) shall be conducted with the same
dry vacuum cleaner setting configurations such as power, cleaning head and cleaning head
setting."
The dry vacuum cleaner setting configurations, such as cleaning head and cleaning head
setting, shall be used and adjusted in accordance with the manufacturer's instructions for the
surface to be cleaned (e.g. carpet or hard floor) for the test to be carried out. Any electrical
controls shall be set for maximum continuous airflow for the floor surface setting and, unless
the manufacturer’s instructions state otherwise, any manually operated air by-pass opening
for reduction of the suction power shall be closed. A boost function on the vacuum cleaner,
changing the normal operation mode as stated by the manufacturer, is not activated during
any measurement. The maximum operational power including the boost function shall not
exceed the result from the rated input power measurement as declared by the manufacturer,
in accordance with IEC 60335-2-69. Motion resistance, as determined in 6.2, shall not be
larger than 40 N for operating the commercial dry vacuum cleaner to determine its
performance.
NOTE 1 A motion resistance of maximum 40 N is seen as acceptable for application in a professional
environment. Higher motion resistance contradicts continuous duty in a professional environment owing to the
large force to be applied by the operator during usage, which contradicts the applicability.
In the absence of unambiguous instructions within the manufacturer’s instructions, the product
shall be tested with settings that are in accordance with any explicitly clear text, symbol or
pictogram that is identifiable on the product.
If, after following the above order of checks, the tester believes the device under test to be in
a configuration that is ambiguous, or that multiple configurations are possible with no way to
clearly determine which is the most suitable for a given task, then the manufacturer shall be
contacted for additional guidance.

Complete details of the settings used for each cleaning task shall be recorded in the test
documentation.
If values for the performance of a product measured in accordance with this document are
published/declared, e.g. in the technical documentation, accurate and unambiguous details of
the settings that were used during the test procedure shall be provided.
NOTE 2 Performance in other settings/combinations may differ from the results in declaration settings, however,
the document does not address those results.
NOTE 3 Ecodesign Regulation of the European Commission requires noise levels to be determined and declared
in accordance with EN 60335-2-69.
5 Dry vacuum cleaning tests
This clause of IEC 62885-2:2016 is applicable, with the following additions:
5.3 Dust removal from carpets
5.3.1 Test carpet
Add, after the last paragraph, the following two sentences:
The two carpet hold-downs serve the purpose of holding the test carpet in position during test,
and of acting as guides to keep the cleaning head in a straight line as it is moved over the
test area. The guides should have a distance of 10 mm from the carpet's surface to ensure an
undisturbed flow.
5.101 Debris removal from hard floor
5.101.1 Test equipment
The surface is conditioned once before the first use, in accordance with 7.3.101. Conditioning
only needs to be repeated if the surface is also used for other testing that could impair the
smoothness of surface.
Two hold-downs in accordance with 7.3.4 serve the purpose of acting as guides to keep the
cleaning head in a straight line as it is moved over the test area. The guides should have a
distance of 10 mm from the surface to ensure an undisturbed flow.
5.101.2 Test area and stroke length
The double stroke shall start with a forward stroke for the first test sequence and with a
backward stroke for the second test sequence on the test area. The length of the test area is
700 mm ± 5 mm. The width of the test area is equal to the cleaning head width (see 3.7).
A length of at least 200 mm shall be added before the beginning of the test area and at least
300 mm added after the test area in order to allow for acceleration and deceleration of the
cleaning head. The stroke speed at the deceleration zone shall for the first 50 mm shall not
drop below (0,45 ± 0,02) m/s to ensure that the contact time between nozzle and debris
pushed into the deceleration area is not enlarged artificially.
Thus, the stroke length is between 1 200 mm and 1 600 mm for the given test length of
700 mm. The centreline of the front edge of the cleaning head is aligned to the centreline of
the beginning of the acceleration area at the commencement of the stroke, allowing a
distance between 200 mm and 300 mm to be used for acceleration. The cleaning head shall
reach the end of the stroke when the rear edge of the active depth of the cleaning head is
between 200 mm and 600 mm past the end of the test area, thus allowing a suitable distance
for deceleration. The reverse stroke is carried out in the same manner until the front edge of

– 8 – IEC 62885-8:2019  IEC 2019
the cleaning head is once again lined up with the beginning of the acceleration length in front
of the test area.
The active depth of the cleaning head shall move at a uniform stroke speed of 0,50 m/s ±
0,02 m/s and in a straight line over the test area.
Dry vacuum cleaners equipped with a self-drive device shall be operated at the prescribed
stroke speed of (0,5 ± 0,02) m/s if possible. Otherwise, the stroke speed is determined by
the dry vacuum cleaner. For optimum control of the double stroke movement, it is
recommended that a mechanical operator (see 4.8) be used.
5.101.3 Distribution of test debris
Debris is placed flat on the test on the surface perpendicular to the direction of motion of the
nozzle as given in Figure 101. Firstly, three rows, each consisting of 5 washers, followed by
three lines of nuts. The rows are arranged alternately every 140 mm with respect to the hold-
downs and the motion direction: the odd lines are aligned with the right hold-down, the even
lines with the left hold-down, each with a distance of 15 mm. The distance of neighbouring
debris components depends on the nozzle width and is calculated as follows:
w −15
nozzle
d =
nn
where
d = distance between next neighbours of debris component and
nn
w = nozzle width (equal to cleaning head width B).
nozzle
All the distances refer to the centres of the drop-off points of the debris components. So, the
outermost washer of the first line starts with a distance of b = 15 mm to the right hold-down,
then distance of the next neighbouring washer is d , etc. The next line with washers is
nn
aligned to the left hold-down etc. Figure 101 shows a sketch of a thus obtained debris pattern.
The nuts used for the tests shall be hexagon regular nuts of types ISO 4032 – M3 – CU2,
made out of brass CuZn37. In order to ensure consistency, the mass of the nuts need to be
within a tolerance range; 100 nuts shall have a mass of between 32,0 g and 35,0 g.
The washers used for the tests shall be plain washers, normal series of types ISO 7089 – 3 –
200 CU2, made out of brass CuZn37. In order to ensure consistency, the mass of the washers
need to be within a tolerance range; 100 washers shall have a mass of between 10,0 g and
12,0 g.
Additionally, it shall be ensured that the washers and nuts, lying flat on the test surface, have
a smooth surface and are free of sharp edges.

Figure 101 – Debris distribution and distances
5.101.4 Determination of debris removal ability
Prior to starting the test, the vacuum cleaner is conditioned by letting it run for 10 minutes.
After this, the cleaning head is passed over the testing area by performing double strokes,
starting with a forward stroke or a backward stroke as described in 5.2.3, in a parallel
pattern at a stroke speed of (0,50 ± 0,02) m/s, keeping the cleaning head to the centre of
the test plate. The quantity of debris removed from the surface after five double strokes is
determined as the difference of the amount of debris before and after cleanings, both values
being recorded. The test is finalised after ten cleaning cycles. It shall be ensured that before
lifting the nozzle after the test, the vacuum cleaner shall be switched off. Any debris inside or
stuck in the brush, if applicable, of the nozzle shall be regarded as not having been picked up.
NOTE The test consists of 20 cleaning cycles where 10 cycles start with a forward stroke and 10 cycles start
with a backwards stroke.
The debris removal ability, in per cent, is calculated in accordance with the following formula
as the ratio of the quantity of debris removed to the quantity of debris initially laid onto the
testing area.
The mean value of dust removal ability for 20 cleaning cycles is calculated as follows:
(20) = (k (1) + k (2) + k (3) + k (4) + k (5) + k (6) + k (7) + k (8) + […] +
k
de de de de de de de de de
k (19) + k (20)) / 20
de de
m
da
k ×100
de
m
db
where
k is the debris removal ability for a single cleaning cycle, in percent;
de
m i
...
