IEC 60534-3-1:2019
(Main)Industrial-process control valves - Part 3-1: Dimensions - Face-to-face dimensions for flanged, two-way, globe-type, straight pattern and centre-to-face dimensions for flanged, two-way, globe-type, angle pattern control valves
Industrial-process control valves - Part 3-1: Dimensions - Face-to-face dimensions for flanged, two-way, globe-type, straight pattern and centre-to-face dimensions for flanged, two-way, globe-type, angle pattern control valves
IEC 60534-3-1:2019 specifies face-to-face (FTF) and centre-to-face (CTF) dimensions for given nominal sizes and pressure ratings of flanged, two-way, globe-type, straight pattern and angle pattern control valves This second edition cancels and replaces the first edition published in 2000. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) This standard has been extended to cover face-to-face dimensions and centre-to-face dimensions for control valves PN 160 and PN 250 (Class 900 and 1500)
b) Definitions of end-to-end dimensions and centre-to-end dimensions have been added for valves with flange facings where the gasket contact surfaces are not located at the extreme ends of the valve
c) Table 5 of adjustment value "X" for end-to-end dimensions of straight pattern valves with ring joint ends has been added
d) ANSI/ISA references have been added in Tables 1 to 4
e) ANSI/ISA references have been added in the bibliography
Vannes de régulation des processus industriels - Partie 3-1: Dimensions - Dimensions face à face des vannes de régulation à brides, à deux voies, à soupapes, à tête droite et dimensions face à axe des vannes de régulation à brides, à deux voies, à soupape, à corps d'équerre.
L'IEC 60534-3-1:2019 spécifie les dimensions face à face (FAF) et face à axe (FAA) des vannes de régulation à brides, à deux voies, à soupape, à tête droite et à corps d'équerre présentant des tailles nominales et des caractéristiques assignées de pression données.
Cette deuxième édition annule et remplace la première édition parue en 2000. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) La présente norme a été étendue pour couvrir les dimensions face à face et les dimensions face à axe des vannes de régulation PN 160 et PN 250 (Classe 900 et Classe 1500)
b) Les définitions des dimensions bout à bout et des dimensions axe à bout ont été ajoutées pour les vannes avec faces d'emboîtement de brides dont les surfaces de contact de joint ne se trouvent pas aux extrémités de la vanne
c) Le Tableau 5 des valeurs d'ajustement "X" pour les dimensions bout à bout des vannes à tête droite avec extrémités de joint annulaire a été ajouté
d) Des références ANSI/ISA ont été ajoutées dans les Tableaux 1 à 4
e) Des références ANSI/ISA ont été ajoutées dans la bibliographie
General Information
Relations
Standards Content (Sample)
IEC 60534-3-1 ®
Edition 2.0 2019-02
INTERNATIONAL
STANDARD
Industrial-process control valves –
Part 3-1: Dimensions – Face-to-face dimensions for flanged, two-way, globe-
type, straight pattern and centre-to-face dimensions for flanged, two-way, globe-
type, angle pattern control valves
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.

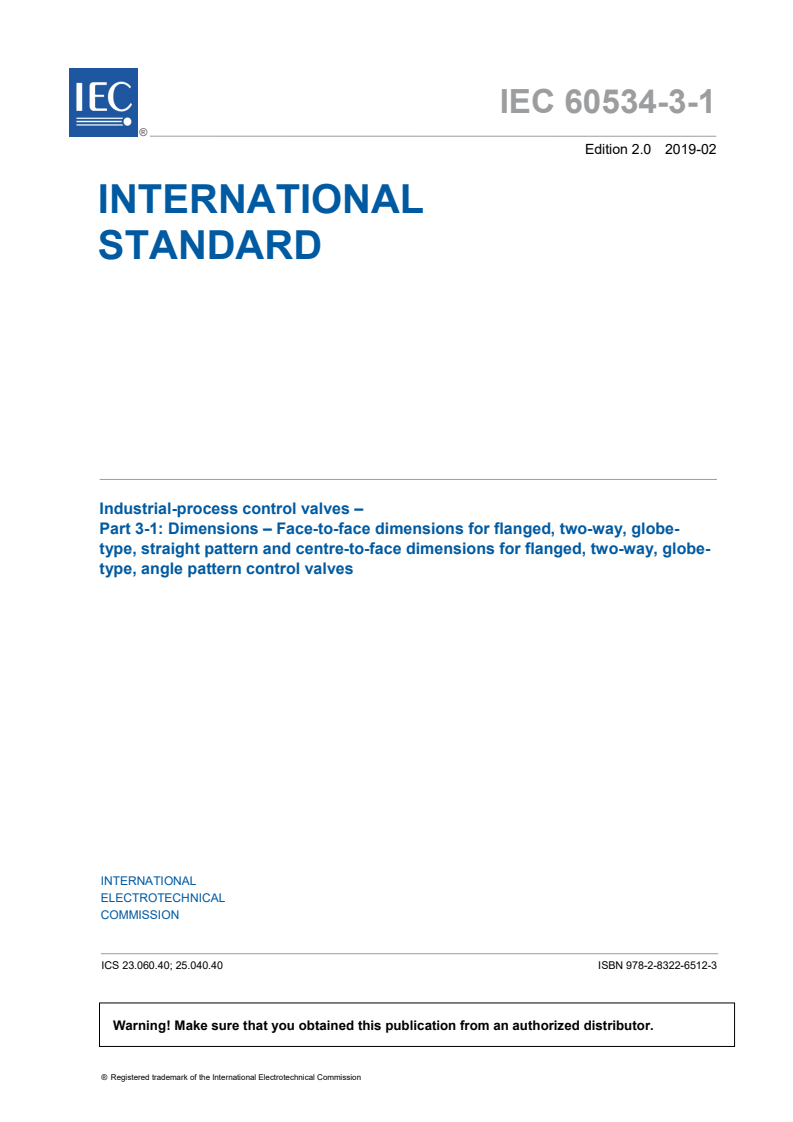

IEC 60534-3-1 ®
Edition 2.0 2019-02
INTERNATIONAL
STANDARD
Industrial-process control valves –
Part 3-1: Dimensions – Face-to-face dimensions for flanged, two-way, globe-
type, straight pattern and centre-to-face dimensions for flanged, two-way, globe-
type, angle pattern control valves
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 23.060.40; 25.040.40 ISBN 978-2-8322-6512-3

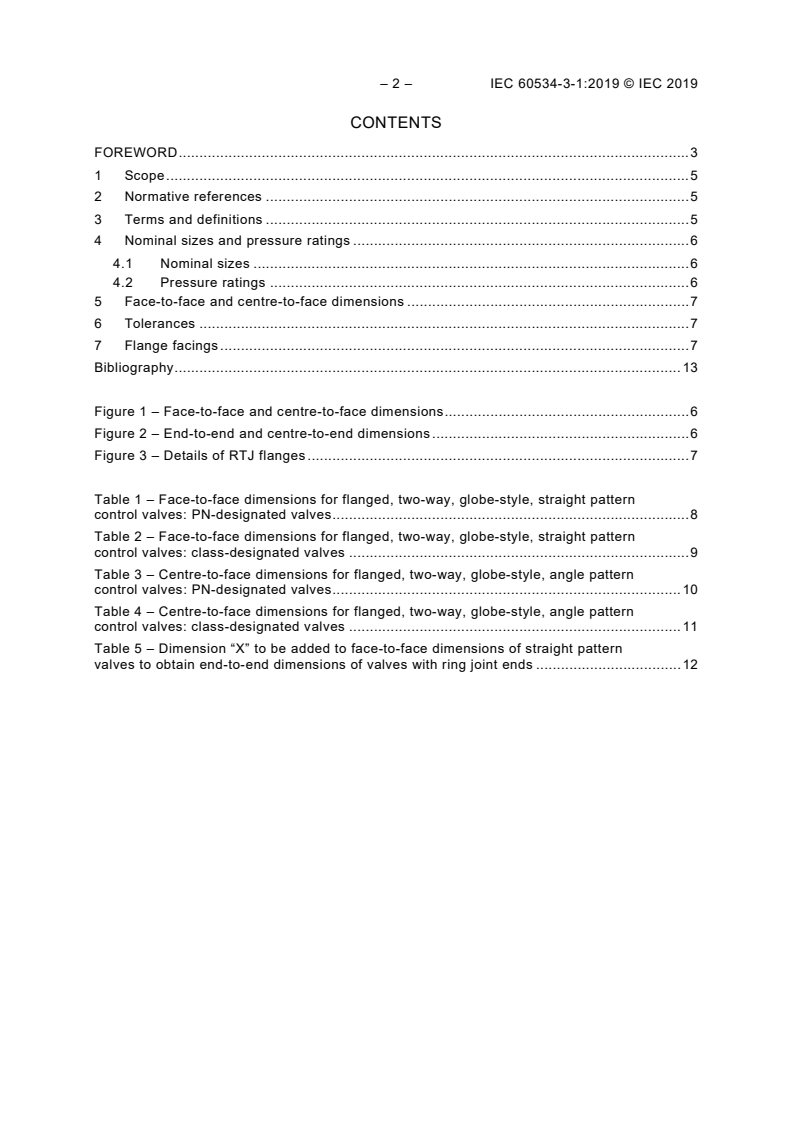

– 2 – IEC 60534-3-1:2019 © IEC 2019
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Nominal sizes and pressure ratings . 6
4.1 Nominal sizes . 6
4.2 Pressure ratings . 6
5 Face-to-face and centre-to-face dimensions . 7
6 Tolerances . 7
7 Flange facings . 7
Bibliography . 13
Figure 1 – Face-to-face and centre-to-face dimensions . 6
Figure 2 – End-to-end and centre-to-end dimensions . 6
Figure 3 – Details of RTJ flanges . 7
Table 1 – Face-to-face dimensions for flanged, two-way, globe-style, straight pattern
control valves: PN-designated valves . 8
Table 2 – Face-to-face dimensions for flanged, two-way, globe-style, straight pattern
control valves: class-designated valves . 9
Table 3 – Centre-to-face dimensions for flanged, two-way, globe-style, angle pattern
control valves: PN-designated valves . 10
Table 4 – Centre-to-face dimensions for flanged, two-way, globe-style, angle pattern
control valves: class-designated valves . 11
Table 5 – Dimension “X” to be added to face-to-face dimensions of straight pattern
valves to obtain end-to-end dimensions of valves with ring joint ends . 12
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL-PROCESS CONTROL VALVES –
Part 3-1: Dimensions – Face-to-face dimensions for flanged,
two-way, globe-type, straight pattern and centre-to-face
dimensions for flanged, two-way, globe-type,
angle pattern control valves
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60534-3-1 has been prepared by subcommittee 65B: Measurement
and control devices, of IEC technical committee 65: Industrial-process measurement, control
and automation.
This second edition cancels and replaces the first edition published in 2000. This edition
constitutes a technical revision.
The main changes with respect to the previous edition are listed below:
• this document has been extended to cover face-to-face dimensions and centre-to-face
dimensions for control valves PN 160 and PN 250 (Class 900 and 1 500);
• definitions of end-to-end dimensions and centre-to-end dimensions have been added for
valves with flange facings where the gasket contact surfaces are not located at the
extreme ends of the valve;
– 4 – IEC 60534-3-1:2019 © IEC 2019
• Table 5 of adjustment value “X” for end-to-end dimensions of straight pattern valves with
ring joint ends has been added;
• ANSI/ISA references have been added in Tables 1 to 4;
• ANSI/ISA references have been added in the bibliography.
The text of this International Standard is based on the following documents:
FDIS Report on voting
65B/1142/FDIS 65B/1146/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
INDUSTRIAL-PROCESS CONTROL VALVES –
Part 3-1: Dimensions – Face-to-face dimensions for flanged,
two-way, globe-type, straight pattern and centre-to-face
dimensions for flanged, two-way, globe-type,
angle pattern control valves
1 Scope
This part of IEC 60534 specifies face-to-face (FTF) and centre-to-face (CTF)
...

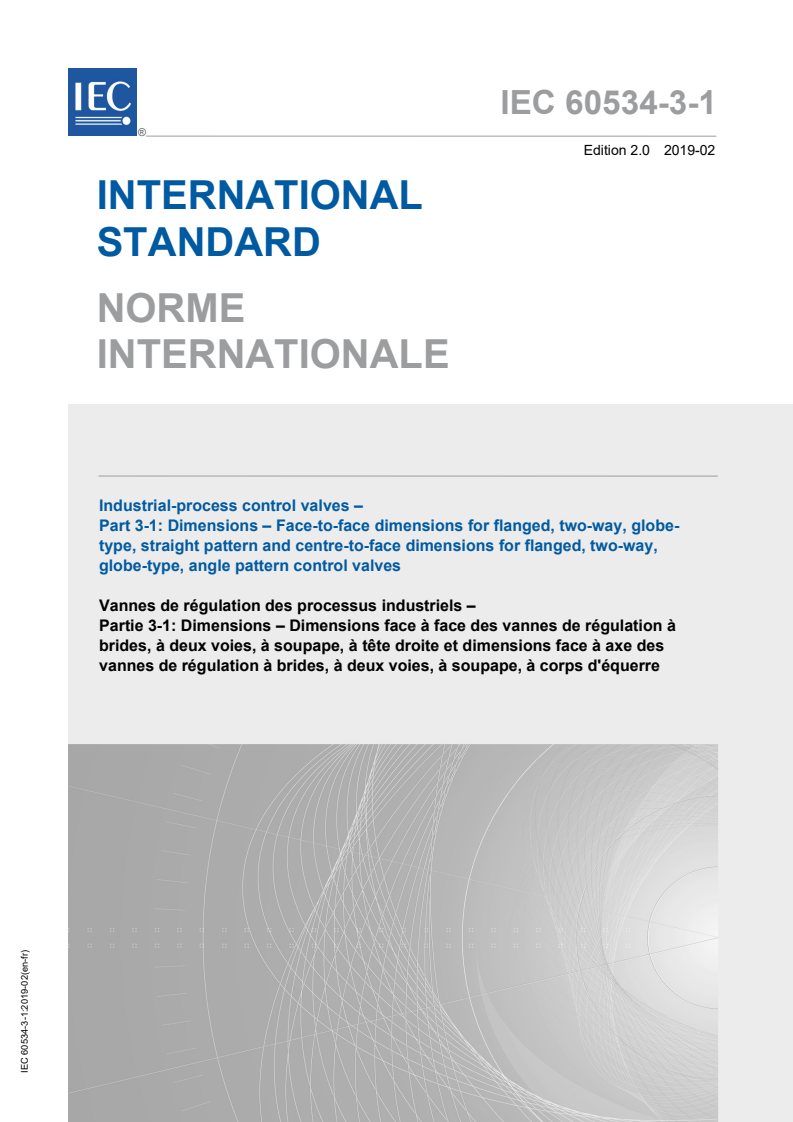

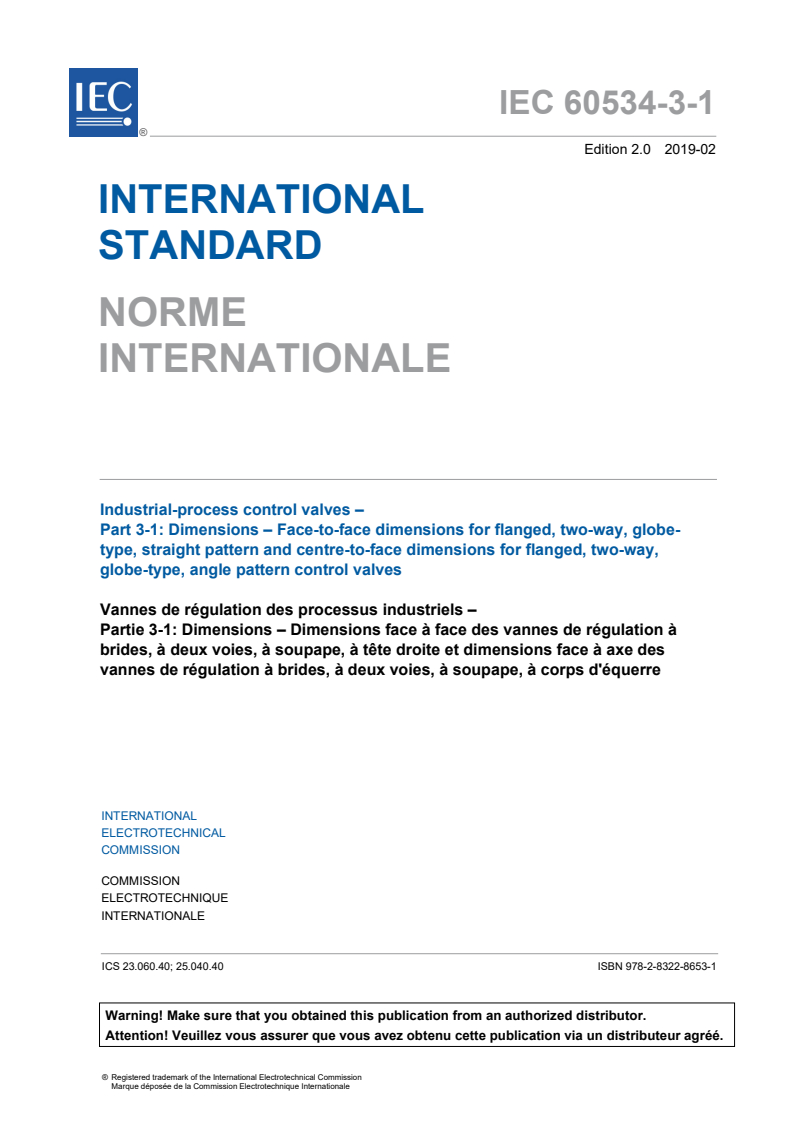

IEC 60534-3-1 ®
Edition 2.0 2019-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Industrial-process control valves –
Part 3-1: Dimensions – Face-to-face dimensions for flanged, two-way, globe-
type, straight pattern and centre-to-face dimensions for flanged, two-way,
globe-type, angle pattern control valves
Vannes de régulation des processus industriels –
Partie 3-1: Dimensions – Dimensions face à face des vannes de régulation à
brides, à deux voies, à soupape, à tête droite et dimensions face à axe des
vannes de régulation à brides, à deux voies, à soupape, à corps d'équerre
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.
IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60534-3-1 ®
Edition 2.0 2019-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Industrial-process control valves –
Part 3-1: Dimensions – Face-to-face dimensions for flanged, two-way, globe-
type, straight pattern and centre-to-face dimensions for flanged, two-way,
globe-type, angle pattern control valves
Vannes de régulation des processus industriels –
Partie 3-1: Dimensions – Dimensions face à face des vannes de régulation à
brides, à deux voies, à soupape, à tête droite et dimensions face à axe des
vannes de régulation à brides, à deux voies, à soupape, à corps d'équerre
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 23.060.40; 25.040.40 ISBN 978-2-8322-8653-1
– 2 – IEC 60534-3-1:2019 © IEC 2019
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Nominal sizes and pressure ratings . 6
4.1 Nominal sizes . 6
4.2 Pressure ratings . 6
5 Face-to-face and centre-to-face dimensions . 7
6 Tolerances . 7
7 Flange facings . 7
Bibliography . 13
Figure 1 – Face-to-face and centre-to-face dimensions . 6
Figure 2 – End-to-end and centre-to-end dimensions . 6
Figure 3 – Details of RTJ flanges . 7
Table 1 – Face-to-face dimensions for flanged, two-way, globe-style, straight pattern
control valves: PN-designated valves . 8
Table 2 – Face-to-face dimensions for flanged, two-way, globe-style, straight pattern
control valves: class-designated valves . 9
Table 3 – Centre-to-face dimensions for flanged, two-way, globe-style, angle pattern
control valves: PN-designated valves . 10
Table 4 – Centre-to-face dimensions for flanged, two-way, globe-style, angle pattern
control valves: class-designated valves . 11
Table 5 – Dimension “X” to be added to face-to-face dimensions of straight pattern
valves to obtain end-to-end dimensions of valves with ring joint ends . 12
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL-PROCESS CONTROL VALVES –
Part 3-1: Dimensions – Face-to-face dimensions for flanged,
two-way, globe-type, straight pattern and centre-to-face
dimensions for flanged, two-way, globe-type,
angle pattern control valves
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60534-3-1 has been prepared by subcommittee 65B: Measurement
and control devices, of IEC technical committee 65: Industrial-process measurement, control
and automation.
This second edition cancels and replaces the first edition published in 2000. This edition
constitutes a technical revision.
The main changes with respect to the previous edition are listed below:
• this document has been extended to cover face-to-face dimensions and centre-to-face
dimensions for control valves PN 160 and PN 250 (Class 900 and 1 500);
• definitions of end-to-end dimensions and centre-to-end dimensions have been added for
valves with flange facings where the gasket contact surfaces are not located at the
extreme ends of the valve;
– 4 – IEC 60534-3-1:2019 © IEC 2019
• Table 5 of adjustment value “X” for end-to-end dimensions of straight pattern valves with
ring joint ends has been added;
• ANSI/ISA references have been added in Tables 1 to 4;
• ANSI/ISA references have been added in the bibliography.
The text of this International Standard is based on the following documents:
FDIS Report on voting
65B/1142/FDIS 65B/1146/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INDUSTRIAL-PROCESS CONTROL VALVES –
Part 3-1: Dimensions – Face-to-face dimensions for flanged,
two-way, globe-type, straight pattern and centre-to-face
dimensions for flanged, two-way, globe-type,
angle pattern control valves
1 Scope
This part of IEC 60534 specifies face-to-face (FTF) and centre-to-face (CTF) dimensions for
given nominal sizes and pressure ratings of flanged, two-way, globe-type, straight pattern and
angle pattern control valves. The nominal sizes included are DN 15 to DN 400 for straight
pattern control valves and DN 15 to DN 400 for angle pattern control valves.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60534-1, Industrial-process control valves – Part 1: Control valve terminology and
general considerations
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60534-1 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
straight pattern valve
valve where the outlet end connection is on the opposite side of the valve and in line with the
inlet end connection
3.2
angle pattern valve
valve where the inlet and the outlet end connections are arranged at a right angle with the
centerlines matching each other
3.3
face-to-face dimension (FTF)
distance between the faces of the connecting end flanges upon
which the gaskets are compressed, that is, the contact surfaces (see Figure 1)
3.4
centre-to-face dimension (CTF)
distance between the plane located at the face of either end
connection and perpendicular to its axis and the axis of the other end connection
(see Figure 1)
– 6 – IEC 60534-3-1:2019 © IEC 2019
3.5
end-to-end dimension (ETE)
distance between the extreme ends of the valve for those flanged
valves where the gasket contact surfaces are not located at the extreme ends of the valve
(see Figures 2 and 3)
3.6
centre-to-end dimension (CTE)
distance between the plane located at the extreme end of either
end connection and perpendicular to its axis and the axis of the other end connection for
those flanged valves where the gasket contact surfaces are not located at the extreme ends
of the valve (see Figures 2 and 3)
4 Nominal sizes and pressure ratings
4.1 Nominal sizes
Nominal sizes shall be as shown in Table 1 to Table 4.
4.2 Pressure ratings
Pressure ratings shall be grouped by Class and nominal pressure (PN) as shown in
Table 1 to Table 4.
Figure 1 – Face-to-face and centre-to-face dimensions
Figure 2 – End-to-end and centre-to-end dimensions
Figure 3 – Details of RTJ flanges
5 Face-to-face and centre-to-face dimensions
FTF and CTF dimensions shall be taken from Table 1 to Table 4. These tables shall be used
only in conjunction with the range of nominal sizes and groups of pressure ratings given in the
tables.
Control valve FTF and CTF dimensions taken from a given pressure rating group shall be the
same; however, control valves may differ in other respects.
NOTE Pressure ratings have been grouped as shown in the tables in order to restrict the number of FTF and CTF
dimensions.
6 Tolerances
Tolerances on FTF and CTF dimensions shall be as shown in Table 1 to Table 4.
7 Flange facings
This document only provides FTF and CTF dimensions for control valves with plain-face or
raised-face flanges. The FTF and CTF dimensions include the raised face, if provided, as
specified in the appropriate flange standard.
For end-to-end dimensions of straight pattern valves with ring joint ends (Figure 2b),
dimension „X“ as given in Table 5 shall be added to the face-to-face dimension given in
Table 1 and Table 2. For centre-to-end dimension of angle pattern valves with ring joint ends
half of dimension „X“ shall be applied to the centre-to-face dimension given in Table 3 and
Table 4.
Dimension “X” as given in Table 5 is taken from the metric values given in ASME B16.10-
2009.
Control valves with flanges having other special facings such as male and female flange
facing or tongue-and-groove are not covered by this part of IEC 60534.
– 8 – IEC 60534-3-1:2019 © IEC 2019
Table 1 – Face-to-face dimensions for flanged, two-way, globe-style,
straight pattern control valves: PN-designated valves
Nominal
FTF dimension
Tolerances
size
for FTF
PN 10 or 16 PN 25 or 40 PN 63 or 100 PN 160 PN 250
(DN)
15 130 184* 130 190* 210 203* 210 292 230 292
20 150 184* 150 194* 230 206* 230 292 260 292
25 160 184 160 197 230 210 230 292 260 292
32 180 – 180 – 260 – 260 – 300 –
40 200 222 200 235 260 251 260 333 300 333
50 230 254 230 267 300 286 300 375 350 375
65 290 276* 290 292* 340 311* 340 410 400 410 ±2
80 310 298 310 317 380 337 380 441 450 460
100 350 352 350 368 430 394 430 511 520 530
125 400 – 400 – 500 – 500 – 600 -
150 480 451 480 473 550 508 550 714 700 768
200 600 543 600 568 650 610 650 914 800 972
250 730 673 730 708 775 752 775 991 900 1067
300 850 737 850 775 900 819 900 1 130 1 050 1 219
350 980 889 980 927 1 025 972 1 025 1 257 - 1 257 ±3
400 1 100 1 016 1 100 1 057 1 150 1 108 1 150 1 422 - 1 422
EN 558
Basic 1 37 1 38 2 39 2 105 92 106
series
ANSI/ISA 75.08.06 75.08.06
- 75.08.01 - 75.08.01 - 75.08.01 - -
reference Long Long
* Dimension of this nominal size not listed in EN 558.
NOTE 1 All dimensions are in millimeters.
NOTE 2 Tolerances in ANSI/ISA 75.08.01 and 75.08.06 are ±1,6 mm up to DN 250 and ±3,2 mm DN 300 and larger.
Table 2 – Face-to-face dimensions for flanged, two-way, globe-style,
straight pattern control valves: class-designated valves
Nominal FTF dimension
Tolerances
size
for FTF
Class 125 or 150 Class 250 or 300 Class 600 Class 900 Class 1 500
(DN)
15 184* 130 190* 130 203* 210 292 273 210 292 273 230
20 184* 150 194* 150 206* 230 292 273 230 292 273 260
25 184 160 197 160 210 230 292 273 230 292 273 260
32 – 180 – 180 – 260 – – 260 – – 300
40 222 200 235 200 251 260 333 311 260 333 311 300
50 254 230 267 230 286 300 375 340 300 375 340 350
65 276* 290 292* 290 311* 340 410 - 340 410 - 400
80 298 310 317 310 337 380 441 387 380 460 406 450 ±2
100 352 350 368 350 394 430 511 464 430 530 483 520
125 – 400 – 400 – 500 – – 500 – – 600
150 451 480 473 480 508 550 714 600 550 768 692 700
200 543 600 568 600 610 650 914 781 650 972 838 800
250 673 730 708 730 752 775 991 864 775 1067 991 900
300 737 850 775 850 819 900 1 130 1 016 900 1 219 1 130 1 050
350 889 980 927 980 972 1 025 1 257 - 1 025 1 257 - - ±3
400 1 016 1 100 1 057 1 100 1 108 1 150 1 422 - 1 150 1 422 - -
EN 558
Basic 37 1 38 1 39 2 105 - 2 106 - 92
series
ANSI/ISA 75.08.06 75.08.06 75.08.06 75.08.06
75.08.01 - 75.08.01 - 75.08.01 - - -
reference Long Short Long Short
* Dimension of this DN not listed in EN 558.
NOTE 1 All dimensions are in millimeters.
NOTE 2 Tolerances in ANSI/ISA 75.08.01 and 75.08.06 are ±1,6 mm up to DN 250 and ±3,2 mm DN 300 and larger.
– 10 – IEC 60534-3-1:2019 © IEC 2019
Table 3 – Centre-to-face dimensions for flanged, two-way, globe-style,
angle pattern control valves: PN-designated valves
Nominal CTF dimension
Tolerances
size
for CTF
PN 10 or 16 PN 25 or 40 PN 63 or 100 PN 160 PN 250
(DN)
15 90 - 90 - 105 - 105 - 115 -
20 95 - 95 - 115 - 115 - 130 -
(1)
25 100 92 100 115 105 115 - 130 -
32 105 - 105 - 130 - 130 - 150 -
40 115 111 115 117 130 125 130 - 150 -
50 125 127 125 133 150 143 150 - 175 -
65 145 - 145 - 170 - 170 - 200 -
80 155 149 155 159 190 168 190 - 225 - ±2
100 175 176 175 184 215 197 215 - 260 -
125 200 - 200 - 250 - 250 - 300 -
(2)
- -
150 225 226 225 236 275 254 275 350
200 275 272 275 284 325 305 325 - 400 -
250 325 337* 325 354* 390 376* 390 - - -
300 375 368* 375 387* 450 410* 450 - - -
350 425 445* 425 464* 515 486* 515 - - - ±3
400 475 508* 475 529* 575 554* 575 - - -
EN 558
8 40 8 41 9 42 9 - 93 -
Basic series
ANSI/ISA
- 75.08.08 - 75.08.08 - 75.08.08 - - - -
reference
* ANSI/ISA 75.08.08 only covers nominal sizes up to DN 200.
NOTE 1 All dimensions are in millimeters.
NOTE 2 Tolerance in ANSI/ISA 75.08.08 is ±1,6 mm up to DN 200.
NOTE 3 1) per ANSI/ISA 75.08.08, EN 558 shows 98 mm .
2) per ANSI/ISA 75.08.08, EN 558 shows 225 mm.
Table 4 – Centre-to-face dimensions for flanged, two-way, globe-style,
angle pattern control valves: class-designated valves
Nominal CTF dimension
Tolerances
size
for CTF
Class 125 or 150 Class 250 or 300 Class 600 Class 900 Class 1 500
(DN)
15 - 90 - 90 - 105 - 105 - 115
20 - 95 - 95 - 115 - 115 - 130
25 92 100 99 100 105 115 - 115 - 130
32 - 105 - 105 - 130 - 130 - 150
40 111 115 117 115 125 130 - 130 - 150
50 127 125 133 125 143 150 - 150 - 175
65 - 145 - 145 - 170 - 170 - 200
80 149 155 159 155 168 190 - 190 - 225 ±2
100 176 175 184 175 197 215 - 215 - 260
125 - 200 - 200 - 250 - 250 - 300
150 226 225 236 225 254 275 - 275 - 350
200 272 275 284 275 305 325 - 325 - 400
250 337* 325 354* 325 376* 390 - 390 - -
300 368* 375 387* 375 410* 450 - 450 - -
350 445* 425 464* 425 486* 515 - 515 - - ±3
400 508* 475 529* 475 554* 575 - 575 - -
EN 558 - -
...
