ISO/IEC 14543-3-2:2006

Information technology - Home electronic system (HES) architecture - Part 3-2: Communication layers - Transport, network and general parts of data link layer for network based control of HES Class 1

Home Electronic System (HES) standards describe the architecture of home control systems including communication and interoperability aspects. This International Standard specifies the services and protocol in a physical layer independent way for the data link, network and transport layer for use in HES.

General Information

• Status: Published
• Publication Date: 12-Sep-2006
• ICS: 35.240.67 - IT applications in building and construction industry
• Technical Committee: ISO/IEC JTC 1/SC 25 - Interconnection of information technology equipment
• Current Stage: PPUB - Publication issued
• Start Date: 13-Sep-2006
• Completion Date: 30-Sep-2006

Relations

• Replaces: ISO/IEC TR 14543-3:2000 - Information technology - Home Electronic Systems (HES) architecture - Part 3: Communication layers
• Effective Date: 05-Sep-2023

Overview

ISO/IEC 14543-3-2:2006 defines the transport, network and general parts of the data link layer for Home Electronic System (HES) Class 1 devices. Designed to be physical-layer independent, this international standard specifies services, protocol data units (PDUs), parameters and state machines required for reliable network‑based control in smart homes. It supports consistent communication and interoperability across HES devices such as sensors, actuators, routers and gateways.

Key Topics

• Layer coverage: Clear specifications for the data link, network and transport layers, including generic data-link services and network-layer routing behaviours.
• Physical-layer independence: Protocols and services are defined so implementations can be mapped to different media (wired or wireless) without changing upper-layer behavior.
• Data link services & primitives: L_Data, L_SystemBroadcast, L_Poll_Data, L_Busmon and L_Service_Information are described to manage frame exchange and link-level control.
• Network layer functions: Addressing, NPDU formats, routing through bridges/routers, network-layer parameters and state machines for normal devices, bridges and routers.
• Transport layer services & PDUs: TPDU formats and services such as T_Data_Group, T_Data_Individual, T_Data_Broadcast, T_Connect, T_Disconnect and connection‑oriented vs connectionless modes.
• Communication modes: Support for point‑to‑point, point‑to‑multipoint (multicast), point‑to‑domain (broadcast) and system broadcast modes.
• State machines & flow control: Detailed connection-oriented transport state machines, transition tables and annexed examples to guide implementers.
• Interoperability controls: Recommendations for duplication prevention, priority usage and parameters that affect timing, retransmission and addressing.

Applications

ISO/IEC 14543-3-2 is practical for:

• Smart home device manufacturers implementing interoperable HES Class 1 devices (lighting, HVAC, security sensors, actuators).
• System integrators and installers who need predictable device behaviour across mixed-media networks.
• Gateway, router and bridge developers mapping HES protocols over IP, KNX, or other physical layers.
• Test labs and certification bodies verifying conformance to HES transport/network/data-link behaviors.
• Standards developers and architects designing compatible higher-level application profiles for home automation.

Adopting this standard improves interoperability, reliability, and predictable network behaviour for home automation ecosystems.

Related Standards

• ISO/IEC 14543-3-1 (companion document in the HES architecture series)
• The ISO/IEC 14543-3 family and earlier ISO/IEC TR 14543-3 (superseded by this series)

Keywords: ISO/IEC 14543-3-2, Home Electronic System, HES, transport layer, network layer, data link layer, smart home, home automation, interoperability, protocol, PDU, state machine.

Standards Content (Sample)

ISO/IEC 14543-3-2
Edition 1.0 2006-09
INTERNATIONAL
STANDARD
Information technology – Home electronic system (HES) architecture –
Part 3-2: Communication layers – Transport, network and general parts of data
link layer for network based control of HES Class 1

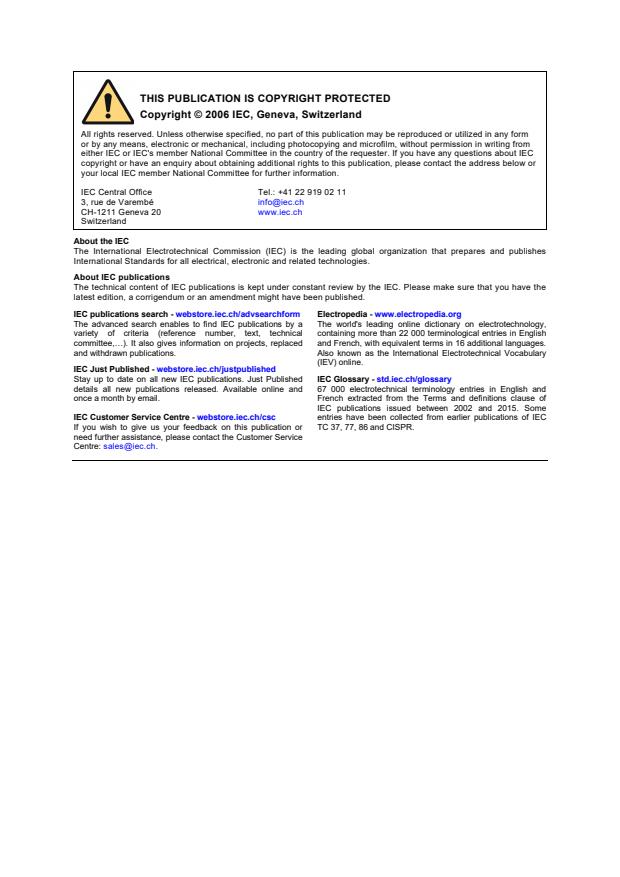

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and definitions clause of
IEC publications issued between 2002 and 2015. Some
IEC Customer Service Centre - webstore.iec.ch/csc entries have been collected from earlier publications of IEC
If you wish to give us your feedback on this publication or TC 37, 77, 86 and CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
ISO/IEC 14543-3-2
Edition 1.0 2006-09
INTERNATIONAL
STANDARD
Information technology – Home electronic system (HES) architecture –

Part 3-2: Communication layers – Transport, network and general parts of

data link layer for network based control of HES Class 1

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 35.240.67 ISBN 2-8318-8804-2

2 14543-3-2 © ISO/IEC:2006(E)

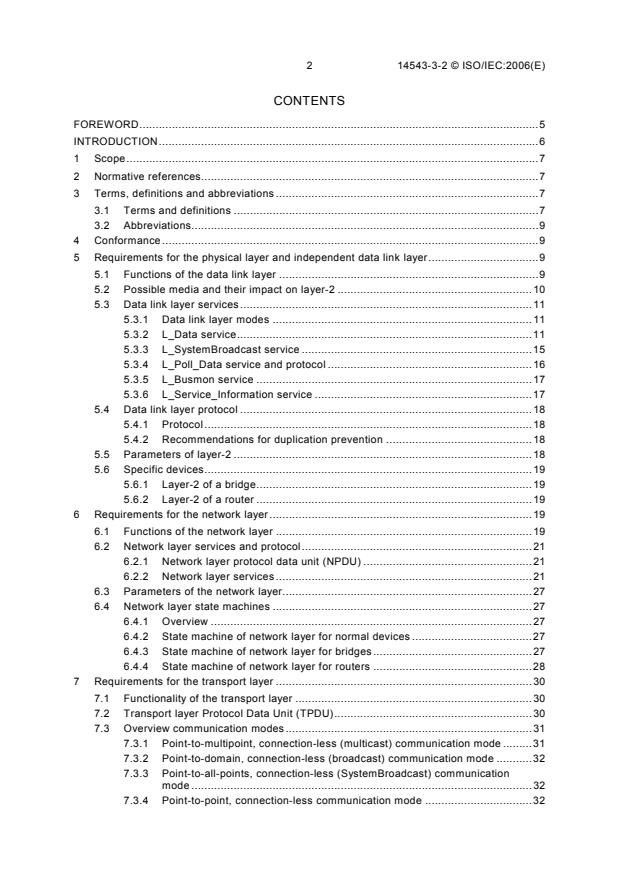

CONTENTS
FOREWORD.5
INTRODUCTION.6
1 Scope.7
2 Normative references.7
3 Terms, definitions and abbreviations .7
3.1 Terms and definitions .7
3.2 Abbreviations.9
4 Conformance.9
5 Requirements for the physical layer and independent data link layer.9
5.1 Functions of the data link layer .9
5.2 Possible media and their impact on layer-2 .10
5.3 Data link layer services.11
5.3.1 Data link layer modes .11
5.3.2 L_Data service.11
5.3.3 L_SystemBroadcast service .15
5.3.4 L_Poll_Data service and protocol .16
5.3.5 L_Busmon service .17
5.3.6 L_Service_Information service .17
5.4 Data link layer protocol .18
5.4.1 Protocol.18
5.4.2 Recommendations for duplication prevention .18
5.5 Parameters of layer-2 .18
5.6 Specific devices.19
5.6.1 Layer-2 of a bridge.19
5.6.2 Layer-2 of a router .19
6 Requirements for the network layer.19
6.1 Functions of the network layer .19
6.2 Network layer services and protocol.21
6.2.1 Network layer protocol data unit (NPDU) .21
6.2.2 Network layer services .21
6.3 Parameters of the network layer.27
6.4 Network layer state machines .27
6.4.1 Overview .27
6.4.2 State machine of network layer for normal devices .27
6.4.3 State machine of network layer for bridges .27
6.4.4 State machine of network layer for routers .28
7 Requirements for the transport layer .30
7.1 Functionality of the transport layer .30
7.2 Transport layer Protocol Data Unit (TPDU).30
7.3 Overview communication modes.31
7.3.1 Point-to-multipoint, connection-less (multicast) communication mode .31
7.3.2 Point-to-domain, connection-less (broadcast) communication mode .32
7.3.3 Point-to-all-points, connection-less (SystemBroadcast) communication
mode .32
7.3.4 Point-to-point, connection-less communication mode .32

14543-3-2 © ISO/IEC:2006(E) 3
7.3.5 Point-to-point, connection-oriented communication mode .32
7.3.6 Algorithm for the identifier of communication.33
7.4 Transport layer services.33
7.4.1 General .33
7.4.2 T_Data_Group service .33
7.4.3 T_Data_Tag_Group service .34
7.4.4 T_Data_Broadcast service .36
7.4.5 T_Data_SystemBroadcast service.37
7.4.6 T_Data_Individual service .38
7.4.7 T_Connect service.39
7.4.8 T_Disconnect service.40
7.4.9 T_Data_Connected service .41
7.5 Parameters of transport layer.42
7.6 State machine of connection-oriented communication mode.43
7.6.1 General .43
7.6.2 States.43
7.6.3 Required actions.44
7.6.4 Transition table of the connection oriented transport layer state
machine.46
7.6.5 State diagrams .53
Annex A (informative) Examples of transport layer connection oriented state machine
state diagrams.54
A.1 Connect and disconnect.54
A.1.1 Connect from a remote device .54
A.1.2 Connect from a remote device during an existing connection.54
A.1.3 Disconnect from a remote device .55
A.1.4 Connect from the local user to an existing device.55
A.1.5 Connect from the local user to a non existing device .55
A.1.6 Connect from the local user during an existing connection .56
A.1.7 Disconnect from the local user.56
A.1.8 Disconnect from the local user without an existing connection.56
A.1.9 Connection timeout.57
A.2 Reception of data .57
A.2.1 Reception of a correct N_Data_Individual.57
A.2.2 Reception of a repeated N_Data_Individual.58
A.2.3 Reception of data N_Data_Individual with wrong sequence number.58
A.2.4 Reception of data N_Data_Individual with wrong source address.58
A.3 Transmission of data .59
A.3.1 T_DATA-Request from the local user .59
A.3.2 Reception of a T_ACK_PDU with wrong sequence number.59
A.3.3 Reception of T_ACK_PDU with wrong connection address .60
A.3.4 Reception of T_NACK_PDU with wrong sequence number .60
A.3.5 Reception of T_NACK_PDU with correct sequence number.60
A.3.6 Reception of T_NACK_PDU and maximum number of repetitions is reached.61
A.3.7 Reception of T_NACK_PDU with wrong connection address.61
Bibliography .62

4 14543-3-2 © ISO/IEC:2006(E)
Figure 1 – Individual address.8
Figure 2 – Group address.8
Figure 3 – Interaction of the data link layer .10
Figure 4 – Exchange of primitives for the L_Data-Service .11
Figure 5 – Frame_format Parameter.14
Figure 6 – Coding of Extended Frame Format .14
Figure 7 – Interaction of the network layer (not for Bridges or Routers) .20
Figure 8 – General functionality of a router or a bridge.20
Figure 9 – Format of the NPDU (Example).21
Figure 10 – Interaction of the transport layer.30
Figure 11 – Format of the TPDU (Example) .31
Figure 12 – Transport control field.31

Table 1 – Usage of priority .13
Table 2 – Actions of the connection oriented state machine .44
Table 3 – Transition table – Style 1 .46
Table 4 – Transition table – Style 1-rationalized.48
Table 5 – Transition table – Style 2 .50
Table 6 – Transition table – Style 3 .52

14543-3-2 © ISO/IEC:2006(E) 5
INFORMATION TECHNOLOGY –
HOME ELECTRONIC SYSTEM (HES) ARCHITECTURE –

Part 3-2: Communication layers – Transport, network and general parts of
data link layer for network based control of HES Class 1

FOREWORD
1) ISO (International Organization for Standardization) and IEC (International Electrotechnical Commission) form
the specialized system for worldwide standardization. National bodies that are members of ISO or IEC
participate in the development of International Standards. Their preparation is entrusted to technical
committees; any ISO and IEC National Committee interested in the subject dealt with may participate in this
preparatory work. International governmental and non-governmental organizations liaising with ISO and IEC
also participate in this preparation.
2) In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1. Draft International Standards adopted by the joint technical committee are circulated to
national bodies for voting. Publication as an International Standard requires approval by at least 75 % of the
national bodies casting a vote.
3) The formal decisions or agreements of IEC or ISO on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested IEC and ISO National Committees.
4) IEC, ISO or ISO/IEC Publications have the form of recommendations for international use and are accepted by
IEC and ISO National Committees in that sense. While all reasonable efforts are made to ensure that the
technical content of IEC, ISO or ISO/IEC Publications is accurate, IEC cannot be held responsible for the way
in which they are used or for any misinterpretation by any end user.
5) In order to promote international uniformity, IEC and ISO National Committees undertake to apply IEC, ISO or
ISO/IEC Publications transparently to the maximum extent possible in their national and regional publications.
Any divergence between any ISO/IEC Publication and the corresponding national or regional publication should
be clearly indicated in the latter.
6) ISO or IEC provide no marking procedure to indicate their approval and cannot be rendered responsible for any
equipment declared to be in conformity with an ISO/IEC Publication.
7) All users should ensure that they have the latest edition of this publication.
8) No liability shall attach to IEC or ISO or its directors, employees, servants or agents including individual
experts and members of their technical committees and IEC or ISO member bodies for any personal injury,
property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including
legal fees) and expenses arising out of the publication of, use of, or reliance upon, this ISO/IEC publication or
any other IEC, ISO or ISO/IEC publications
9) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
10) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
International Standard ISO/IEC 14543-3-2 was prepared by subcommittee 25: Interconnection
of information technology equipment, of ISO/IEC joint technical committee 1: Information
technology.
This International Standard together with ISO/IEC 14543-3-1 cancels and replaces
ISO/IEC TR 14543-3, published in 2000. It constitutes a complete revision of the principles
outlined in ISO/IEC TR 14543-3 and provides the specifications essential for an international
standard.
This International Standard has been approved by vote of the member bodies, and the voting
results may be obtained from the address given on the title page.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

6 14543-3-2 © ISO/IEC:2006(E)
INTRODUCTION
This standard specifies the Media independent requirements for the data link layer and the
requirements for the network layer and the transport layer for Home Electronic Systems.
This standard provides the communication stack targeted for providing the services specified in
ISO/IEC 14543-3-3 (EN 50090-3-2) “User Process” and ISO/IEC 14543-3-1 “Application Layer
for networked based control of HES Class 1”. It can be used as communication stack on the
physical layers as specified in ISO/IEC 14543-3-5, ISO/IEC 14543-3-6 and ISO/IEC 14543-3-7
(EN 50090-5-x).
Currently, ISO/IEC 14543, Information technology – Home Electronic System (HES)
architecture, consists of the following parts:
Part 2-1: Introduction and device modularity
Part 3-1: Communication layers – Application layer for network based control of HES Class 1
Part 3-2: Communication layers – Transport, network and general parts of data link layer for
network based control of HES Class 1
Part 3-3: User process for network based control of HES Class 1 (under consideration)
Part 3-4: System management – Management procedures for network based control of HES
Class 1 (under consideration)
Part 3-5: Media and media dependent layers – Power line for network based control of HES
Class 1 (under consideration)
Part 3-6: Media and media dependent layers – Twisted pair for network based control of
HES Class 1 (under consideration)
Part 3-7: Media and media dependent layers – Radio frequency for network based control of
HES Class 1 (under consideration)
Part 4: Home and building automation in a mixed-use building (technical report)
Part 5-1: Intelligent grouping and resource sharing for HES Class 2 and Class 3 – Core
ptotocol
Part 5-2: Intelligent grouping and resource sharing for HES Class 2 and Class 3 – Device
certification
Additional parts may be added later.

14543-3-2 © ISO/IEC:2006(E) 7
INFORMATION TECHNOLOGY –
HOME ELECTRONIC SYSTEM (HES) ARCHITECTURE –

Part 3-2: Communication layers – Transport, network and general parts of
data link layer for network based control of HES Class 1

1 Scope
This part of ISO/IEC 14543 specifies the services and protocol in a physical layer independent
way for the data link layer and for the network layer and the transport layer for usage in Home
Electronic Systems.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
ISO/IEC 7498 (all parts), Information technology – Open Systems Interconnection – Basic
reference model
ISO/IEC 14543-2-1, Information technology – Home Electronic System (HES) Architecture –
Part 2-1: Introduction and device modularity
ISO/IEC 14543-3-1 Information technology – Home Electronic System (HES) Architecture –
Part 3-1: Communication layers – Application layer for network based control of HES Class 1
NOTE 1 The provisions of the referenced specifications, as identified in this subclause, are valid within the context
of this International Standard. The reference to a specification within this International Standard does not give it any
further status within ISO/IEC; in particular, it does not give the referenced specification the status of an
International Standard.
EN 50090-5 (all parts), Home and Building Electronic Systems (HBES) – Part 5: Media and
media dependent layers
NOTE 2 Reference to EN 50090-5-x is to be considered as deleted as soon as ISO/IEC 14543-3-5,
ISO/IEC 14543-3-6 and ISO/IEC 14543-3-7 are approved.
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this part the terms and definitions given in ISO/IEC 14543-2-1 and the
following apply.
3.1.1
individual address
IA
unique identifier for every device in a network
NOTE The individual address is a 2-octet value that consists of an 8-bit subnetwork address and an 8-bit device
address.
8 14543-3-2 © ISO/IEC:2006(E)
3.1.2
subnetwork address
SNA
part of the individual address; consists of a 4-bit line address and a 4-bit area address, that
specifies the subnetwork in which the device is mounted
3.1.3
area address
part of the individual address that specifies the area in which the device is mounted
3.1.4
line address
part of the individual address that specifies the line in which the device is mounted
3.1.5
device address
unique identifier for every device in a subnetwork; the device address is an 8-bit value
NOTE Figure 1 shows the relationship between individual address, subnetwork address, area address, line
address and device address.
Individual address
Octet 0 Octet 1
7 6 5 4 3 210 765 432 10
Area Line
address address
Device address
Subnetwork address
Figure 1 – Individual address
3.1.6
group address
GA
2-octet value
NOTE Figure 2 shows the group address, consisting of main group and sub-group address.
Group address
Octet 0 Octet 1
7 6 5 4 32 107 654 321 0
Main group Sub-group
Figure 2 – Group address
3.1.7
datagram
full sequence of elements (physical symbols) transporting a frame on the physical medium
3.1.8
frame
sequence of octets exchanged between data link layers through the physical layer

14543-3-2 © ISO/IEC:2006(E) 9
3.2 Abbreviations
ACK Acknowledge
APDU Application layer Protocol Data Unit
con confirmation
GA Group Address
HES Class 1 refers to simple control and command.
HES Class 2 refers to Class 1 plus simple voice and stable picture transmission
HES Class 3 refers to Class 2 plus complex video transfers
IA Individual Address
ind indication
IACK Immediate Acknowledge
LPDU Link layer Protocol Data Unit
LSDU Link layer Service Data Unit
NACK Negative Acknowledge
NPDU Network layer Protocol Data Unit
NSDU Network layer Service Data Unit
PDU Protocol Data Unit
req request
SNA Sub-Network Address
TSAP Transport layer Service Access Point
TPDU Transport layer Protocol Data Unit
UART Universal Asynchronous Receiver Transmitter
4 Conformance
An entity of operational exchange conforming to this International Standard shall contain a
physical layer and data link layer in accordance with the requirements of clause 5, a network
layer in accordance with the requirements of clause 6 and a transport layer in accordance with
the requirements of clause 7.
5 Requirements for the physical layer and independent data link layer
5.1 Functions of the data link layer
The data link layer (also called "Layer-2") is the layer between the data link layer user and the
physical layer. The data link layer conforms to the definitions of the ISO/OSI model
(ISO/IEC 7498) data link layer. It provides medium access control and logical link control.
The data link layer is concerned with reliable transport of single frames between two or more
devices on the same subnetwork.
• When transmitting, it is responsible for
• building up a complete frame from the information passed to it by the network layer,

10 14543-3-2 © ISO/IEC:2006(E)
• gaining access to the medium according to the particular medium access protocol in
use, and
• transmitting the frame to the data link layer in the peer entity or entities, using the
services of the physical layer.
If the transmission fails, the transmitting data link layer may decide to try again after a certain
interval. In particular, if the remote device signals that its buffers are temporarily full, the data
link layer will wait for a pre-determined time and then attempt to re-transmit the frame (flow
control).
• When receiving, data link layer is responsible for
• determining whether the frame is intact or corrupted,
• deciding after destination address check to pass the frame to upper layers and
• issuing positive or negative acknowledgements back to the transmitting data link layer.
The data link layer shall provide some means to prevent from service duplication (in case of
repetitions because of corrupted acknowledgement frames).
The services provided include individual, group and broadcast addressing options.
The data link layer uses the services of the physical layer and provides services to the data link
layer user (see Figure 3).
Local Layer-2 Management Local Layer-2 User Remote Layer-2 User Remote Layer-2
Management
L_Poll_Data.con
L_Data.ind
L_Data.req L_Data.con
L_Busmon.ind
L_ServiceInfo.ind
L_SystemBroadcast.ind
L_SystemBroadcast.req L_SystemBroadcast.con
L_Poll_Data.req
L_Poll_Data_Update.req/con
Data Link Layer Data Link Layer
local L-2 services
data service
poll data service data service poll data service
L_PDU
Figure 3 – Interaction of the data link layer
5.2 Possible media and their impact on layer-2
The data link layer is defined for the following media:
Twisted pair 0;
Twisted pair 1;
Powerline 110;
Powerline 132;
Radio-frequency.
Data link layer will also be defined for the following media:
Infra-red;
Ethernet.
The data link layer is open for new media in the future.

14543-3-2 © ISO/IEC:2006(E) 11
Each medium needs a dedicated medium access control and a logical link control that adapts
to the medium access control. This clause focuses on medium independent features, for
example on the provided service interface to network layer.
The physical layer dependent requirements are specified in ISO/IEC 14543-3-5,
ISO/IEC 14543-5-6 and ISO/IEC 14543-3-7 (EN 50090-5 series).
5.3 Data link layer services
5.3.1 Data link layer modes
The data link layer mode defines which data link layer services shall be available to the data
link layer user. There shall be 2 data link layer modes:
1) the normal mode;
2) the busmonitor mode.
In normal mode the remote L_Data service, the remote L_SystemBroadcast service, the
remote L_Poll_Data service and the local L_Service_Information service shall be available to
the data link layer user. In busmonitor mode only the local L_Busmon service shall be
available. The data link layer mode is a parameter of layer-2.
The frame effectively sent on the physical medium link layer protocol data unit (LPDU) is
medium dependent. Therefore, it is described in ISO/IEC 14543-3-5, ISO/IEC 14543-5-6 and
ISO/IEC 14543-3-7 (EN 50090-5 series), respectively.
5.3.2 L_Data service
5.3.2.1 General
The L_Data service is a frame transfer service. It transmits a single link layer service data unit
(LSDU) to data link layer of one or several devices connected to the same subnetwork. The
destination address may be an individual address or a group address (multicast or broadcast).
The service is acknowledged or not, depending on the quality of service requested.
There shall be three service primitives, as shown in Figure 4.
a) L_Data.Req shall be used to transmit a frame.
b) L_Data.Ind shall be used to receive a frame.
c) L_Data.Con shall be used as a local primitive generated by the local layer-2 for its
own client to indicate that it is satisfied with the transmission.
Originating user Service provider Remote user
Request
→
Confirm Indication
← →
Figure 4 – Exchange of primitives for the L_Data-Service
If the local user of Layer-2 prepares an LSDU for the remote user it shall apply the L_Data.req
primitive to pass the LSDU to the local layer-2. The local layer-2 shall accept the service
request and try to send the LSDU to the remote layer-2 with the relevant frame format.
The local layer-2 shall pass an L_Data.con primitive to the local user that indicates either a
correct or erroneous data transfer. Depending on whether an L2-acknowledgement is
requested or not, this confirmation is related to the reception of the L2-acknowledgement or
only to the transmission of the frame on the medium.

12 14543-3-2 © ISO/IEC:2006(E)
L_Data.req(source_address, destination_address, address_type, priority, octet_count,
ack_request, frame_format, lsdu)
source_address this parameter shall be used to indicate the source address of the
requested frame; it shall be the individual address of the device that
requests the service primitive
destination_address: this parameter shall be used to indicate the destination address of the
requested frame; it shall be either an individual address or a group
address
address_type: this parameter shall be used to indicate whether the
destination_address of the requested frame is an individual address or
a group address
priority: this parameter shall be used to indicate the priority that shall be used
to transmit the requested frame; it shall be “system”, “urgent”, “normal”
or “low”
octet_count: this parameter shall be used to indicate the length information of the
requested frame
ack_request: this parameter shall be used to indicate whether a layer-2 acknowledge
is mandatory or optional
frame_format: standard or extended frame format
lsdu: this parameter shall be used to contain the user data to be transferred
by layer-2
L_Data.con(destination_address, address_type, priority, frame_format, lsdu, l_status)
destination_address: this parameter shall be used to indicate the destination address of the
transmitted frame; it shall be either an individual address or a group
address
address_type: this parameter shall be used to indicate whether the
destination_address of the transmitted frame is an individual address
or a group address
priority: this parameter shall be used to indicate the priority that has been used
to transmit the transmitted frame; it shall be “system”, “urgent”,
“normal” or “low”
lsdu: this parameter shall be used to indicate the length information of the
transmitted frame
frame_format: standard or extended frame format
l_status: ok: the value of this parameter shall be used to indicate that the
transmission of the frame has been successful
not_ok: the value of this parameter shall be used to indicate that the
transmission of the frame did not succeed

L_Data.ind(source_address, destination_address, address_type, priority, ack_request,
octet_count, frame_format, lsdu)
source_address: this parameter shall be used to indicate the source address of
the received frame; it shall be the individual address of the
device that has transmitted the service primitive
destination_address: this parameter shall be used to indicate the destination address
of the received frame; it shall be either an individual address or a
group address
address_type: this parameter shall be used to indicate whether the
destination_address of the received frame is an individual
address or a group address
14543-3-2 © ISO/IEC:2006(E) 13
priority: this parameter shall be used to indicate the priority of the
received frame; it shall be “system”, “urgent”, “normal” or “low”
ack_request: this parameter shall be used to indicate whether a layer-2
acknowledge is mandatory or optional
octet_count: this parameter shall be used to indicate the length information of
the received frame
frame_format: standard or extended frame format
lsdu: this parameter shall be used to contain the user data that has
been received by layer-2
5.3.2.2 Usage of priority
Table 1 – Usage of priority
Priority
Priority Usage
value
11 low shall be used for long frames, burst traffic, etc.
01 normal shall be used as the default for short frames
10 urgent shall be used exclusively for urgent frames
shall be used for high priority, system configuration
00 system
and management procedures
The usage conditions for these priorities, see Table 1, are specified in ISO/IEC 14543–3-1.
In a network, the frame traffic using urgent priority shall not exceed 5 % of the total traffic
(integration period: 1 min maximum).
5.3.2.3 Octet count
This service parameter shall contain the number of octets of the transported application layer
protocol data unit (APDU).
The Octet Count parameter shall be used on each medium to encode the LPDU length field as
follows.
For standard frames, the length field shall contain the number of octets in the APDU coded in
4 bit.
For extended frames, the length field shall contain the number of octets in the APDU coded in
8 bit except the value FFh. The value FFh (255) is used as an escape-code.
The escape-code (“ESC”) shall be available for future high speed media to enable larger
lengths.
5.3.2.4 Ack_request
This service parameter shall be used to indicate whether a link layer acknowledge is requested
or not.
5.3.2.5 Frame_format
This parameter shall be used to select the Standard or Extended Frame Format for Data Link
Layer and shall include information for the used extended frame type, see Figure 5.
If the frame_format parameter is 0 the Standard Frame Format shall be used. If this parameter
is different from 0, it shall be used as the frame_format in the extended control field.

14 14543-3-2 © ISO/IEC:2006(E)
For the definition of the extended control field, see the medium dependent layer description in
ISO/IEC 14543-3-5, ISO/IEC 14543-5-6 and ISO/IEC 14543-3-7 (EN 50090-5 series)
respectively.
Octet 3
7 6 5 4 3 2 1 0
FT = Frame type (0 = Standard, 1 = Extended)
(for, standard the frame type bit in the control field is 1)
EFF = Frame Format in case of FT=1 = Extended Frame Format

FT 0 0 0 t t t t
0 0 0 0 0 0 0 0 Standard Frame Format Standard Group or Individual
1 0 0 0 0 0 0 0 Extended Frame Format Standard Group or Individual
1 0 0 0 0 1 x x LTE-HEE extended address type
All other codes are reserved for future use
Figure 5 – Frame_format parameter
The Extended Frame Format from the frame_format parameter shall be placed in the extended
control field. The position of the extended frame type is medium dependent, see Figure 6.
The decision whether to use Standard or Extended Frame Format shall be made in the
Application Layer and selected by the frame_format parameter in T_Data_. services. The
remote Application Layer shall be tolerant towards usage of long frames if short frames would
be sufficient:
Example: A_PropertyValue_Read-PDU shall fit into Standard (short) Frame Format. But if
received using Extended (long) Frame Format it shall be accepted anyway by the remote
Application Layer and the corresponding A_PropertyValue_Response-PDU shall be transported
using the appropriate short or long format.
Extended Frame Format (EFF)
b b b b
3 2 1 0
CtrlE3 CtrlE2 CtrlE1 CtrlE0 Usage
Standard messages enabling long APDU > 15 octets
0 0 0 0 Standard usage of DA for peer to peer or group messages
0 0 0 1
0 0 1 0 Reserved
0 0 1 1
0 1 X X LTE-HEE extended message format
CtrlE CtrlE containing extension of DA group address
1, 0
1 0 0 0
1 0 0 1
1 0 1 0
1 0 1 1 Reserved
1 1 0 0
1 1 0 1
1 1 1 0
1 1 1 1 Escape
Figure 6 – Coding of Extended Frame Format
Frame type
Extended
Frame Format
14543-3-2 © ISO/IEC:2006(E) 15
The Extended Frame Format shall not be used instead of Standard Frame Format if encoding
capabilities of L_Data-Standard frame are sufficient (e.g. for short frames).
5.3.3 L_SystemBroadcast service
The L_SystemBroadcast service is a frame transfer service. It shall transmit a single link layer
service data unit (LSDU) to the data link layer of all devices within the network. The destination
address shall be the system broadcast address (Domain Address = 0000h and
destination address = 0000h and address_type = multicast). The service may be acknowledged
or not, depending on the transmission medium.
There shall be three service primitives:
1) L_SystemBroadcast.req shall be used to transmit a frame;
2) L_SystemBroadcast.ind shall be used to receive a frame;
3) L_SystemBroadcast.con shall be a local primitive generated by the local layer-2 for its own
client to indicate the success of the transmission.
If the local user of layer-2 prepares a LSDU for the remote user it shall apply the L_System-
Broadcast.req primitive to pass the LSDU to the local layer-2. The local layer-2 shall accept the
service request and shall try to send the LSDU to the remote layer-2 with the relevant frame
format.
The local layer-2 shall pass a L_SystemBroadcast.con primitive to the local user that shall
indicate either a correct or erroneous data transfer. Depending on whether a L2-
acknowledgement is requested or not, this confirmation shall be related to the reception of the
L2-acknowledgement or only to the transmission of the frame on the medium.
L_SystemBroadcast.req(destination_address, address_type, priority, octet_count, ack_request,
lsdu)
destination_address: this parameter shall be used to indicate the destination address of the
requested frame; it shall be the system broadcast address 0000h
address_type: this parameter shall be set to multicast
priority: this parameter shall be used to indicate the priority that shall be used
to transmit the requested frame; it shall be “system”, “urgent”, “normal”
or “low”
octet_count: this parameter shall be used to indicate the length information of the
requested frame
ack_request: this parameter shall be used to indicate whether a layer-2 acknowledge
is mandatory or optional
lsdu: this parameter shall be used to contain the user data to be transferred
by layer-2
L_SystemBroadcast.con(source_address, destination_address, address_type, priority,
octet_count, lsdu, l_status)
source_address this parameter shall be used to indicate the source address of the
requested frame; it shall be the individual address of the device that
requests the service primitive
destination_address: this parameter shall be used to indicate the destination address of the
requested frame; it shall be the system broadcast address 0000h
address_type: this parameter shall be set to multicast
priority: this parameter shall be used to indicate the priority that shall be used
to transmit the requested frame; it shall be “system”, “urgent”, “normal”
or “low”
16 14543-3-2 © ISO/IEC:2006(E)
octet_count: this parameter shall be used to indicate the length information of the
requested frame
ack_request: this parameter shall be used to indicate whether a layer-2 acknowledge
is mandatory or optional
l_status: ok: the value of this parameter shall be used to indicate that the
transmission of the L_SystemBroadcast.req service has been
successful
not_ok: the value of this parameter shall be used to indicate that the
transmission of the L_SystemBroadcast.req service did not succeed

L_SystemBroadcast.ind(source_address, destination_address, address_type, priority,
ack_request, octet_count, lsdu)
source_address: this parameter shall be used to indicate the source address of the
received frame; it shall be the individual address of the device that has
transmitted the service primitive
destination_address: this parameter shall be used to indicate the destination address of the
received frame; it shall be the system broadcast address 0000h
address_type: this parameter shall be set to multicast
priority: this parameter shall be used to indicate the priority of the received
frame; it shall be “system”, “urgent”, “normal” or “low”
ack_request: this parameter shall be used to indicate whether a layer-2 acknowledge
is mandatory or optional
octet_count: this parameter shall be used to indicate the length information of the
received frame
lsdu: this parameter shall be used to contain the user data that has been
received by layer-2
5.3.4 L_Poll_Data service and protocol
The L_Poll_Data service is a confirmed multicast service. The local user of layer-2 shall use
the L_Poll_Data.req primitive to request data from one or more remote users. The local layer-2
shall accept the service request and try to send the L_Poll_Data.req to the remote layer-2 with
frame format 3. The destination address shall always be a poll group address. The poll group
address shall be a parameter of layer-2.
L_Poll_Data request frames that are not correctly received shall be discarded.
After receiving a correct L_Poll
...
