IEC 63185:2020

Measurement of the complex permittivity for low-loss dielectric substrates balanced-type circular disk resonator method

IEC 63185:2020 relates to a measurement method for complex permittivity of a dielectric substrates at microwave and millimeter-wave frequencies. This method has been developed to evaluate the dielectric properties of low-loss materials used in microwave and millimeter-wave circuits and devices. It uses higher-order modes of a balanced-type circular disk resonator and provides broadband measurements of dielectric substrates by using one resonator, where the effect of excitation holes is taken into account accurately on the basis of the mode-matching analysis.

Méthode au résonateur à disque circulaire de type symétrique pour mesurer la permittivité complexe des substrats diélectriques à faible perte

l’IEC 63185:2020 traite d’une méthode de mesure de la permittivité complexe des substrats diélectriques aux hyperfréquences et aux fréquences à ondes millimétriques. Cette méthode a été élaborée pour évaluer les propriétés diélectriques des matériaux à faible perte utilisés dans les circuits et dispositifs hyperfréquences et à ondes millimétriques. Cette méthode utilise des modes d’ordre supérieur d’un résonateur à disque circulaire de type symétrique et permet d’effectuer, à l’aide d’un résonateur, des mesurages à large bande de substrats diélectriques, dont l’effet des trous d’excitation est pris en compte avec exactitude sur la base de l’analyse de couplage de mode.

General Information

• Status: Published
• Publication Date: 07-Dec-2020
• ICS: 33.120.30 - RF connectors
• Technical Committee: SC 46F - RF and microwave passive components
• Drafting Committee: WG 1 - TC 46/SC 46F/WG 1
• Current Stage: PPUB - Publication issued
• Start Date: 02-Jan-2021
• Completion Date: 08-Dec-2020

Standards Content (Sample)

IEC 63185 ®
Edition 1.0 2020-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Measurement of the complex permittivity for low-loss dielectric substrates
balanced-type circular disk resonator method

Méthode au résonateur à disque circulaire de type symétrique pour mesurer la
permittivité complexe des substrats diélectriques à faible perte

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 63185 ®
Edition 1.0 2020-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Measurement of the complex permittivity for low-loss dielectric substrates

balanced-type circular disk resonator method

Méthode au résonateur à disque circulaire de type symétrique pour mesurer la

permittivité complexe des substrats diélectriques à faible perte

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.120.30 ISBN 978-2-8322-9133-7

– 2 – IEC 63185:2020 © IEC 2020

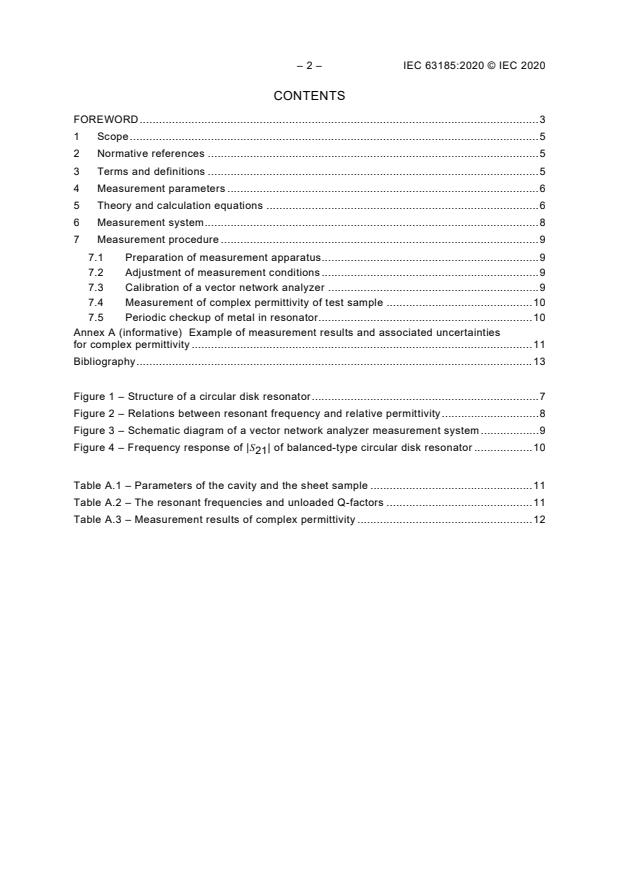

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Measurement parameters . 6
5 Theory and calculation equations . 6
6 Measurement system . 8
7 Measurement procedure . 9
7.1 Preparation of measurement apparatus. 9
7.2 Adjustment of measurement conditions . 9
7.3 Calibration of a vector network analyzer . 9
7.4 Measurement of complex permittivity of test sample . 10
7.5 Periodic checkup of metal in resonator. 10
Annex A (informative) Example of measurement results and associated uncertainties
for complex permittivity . 11
Bibliography . 13

Figure 1 – Structure of a circular disk resonator . 7
Figure 2 – Relations between resonant frequency and relative permittivity . 8
Figure 3 – Schematic diagram of a vector network analyzer measurement system . 9
Figure 4 – Frequency response of |S | of balanced-type circular disk resonator . 10
Table A.1 – Parameters of the cavity and the sheet sample . 11
Table A.2 – The resonant frequencies and unloaded Q-factors . 11
Table A.3 – Measurement results of complex permittivity . 12

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MEASUREMENT OF THE COMPLEX PERMITTIVITY
FOR LOW-LOSS DIELECTRIC SUBSTRATES
BALANCED-TYPE CIRCULAR DISK RESONATOR METHOD

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 63185 has been prepared by subcommittee 46F: RF and microwave
passive components, of IEC technical committee 46: Cables, wires, waveguides, RF connectors,
RF and microwave passive components and accessories.
The text of this International Standard is based on the following documents:
FDIS Report on voting
46F/523/FDIS 46F/531/RVD
Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 63185:2020 © IEC 2020
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

MEASUREMENT OF THE COMPLEX PERMITTIVITY
FOR LOW-LOSS DIELECTRIC SUBSTRATES
BALANCED-TYPE CIRCULAR DISK RESONATOR METHOD

1 Scope
This document relates to a measurement method for complex permittivity of a dielectric
substrates at microwave and millimeter-wave frequencies. This method has been developed to
evaluate the dielectric properties of low-loss materials used in microwave and millimeter-wave
circuits and devices. It uses higher-order modes of a balanced-type circular disk resonator and
provides broadband measurements of dielectric substrates by using one resonator, where the
effect of excitation holes is taken into account accurately on the basis of the mode-matching
analysis.
In comparison with the conventional method described in IEC 62810 and IEC 61338-1-3, this
method has the following characteristics:
’ and loss tangent tanδ normal to dielectric plate
• the values of the relative permittivity ε
r
samples can be measured accurately and non-destructively;
• this method presents broadband measuremen
...
