Fixed capacitors for use in electronic equipment - Part 17: Sectional specification - Fixed metallized polypropylene film dielectric AC and pulse capacitors

IEC 60384-17:2019 is available as IEC 60384-17:2019 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 60384-17:2019 applies to fixed capacitors with metallized electrodes and polypropylene dielectric for use in electronic equipment. Capacitors that have mixed film and metallized electrodes are also within the scope of this standard. These capacitors may have "self-healing" properties depending on conditions of use. Capacitors covered by this specification are mainly intended for use with alternating voltage and/or for pulse applications. The maximum reactive power applicable is 10 000 var and the maximum peak voltage is 3 000 V. This edition includes the following significant technical changes with respect to the previous edition:
a) all parts of the document have been revised based on the ISO/IEC Directives, Part 2:2016 (seventh edition) and harmonization between other similar kinds of documents;
b) tables and Clause 4 have been revised so as to prevent duplications and contradictions;
c) new damp heat steady-state robustness classes with test conditions have been added in text, in Clause 4 and in Annex A.
The contents of the corrigendum of December 2020 have been included in this copy.

Condensateurs fixes utilisés dans les équipements électroniques - Partie 17: Spécification intermédiaire: Condensateurs fixes pour tension alternative et pour impulsions à diélectrique en film de polypropylène métallisé

IEC 60384-17:2019 est disponible sous forme de IEC 60384-17:2019 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 60384-17:2019 s'applique aux condensateurs fixes à électrodes métallisées et à diélectrique en polypropylène destinés aux équipements électroniques. Les condensateurs équipés à la fois d'électrodes métallisées et d'électrodes en film sont également couverts par la présente norme. Ces condensateurs peuvent avoir des propriétés "d'autorégénération" en fonction des conditions d'utilisation. Les condensateurs couverts par la présente spécification sont principalement destinés à être utilisés dans des applications à impulsions et/ou à tension alternative. La puissance réactive maximale est 10 000 var et la tension de crête maximale est 3 000 V. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) toutes les parties du document ont été révisées sur la base des Directives ISO/IEC, Partie 2:2016 (septième édition) et harmonisées avec les autres types de documents similaires;
b) les tableaux et l'Article 4 ont été révisés afin d'éliminer les doublons et les contradictions;
c) de nouvelles classes de résistance à la chaleur humide continue (avec les conditions d'essai associées) ont été ajoutées à l'Article 4 et à l'Annexe A.
Le contenu du corrigendum de décembre 2020 a été pris en considération dans cet exemplaire.

General Information

Status
Published
Publication Date
17-Mar-2019
Current Stage
PPUB - Publication issued
Completion Date
18-Mar-2019
Ref Project

Buy Standard

Standard
IEC 60384-17:2019 - Fixed capacitors for use in electronic equipment - Part 17: Sectional specification - Fixed metallized polypropylene film dielectric AC and pulse capacitors
English and French language
90 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60384-17
Edition 3.0 2019-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –

Part 17: Sectional specification – Fixed metallized polypropylene film dielectric

AC and pulse capacitors
Condensateurs fixes utilisés dans les équipements électroniques –
Partie 17: Spécification intermédiaire – Condensateurs fixes pour tension
alternative et pour impulsions à diélectrique en film de polypropylène métallisé
IEC 60384-17:2019-03(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 60384-17
Edition 3.0 2019-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –

Part 17: Sectional specification – Fixed metallized polypropylene film dielectric

AC and pulse capacitors
Condensateurs fixes utilisés dans les équipements électroniques –
Partie 17: Spécification intermédiaire – Condensateurs fixes pour tension
alternative et pour impulsions à diélectrique en film de polypropylène métallisé
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.060.30 ISBN 978-2-8322-6606-9

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 60384-17:2019 © IEC 2019

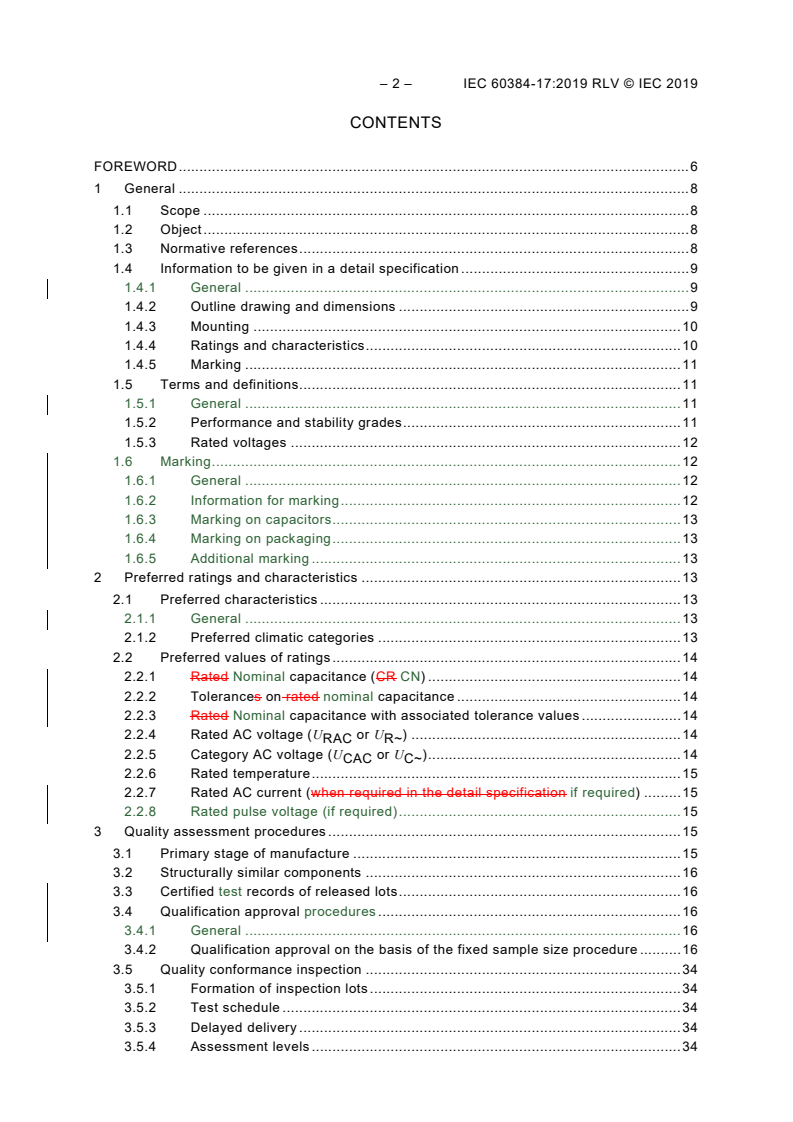

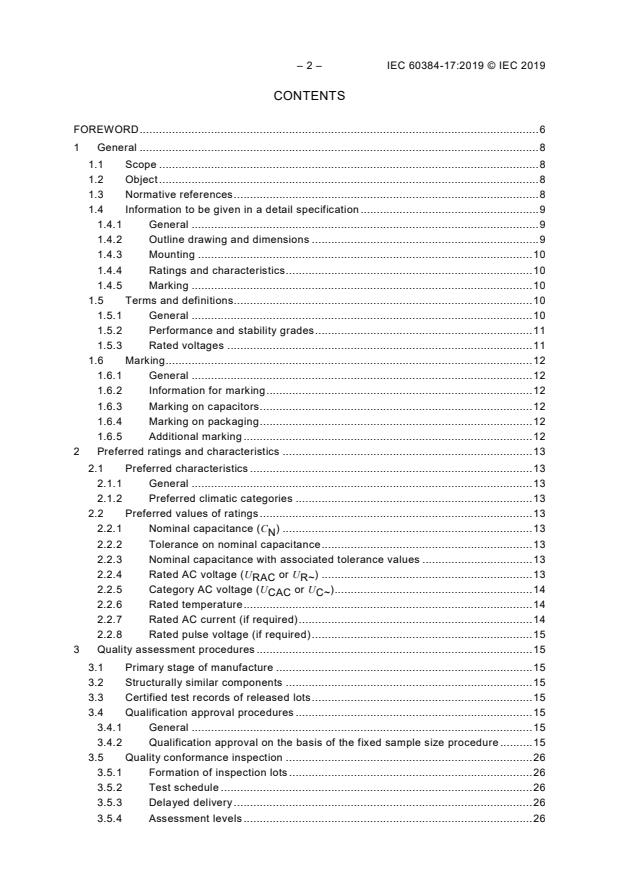

CONTENTS

FOREWORD ........................................................................................................................... 6

1 General ........................................................................................................................... 8

1.1 Scope ..................................................................................................................... 8

1.2 Object ..................................................................................................................... 8

1.3 Normative references .............................................................................................. 8

1.4 Information to be given in a detail specification ....................................................... 9

1.4.1 General ........................................................................................................... 9

1.4.2 Outline drawing and dimensions ...................................................................... 9

1.4.3 Mounting ....................................................................................................... 10

1.4.4 Ratings and characteristics ............................................................................ 10

1.4.5 Marking ......................................................................................................... 10

1.5 Terms and definitions ............................................................................................ 10

1.5.1 General ......................................................................................................... 10

1.5.2 Performance and stability grades ................................................................... 11

1.5.3 Rated voltages .............................................................................................. 11

1.6 Marking ................................................................................................................. 12

1.6.1 General ......................................................................................................... 12

1.6.2 Information for marking .................................................................................. 12

1.6.3 Marking on capacitors .................................................................................... 12

1.6.4 Marking on packaging .................................................................................... 12

1.6.5 Additional marking ......................................................................................... 12

2 Preferred ratings and characteristics ............................................................................. 13

2.1 Preferred characteristics ....................................................................................... 13

2.1.1 General ......................................................................................................... 13

2.1.2 Preferred climatic categories ......................................................................... 13

2.2 Preferred values of ratings .................................................................................... 13

2.2.1 Nominal capacitance (C ) ............................................................................. 13

2.2.2 Tolerance on nominal capacitance ................................................................. 13

2.2.3 Nominal capacitance with associated tolerance values .................................. 13

2.2.4 Rated AC voltage (U or U ) ................................................................. 13

RAC R~

2.2.5 Category AC voltage (U or U ) ............................................................. 14

CAC C~

2.2.6 Rated temperature ......................................................................................... 14

2.2.7 Rated AC current (if required) ........................................................................ 14

2.2.8 Rated pulse voltage (if required) .................................................................... 15

3 Quality assessment procedures ..................................................................................... 15

3.1 Primary stage of manufacture ............................................................................... 15

3.2 Structurally similar components ............................................................................ 15

3.3 Certified test records of released lots .................................................................... 15

3.4 Qualification approval procedures ......................................................................... 15

3.4.1 General ......................................................................................................... 15

3.4.2 Qualification approval on the basis of the fixed sample size procedure .......... 15

3.5 Quality conformance inspection ............................................................................ 26

3.5.1 Formation of inspection lots ........................................................................... 26

3.5.2 Test schedule ................................................................................................ 26

3.5.3 Delayed delivery ............................................................................................ 26

3.5.4 Assessment levels ......................................................................................... 26

---------------------- Page: 4 ----------------------
IEC 60384-17:2019 © IEC 2019 – 3 –

4 Test and measurement procedures ................................................................................ 27

4.1 Visual examination and check of dimensions ........................................................ 27

4.1.1 General ......................................................................................................... 27

4.1.2 Visual examination and check of dimensions ................................................. 28

4.1.3 Requirements ................................................................................................ 28

4.2 Electrical tests ...................................................................................................... 28

4.2.1 Voltage proof for AC capacitors ..................................................................... 28

4.2.2 Capacitance .................................................................................................. 29

4.2.3 Tangent of loss angle (tan δ) ......................................................................... 30

4.2.4 Insulation resistance ...................................................................................... 31

4.2.5 Inductance (if required) .................................................................................. 32

4.2.6 Characteristics depending on temperature (if required in the detail

specification) ................................................................................................. 32

4.3 Robustness of terminations ................................................................................... 33

4.3.1 General ......................................................................................................... 33

4.3.2 Initial inspections ........................................................................................... 33

4.3.3 Final inspections and requirements ................................................................ 33

4.4 Resistance to soldering heat ................................................................................. 33

4.4.1 General ......................................................................................................... 33

4.4.2 Initial inspections ........................................................................................... 33

4.4.3 Test conditions .............................................................................................. 33

4.4.4 Recovery ....................................................................................................... 34

4.4.5 Final inspections, measurements and requirements ....................................... 34

4.5 Solderability .......................................................................................................... 34

4.5.1 General ......................................................................................................... 34

4.5.2 Test conditions .............................................................................................. 34

4.5.3 Final inspections and requirements ................................................................ 34

4.6 Rapid change of temperature ................................................................................ 34

4.6.1 General ......................................................................................................... 34

4.6.2 Initial inspections ........................................................................................... 34

4.6.3 Test conditions .............................................................................................. 35

4.6.4 Final inspections and requirements ................................................................ 35

4.7 Vibration ............................................................................................................... 35

4.7.1 General ......................................................................................................... 35

4.7.2 Initial inspections ........................................................................................... 35

4.7.3 Test conditions .............................................................................................. 35

4.7.4 Final inspections and requirements ................................................................ 35

4.8 Bump (repetitive shock) ........................................................................................ 35

4.8.1 General ......................................................................................................... 35

4.8.2 Initial measurements ..................................................................................... 35

4.8.3 Test conditions .............................................................................................. 36

4.8.4 Final inspections, measurements and requirements ....................................... 36

4.9 Shock ................................................................................................................... 36

4.9.1 General ......................................................................................................... 36

4.9.2 Initial measurements ..................................................................................... 36

4.9.3 Test conditions .............................................................................................. 36

4.9.4 Final inspection, measurements and requirements......................................... 36

4.10 Climatic sequence................................................................................................. 37

4.10.1 General ......................................................................................................... 37

---------------------- Page: 5 ----------------------
– 4 – IEC 60384-17:2019 © IEC 2019

4.10.2 Initial measurements ..................................................................................... 37

4.10.3 Dry heat ........................................................................................................ 37

4.10.4 Damp heat, cyclic, Test Db, first cycle ........................................................... 37

4.10.5 Cold............................................................................................................... 37

4.10.6 Low air pressure (if required) ......................................................................... 37

4.10.7 Damp heat, cyclic, Test Db, remaining cycles ................................................ 37

4.10.8 Recovery ....................................................................................................... 37

4.10.9 Final inspections, measurements and requirements ....................................... 38

4.11 Damp heat, steady state ....................................................................................... 38

4.11.1 General ......................................................................................................... 38

4.11.2 Initial inspections ........................................................................................... 38

4.11.3 Test conditions .............................................................................................. 38

4.11.4 Recovery ....................................................................................................... 38

4.11.5 Final inspections, measurements and requirements ....................................... 38

4.11.6 Humidity robustness grades ........................................................................... 38

4.12 Endurance ............................................................................................................ 38

4.12.1 General ......................................................................................................... 38

4.12.2 Endurance test at 50 Hz/60 Hz alternating voltage ......................................... 39

4.12.3 Endurance test with sinusoidal current or voltage (if required) ....................... 39

4.12.4 Pulse endurance test (if required) .................................................................. 40

4.13 Charge and discharge ........................................................................................... 40

4.13.1 General ......................................................................................................... 40

4.13.2 Initial inspections ........................................................................................... 41

4.13.3 Test conditions .............................................................................................. 41

4.13.4 Recovery ....................................................................................................... 41

4.13.5 Final inspections, measurements and requirements ....................................... 41

4.14 Component solvent resistance (if required) ........................................................... 41

4.15 Solvent resistance of marking (if required) ............................................................ 41

Annex A (normative) Humidity robustness grades ................................................................ 42

A.1 General ................................................................................................................. 42

A.2 Humidity robustness grades .................................................................................. 42

A.3 Indication of humidity robustness grades .............................................................. 43

Bibliography .......................................................................................................................... 44

Figure 1 – Category AC voltage/rated AC voltage versus upper category temperature .......... 14

Table 1 – Preferred designations of performance grade and stability grade

combinations ........................................................................................................................ 11

Table 2 – Preferred combinations of capacitance series and tolerance ................................. 13

Table 3 – Test and sampling plan for qualification approval, assessment level EZ ................ 17

Table 4 – Test schedule for qualification approval ................................................................. 18

Table 5 – Lot-by-lot inspection .............................................................................................. 27

Table 6 – Periodic tests ........................................................................................................ 27

Table 7 – Test voltages, DC .................................................................................................. 28

Table 8 – Test voltages, AC .................................................................................................. 29

Table 9 – Tangent of loss angle limits, 1 kHz ........................................................................ 30

Table 10 – Tangent of loss angle limits, 10 kHz .................................................................... 30

---------------------- Page: 6 ----------------------
IEC 60384-17:2019 © IEC 2019 – 5 –

Table 11 – Insulation resistance requirements ...................................................................... 31

Table 12 – Insulation resistance correction factor dependent on test temperature ................. 32

Table 13 – Characteristics at lower category temperature ..................................................... 32

Table 14 – Characteristics at upper category temperature .................................................... 33

Table 15 – Preferred severities in shock test......................................................................... 36

Table A.1 – Minimum requirements ....................................................................................... 43

---------------------- Page: 7 ----------------------
– 6 – IEC 60384-17:2019 © IEC 2019
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 17: Sectional specification – Fixed metallized polypropylene
film dielectric AC and pulse capacitors
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60384-17 has been prepared by IEC technical committee 40:

Capacitors and resistors for electronic equipment.

This third edition cancels and replaces the second edition published in 2005. This

edition constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

a) all parts of the document have been revised based on the ISO/IEC Directives, Part 2:2016

(seventh edition) and harmonization between other similar kinds of documents;

b) tables and Clause 4 have been revised so as to prevent duplications and contradictions;

c) new damp heat steady-state robustness classes with test conditions have been added in

text, in Clause 4 and in Annex A.
---------------------- Page: 8 ----------------------
IEC 60384-17:2019 © IEC 2019 – 7 –
The text of this International Standard is based on the following documents:
FDIS Report on voting
40/2654/FDIS 40/2664/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

The list of all parts of the IEC 60384 series, under the general title Fixed capacitors for use in

electronic equipment, can be found on the IEC web site.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 9 ----------------------
– 8 – IEC 60384-17:2019 © IEC 2019
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 17: Sectional specification – Fixed metallized polypropylene
film dielectric AC and pulse capacitors
1 General
1.1 Scope

This part of IEC 60384 applies to fixed capacitors with metallized electrodes and

polypropylene dielectric for use in electronic equipment.

NOTE Capacitors that have mixed film and metallized electrodes are also within the scope of this standard.

These capacitors may have "self-healing" properties depending on conditions of use.

Capacitors covered by this specification are mainly intended for use with alternating voltage

and/or for
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
