IEC 60335-2-2:2009
(Main)Household and similar electrical appliances - Safety - Part 2-2: Particular requirements for vacuum cleaners and water-suction cleaning appliances
Household and similar electrical appliances - Safety - Part 2-2: Particular requirements for vacuum cleaners and water-suction cleaning appliances
IEC 60335-2-2:2009 deals with the safety of electric vacuum cleaners and water-suction cleaning appliances for household and similar purposes, including vacuum cleaners for animal grooming, their rated voltage being not more than 250 V. It also applies to centrally-sited vacuum cleaners and automatic battery-powered cleaners. This standard also applies to motorized cleaning heads and current-carrying hoses associated with a particular vacuum cleaner. The principal changes in this edition as compared with the fifth edition of IEC 60335-2-2 is as follows: The text is aligned with IEC 60335-1:2001, and its amendments 1 and 2. The attention of the National Committees is drawn to the fact that equipment manufacturers and testing organizations may need a transitional period following publication of a new, amended or revised IEC publication in which to make products in accordance with the new requirements and to equip thenselves for conducting new or revised tests. It is the recommendation of the committee that the content of this publication be adopted for implementation nationally not earlier than 12 months or later than 36 months from the date of publication. Key words: Cleaning appliances, water-suction, vacuum.
The contents of the corrigendum of December 2016 have been included in this copy.
This publication is to be read in conjunction with IEC 60335-1:2010.
Appareils électrodomestiques et analogues - Sécurité - Partie 2-2: Exigences particulières pour les aspirateurs et les appareils de nettoyage à aspiration d'eau
La CEI 60335-2-2:2009 traite de la sécurité des aspirateurs et des appareils de nettoyage à aspiration d'eau électriques pour usages domestiques et analogues, y compris les aspirateurs pour les soins des animaux, dont la tension assignée n'est pas supérieure à 250 V. Elle s'applique également aux aspirateurs à unité centrale d'aspiration et aux aspirateurs automatiques alimentés par batteries. La présente norme s'applique aussi aux têtes de nettoyage motorisées et aux flexibles conducteurs associés à un aspirateur donné. Par rapport à la cinquième édition de la CEI 60335-2-2, les principales modifications indiquées ci-après ont été apportées dans la présente édition: le texte est aligné sur la CEI 60335-1:2001, et ses Amendements 1 et 2. L'attention des Comités Nationaux est attirée sur le fait que les fabricants d'appareils et les organismes d'essai peuvent avoir besoin d'une période transitoire après la publication d'une nouvelle publication CEI, ou d'une publication amendée ou révisée, pour fabriquer des produits conformes aux nouvelles exigences et pour adapter leurs équipements aux nouveaux essais ou aux essais révisés. Le comité recommande que le contenu de cette publication soit entériné au niveau national au plus tôt 12 mois et au plus tard 36 mois après la date de publication. Mots-clés: appareils de nettoyage, aspiration d'eau, aspirateurs
Le contenu du corrigendum de décembre 2016 a été pris en considération dans cet exemplaire.
Cette publication doit être lue conjointement avec la CEI 60335-1:2010.
General Information
Relations
Buy Standard
Standards Content (Sample)

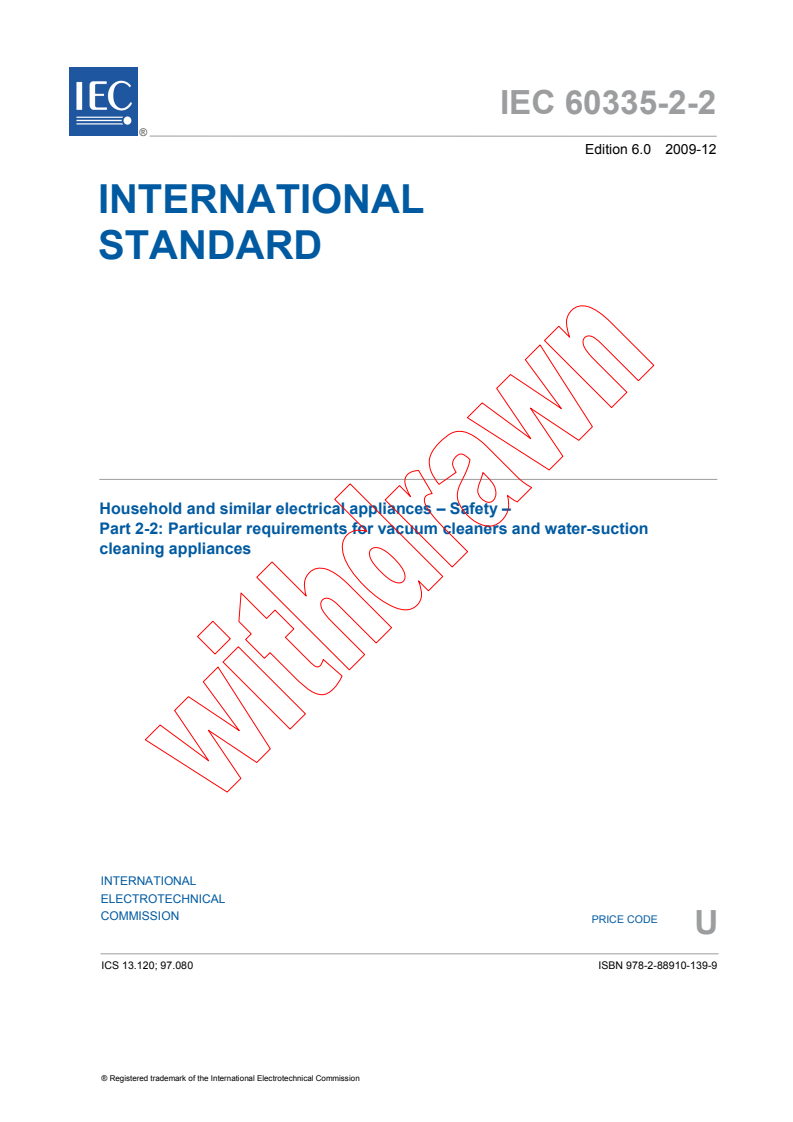

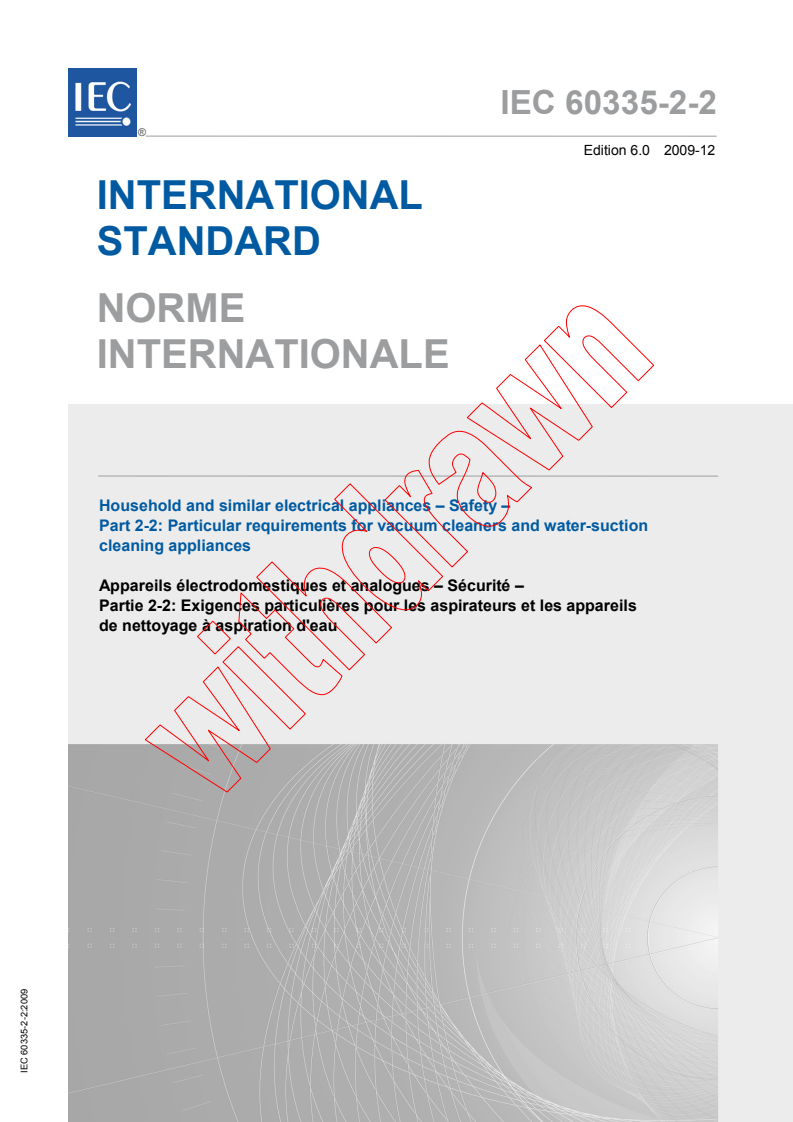

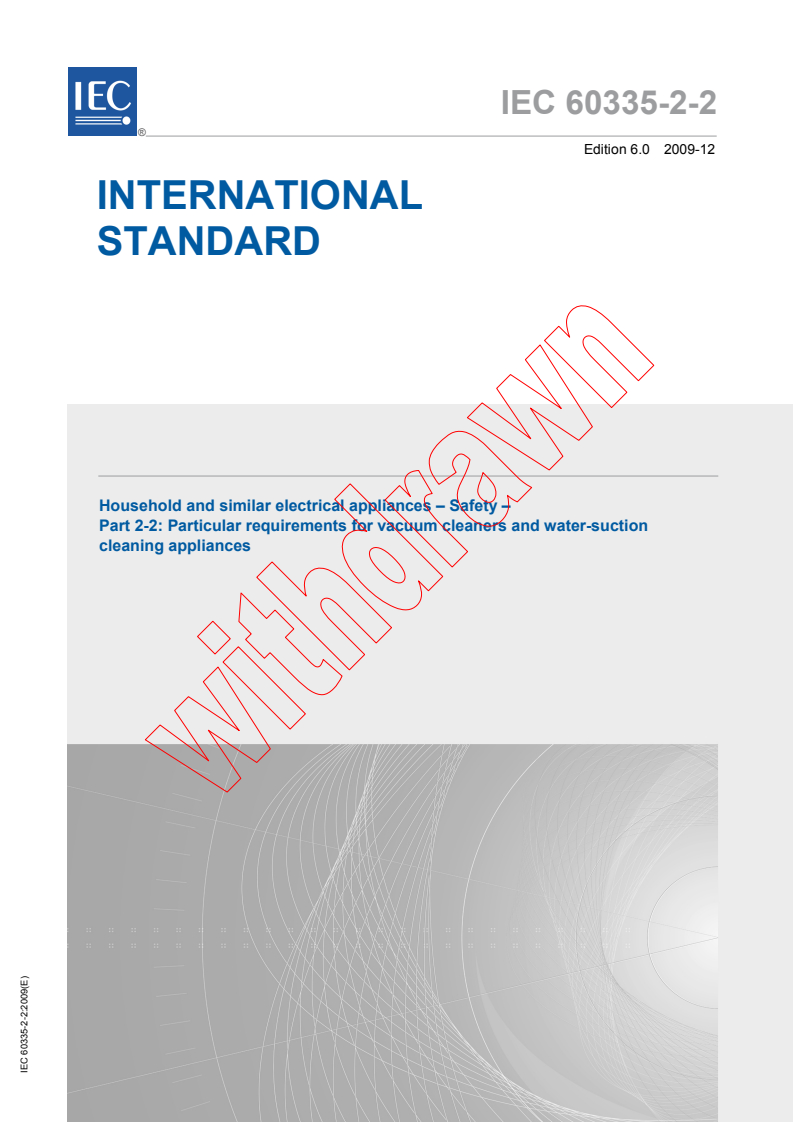

IEC 60335-2-2 ®
Edition 6.0 2009-12
INTERNATIONAL
STANDARD
Household and similar electrical appliances – Safety –
Part 2-2: Particular requirements for vacuum cleaners and water-suction
cleaning appliances

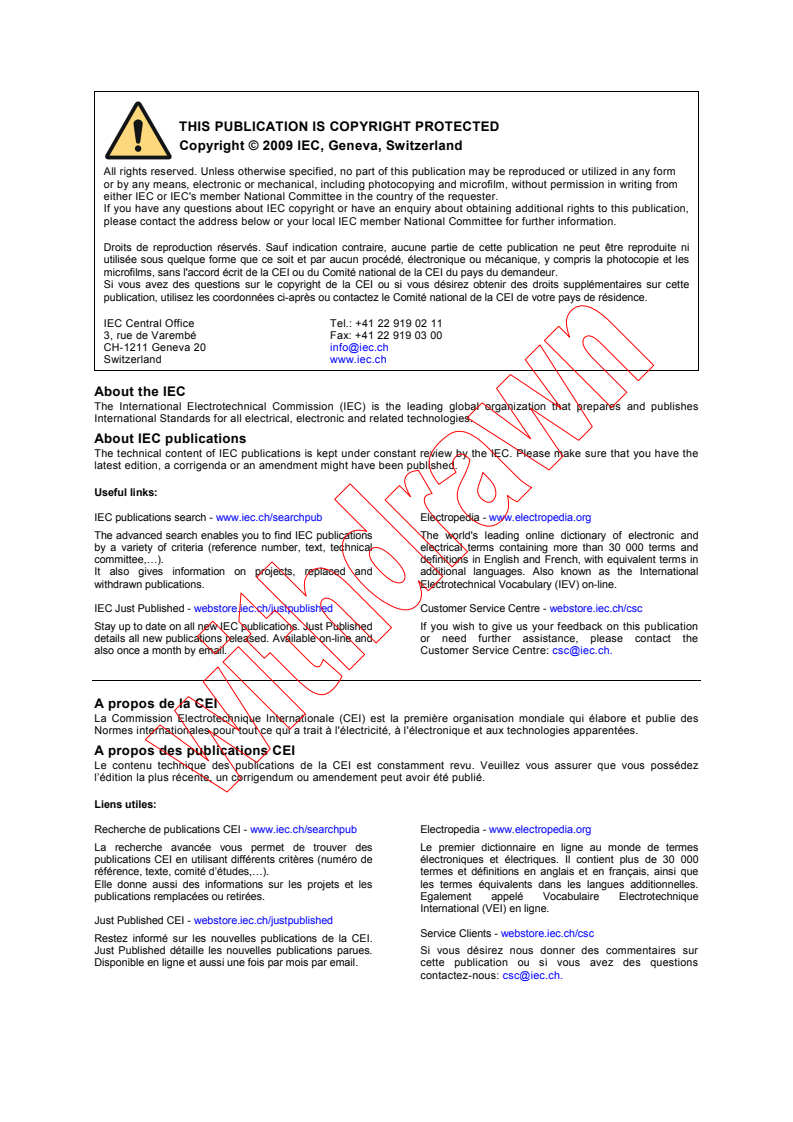

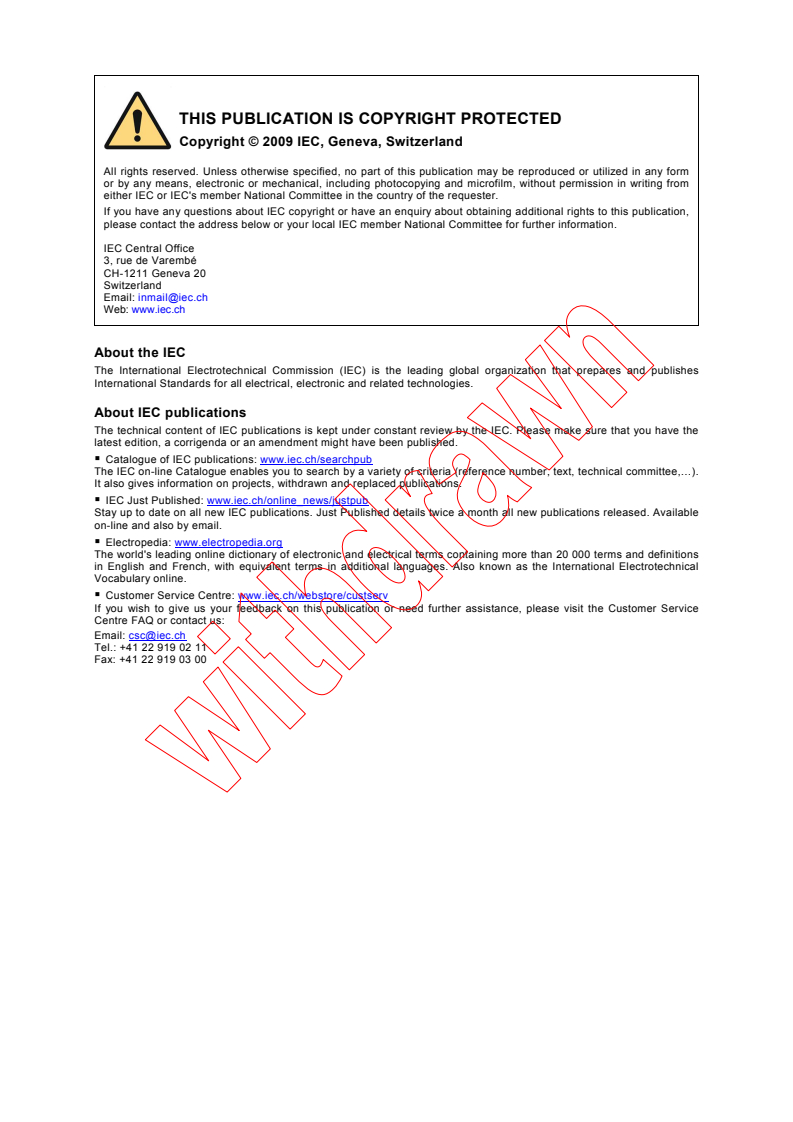

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00

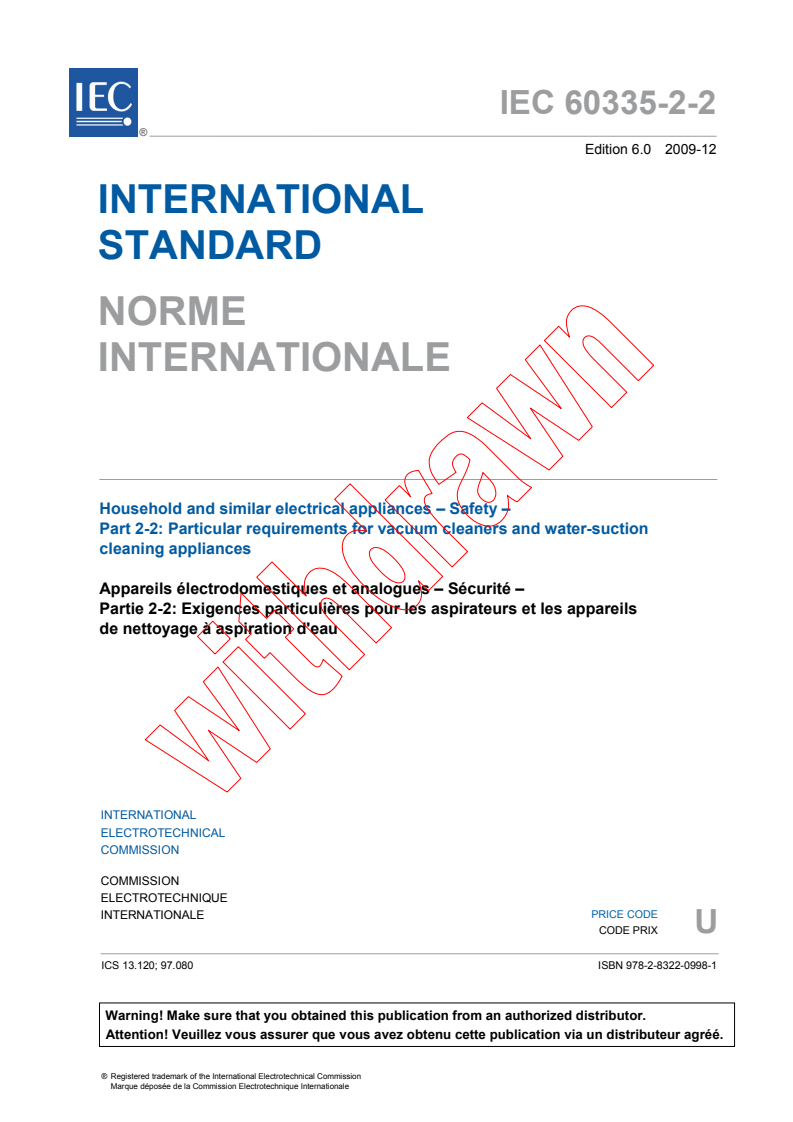

IEC 60335-2-2 ®
Edition 6.0 2009-12
INTERNATIONAL
STANDARD
Household and similar electrical appliances – Safety –
Part 2-2: Particular requirements for vacuum cleaners and water-suction
cleaning appliances
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
U
ICS 13.120; 97.080 ISBN 978-2-88910-139-9
© IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60335-2-2
Edition 6.0 2009-12
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –
Part 2-2: Particular requirements for vacuum cleaners
and water-suction cleaning appliances

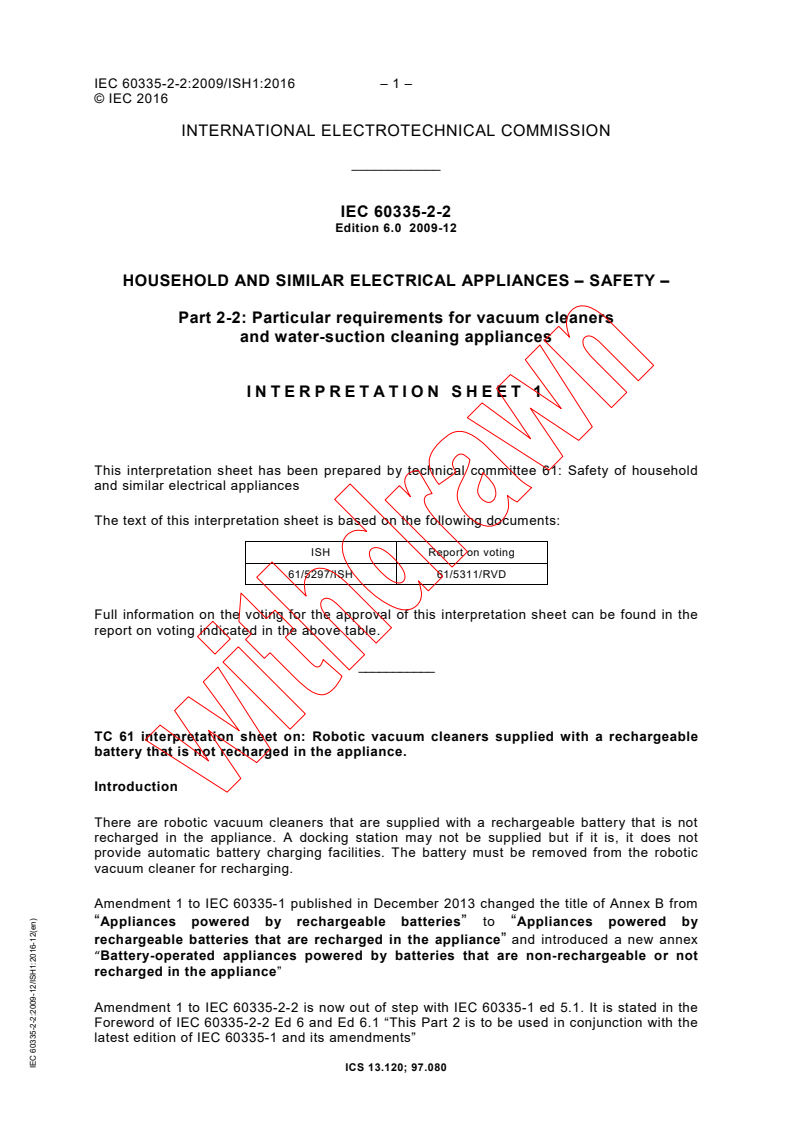

INTERPRETATION SHEET 1
This interpretation sheet has been prepared by technical committee 61: Safety of household
and similar electrical appliances
The text of this interpretation sheet is based on the following documents:
ISH Report on voting
61/5297/ISH 61/5311/RVD
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.
___________
TC 61 interpretation sheet on: Robotic vacuum cleaners supplied with a rechargeable
battery that is not recharged in the appliance.
Introduction
There are robotic vacuum cleaners that are supplied with a rechargeable battery that is not
recharged in the appliance. A docking station may not be supplied but if it is, it does not
provide automatic battery charging facilities. The battery must be removed from the robotic
vacuum cleaner for recharging.
Amendment 1 to IEC 60335-1 published in December 2013 changed the title of Annex B from
“Appliances powered by rechargeable batteries” to “Appliances powered by
rechargeable batteries that are recharged in the appliance” and introduced a new annex
“Battery-operated appliances powered by batteries that are non-rechargeable or not
recharged in the appliance”
Amendment 1 to IEC 60335-2-2 is now out of step with IEC 60335-1 ed 5.1. It is stated in the
Foreword of IEC 60335-2-2 Ed 6 and Ed 6.1 “This Part 2 is to be used in conjunction with the
latest edition of IEC 60335-1 and its amendments”
ICS 13.120; 97.080
– 2 – IEC 60335-2-2:2009/ISH1:2016
© IEC 2016
This situation has caused uncertainty on how to test robotic vacuum cleaners supplied with a
rechargeable battery that is not recharged in the appliance.
Questions:
1) Should these appliance be tested in accordance with IEC 60335-2-2 and Annex S to
IEC 60335-1 Ed 5.1
2) Should any on the modification to Annex B of IEC 60335-1 included in IEC 60335-2-2 Ed 6
and Ed 6.1 be taken into account.
ANSWERS
1) Yes. Annex S of IEC 60335-1 Ed 5.1 is applicable for these appliances
2) The following modifications to Annex B of IEC 60335-1 included in IEC 60335-2-2 Ed 6
and Ed 6.1 should be taken into account: Modification to Clauses 19, 21, 22, 24 and 30
___________
– 2 – 60335-2-2 © IEC:2009(E)
CONTENTS
FOREWORD.4
INTRODUCTION.7
1 Scope.8
2 Normative references .9
3 Definitions .9
4 General requirement.10
5 General conditions for the tests .10
6 Classification.11
7 Marking and instructions.11
8 Protection against access to live parts.12
9 Starting of motor-operated appliances .12
10 Power input and current .12
11 Heating .13
12 Void.13
13 Leakage current and electric strength at operating temperature.13
14 Transient overvoltages .13
15 Moisture resistance .13
16 Leakage current and electric strength.15
17 Overload protection of transformers and associated circuits .15
18 Endurance.15
19 Abnormal operation .15
20 Stability and mechanical hazards .16
21 Mechanical strength .17
22 Construction .18
23 Internal wiring.19
24 Components .19
25 Supply connection and external flexible cords .19
26 Terminals for external conductors.20
27 Provision for earthing .20
28 Screws and connections .20
29 Clearances, creepage distances and solid insulation .20
30 Resistance to heat and fire.20
31 Resistance to rusting.20
32 Radiation, toxicity and similar hazards.20
Annexes .24
Annex B (normative) Appliances powered by rechargeable batteries.24
Annex C (normative) Ageing test on motors .26
Bibliography.27
Figure 101 – Apparatus for testing the abrasion resistance of current-carrying hoses .21
Figure 102 – Apparatus for testing the resistance to flexing of current-carrying hoses .22
60335-2-2 © IEC:2009(E) – 3 –
Figure 103 – Configuration of the hose for the freezing treatment .23
Figure 104 – Flexing positions for the hose after removal from the freezing cabinet.23
– 4 – 60335-2-2 © IEC:2009(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-2: Particular requirements for vacuum cleaners
and water-suction cleaning appliances
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60335-2-2 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
This sixth edition cancels and repla
...

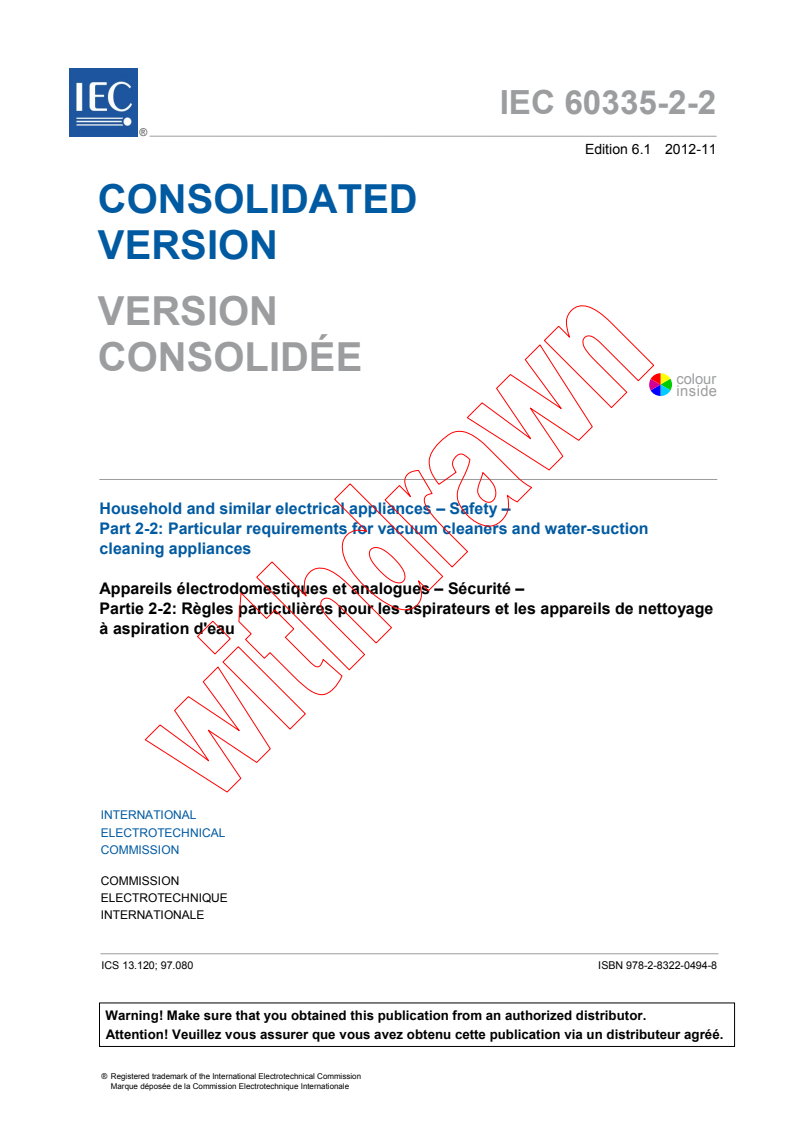

IEC 60335-2-2 ®
Edition 6.1 2012-11
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –
Part 2-2: Particular requirements for vacuum cleaners and water-suction
cleaning appliance

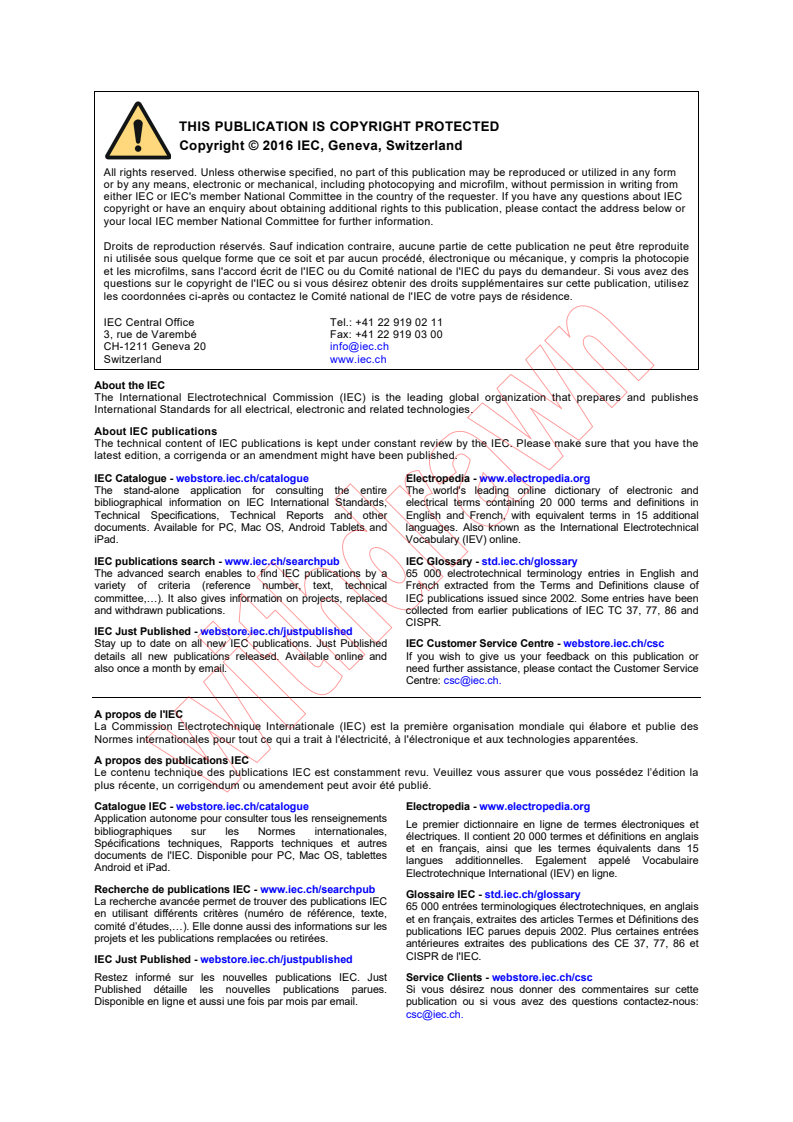

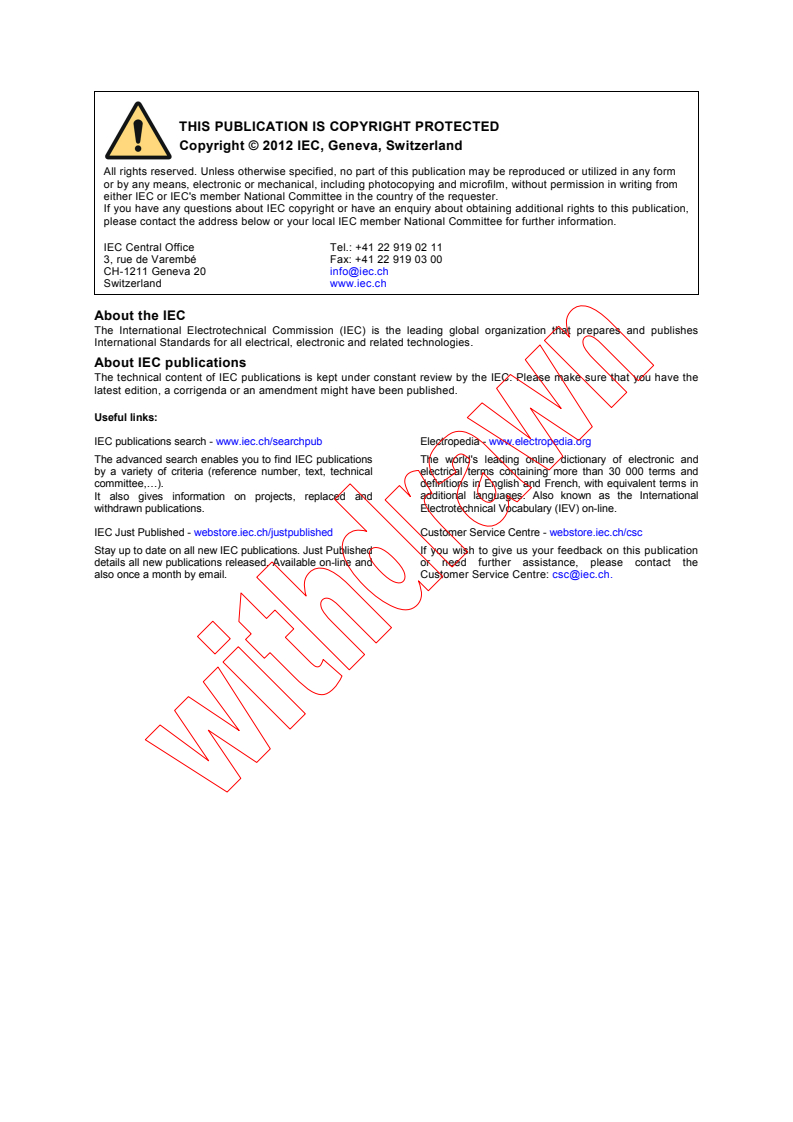

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.
IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

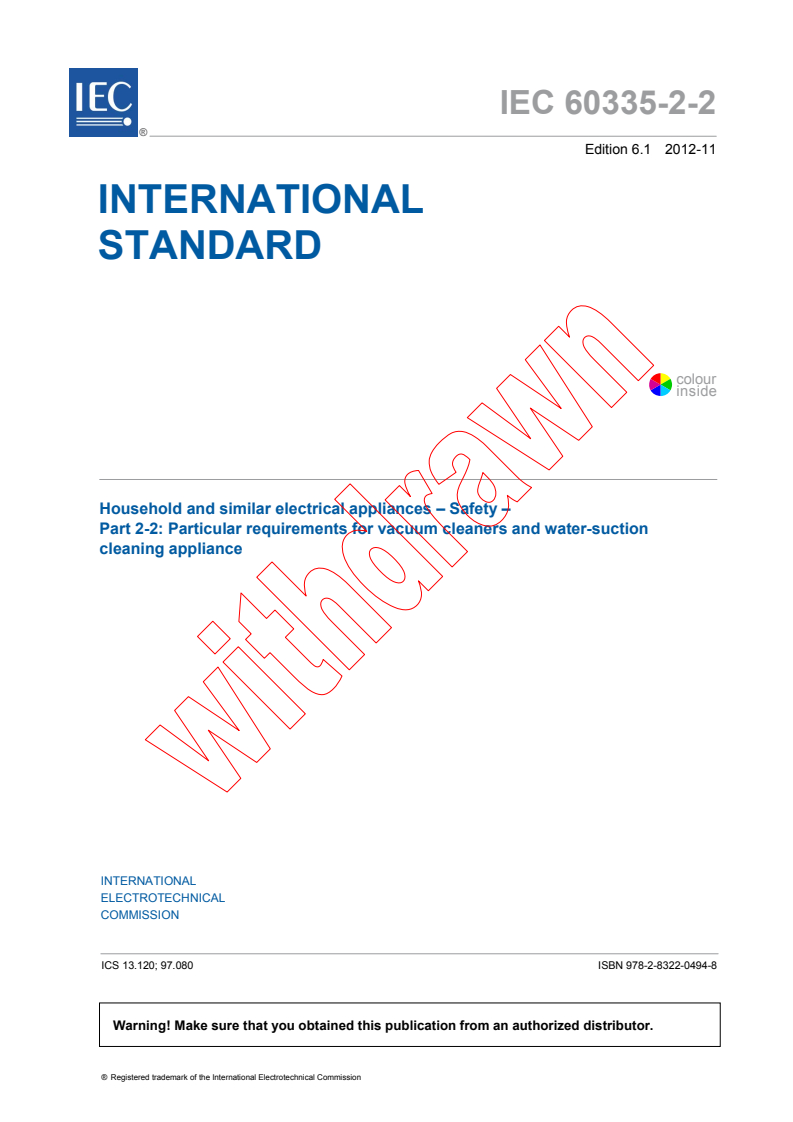

IEC 60335-2-2 ®
Edition 6.1 2012-11
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –
Part 2-2: Particular requirements for vacuum cleaners and water-suction
cleaning appliance
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 13.120; 97.080 ISBN 978-2-8322-0494-8
© IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60335-2-2
Edition 6.0 2009-12
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –
Part 2-2: Particular requirements for vacuum cleaners
and water-suction cleaning appliances
INTERPRETATION SHEET 1
This interpretation sheet has been prepared by technical committee 61: Safety of household
and similar electrical appliances
The text of this interpretation sheet is based on the following documents:
ISH Report on voting
61/5297/ISH 61/5311/RVD
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.
___________
TC 61 interpretation sheet on: Robotic vacuum cleaners supplied with a rechargeable
battery that is not recharged in the appliance.
Introduction
There are robotic vacuum cleaners that are supplied with a rechargeable battery that is not
recharged in the appliance. A docking station may not be supplied but if it is, it does not
provide automatic battery charging facilities. The battery must be removed from the robotic
vacuum cleaner for recharging.
Amendment 1 to IEC 60335-1 published in December 2013 changed the title of Annex B from
“Appliances powered by rechargeable batteries” to “Appliances powered by
rechargeable batteries that are recharged in the appliance” and introduced a new annex
“Battery-operated appliances powered by batteries that are non-rechargeable or not
recharged in the appliance”
Amendment 1 to IEC 60335-2-2 is now out of step with IEC 60335-1 ed 5.1. It is stated in the
Foreword of IEC 60335-2-2 Ed 6 and Ed 6.1 “This Part 2 is to be used in conjunction with the
latest edition of IEC 60335-1 and its amendments”
ICS 13.120; 97.080
– 2 – IEC 60335-2-2:2009/ISH1:2016
© IEC 2016
This situation has caused uncertainty on how to test robotic vacuum cleaners supplied with a
rechargeable battery that is not recharged in the appliance.
Questions:
1) Should these appliance be tested in accordance with IEC 60335-2-2 and Annex S to
IEC 60335-1 Ed 5.1
2) Should any on the modification to Annex B of IEC 60335-1 included in IEC 60335-2-2 Ed 6
and Ed 6.1 be taken into account.
ANSWERS
1) Yes. Annex S of IEC 60335-1 Ed 5.1 is applicable for these appliances
2) The following modifications to Annex B of IEC 60335-1 included in IEC 60335-2-2 Ed 6
and Ed 6.1 should be taken into account: Modification to Clauses 19, 21, 22, 24 and 30
___________
– 2 – 60335-2-2 IEC:2009+A1:2012(E)
CONTENTS
FOREWORD . 4
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 9
3 Terms and definitions. 9
4 General requirement . 10
5 General conditions for the tests . 10
6 Classification . 11
7 Marking and instructions . 11
8 Protection against access to live parts . 12
9 Starting of motor-operated appliances . 12
10 Power input and current . 12
11 Heating . 13
12 Void. 13
13 Leakage current and electric strength at operating temperature . 13
14 Transient overvoltages . 13
15 Moisture resistance . 13
16 Leakage current and electric strength . 15
17 Overload protection of transformers and associated circuits . 15
18 Endurance . 15
19 Abnormal operation . 15
20 Stability and mechanical hazards . 16
21 Mechanical strength . 17
22 Construction . 18
23 Internal wiring . 19
24 Components . 19
25 Supply connection and external flexible cords . 19
26 Terminals for external conductors . 20
27 Provision for earthing . 20
28 Screws and connections . 20
29 Clearances, creepage distances and solid insulation . 20
30 Resistance to heat and fire . 20
31 Resistance to rusting . 20
32 Radiation, toxicity and similar hazards . 20
Annexes . 24
Annex B (normative) Appliances powered by rechargeable batteries. 24
Annex C (normative) Ageing test on motors . 27
Annex R (normative) Software evaluation . 27
Bibliography . 28
60335-2-2 IEC:2009+A1:2012 (E) – 3 –
Figure 101 – Apparatus for testing the abrasion resistance of current-carrying hoses . 21
Figure 102 – Apparatus for testing the resistance to flexing of current-carrying hoses . 22
Figure 103 – Configuration of the hose for the freezing treatment . 23
Figure 104 – Flexing positions for the hose after removal from the freezing cabinet . 23
– 4 – 60335-2-2 IEC:2009+A1:2012(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-2: Particular requirements for vacuum cleaners
and water-suction cleaning appliances
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct applica
...
IEC 60335-2-2 ®
Edition 6.0 2009-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-2: Particular requirements for vacuum cleaners and water-suction
cleaning appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-2: Exigences particulières pour les aspirateurs et les appareils
de nettoyage à aspiration d'eau
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.
IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
IEC 60335-2-2 ®
Edition 6.0 2009-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-2: Particular requirements for vacuum cleaners and water-suction
cleaning appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-2: Exigences particulières pour les aspirateurs et les appareils
de nettoyage à aspiration d'eau
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX U
ICS 13.120; 97.080 ISBN 978-2-8322-0998-1
© IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60335-2-2
Edition 6.0 2009-12
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –
Part 2-2: Particular requirements for vacuum cleaners
and water-suction cleaning appliances
INTERPRETATION SHEET 1
This interpretation sheet has been prepared by technical committee 61: Safety of household
and similar electrical appliances
The text of this interpretation sheet is based on the following documents:
ISH Report on voting
61/5297/ISH 61/5311/RVD
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.
___________
TC 61 interpretation sheet on: Robotic vacuum cleaners supplied with a rechargeable
battery that is not recharged in the appliance.
Introduction
There are robotic vacuum cleaners that are supplied with a rechargeable battery that is not
recharged in the appliance. A docking station may not be supplied but if it is, it does not
provide automatic battery charging facilities. The battery must be removed from the robotic
vacuum cleaner for recharging.
Amendment 1 to IEC 60335-1 published in December 2013 changed the title of Annex B from
“Appliances powered by rechargeable batteries” to “Appliances powered by
rechargeable batteries that are recharged in the appliance” and introduced a new annex
“Battery-operated appliances powered by batteries that are non-rechargeable or not
recharged in the appliance”
Amendment 1 to IEC 60335-2-2 is now out of step with IEC 60335-1 ed 5.1. It is stated in the
Foreword of IEC 60335-2-2 Ed 6 and Ed 6.1 “This Part 2 is to be used in conjunction with the
latest edition of IEC 60335-1 and its amendments”
ICS 13.120; 97.080
– 2 – IEC 60335-2-2:2009/ISH1:2016
© IEC 2016
This situation has caused uncertainty on how to test robotic vacuum cleaners supplied with a
rechargeable battery that is not recharged in the appliance.
Questions:
1) Should these appliance be tested in accordance with IEC 60335-2-2 and Annex S to
IEC 60335-1 Ed 5.1
2) Should any on the modification to Annex B of IEC 60335-1 included in IEC 60335-2-2 Ed 6
and Ed 6.1 be taken into account.
ANSWERS
1) Yes. Annex S of IEC 60335-1 Ed 5.1 is applicable for these appliances
2) The following modifications to Annex B of IEC 60335-1 included in IEC 60335-2-2 Ed 6
and Ed 6.1 should be taken into account: Modification to Clauses 19, 21, 22, 24 and 30
___________
– 2 – 60335-2-2 IEC:2009
CONTENTS
FOREWORD . 4
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 9
3 Definitions . 9
4 General requirement . 10
5 General conditions for the tests . 10
6 Classification . 11
7 Marking and instructions . 11
8 Protection against access to live parts . 12
9 Starting of motor-operated appliances . 12
10 Power input and current . 12
11 Heating . 13
12 Void. 13
13 Leakage current and electric strength at operating temperature . 13
14 Transient overvoltages . 13
15 Moisture resistance . 13
16 Leakage current and electric strength . 15
17 Overload protection of transformers and associated circuits . 15
18 Endurance . 15
19 Abnormal operation . 15
20 Stability and mechanical hazards . 16
21 Mechanical strength . 17
22 Construction . 18
23 Internal wiring . 19
24 Components . 19
25 Supply connection and external flexible cords . 19
26 Terminals for external conductors . 20
27 Provision for earthing . 20
28 Screws and connections . 20
29 Clearances, creepage distances and solid insulation . 20
30 Resistance to heat and fire . 20
31 Resistance to rusting . 20
32 Radiation, toxicity and similar hazards . 20
Annexes . 24
Annex B (normative) Appliances powered by rechargeable batteries. 24
Annex C (normative) Ageing test on motors . 26
Bibliography . 27
Figure 101 – Apparatus for testing the abrasion resistance of current-carrying hoses . 21
Figure 102 – Apparatus for testing the resistance to flexing of current-carrying hoses . 22
Figure 103 – Configuration of the hose for the freezing treatment . 23
60335-2-2 IEC:2009 – 3 –
Figure 104 – Flexing positions for the hose after removal from the freezing cabinet . 23
– 4 – 60335-2-2 IEC:2009
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-2: Particular requirements for vacuum cleaners
and water-suction cleaning appliances
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Sp
...
IEC 60335-2-2 ®
Edition 6.1 2012-11
CONSOLIDATED
VERSION
VERSION
CONSOLIDÉE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-2: Particular requirements for vacuum cleaners and water-suction
cleaning appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-2: Règles particulières pour les aspirateurs et les appareils de nettoyage
à aspiration d'eau
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.
IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
IEC 60335-2-2 ®
Edition 6.1 2012-11
CONSOLIDATED
VERSION
VERSION
CONSOLIDÉE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-2: Particular requirements for vacuum cleaners and water-suction
cleaning appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-2: Règles particulières pour les aspirateurs et les appareils de nettoyage
à aspiration d'eau
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 97.080 ISBN 978-2-8322-0494-8
© IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60335-2-2
Edition 6.0 2009-12
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –
Part 2-2: Particular requirements for vacuum cleaners
and water-suction cleaning appliances
INTERPRETATION SHEET 1
This interpretation sheet has been prepared by technical committee 61: Safety of household
and similar electrical appliances
The text of this interpretation sheet is based on the following documents:
ISH Report on voting
61/5297/ISH 61/5311/RVD
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.
___________
TC 61 interpretation sheet on: Robotic vacuum cleaners supplied with a rechargeable
battery that is not recharged in the appliance.
Introduction
There are robotic vacuum cleaners that are supplied with a rechargeable battery that is not
recharged in the appliance. A docking station may not be supplied but if it is, it does not
provide automatic battery charging facilities. The battery must be removed from the robotic
vacuum cleaner for recharging.
Amendment 1 to IEC 60335-1 published in December 2013 changed the title of Annex B from
“Appliances powered by rechargeable batteries” to “Appliances powered by
rechargeable batteries that are recharged in the appliance” and introduced a new annex
“Battery-operated appliances powered by batteries that are non-rechargeable or not
recharged in the appliance”
Amendment 1 to IEC 60335-2-2 is now out of step with IEC 60335-1 ed 5.1. It is stated in the
Foreword of IEC 60335-2-2 Ed 6 and Ed 6.1 “This Part 2 is to be used in conjunction with the
latest edition of IEC 60335-1 and its amendments”
ICS 13.120; 97.080
– 2 – IEC 60335-2-2:2009/ISH1:2016
© IEC 2016
This situation has caused uncertainty on how to test robotic vacuum cleaners supplied with a
rechargeable battery that is not recharged in the appliance.
Questions:
1) Should these appliance be tested in accordance with IEC 60335-2-2 and Annex S to
IEC 60335-1 Ed 5.1
2) Should any on the modification to Annex B of IEC 60335-1 included in IEC 60335-2-2 Ed 6
and Ed 6.1 be taken into account.
ANSWERS
1) Yes. Annex S of IEC 60335-1 Ed 5.1 is applicable for these appliances
2) The following modifications to Annex B of IEC 60335-1 included in IEC 60335-2-2 Ed 6
and Ed 6.1 should be taken into account: Modification to Clauses 19, 21, 22, 24 and 30
___________
IEC 60335-2-2 ®
Edition 6.1 2012-11
REDLINE VERSION
VERSION REDLINE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-2: Particular requirements for vacuum cleaners and water-suction
cleaning appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-2: Règles particulières pour les aspirateurs et les appareils de nettoyage
à aspiration d'eau
– 2 – 60335-2-2 IEC:2009+A1:2012
CONTENTS
FOREWORD . 4
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 9
3 Terms and definitions . 9
4 General requirement . 10
5 General conditions for the tests . 10
6 Classification . 11
7 Marking and instructions . 11
8 Protection against access to live parts . 12
9 Starting of motor-operated appliances . 12
10 Power input and current . 12
11 Heating . 13
12 Void. 13
13 Leakage current and electric strength at operating temperature . 13
14 Transient overvoltages . 13
15 Moisture resistance . 13
16 Leakage current and electric strength . 15
17 Overload protection of transformers and associated circuits . 15
18 Endurance . 15
19 Abnormal operation . 15
20 Stability and mechanical hazards . 16
21 Mechanical strength . 17
22 Construction . 18
23 Internal wiring . 19
24 Components . 19
25 Supply connection and external flexible cords . 19
26 Terminals for external conductors . 20
27 Provision for earthing . 20
28 Screws and connections . 20
29 Clearances, creepage distances and solid insulation . 20
30 Resistance to heat and fire . 20
31 Resistance to rusting . 20
32 Radiation, toxicity and similar hazards . 20
Annexes . 24
Annex B (normative) Appliances powered by rechargeable batteries. 24
Annex C (normative) Ageing test on motors . 27
Annex R (normative) Software evaluation . 28
Bibliography . 29
60335-2-2 IEC:2009+A1:2012 – 3 –
Figure 101 – Apparatus for testing the abrasion resistance of current-carrying hoses . 21
Figure 102 – Apparatus for testing the resistance to flexing of current-carrying hoses . 22
Figure 103 – Configuration of the hose for the freezing treatment . 23
Figure 104 – Flexing positions for the hose after removal from the freezing cabinet . 23
– 4 – 60335-2-2 IEC:2009+A1:2012
INTERNA
...
IEC 60335-2-2 ®
Edition 6.2 2016-04
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-2: Particular requirements for vacuum cleaners and water-suction
cleaning appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-2: Exigences particulières pour les aspirateurs et les appareils
de nettoyage à aspiration d'eau
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC
65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte,
et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les
publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées.
antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60335-2-2 ®
Edition 6.2 2016-04
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-2: Particular requirements for vacuum cleaners and water-suction
cleaning appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-2: Exigences particulières pour les aspirateurs et les appareils
de nettoyage à aspiration d'eau
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 97.080 ISBN 978-2-8322-3368-9
IEC 60335-2-2 ®
Edition 6.2 2016-04
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-2: Particular requirements for vacuum cleaners and water-suction
cleaning appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-2: Exigences particulières pour les aspirateurs et les appareils
de nettoyage à aspiration d'eau
© IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60335-2-2
Edition 6.0 2009-12
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –
Part 2-2: Particular requirements for vacuum cleaners
and water-suction cleaning appliances
INTERPRETATION SHEET 1
This interpretation sheet has been prepared by technical committee 61: Safety of household
and similar electrical appliances
The text of this interpretation sheet is based on the following documents:
ISH Report on voting
61/5297/ISH 61/5311/RVD
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.
___________
TC 61 interpretation sheet on: Robotic vacuum cleaners supplied with a rechargeable
battery that is not recharged in the appliance.
Introduction
There are robotic vacuum cleaners that are supplied with a rechargeable battery that is not
recharged in the appliance. A docking station may not be supplied but if it is, it does not
provide automatic battery charging facilities. The battery must be removed from the robotic
vacuum cleaner for recharging.
Amendment 1 to IEC 60335-1 published in December 2013 changed the title of Annex B from
“Appliances powered by rechargeable batteries” to “Appliances powered by
rechargeable batteries that are recharged in the appliance” and introduced a new annex
“Battery-operated appliances powered by batteries that are non-rechargeable or not
recharged in the appliance”
Amendment 1 to IEC 60335-2-2 is now out of step with IEC 60335-1 ed 5.1. It is stated in the
Foreword of IEC 60335-2-2 Ed 6 and Ed 6.1 “This Part 2 is to be used in conjunction with the
latest edition of IEC 60335-1 and its amendments”
ICS 13.120; 97.080
– 2 – IEC 60335-2-2:2009/ISH1:2016
© IEC 2016
This situation has caused uncertainty on how to test robotic vacuum cleaners supplied with a
rechargeable battery that is not recharged in the appliance.
Questions:
1) Should these appliance be tested in accordance with IEC 60335-2-2 and Annex S to
IEC 60335-1 Ed 5.1
2) Should any on the modification to Annex B of IEC 60335-1 included in IEC 60335-2-2 Ed 6
and Ed 6.1 be taken into account.
ANSWERS
1) Yes. Annex S of IEC 60335-1 Ed 5.1 is applicable for these appliances
2) The following modifications to Annex B of IEC 60335-1 included in IEC 60335-2-2 Ed 6
and Ed 6.1 should be taken into account: Modification to Clauses 19, 21, 22, 24 and 30
___________
– 2 – IEC 60335-2-2:2009+AMD:2012
+AMD2:2016 CSV IEC 2016
CONTENTS
FOREWORD. 4
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 9
3 Terms and definitions . 9
4 General requirement . 11
5 General conditions for the tests . 11
6 Classification . 11
7 Marking and instructions . 11
8 Protection against access to live parts . 13
9 Starting of motor-operated appliances . 13
10 Power input and current . 13
11 Heating . 14
12 Void . 15
13 Leakage current and electric strength at operating temperature . 15
14 Transient overvoltages . 15
15 Moisture resistance . 15
16 Leakage current and electric strength . 17
17 Overload protection of transformers and associated circuits . 17
18 Endurance . 17
19 Abnormal operation . 17
20 Stability and mechanical hazards . 19
21 Mechanical strength . 19
22 Construction . 21
23 Internal wiring . 22
24 Components . 22
25 Supply connection and external flexible cords . 22
26 Terminals for external conductors . 23
27 Provision for earthing. 23
28 Screws and connections . 23
29 Clearances, creepage distances and solid insulation . 23
30 Resistance to heat and fire . 23
31 Resistance to rusting . 24
32 Radiation, toxicity and similar hazards . 24
Annexes . 28
Annex B
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
