IEC 60092-303:1980/AMD1:1997
(Amendment)Amendment 1 - Electrical installations in ships. Part 303: Equipment - Transformers for power and lighting
Amendment 1 - Electrical installations in ships. Part 303: Equipment - Transformers for power and lighting
Amendement 1 - Installations électriques à bord des navires. 303e partie: Matériel - Transformateurs de puissance
General Information
Relations
Standards Content (Sample)

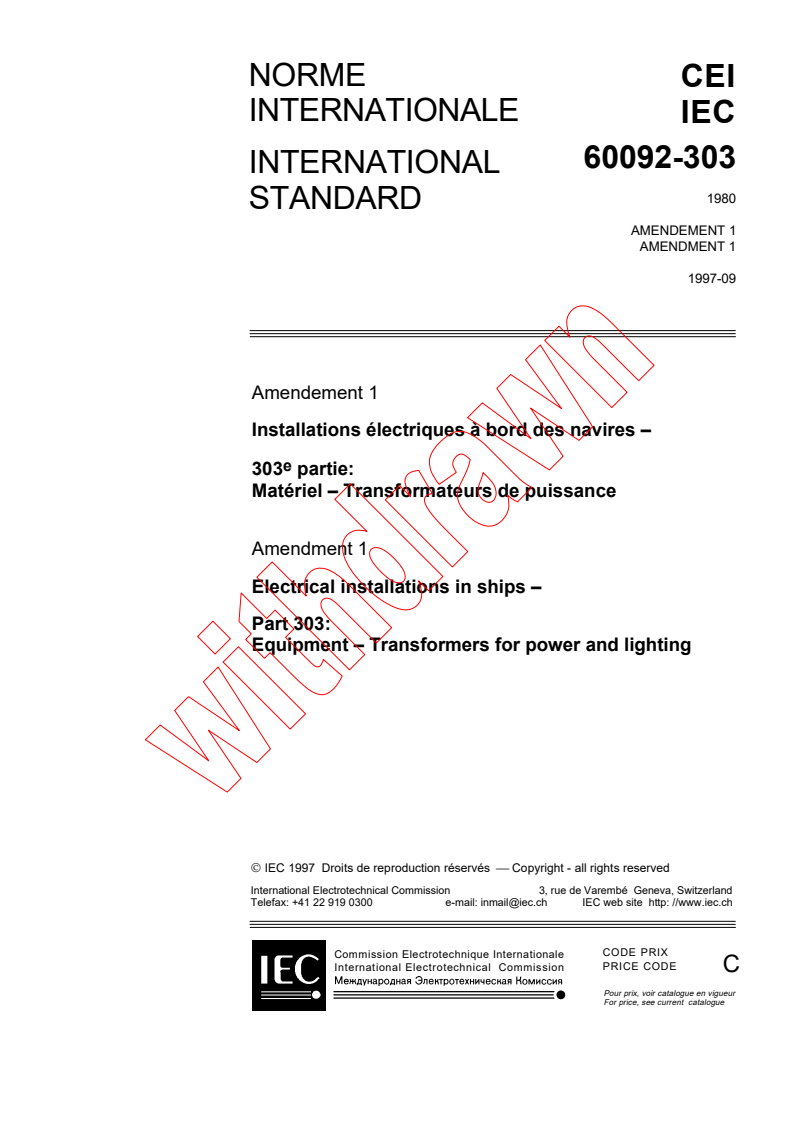

NORME
CEI
INTERNATIONALE
IEC
60092-303
INTERNATIONAL
STANDARD
AMENDEMENT 1
AMENDMENT 1
1997-09
Amendement 1
Installations électriques à bord des navires –
e
303 partie:
Matériel – Transformateurs de puissance
Amendment 1
Electrical installations in ships –
Part 303:
Equipment – Transformers for power and lighting
IEC 1997 Droits de reproduction réservés Copyright - all rights reserved
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http: //www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
PRICE CODE
International Electrotechnical Commission
C
Pour prix, voir catalogue en vigueur
For price, see current catalogue

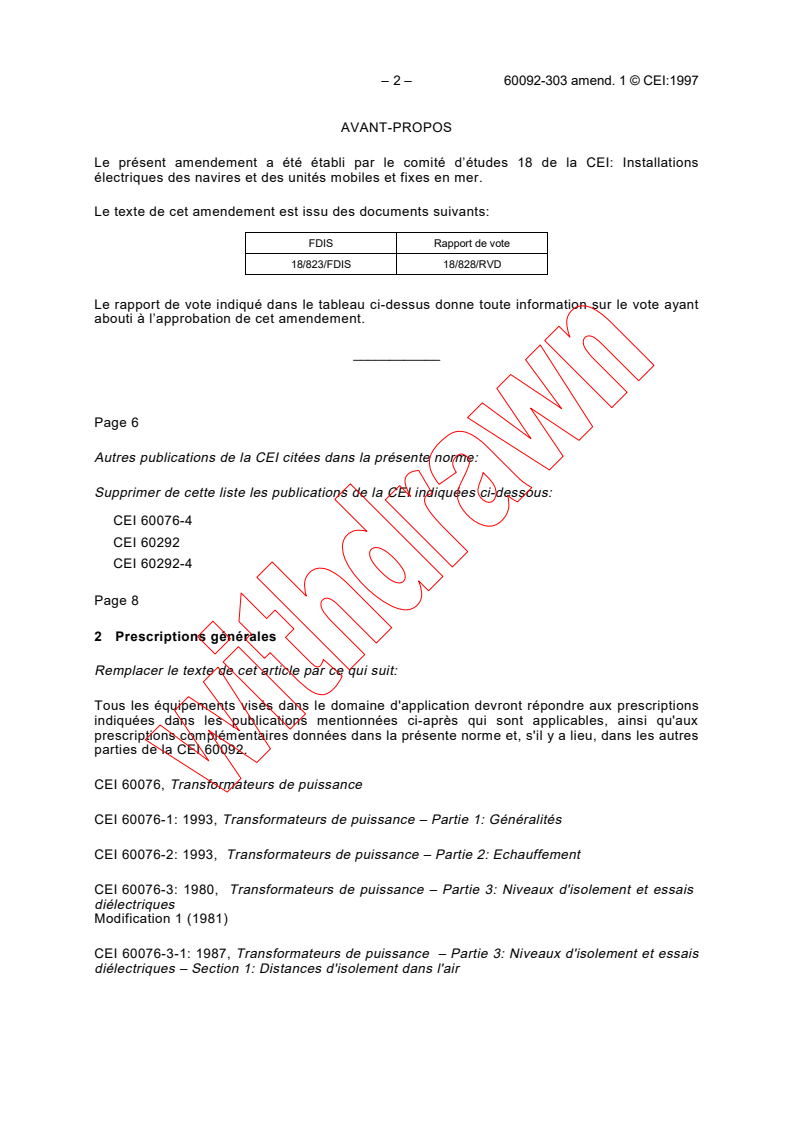

– 2 – 60092-303 amend. 1 © CEI:1997
AVANT-PROPOS
Le présent amendement a été établi par le comité d’études 18 de la CEI: Installations
électriques des navires et des unités mobiles et fixes en mer.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
18/823/FDIS 18/828/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l’approbation de cet amendement.
____________
Page 6
Autres publications de la CEI citées dans la présente norme:
Supprimer de cette liste les publications de la CEI indiquées ci-dessous:
CEI 60076-4
CEI 60292
CEI 60292-4
Page 8
2 Prescriptions générales
Remplacer le texte de cet article par ce qui suit:
Tous les équipements visés dans le domaine d'application devront répondre aux prescriptions
indiquées dans les publications mentionnées ci-après qui sont applicables, ainsi qu'aux
prescriptions complémentaires données dans la présente norme et, s'il y a lieu, dans les autres
parties de la CEI 60092.
CEI 60076, Transformateurs de puissance
CEI 60076-1: 1993, Transformateurs de puissance – Partie 1: Généralités
CEI 60076-2: 1993, Transformateurs de puissance – Partie 2: Echauffement
CEI 60076-3: 1980, Transformateurs de puissance – Partie 3: Niveaux d'isolement et essais
diélectriques
Modification 1 (1981)
CEI 60076-3-1: 1987, Transformateurs de puissance – Partie 3: Niveaux d'isolement et essais
diélectriques – Section 1: Distances d'isolement dans l'air

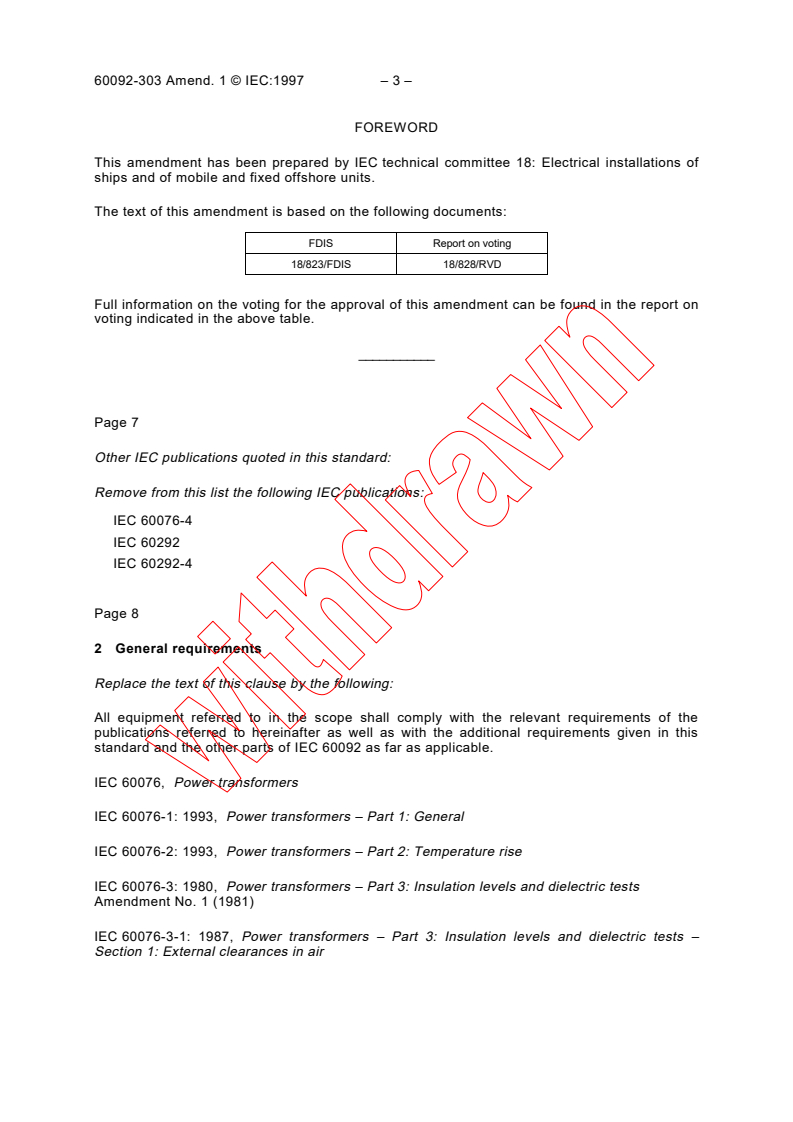

60092-303 Amend. 1 © IEC:1997 – 3 –
FOREWORD
This amendment has been prepared by IEC technical committee 18: Electrical installations of
ships and of mobile and fixed offshore units.
The text of this amendment is based on the following documents:
FDIS Report on voting
18/823/FDIS 18/828/RVD
Full information on the voting for the approval of this amendment can be found in the report on
voting indicated in the above table.
___________
Page 7
Other IEC publications quoted in this standard:
Remove from this list the following IEC publications:
IEC 60076-4
IEC 60292
IEC 60292-4
Page 8
...
