IEC 60335-2-9:2008/AMD1:2012

Amendment 1 - Household and similar electrical appliances - Safety - Part 2-9: Particular requirements for grills, toasters and similar portable cooking appliances

Amendement 1 - Appareils électrodomestiques et analogues - Sécurité - Partie 2-9: Règles particulières pour les grils, les grille-pain et les appareils de cuisson mobiles analogues

General Information

• Status: Published
• Publication Date: 12-Nov-2012
• ICS: 13.120 - Domestic safety
• ICS: 97.040.50 - Small kitchen appliances
• Technical Committee: TC 61 - Safety of household and similar electrical appliances
• Current Stage: DELPUB - Deleted Publication
• Completion Date: 17-May-2019

Relations

• Amends: IEC 60335-2-9:2008 - Household and similar electrical appliances - Safety - Part 2-9: Particular requirements for grills, toasters and similar portable cooking appliances
• Effective Date: 05-Sep-2023
• Revised: IEC 60335-2-9:2019 - Household and similar electrical appliances - Safety - Part 2-9: Particular requirements for grills, toasters and similar portable cooking appliances
• Effective Date: 05-Sep-2023

Standards Content (Sample)

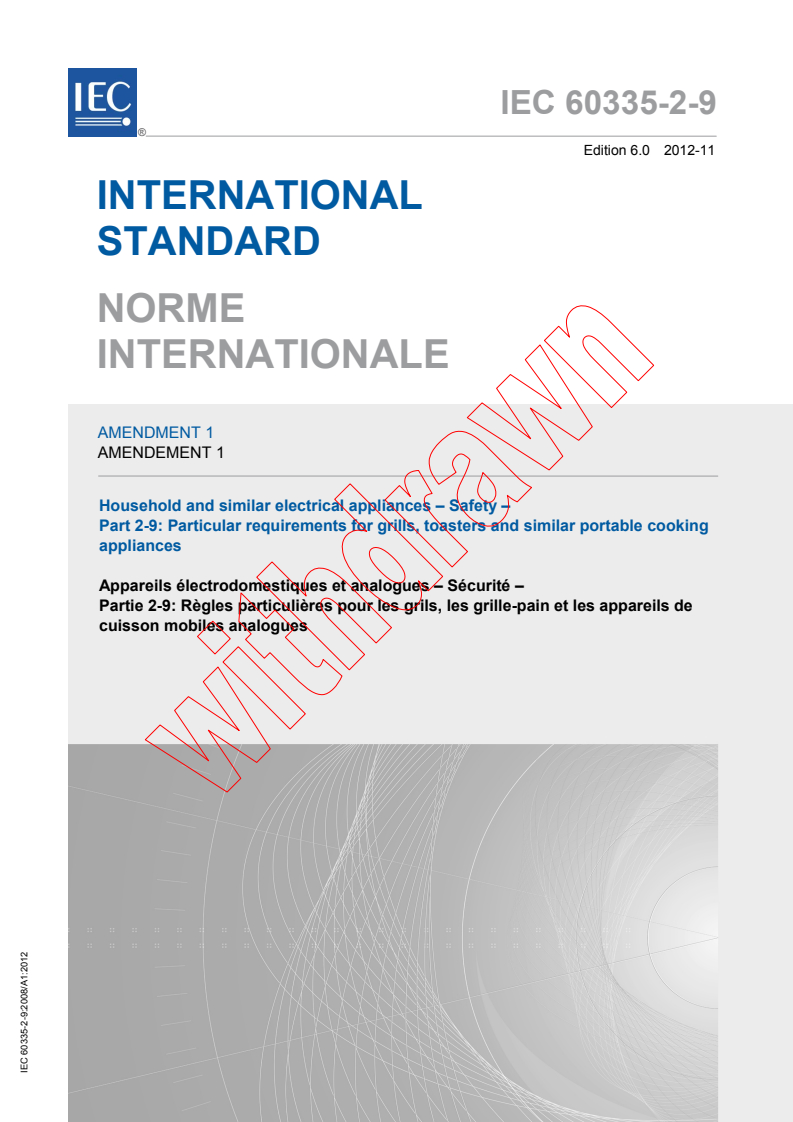

IEC 60335-2-9 ®
Edition 6.0 2012-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Household and similar electrical appliances – Safety –
Part 2-9: Particular requirements for grills, toasters and similar portable cooking
appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-9: Règles particulières pour les grils, les grille-pain et les appareils de
cuisson mobiles analogues
IEC 60335-2-9:2008/A1:2012

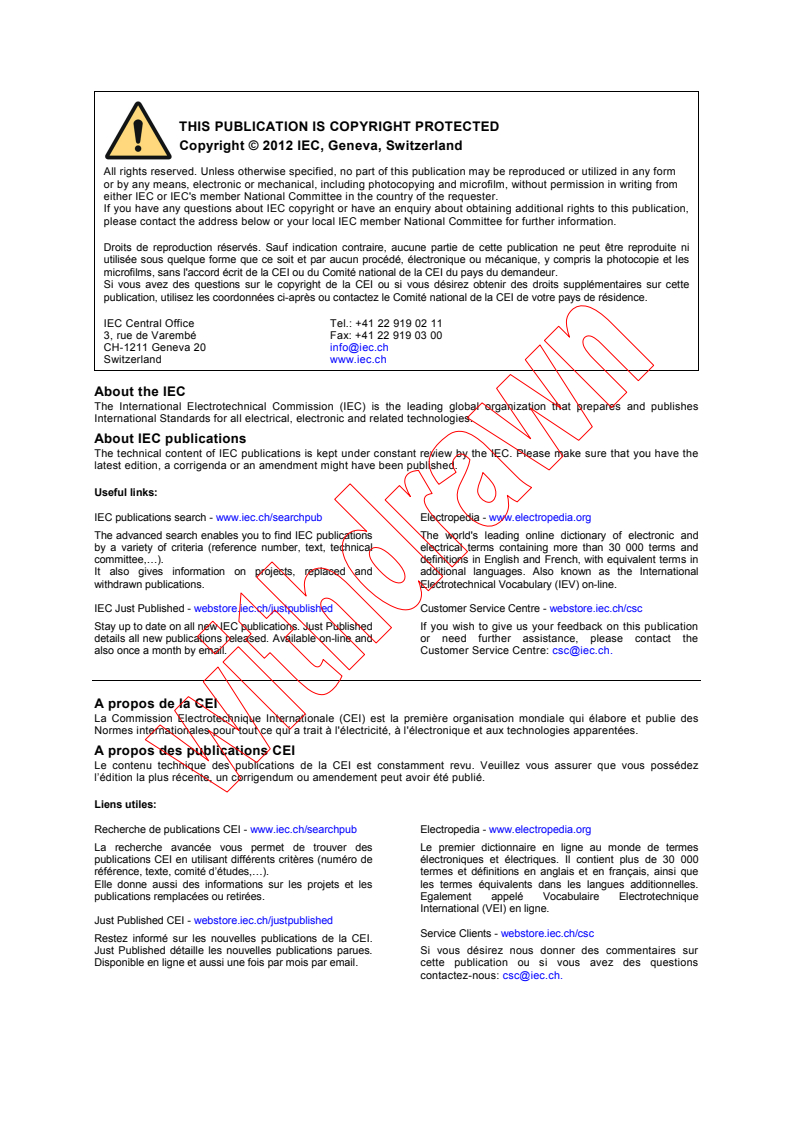

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les

microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: [e-mail].

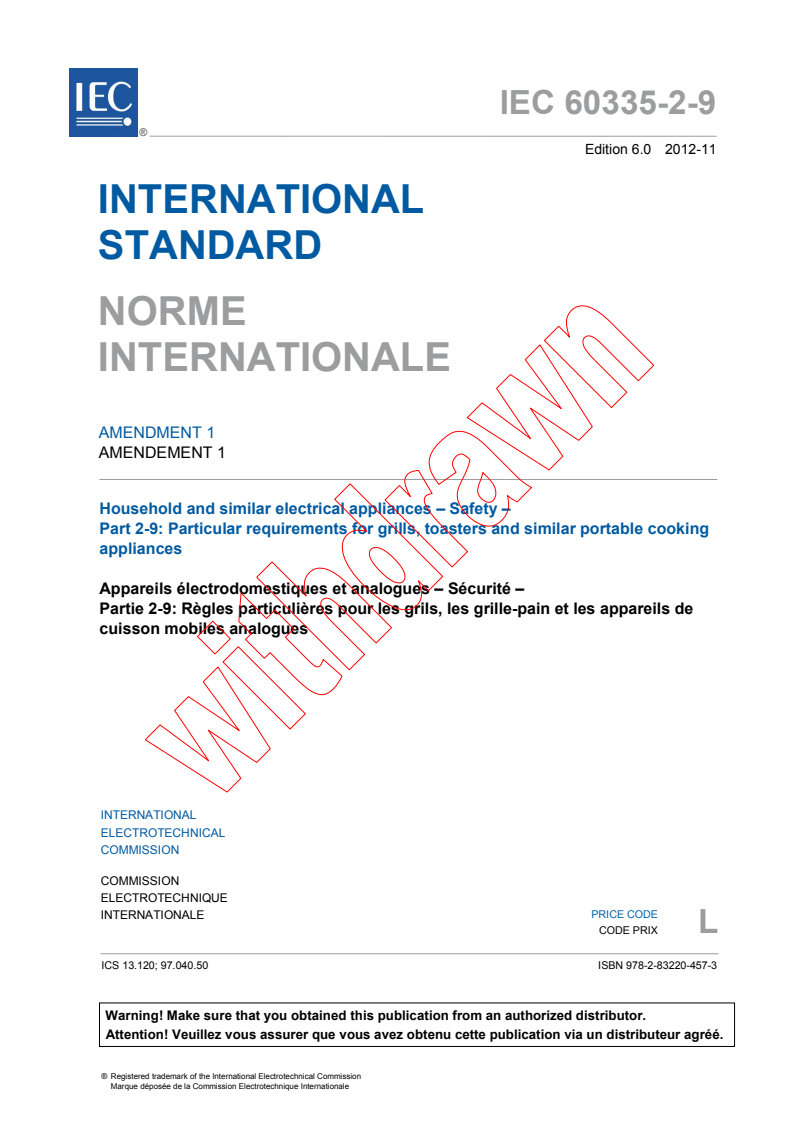

IEC 60335-2-9 ®
Edition 6.0 2012-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Household and similar electrical appliances – Safety –

Part 2-9: Particular requirements for grills, toasters and similar portable cooking

appliances
Appareils électrodomestiques et analogues – Sécurité –

Partie 2-9: Règles particulières pour les grils, les grille-pain et les appareils de

cuisson mobiles analogues
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX L
ICS 13.120; 97.040.50 ISBN 978-2-83220-457-3

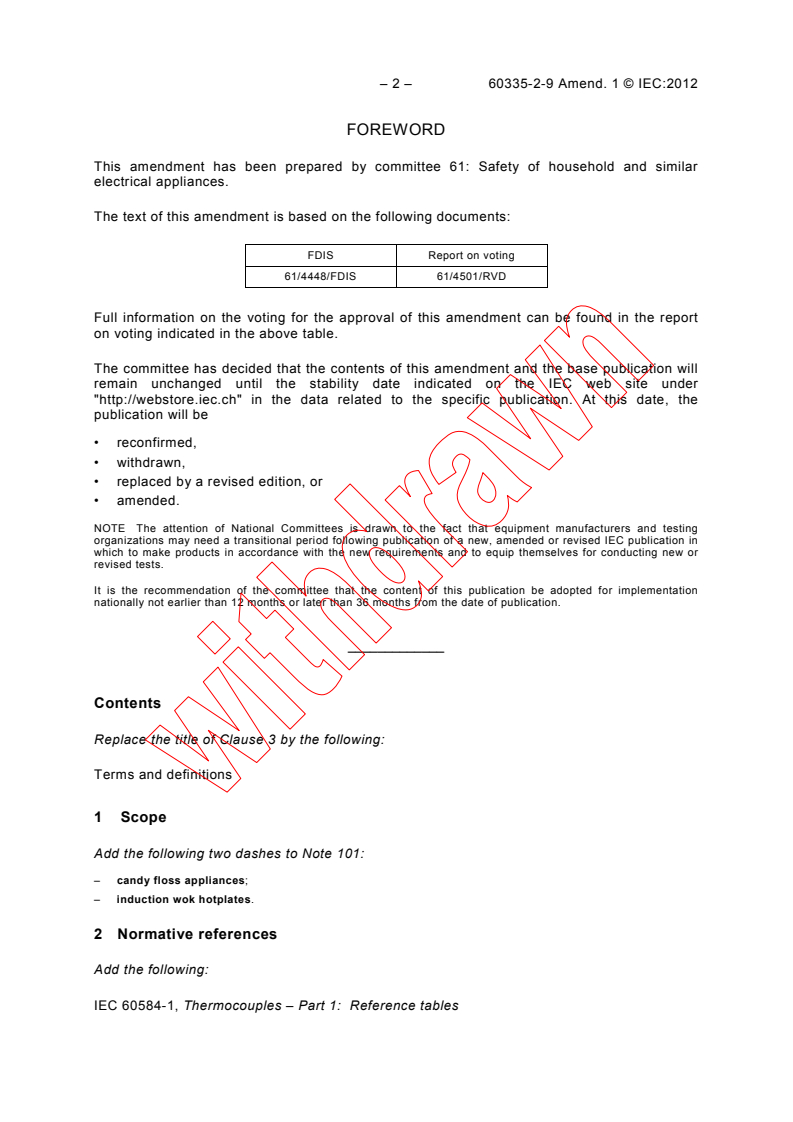

– 2 – 60335-2-9 Amend. 1 © IEC:2012

FOREWORD
This amendment has been prepared by committee 61: Safety of household and similar

electrical appliances.
The text of this amendment is based on the following documents:

FDIS Report on voting
61/4448/FDIS 61/4501/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

_____________
Contents
Replace the title of Clause 3 by the following:
Terms and definitions
1 Scope
Add the following two dashes to Note 101:
– candy floss appliances;
– induction wok hotplates.
2 Normative references
Add the following:
IEC 60584-1, Thermocouples – Part 1: Reference tables

60335-2-9 Amend. 1 © IEC:2012 – 3 –

3 Definitions
Replace the title of Clause 3 but not the clause number, by the following:

Terms and definitions
3.1.9.108 Add the following text as a new third paragraph:

Induction wok hotplates are operated with a wok pan supplied by the manufacturer with the

induction wok hotplate at the point of sale.

Add the following new subclause:
3.1.9.113 Candy floss appliances are operated without ingredients.
Add the following new definitions:
3.121
induction wok hotplate
induction hotplate with a surface of an approximate spherical shape to accept a wok that is
supplied with the appliance at the point of sale
3.122
candy floss appliance
appliance comprised of a heater and a spinning head intended for preparing candy floss
3.123
hot functional surface
surface that is intentionally heated by an internal heat source and that has to be hot to carry
out the intended function of the appliance
7 Marking and instructions
7.1 In the addition, replace the third paragraph by the following:
If appliances have accessible surfaces, for which temperature rise limits are specified in
Table 102 and for which the provisions of footnote b to Table 102 apply, then the appliance
shall be marked with symbol IEC 60417-5041 (2002-10), the rules of ISO 3864-1 applying
except for the specified colours, or with the substance of the following:

CAUTION: Hot surfaces
7.12 Delete the fourth paragraph in the addition.
Replace the fifth paragraph in the addition by the following:
If symbol IEC 60417-5041 (2002-10) is marked on appliances, its meaning shall be explained.
Add the following after the paragraph starting with: “The instructions for breadmakers”
The instructions for candy floss appliances shall state the maximum quantities of sugar and
other ingredients that may be used.
7.14 Replace 12 mm by 20 mm.
– 4 – 60335-2-9 Amend. 1 © IEC:2012

7.15 Replace the addition with the following:

The marking specified for hot surfaces shall be visible when the appliance is operated as in

normal use, including when actuating any switch, adjusting any control or opening a lid or

door. It shall not be placed on a hot functional surface.

11 Heating
11.1 Add the following to the addition:

Compliance for ovens, rotary grills and cookers is also checked by the test of 11.102.
Compliance for contact grills, waffle irons, radiant grills, raclette grills, barbecues,
candy floss appliances and hot plates, is also checked by the test of 11.103.
Compliance for breadmakers, pop-corn makers, and food dehydrators is also checked by
the test of 11.104.
Compliance for roasters is also checked by the test of 11.105.
11.3 Add the following to the addition, after Note 101:
For flat surfaces, temperature rises are measured using the probe of Figure 105. The probe is
applied with a force of 4 N ± 1 N to the surface in such a way that the best possible contact
between the probe and the surface is ensured.
NOTE 102 The probe can be held in place using a laboratory stand clamp or similar device.
NOTE 103 Any measuring instrument giving the same results as the probe can be used.
11.4 Add the following to the addition as a new first paragraph:
Breadmakers are operated as specified for combined appliances.
11.7 Add the following text immediately before NOTE 101:
Candy floss appliances are operated until steady conditions are established.
11.8 Add the following text to the addition:

The temperature rise limits for touch controls also include all surfaces within 5 mm of the
touch controls, regardless of their shape.
Add the following table:
60335-2-9 Amend. 1 © IEC:2012 – 5 –

Table 102 – Temperature rises for external surfaces

a
Surface Temperature rise of external surfaces
b
K
Bare metal 45
e
Coated metal 55
Glass and ceramic 60
c, d
Plastic and plastic coating > 0,4 mm  65
a
The following surfaces or elements shall not be taken into consideration:

• hot functional surfaces;
• handles or control knobs including keypads, keyboards and the like: part of the equipment that a user
needs to touch to operate or adjust the equipment. The equipment has to be installed according to the
manufacturer’s instructions;
• surfaces within 5 mm of touch controls regardless of their shape.
b
When the required values are not met, the maximum temperature rise shall not be higher than two times the
values indicated.
c
The temperature rise limit of plastic also applies for plastic material having a metal finish of thickness less
than 0,1 mm.
d
When the thickness of the plastic coating does not exceed 0,4 mm, the temperature rise limits of the coated
metal or of glass and ceramic material apply.
e
Metal is considered coated when a coating having a minimum thickness of 90 µm made by enamel, powder
or non-substantially plastic coating is used.

11.101 Replace the text by the following:
Toasters are placed as specified in 11.2 and are operated for three cycles at rated power
under normal operation.
During the test, the temperature rise of surfaces shall not exceed the values specified in
Table 102.
Temperature rises are not measured on:
– the top side of top loaded appliances and surfaces within 25 mm below the top surface;
– surfaces within 25 mm around the outline of the hot functional surface;
– surfaces within 25 mm from the ventilation openings;
– underside surfaces that are not accessible with test probe 41 of IEC 61032, the probe
being applied with a force not exceeding 1 N.

Add the following new subclauses:
11.102 Ovens, rotary grills and cookers are placed as specified in 11.2 and are supplied
at rated power input and operated under normal operation.
All heating units that can be energised simultaneously during normal use are switched on.
Ovens are operated without shelves or other accessories.
Temperature rises are not measured on the following surfaces (see Figure 106):
– surfaces on the oven door within 10 mm from the edge of the door (Zone 1);
– surfaces around the oven door within 10 mm from the left, right or lower edge of the door,
or 25 mm from the upper edge of the door (Zone 2);
– surfaces within 25 mm of vents (Zone 3);

– 6 – 60335-2-9 Amend. 1 © IEC:2012

– underside surfaces that are not accessible with test probe 41 of IEC 61032, the probe

being applied with a force not exceeding 1 N;

– the rear surface of appliances which, according to the instructions, shall be placed against

a wall;
– surfaces within 25 mm from the level of the top surface of cookers when the hotplates
are in operation.
Appliances are operated until steady conditions are established or for 60 min, whichever is

shorter.
During the test, the temperature rise of surfaces shall not exceed the values specified in

Table 102.
Ovens having settings higher than 240 °C are also operated at the maximum setting until
steady conditions are established or
...
