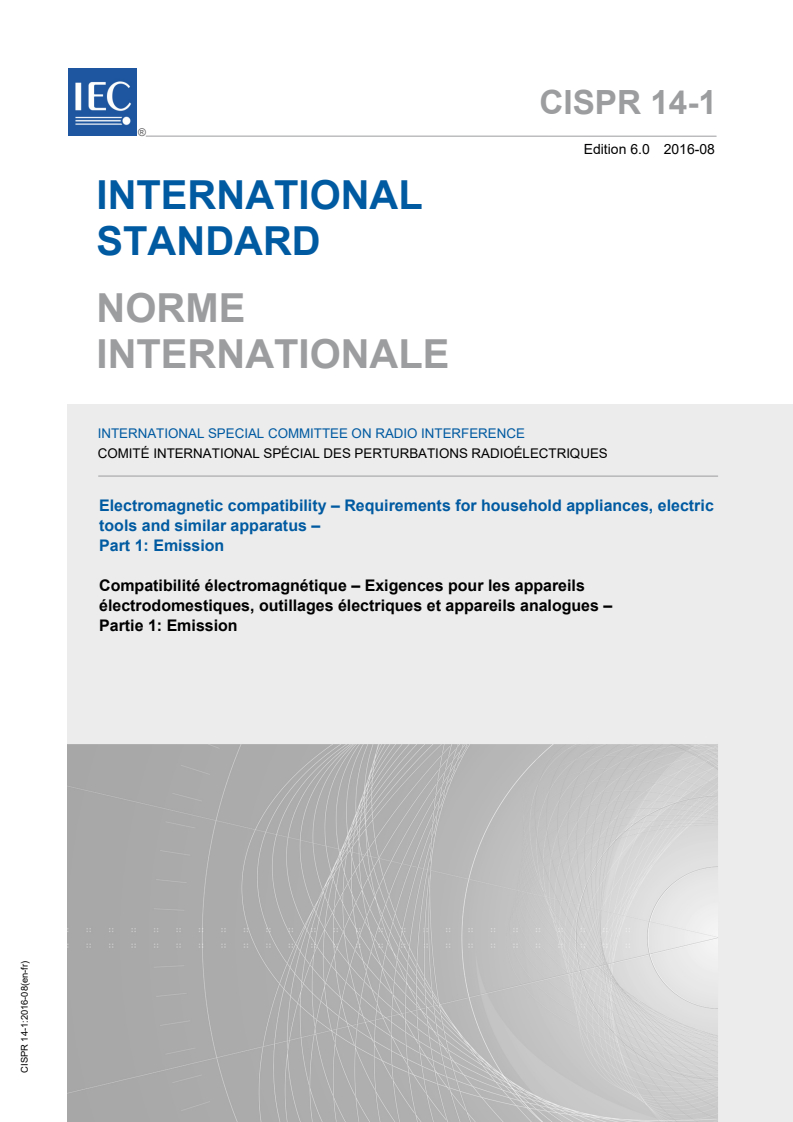

CISPR 14-1 ®
Edition 6.0 2016-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
IN TERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
C OMITÉ INTERNATIONAL SPÉCIAL DES PERTURBATIONS RADIOÉLECTRIQUES
Electromagnetic compatibility – Requirements for household appliances, electric
tools and similar apparatus –
Part 1: Emission
Compatibilité électromagnétique – Exigences pour les appareils
électrodomestiques, outillages électriques et appareils analogues –
Partie 1: Emission

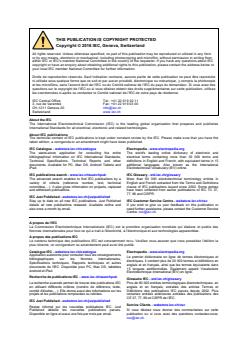

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,
77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC Plus de 60 000 entrées terminologiques électrotechniques, en
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des
CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

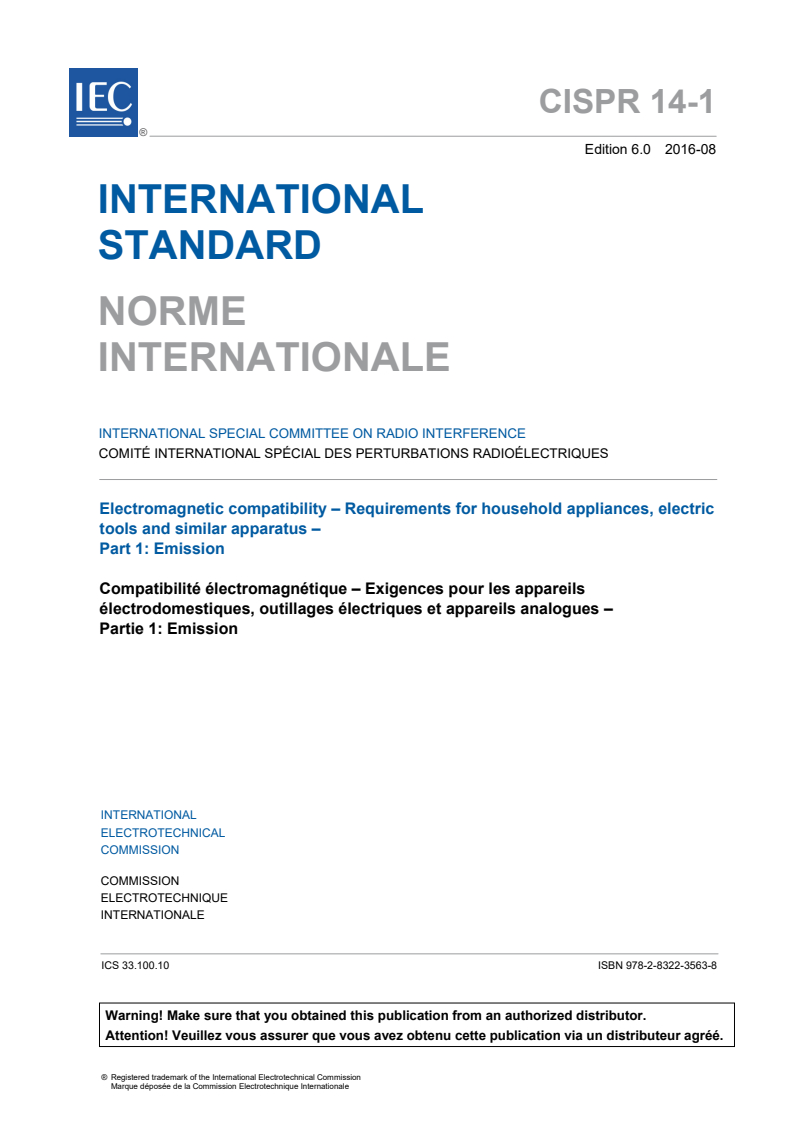

CISPR 14-1 ®
Edition 6.0 2016-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
IN TERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
C OMITÉ INTERNATIONAL SPÉCIAL DES PERTURBATIONS RADIOÉLECTRIQUES
Electromagnetic compatibility – Requirements for household appliances, electric
tools and similar apparatus –
Part 1: Emission
Compatibilité électromagnétique – Exigences pour les appareils
électrodomestiques, outillages électriques et appareils analogues –
Partie 1: Emission
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.100.10 ISBN 978-2-8322-3563-8
– 2 – CISPR 14-1:2016/ISH1:2017
IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CISPR 14-1
Edition 6.0 2016-08
ELECTROMAGNETIC COMPATIBILITY –
REQUIREMENTS FOR HOUSEHOLD APPLIANCES,
ELECTRIC TOOLS AND SIMILAR APPARATUS –
Part 1: Emission
INTERPRETATION SHEET 1
This interpretation sheet has been prepared by subcommittee CISPR F: Interference relating
to household appliances tools, lighting equipment and similar apparatus, of IEC technical
committee CISPR: International special committee on radio interference.
The text of this interpretation sheet is based on the following documents:
FDIS Report on voting
CIS/F/703/FDIS CIS/F/707/RVD
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.
___________

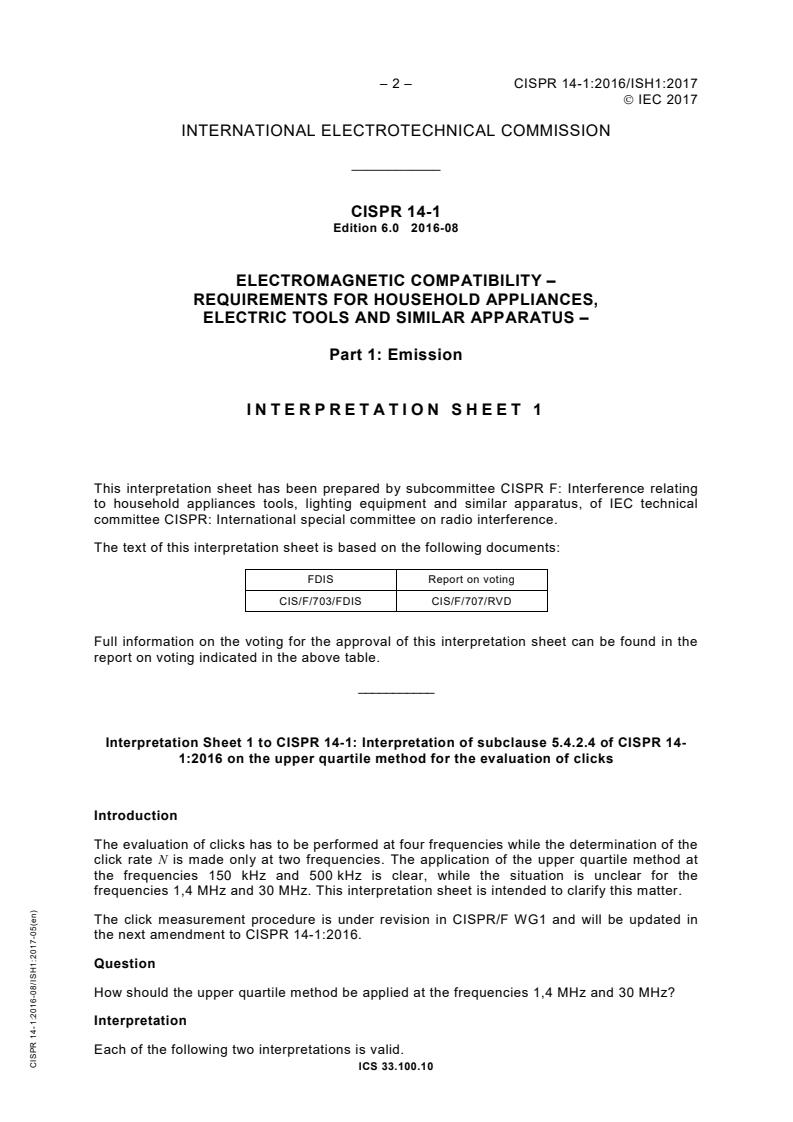

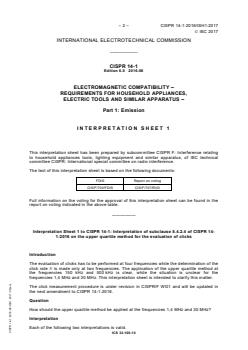

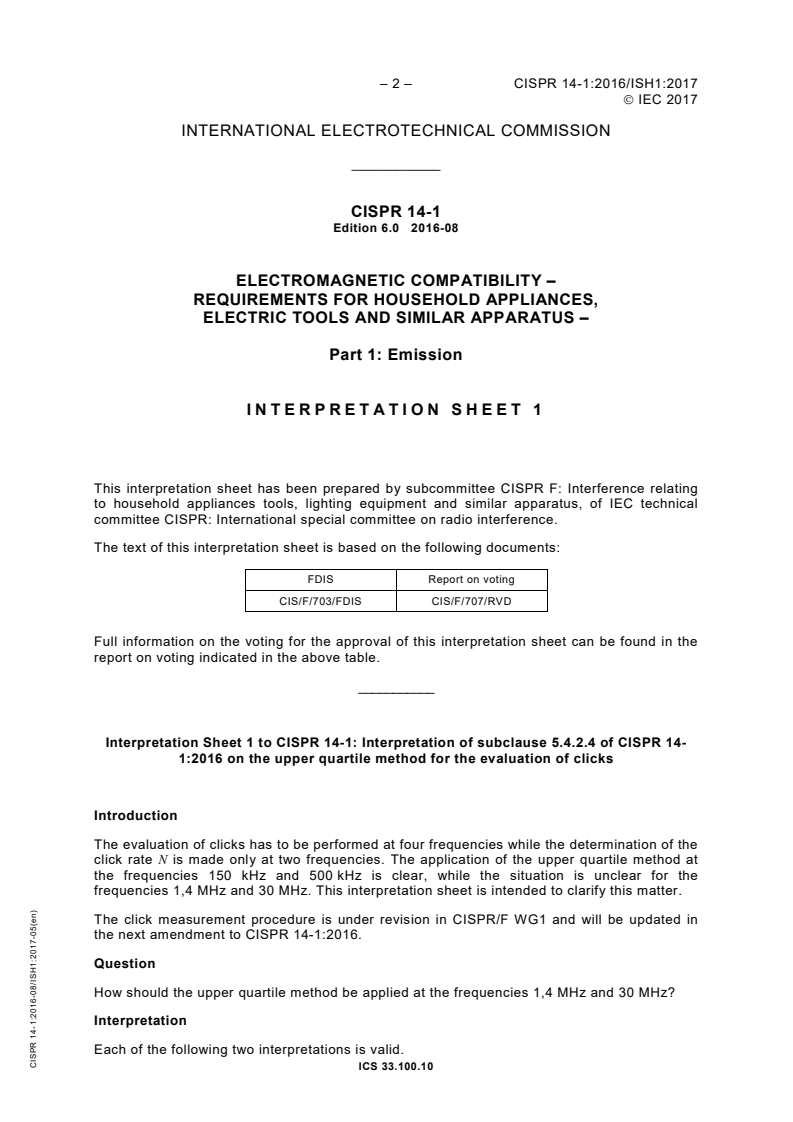

Interpretation Sheet 1 to CISPR 14-1: Interpretation of subclause 5.4.2.4 of CISPR 14-
1:2016 on the upper quartile method for the evaluation of clicks
Introduction
The evaluation of clicks has to be performed at four frequencies while the determination of the
click rate N is made only at two frequencies. The application of the upper quartile method at
the frequencies 150 kHz and 500 kHz is clear, while the situation is unclear for the
frequencies 1,4 MHz and 30 MHz. This interpretation sheet is intended to clarify this matter.
The click measurement procedure is under revision in CISPR/F WG1 and will be updated in
the next amendment to CISPR 14-1:2016.
Question
How should the upper quartile method be applied at the frequencies 1,4 MHz and 30 MHz?
Interpretation
Each of the following two interpretations is valid.
ICS 33.100.10
IEC 2017
Interpretation 1:
The number of clicks at 1,4 MHz and the number of clicks at 30 MHz which exceed the limit,
L, for continuous disturbances during the observation time, T, are measured. The number of
clicks at 1,4 MHz and the number of clicks at 30 MHz exceeding L are allowed to be one
q
quarter of the number of clicks counted at each respective frequency.
Interpretation 2:
The number of clicks at 1,4 MHz and the number of clicks at 30 MHz which exceed the limit,
L, for continuous disturbances during the observation time, T, are not measured but are
assumed to be equal to the number of clicks counted at 500 kHz during the observation time
T. The number of clicks at 1,4 MHz and the number of clicks at 30 MHz exceeding L are
q
allowed to be one quarter of the number of clicks counted at 500 kHz.
In any situation where it is necessary to verify the original measurement, the assessment
method (interpretation 1 or 2) originally chosen shall be used in order to ensure consistency
of the results.
__________
– 2 – CISPR 14-1:2016/ISH2:2017
IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CISPR 14-1
Edition 6.0 2016-08
ELECTROMAGNETIC COMPATIBILITY –
REQUIREMENTS FOR HOUSEHOLD APPLIANCES,
ELECTRIC TOOLS AND SIMILAR APPARATUS –
Part 1: Emission
INTERPRETATION SHEET 2
This interpretation sheet has been prepared by subcommittee CISPR F: Interference relating
to household appliances tools, lighting equipment and similar apparatus, of IEC technical
committee CISPR: International special committee on radio interference.
The text of this interpretation sheet is based on the following documents:
FDIS Report on voting
CIS/F/702/FDIS CIS/F/706/RVD
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.
___________
Interpretation Sheet 2 to CISPR 14-1: Interpretation of subclause A.4.11 of CISPR 14-
1:2016 on the assessment of irons with steam generator
Introduction
Subclause A.4.11 of CISPR 14-1:2016 defines the testing conditions for irons (dry or steam),
but there are no instructions regarding the steam production.
Question
How to set the steam function of irons during CISPR 14-1 emission tests?
ICS 33.100.10
IEC 2017
Interpretation
When measuring disturbances from irons, if the iron has a continuous steam function, it shall
be operated in this mode only and use a sufficient amount of water to facilitate continuous
steaming for the duration of the test.
