Configurable car infotainment services (CCIS) - Part 1: General

IEC 63246-1:2021 describes the general considerations of CCIS, which include the system model of the CCIS and the types of CCIS clients with the associated service flows.

Services d'infodivertissements configurables pour les véhicules (CCIS) - Partie 1: Généralités

L'IEC 63246-1:2021 décrit les considérations générales du CCIS, qui incluent le modèle de système du CCIS et les types de clients CCIS avec les flux de services associés.

General Information

Status
Published
Publication Date
26-Aug-2021
Current Stage
PPUB - Publication issued
Completion Date
27-Aug-2021
Ref Project

Buy Standard

Standard
IEC 63246-1:2021 - Configurable car infotainment services (CCIS) - Part 1: General
English and French language
37 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 63246-1
Edition 1.0 2021-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Configurable car infotainment services (CCIS) –
Part 1: General
Services d'infodivertissements configurables pour les véhicules (CCIS) –
Partie 1: Généralités
IEC 63246-1:2021-08(en-fr)
---------------------- Page: 1 ----------------------

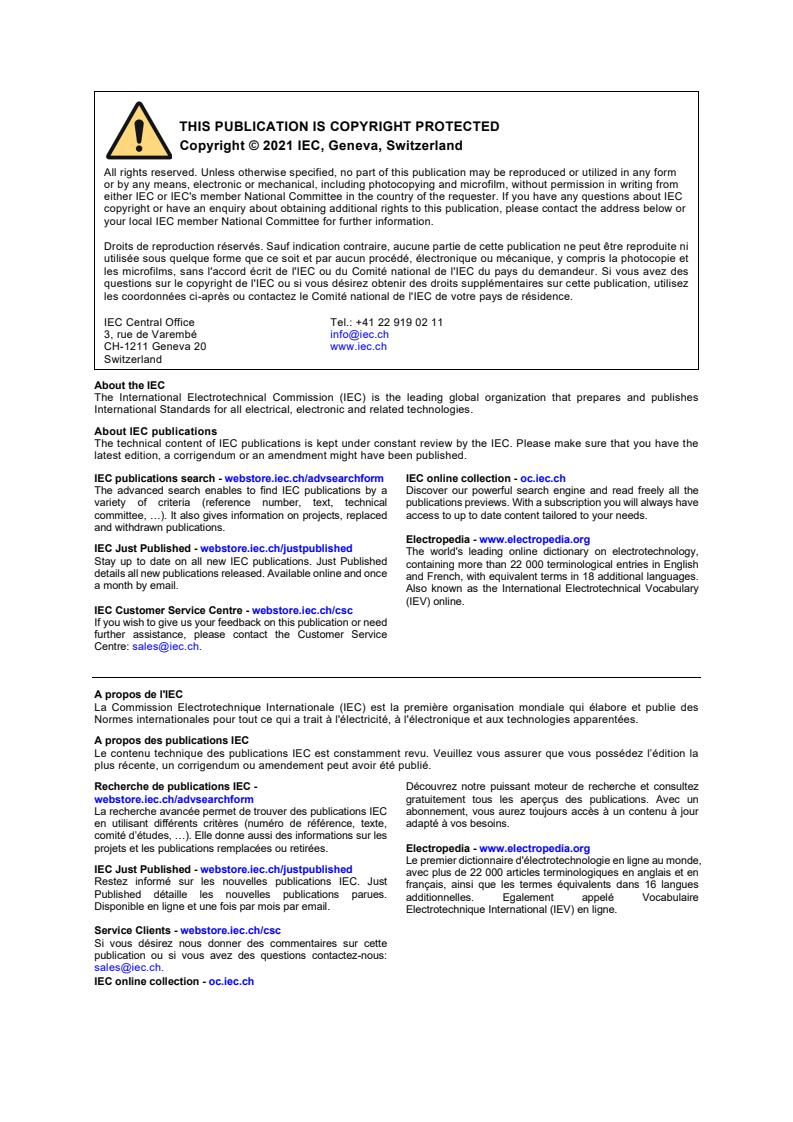

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni

utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et

les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always have

committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 18 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez

webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un

La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour

en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.

comité d’études, …). Elle donne aussi des informations sur les

projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 000 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 16 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC online collection - oc.iec.ch
---------------------- Page: 2 ----------------------
IEC 63246-1
Edition 1.0 2021-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Configurable car infotainment services (CCIS) –
Part 1: General
Services d'infodivertissements configurables pour les véhicules (CCIS) –
Partie 1: Généralités
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 43.040.15 ISBN 978-2-8322-1016-6

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

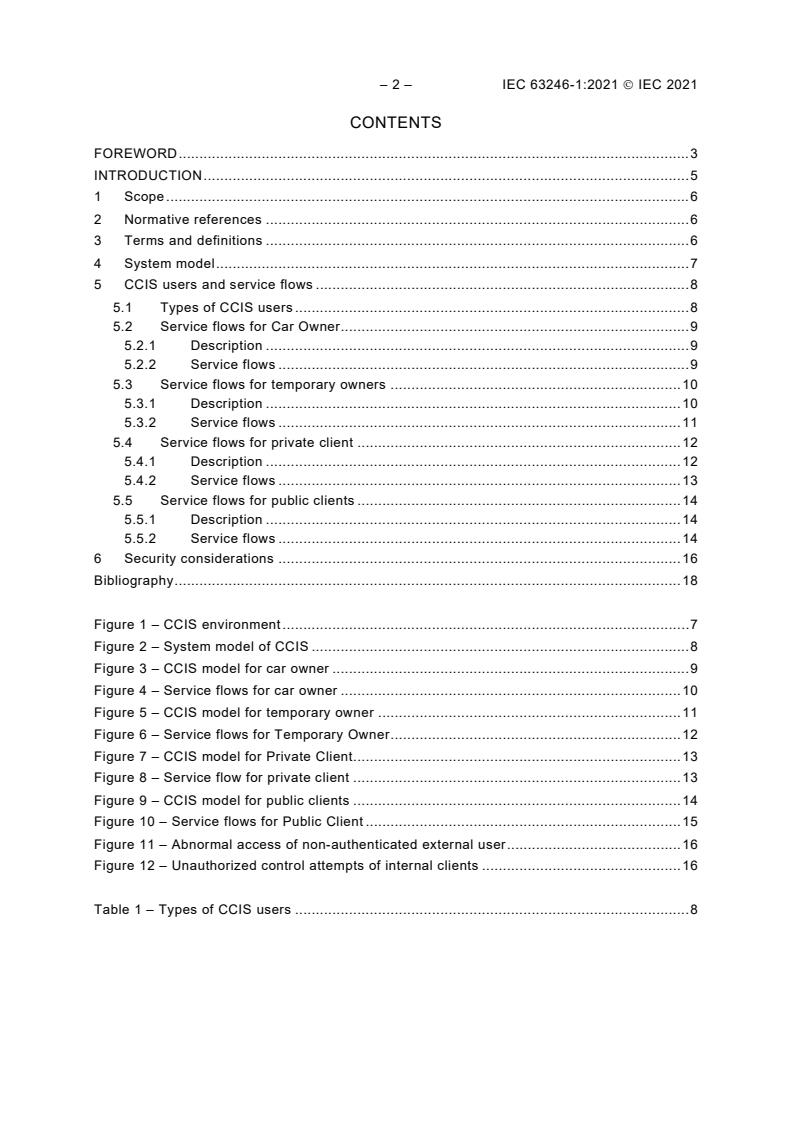

– 2 – IEC 63246-1:2021  IEC 2021
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

4 System model .................................................................................................................. 7

5 CCIS users and service flows .......................................................................................... 8

5.1 Types of CCIS users ............................................................................................... 8

5.2 Service flows for Car Owner .................................................................................... 9

5.2.1 Description ...................................................................................................... 9

5.2.2 Service flows ................................................................................................... 9

5.3 Service flows for temporary owners ...................................................................... 10

5.3.1 Description .................................................................................................... 10

5.3.2 Service flows ................................................................................................. 11

5.4 Service flows for private client .............................................................................. 12

5.4.1 Description .................................................................................................... 12

5.4.2 Service flows ................................................................................................. 13

5.5 Service flows for public clients .............................................................................. 14

5.5.1 Description .................................................................................................... 14

5.5.2 Service flows ................................................................................................. 14

6 Security considerations ................................................................................................. 16

Bibliography .......................................................................................................................... 18

Figure 1 – CCIS environment .................................................................................................. 7

Figure 2 – System model of CCIS ........................................................................................... 8

Figure 3 – CCIS model for car owner ...................................................................................... 9

Figure 4 – Service flows for car owner .................................................................................. 10

Figure 5 – CCIS model for temporary owner ......................................................................... 11

Figure 6 – Service flows for Temporary Owner ...................................................................... 12

Figure 7 – CCIS model for Private Client............................................................................... 13

Figure 8 – Service flow for private client ............................................................................... 13

Figure 9 – CCIS model for public clients ............................................................................... 14

Figure 10 – Service flows for Public Client ............................................................................ 15

Figure 11 – Abnormal access of non-authenticated external user .......................................... 16

Figure 12 – Unauthorized control attempts of internal clients ................................................ 16

Table 1 – Types of CCIS users ............................................................................................... 8

---------------------- Page: 4 ----------------------
IEC 63246-1:2021  IEC 2021 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONFIGURABLE CAR INFOTAINMENT SERVICES (CCIS) –
Part 1: General
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 63246-1 has been prepared by TA17: Multimedia systems and

equipment for vehicles, of IEC technical committee 100: Audio, video and multimedia systems

and equipment.
The text of this International Standard is based on the following documents:
CDV Report on voting
100/3414/CDV 100/3538/RVC

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this International Standard is English.
---------------------- Page: 5 ----------------------
– 4 – IEC 63246-1:2021  IEC 2021

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.

A list of all parts in the IEC 63246 series, published under the general title Configurable car

infotainment services (CCIS), can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct understanding

of its contents. Users should therefore print this document using a colour printer.

---------------------- Page: 6 ----------------------
IEC 63246-1:2021  IEC 2021 – 5 –
INTRODUCTION

The market for car infotainment services (also known as "in-vehicle infotainment systems") has

been growing rapidly, as reflected by the growth of the associated industries. It is expected that

a variety of car infotainment (or multimedia) devices and services will be developed in the future.

Such devices include navigation, cameras, speakers, headrest displays, air-conditioners,

thermometers, heated seats, and lights. It is also expected that some devices will be developed

to provide 4-dimensional experiences for users.

Car infotainment systems typically include A/V features (such as standard radio and CD players),

and two-way communications tools, as well as hands-free phone connections, vehicle voice

commands, and other types of interactive audios or videos. Car infotainment systems have

evolved to allow passengers to watch movies and other visual media (for example, DVD players

installed on the rear seats). Another distinctive feature of future car infotainment systems is

mobile device connectivity. Newer vehicles provide a wide range of systems that allow devices

(e.g. smartphones and laptops) to be connected to a variety of services embedded in the vehicle.

From this observation, there is a crucial need for standardization to provide car infotainment

users with more enhanced services so as to easily manage and control infotainment devices as

well as content within a car.

The purpose of the IEC 63246 series is to specify the general considerations, requirements,

framework, and protocols to provide car users with the functionality of managing and controlling

device and content resources within a car.
The IEC 63246 series consists of the following parts:
– Part 1: General;
– Part 2: Requirements;
– Part 3: Framework; and
– Part 4: Protocol.

IEC 63246-1 describes the general considerations of CCIS, which includes the CCIS system

model and the types of CCIS users with the associated service flows.

IEC 63246-2 describes the requirements for CCIS, which include the CCIS functional entities,

the communication model, and the functional requirements.

IEC 63246-3 describes the CCIS framework, which includes the information flows between

functional entities and the CCIS operations, such as registration, device monitoring and control,

and data transfer.

IEC 63246-4 describes the CCIS protocol, which includes the protocol messages and

parameters, protocol procedures, implementation guidelines, etc.
---------------------- Page: 7 ----------------------
– 6 – IEC 63246-1:2021  IEC 2021
CONFIGURABLE CAR INFOTAINMENT SERVICES (CCIS) –
Part 1: General
1 Scope

This part of IEC 63246 describes the general considerations of CCIS, which include the system

model of the CCIS and the types of CCIS clients with the associated service flows.

2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
CCIS
configurable car infotainment services

service to manage and use a variety of devices within a car and to provide device control

functionality for clients
Note 1 to entry: This note applies to the French language only.
3.2
CCIS user

user that can use and control the CCIS devices within the car with the help of the CCIS master

Note 1 to entry: CCIS users are classified as follows: car owner, temporary owner, public client, and private client.

3.3
CCIS device

device within the car that can be controlled and managed by the CCIS master, which can be a

device (smart phone, speaker, multimedia player, etc.) or content (music, video, etc.) on a

device
Note 1 to entry: Each CCIS device may be shared by one or more CCIS users.
3.4
CCIS master

central device to provide overall management and control functions for CCIS services and users

3.5
CCIS content

content comprising information and experience that are directed towards a CCIS user, which

can be video, audio, still images, graphics, and data streams taken together to form a single

identifiable unit
---------------------- Page: 8 ----------------------
IEC 63246-1:2021  IEC 2021 – 7 –
3.6
CCIS profile

information (metadata of device, service level, etc.) and set of parameters in which pre-

configured settings or the CCIS user can provide specific instructions to the CCIS device

(destination of navigation, sound size, brightness, screen size, air conditioner temperature

setting, etc.)
4 System model

The CCIS service or system provides the CCIS users with a communication interface to easily

manage and control a variety of CCIS devices and CCIS profiles within the car, with the help of

the CCIS master, as shown in Figure 1. The CCIS system may be equipped within the car as a

built-in platform or by a software upgrade.
Figure 1 – CCIS environment

Figure 2 illustrates the system model of CCIS. The CCIS system connects the CCIS master to

a variety of CCIS devices within a car to manage and control the CCIS devices. The CCIS users

can use CCIS services through a communication interface with the CCIS master, in which a

CCIS user can control a CCIS device or enjoy the CCIS content contained in the device. For

this purpose, the CCIS master shall manage CCIS devices and CCIS profiles, such as device

status and availability, and a CCIS user can access CCIS devices via appropriate registration

and authentication processes with the CCIS master. A CCIS user can be categorized as follows:

car owner, temporary owner, private client, and public client.
---------------------- Page: 9 ----------------------
– 8 – IEC 63246-1:2021  IEC 2021
Figure 2 – System model of CCIS
5 CCIS users and service flows
5.1 Types of CCIS users

There is expected to be a wide variety of smart devices and CCIS profiles in the car. Depending

on the type of CCIS user, some devices can be allowed, whereas the others can be restricted

for use as CCIS services. In this respect, the types of CCIS users are categorized into the four

cases, as shown in Table 1.
Table 1 – Types of CCIS users
Classification Long-term use Short-term use
Owner Car owner Temporary owner
(authentication not required)
Client Private client Public client
(authentication required)

As shown in Table 1, a CCIS user is categorized into car owner, temporary owner, private client,

and public client, based on ownership and usage period, as follows:

– Car owner: a user who owns the car with a CCIS master and has the overall authority for

CCIS functions and services. Ownership of the car is long-term.

– Temporary owner: a user who takes the ownership from car owner temporarily (e.g. a car-

sharing or rental service user). The specific level of authority for use of CCIS services that

is given to a temporary owner may be pre-specified by the car owner.

– Private client: a user who can utilize the CCIS services in the long-term without ownership

(e.g., a family member of the car owner). The specific level of authority for use of CCIS

services that is given to a private client may be pre-specified by the car owner.

– Public client: a user who is not authenticated by the CCIS master yet (e.g. a guest). A public

client shall perform the registration and authentication process with the CCIS master.

---------------------- Page: 10 ----------------------
IEC 63246-1:2021  IEC 2021 – 9 –
The CCIS devices may be shared or not, depending on their features as follows:

– CCIS device sharing allowed (shared device): device shared by one or more users in the

car (e.g. air-conditioner and speaker);

– CCIS device sharing not allowed (personal device): device dedicated only to a particular

user type (e.g. headrest display and heated seat).
5.2 Service flows for Car Owner
5.2.1 Description

Figure 3 shows the service model, in which the car owner uses their own CCIS devices and

CCIS content.

Alice is working in the sales department of her company. The characteristics of her work lead

her to spend a lot of time in her car. Accordingly, she equipped her car with various devices,

such as an event video data recorder for road vehicle accidents (EVDR, see the IEC 63005

series), smart mirrors, cameras, a headrest display, and so on. In addition, she installed a CCIS

master to efficiently manage those devices.

One day, Alice made an appointment to sign a contract with her client. She jumped into her car

for a meeting. When she gets in the car, her smartphone automatically connects to the CCIS

master, and she asks a list of available CCIS devices and CCIS content from the CCIS master.

The CCIS master sends the available resource list of available CCIS devices and CCIS content

to Alice's smartphone. Because Alice wants to play her favourite music files stored in her

smartphone, she chooses to play the music files during her drive. After Alice arrived at the

meeting place, she closed the connection with the CCIS master and headed to the conference

room.

In this service model, there can be a security issue. An external user, who has not been

registered and authorized, can try to access the CCIS master, and then the external user can

try to add or remove a CCIS device with the authority of the car owner. Thus, the registration

and authorization with the CCIS master should be provided for the car owner.
Figure 3 – CCIS model for car owner
5.2.2 Service flows
Figure 4 shows the service flows associated with the service example in 5.2.1.
---------------------- Page: 11 ----------------------
– 10 – IEC 63246-1:2021  IEC 2021

1) When Alice is in the vehicle, her smart device is connected to the CCIS master and retrieves

a list of CCIS devices.

2) Alice selects a speaker from the CCIS device and the CCIS content list and sends an

occupancy request message to the CCIS master. Upon the request, the CCIS master sends

an occupancy notification to the speaker, and the speaker will respond with an occupancy

response to inform that the connection is ready. The CCIS master sends a device seize

acknowledgment to Alice. Alice plays music files that are stored in the smart device through

the speaker.

3) Alice releases the occupancy of the speaker, and terminates the connection with the CCIS

master. Then, the CCIS master changes the status of the speaker to available.
Figure 4 – Service flows for car owner
5.3 Service flows for temporary owners
5.3.1 Description

Figure 5 shows the service model in which the temporary owner is using a CCIS speaker device.

---------------------- Page: 12 ----------------------
IEC 63246-1:2021  IEC 2021 – 11 –

Bob, who travels for a holiday, will rent a car to travel comfortably. Bob, who chose the car, has

to go through the registration process as a temporary owner for the car to rent. A rental car

service manager with the authority of the car owner changes the mode of the CCIS master to

the temporary owner mode. After the mode change, Bob sends a temporary owner registration

request to CCIS master. Then, the service manager will set a period, and selectively accessible

CCIS device and CCIS content, and approves the request. The approved CCIS master registers

Bob as a temporary owner.

In the case of the temporary owner, additional procedures and certifications are required. For

example, it is necessary to define the period in which temporary owners can have the authority

of the owner and also to classify the CCIS devices and CCIS contents that can be accessed.

Figure 5 – CCIS model for temporary owner
5.3.2 Service flows
Figure 6 shows the service flows associated with the service example in 5.3.1.
---------------------- Page: 13 ----------------------
– 12 – IEC 63246-1:2021  IEC 2021
Figure 6 – Service flows for Temporary Owner

1) The first phase shows a car rental company's (administrator's) configuration of the CCIS

master's user mode. Note that CCIS devices and CCIS content capabilities provided by the

CCIS master can vary depending on the payment. First, the administrator requests the CCIS

master to modify the user mode. Then, the CCIS master provides the administrator with the

list of available CCIS devices and CCIS content. The administrator assigns an accessible

CCIS device access list to the CCIS master. With an assigned resource access list, the

CCIS master can change its user mode. When the CCIS master changes its user mode
successfully, the CCIS master confirms that the user mode was changed.

2) The second phase shows how Bob becomes an appropriate user of the CCIS master during

the rental period. Bob tries to connect to the CCIS master. Because Bob is not a registered

user, the CCIS master queries the car rental company for Bob's involvement. When the car

rental company grants Bob's involvement, the CCIS master informs Bob that he now has

the rights of a temporary owner.
5.4 Service flows for private client
5.4.1 Description

Figure 7 shows the service model in which a user registered the CCIS master as a private client

to use CCIS devices.

Alice got into her car to go to the movie cinema with her brother Chris over the weekend. Chris

tries to use Alice's headrest display in front of her seat to show her a list of movies he wants to

see. Chris's smartphone, which has already been registered as a private client, automatically

receives the CCIS device list from the CCIS master, and Chris has chosen the headrest display

in front of her seat. When selecting the movie is done, Chris tries to use the speakers to play

the music stored on his smartphone. Chris sends a request to the CCIS master so as to use the

speaker, and the CCIS master makes a request to Alice for permission to use the speaker,

which is a shared CCIS device. Having obtained an authorization from Alice, Chris played music

stored on his smartphone through the speakers.
---------------------- Page: 14 ----------------------
IEC 63246-1:2021  IEC 2021 – 13 –
In this service model, there can be a security issue. An unauthorized client (s
...
